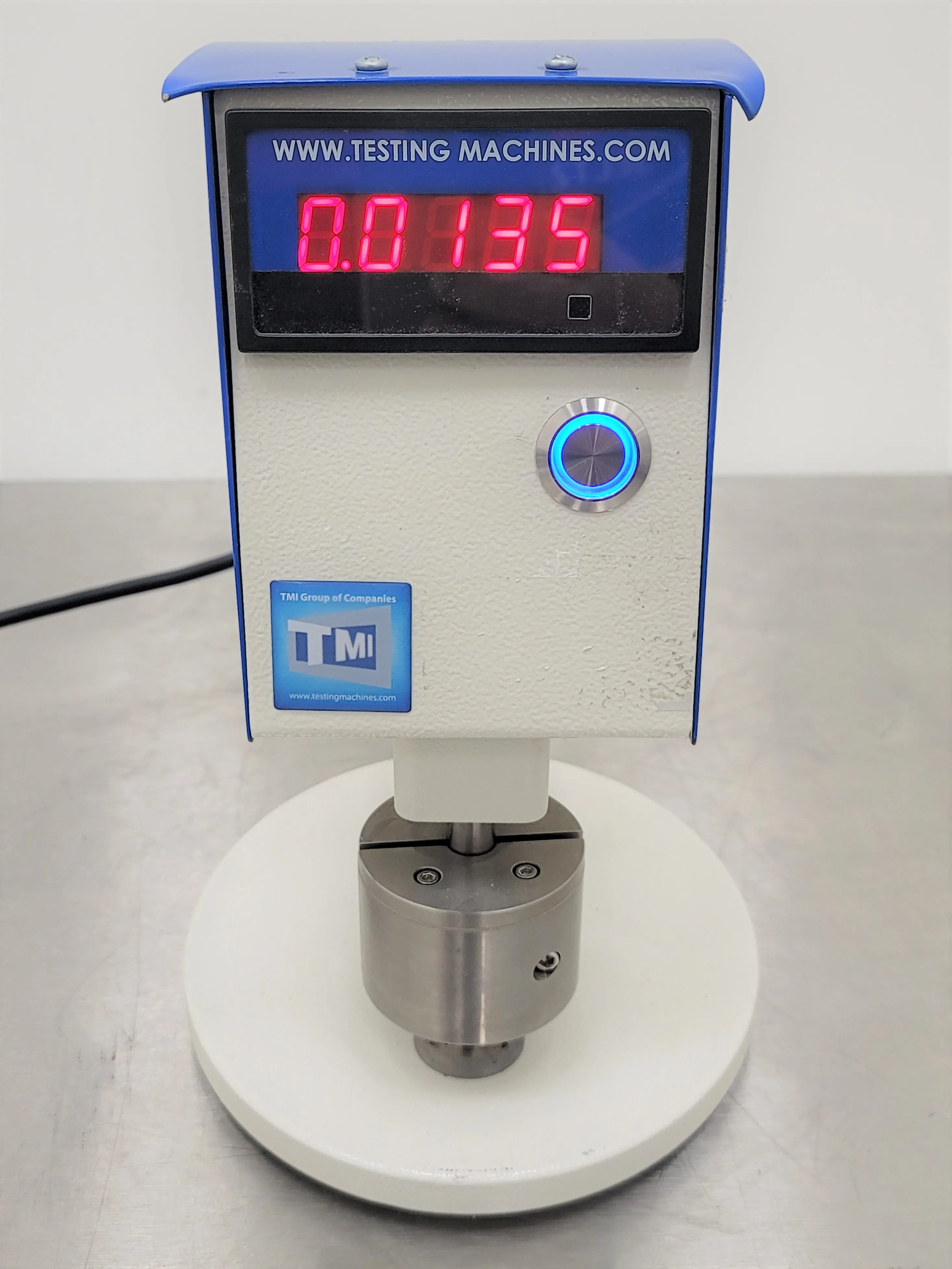

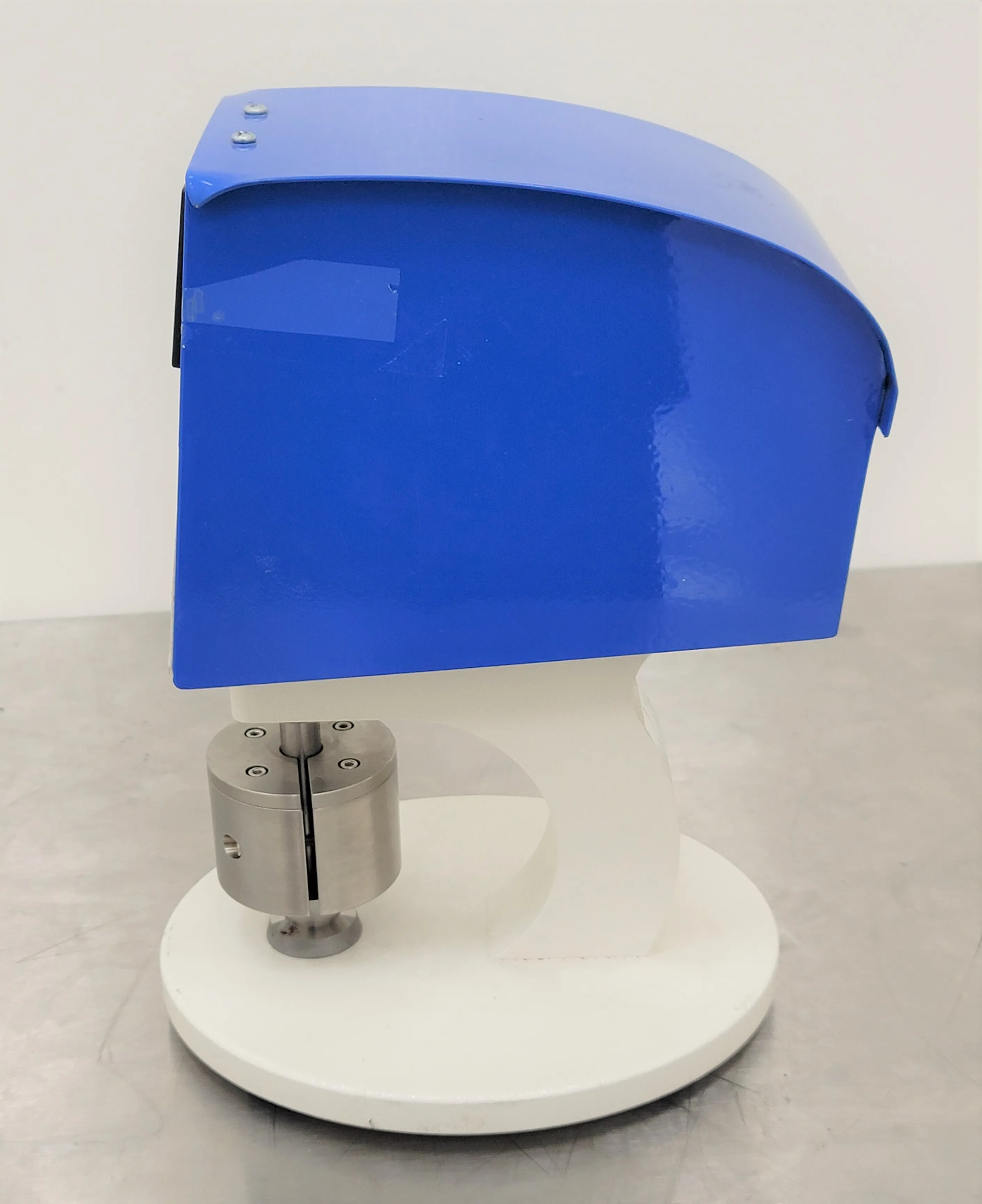

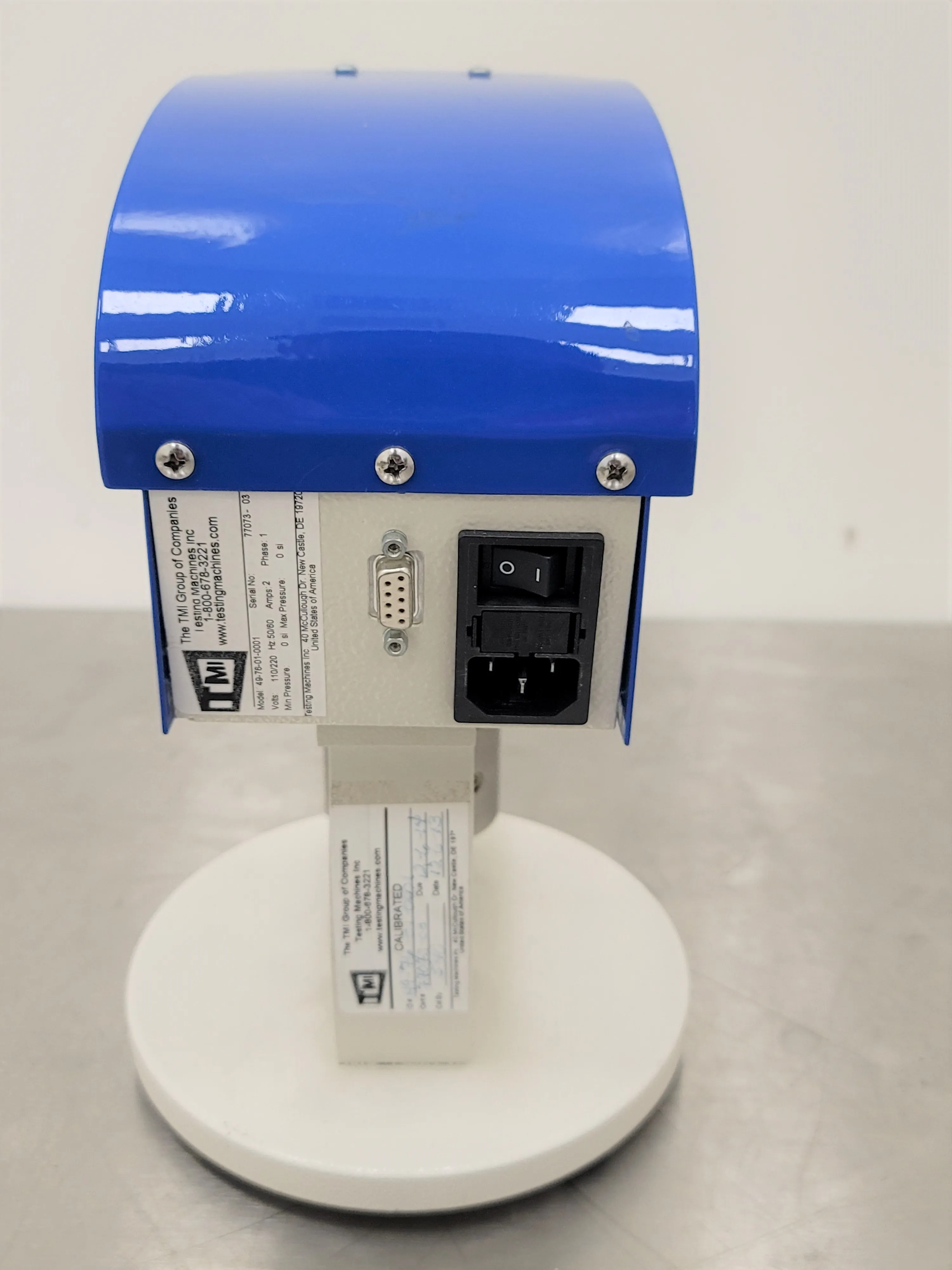

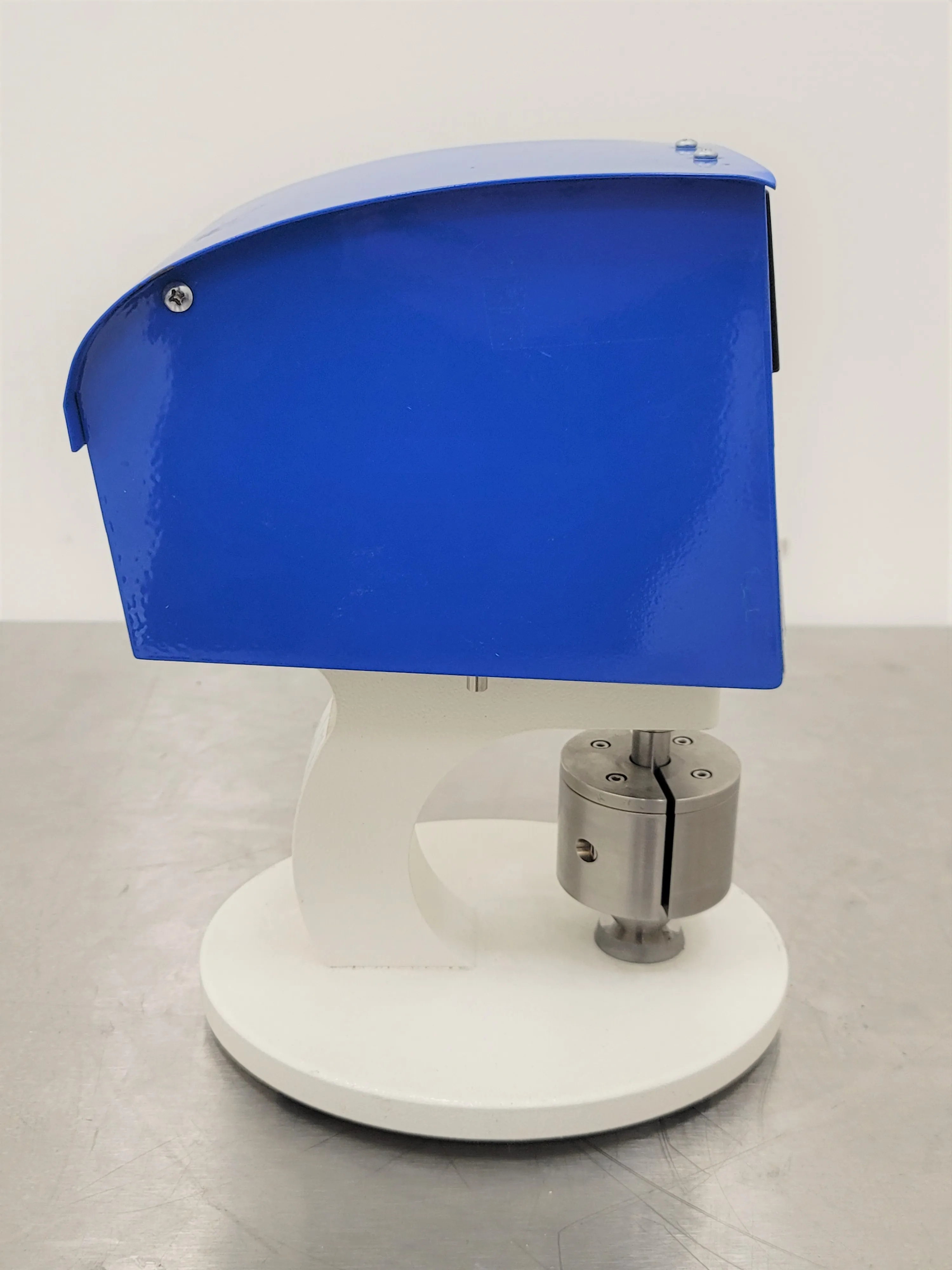

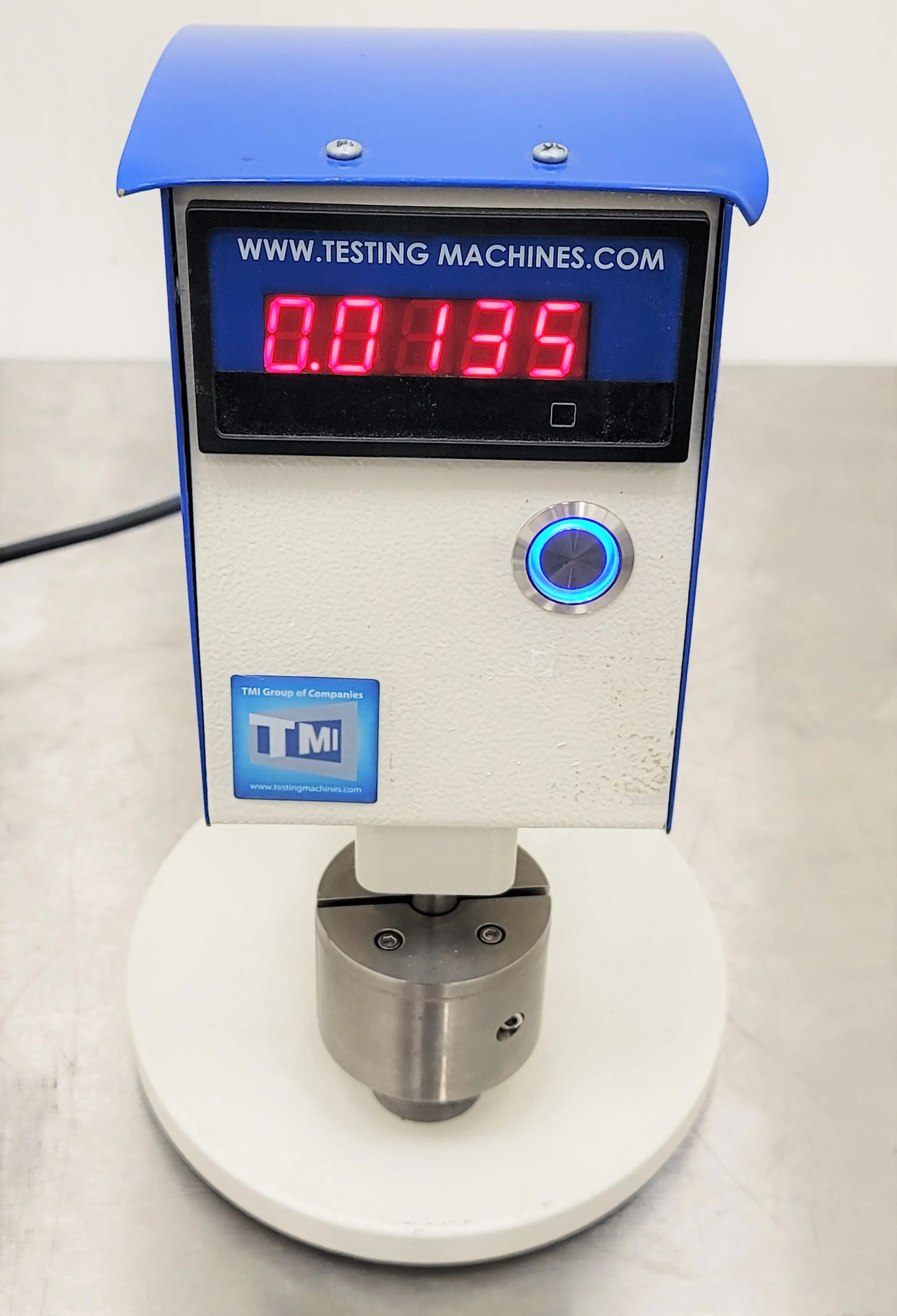

TMI Model 49-76 Thickness Tester with Proprietary Electronic Measurement System and Calibrated Gauge Blocks

Product Information

Ah, the TMI Model 49-76, a true marvel of engineering and precision measurement technology. This robust thickness tester boasts a proprietary electronic measurement system, ensuring remarkably stable zero control and perfect calibration. Unlike its conventional counterparts, the 49-76/77 eschews adjustment knobs or potentiometers, opting for a sleek digital display, auto zero function, and two versatile measurement ranges. With calibrated gauge blocks and an exceptional manufacturing specification, this instrument offers unmatched accuracy within a range of 0.0000-1.2700 mm (0.00-50.00 mil). Anecdotal insights reveal a dwell time of 2 seconds and a contact pressure method employing dead weight. Delving into practical applications, this tool excels in material thickness testing, offering a reliable solution for diverse laboratory settings. From analyzing thin films to measuring sheet resistance, the TMI 49-76 is a trusted companion for scientists and engineers seeking precision and efficiency.

• Proprietary electronic measurement system
• Stable zero control with auto zero function
• Two versatile measurement ranges
• Large digital display
• Calibrated gauge blocks
• Manufacturing specification for exceptional accuracy

• Range: 0.0000-1.2700 mm (0.00-50.00 mil)
• Resolution: 0.5 m (0.02 mil)
• Accuracy: 1.0 m (0.04 mil)
• Dwell time: 2 seconds
• Contact pressure: Dead weight

Metric: 17 kg
Imperial: 37.5 lbs

Metric: 33.02 cm x 27.94 cm x 40.64 cm
Imperial: 13 in x 11 in x 16 in

902680

Instruments and apparatus for measuring or checking semiconductor wafers or devices
