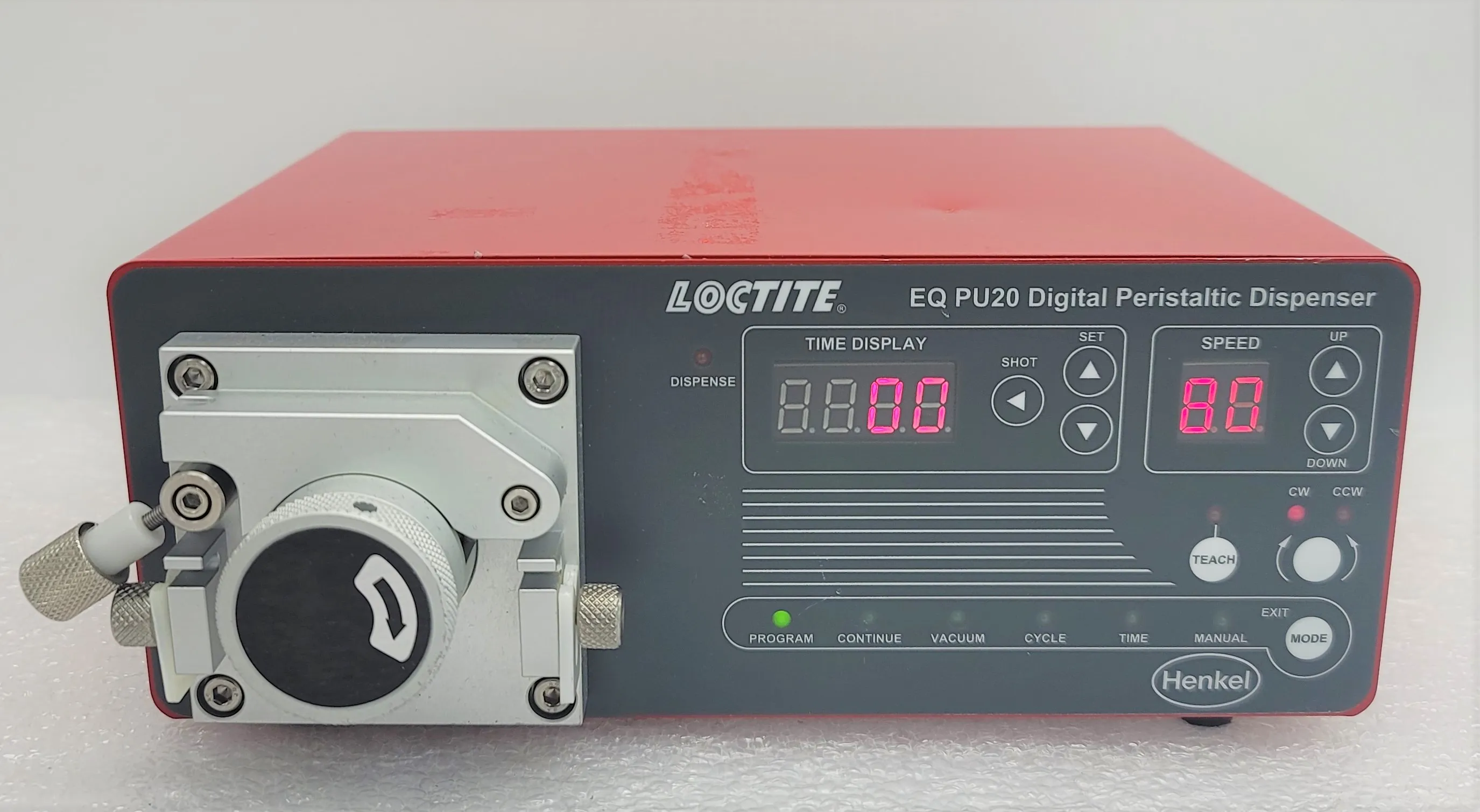

Loctite EQ PU20 Digital Peristaltic Dispenser

Product Information

Unit is in good working condition. Passed all basic function checks. Loctite EQ PU20 Digital Peristaltic Dispenser is a reliable and effective volumetric dispenser for single-component, low viscosity adhesives. It is great for precise dosing or applications that require a specific flow rate. This Dispenser is electro-mechanically operated and does not require the use of an air source. It transfers liquids via pressure displacement applied by rotor turning against a tube that carries the material from the bottle to a handheld dispense valve. This digital peristaltic dispenser offers a dispense time range of 0.01 to 99.9 seconds, a rotor speed of up to 120 rpm, a maximum flow rate of up to 6 ml per minute, and a minimum drop size of 0.001 ml. Its direction of rotation can be clockwise (CW) or counterclockwise (CCW). The Loctite EQ PU20 is fit for applications requiring precise adhesive dosing or specific flow rates and is well-suited for laboratory use in dispensing low viscosity adhesives.

• Electro-mechanically operated digital peristaltic dispenser
• Precise dosing for single-component, low viscosity adhesives
• Operates without the need for an air source
• Dispense time range: 0.01 to 99.9 seconds, Rotor speed: Up to 120 rpm
• Maximum flow rate: Up to 6 ml per minute, Minimum drop size: 0.001 ml

• Dispense Time Range: 0.01 to 99.9 seconds
• Rotor Speed: Up to 120 rpm
• Maximum Flow Rate: Up to 6 ml per minute
• Minimum Drop Size: 0.001 ml
• Direction of Rotation: Clockwise (CW) or Counterclockwise (CCW)
• Voltage: 120V/220V
• Hertz: 50Hz/60Hz

Metric: 5.6 kg
Imperial: 12.34 lbs

Metric: 15 cm x 23 cm x 10 cm
Imperial: 5.9 in x 9.1 in x 3.9 in
