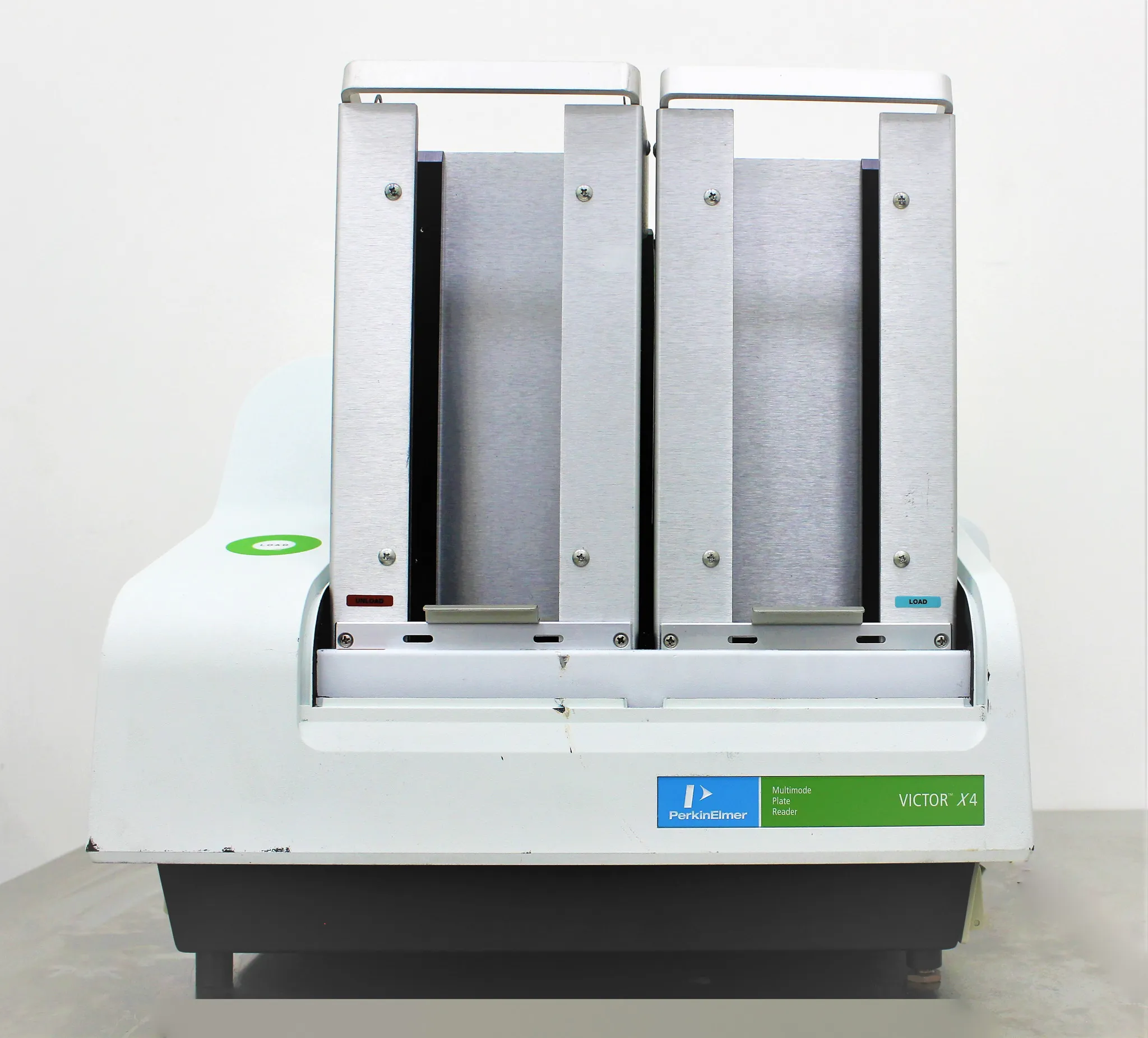

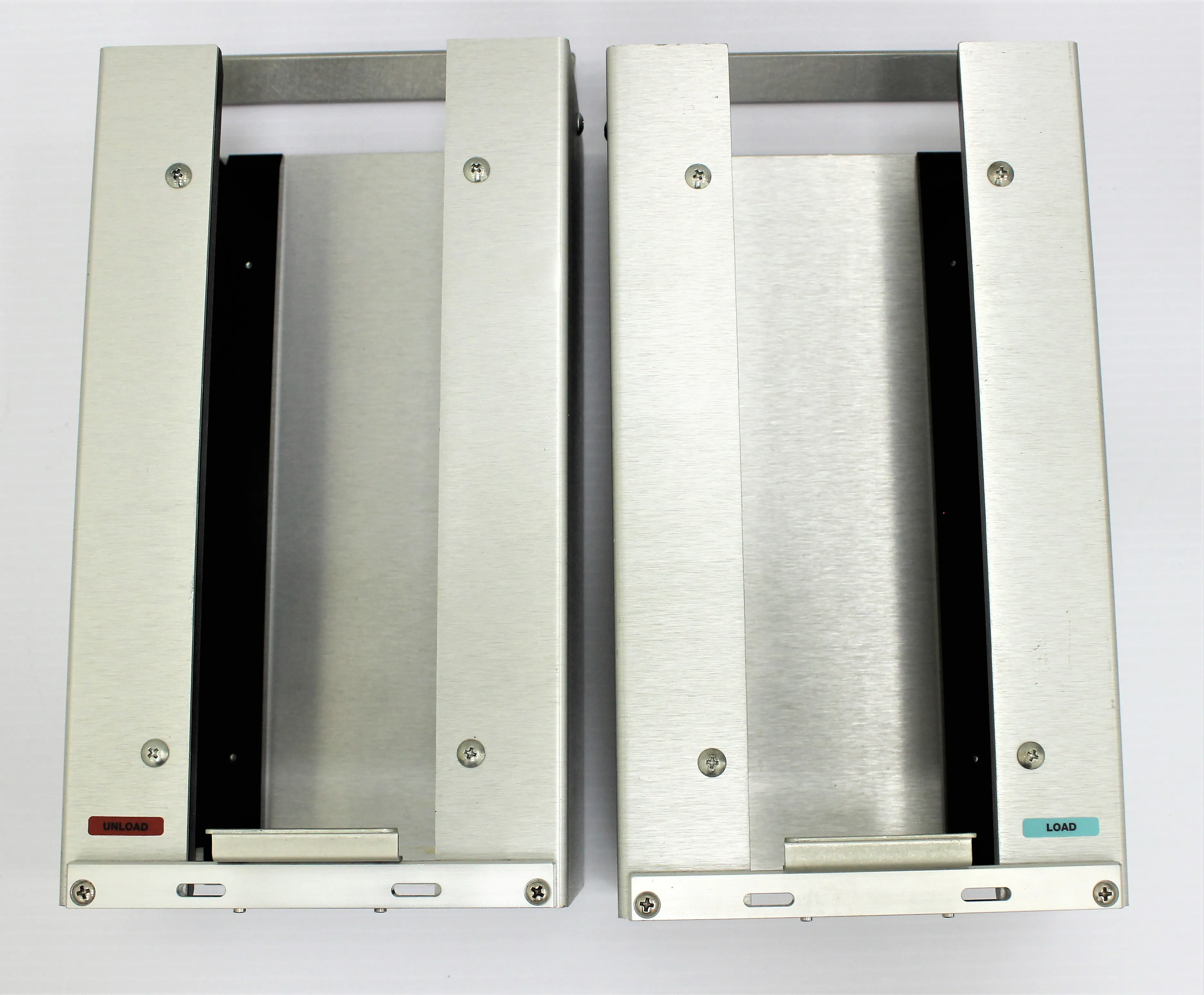

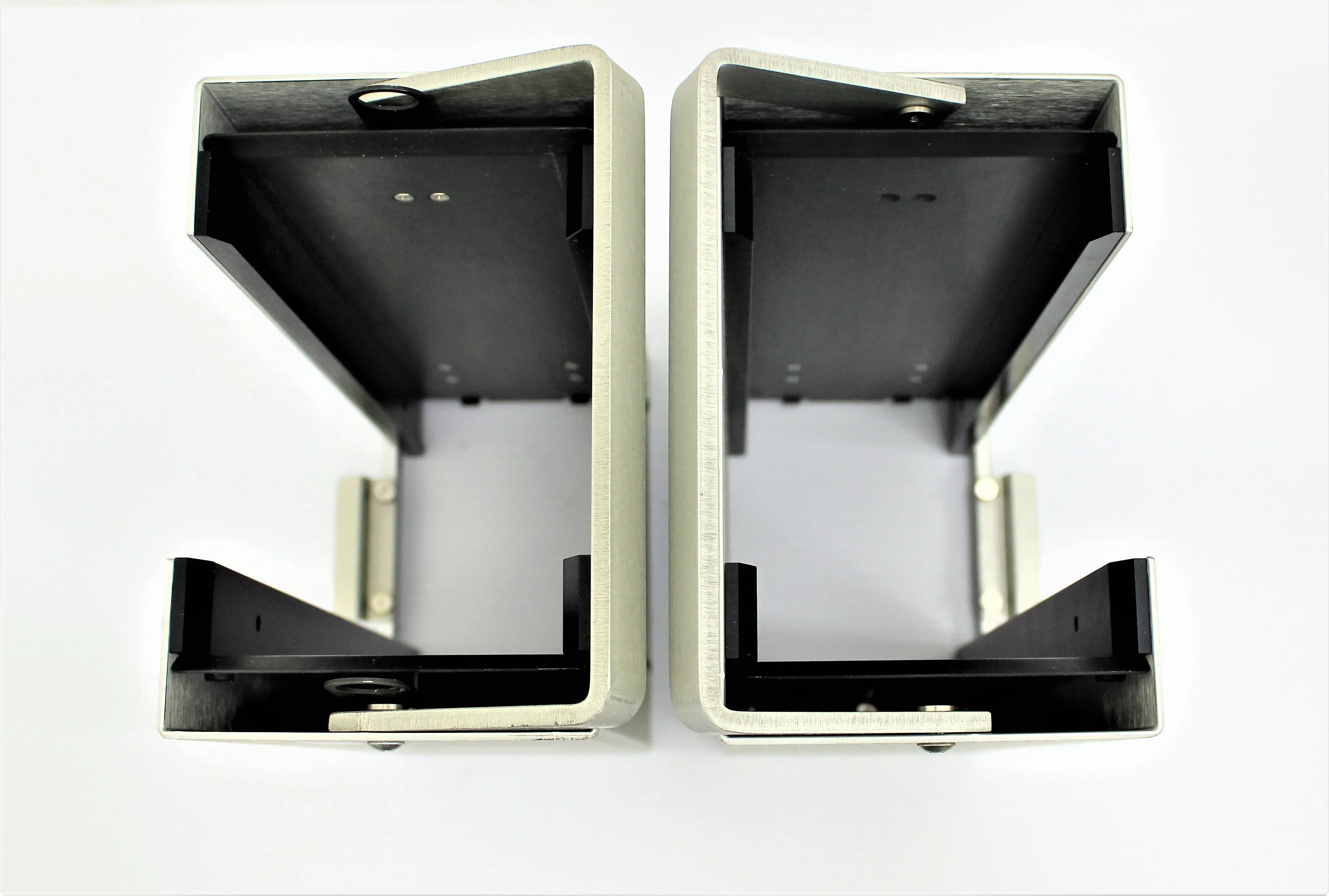

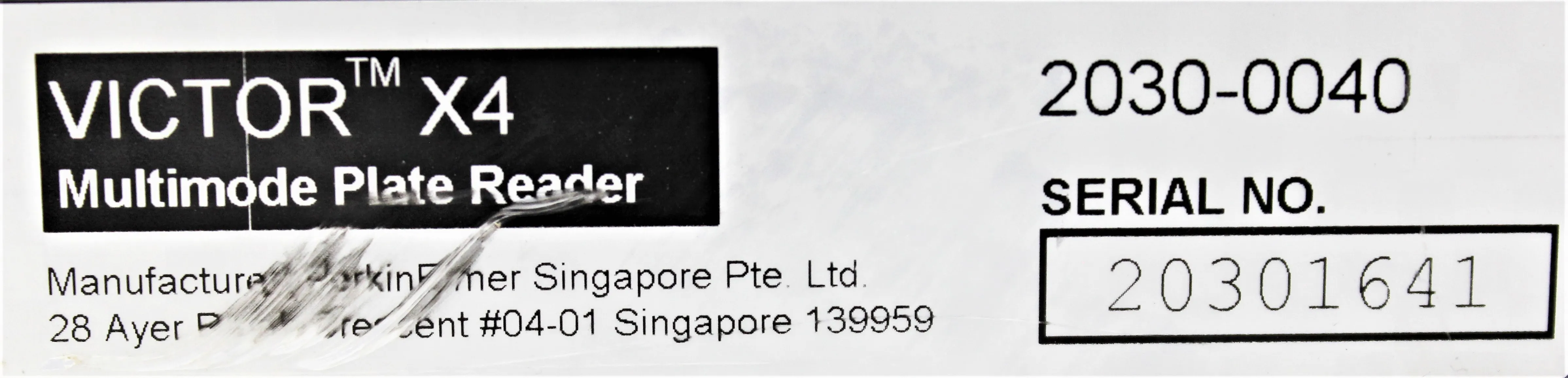

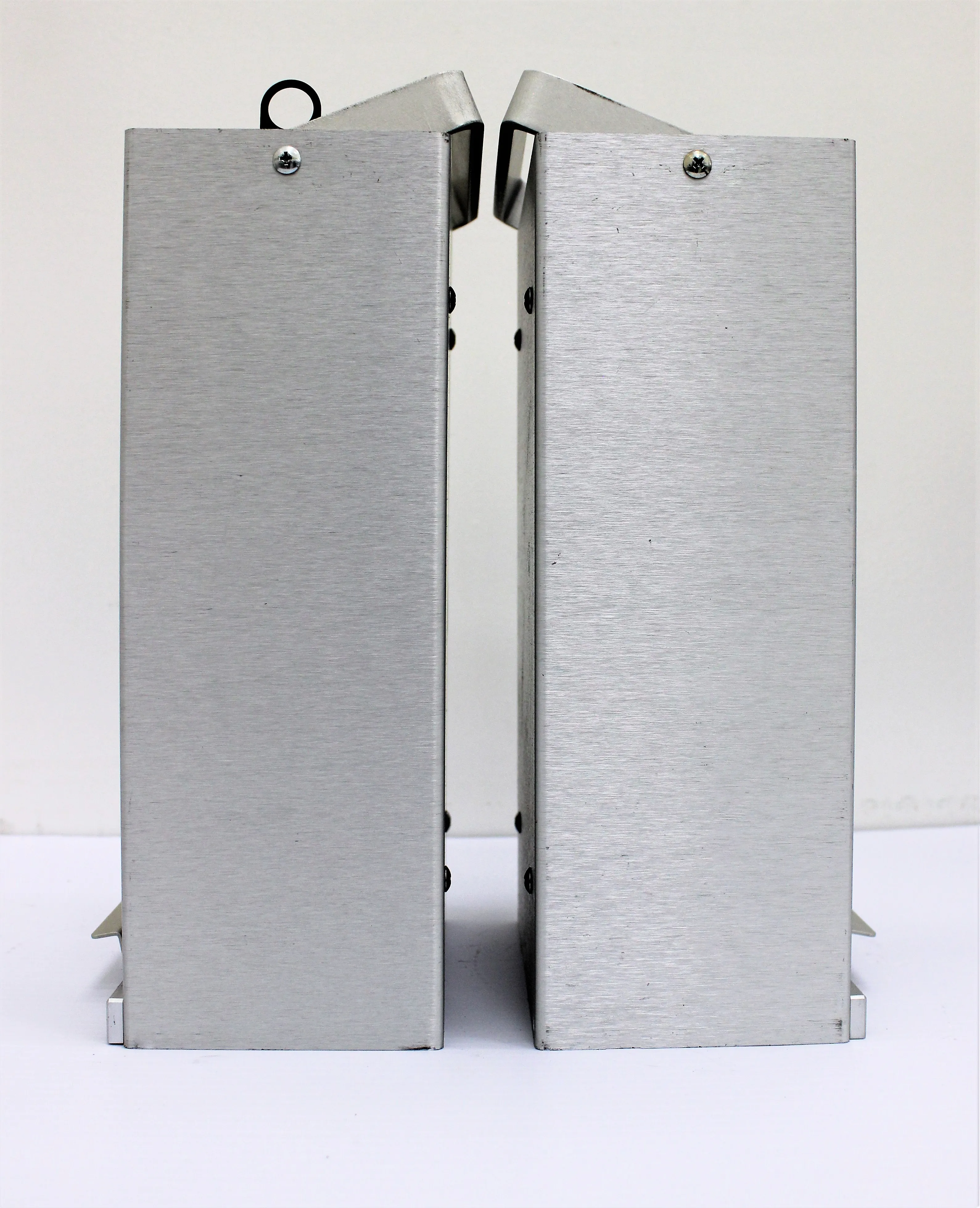

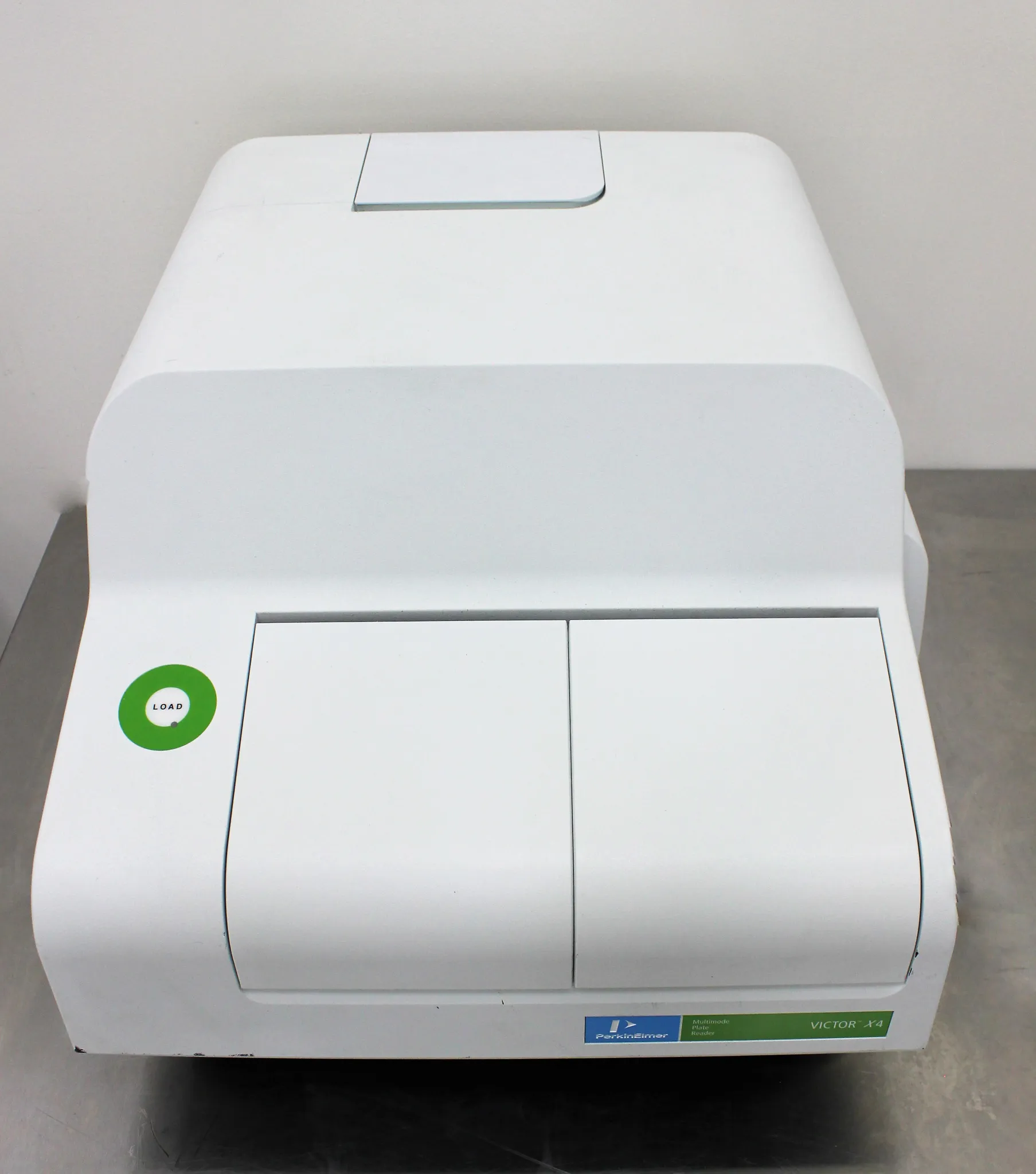

Perkin Elmer VICTOR X4 Multimode Plate Reader with Stackers

Product Information

The Perkin Elmer VICTOR X4 is a versatile multilabel plate reader trusted by labs for its flexibility and ease of use. It supports all main non-radioactive reading technologies, providing high sensitivity and working range. It covers multiple reading modes including fluorescence intensity, fluorescence polarization, time-resolved fluorescence, luminescence, visible absorbance, and UV absorbance. The plate reader features direct optics, precise temperature control, linear and orbital shaking, and sophisticated dispenser capabilities. It is a powerful tool for assays in life science research, drug discovery, and molecular diagnostics. The VICTOR X4 can handle SBS-compatible microplates from 1 to 1536-well format and integrates seamlessly into robotic systems.

• Supports all major non-radioactive reading technologies
• Direct optics for high sensitivity and wide working range
• Integrated robotics for automated handling
• Precise temperature control and shaking capabilities
• Sophisticated dispensing module with high accuracy and speed
• Compatible with a wide range of microplate formats

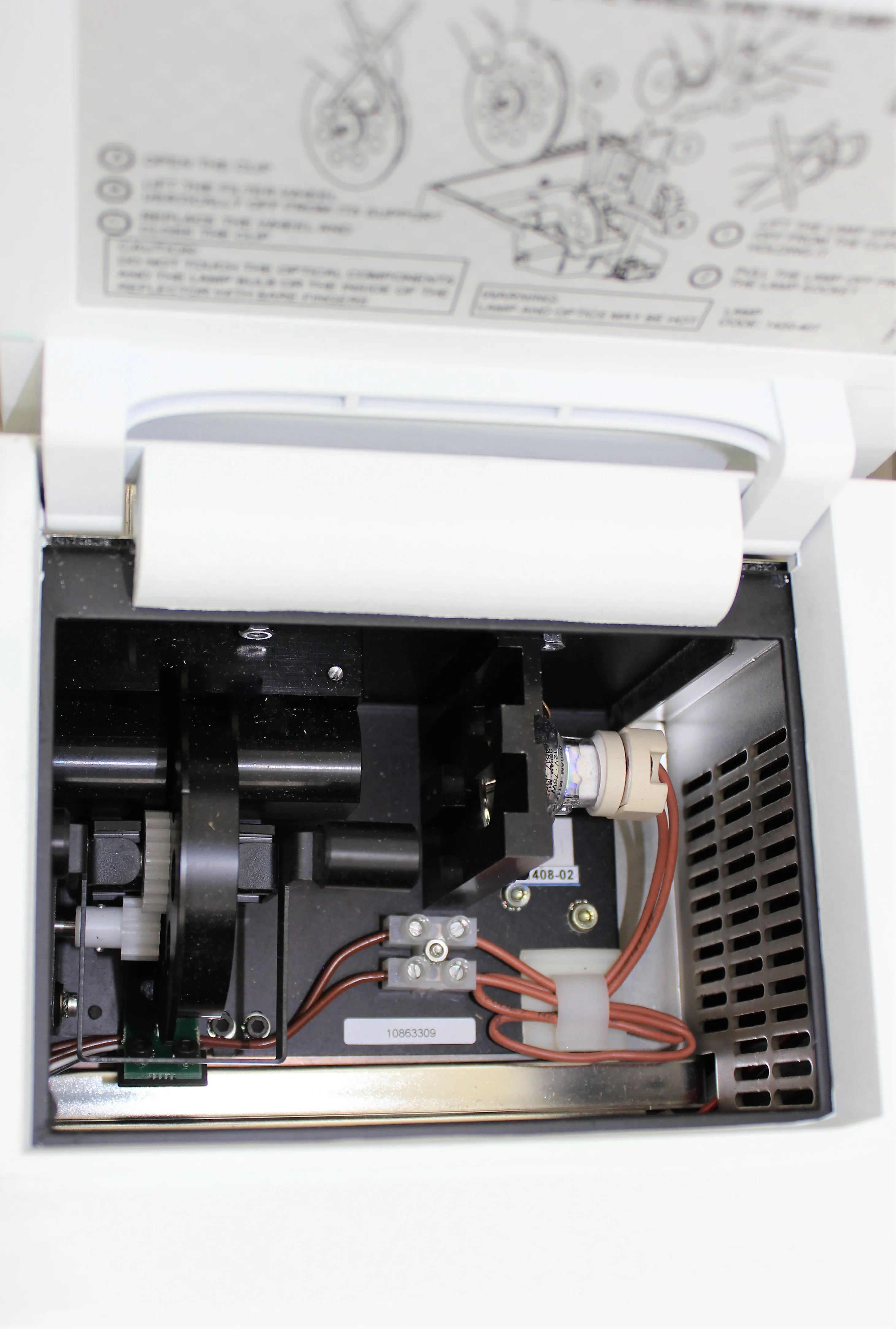

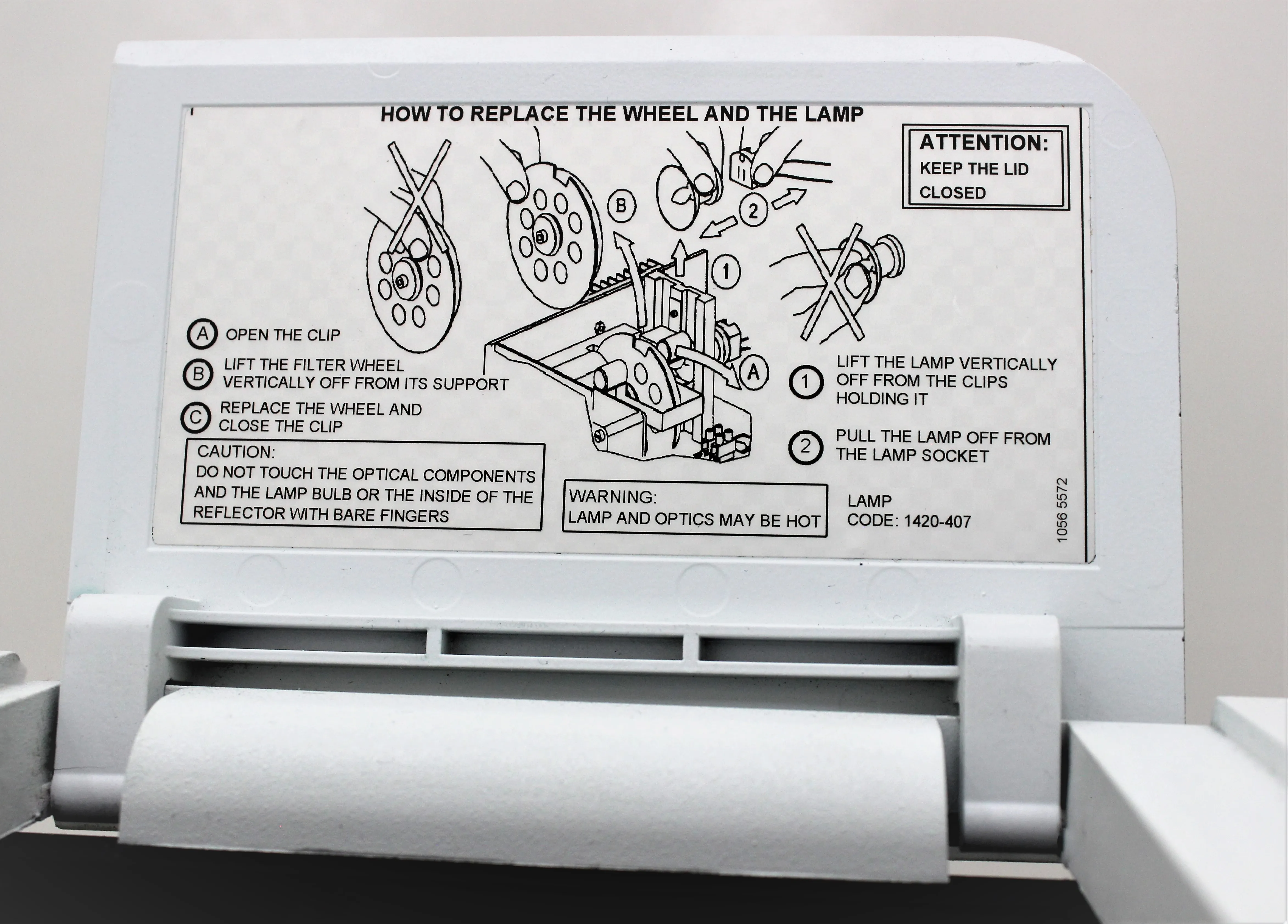

• Light sources: Tungsten-halogen lamp for fluorescence and absorbance, Xenon flash lamp for TR-fluorescence and UV absorbance
• Detection units: Photomultiplier tube for fluorescence, luminescence, and TR-fluorescence measurements, Photodiode for absorbance measurements

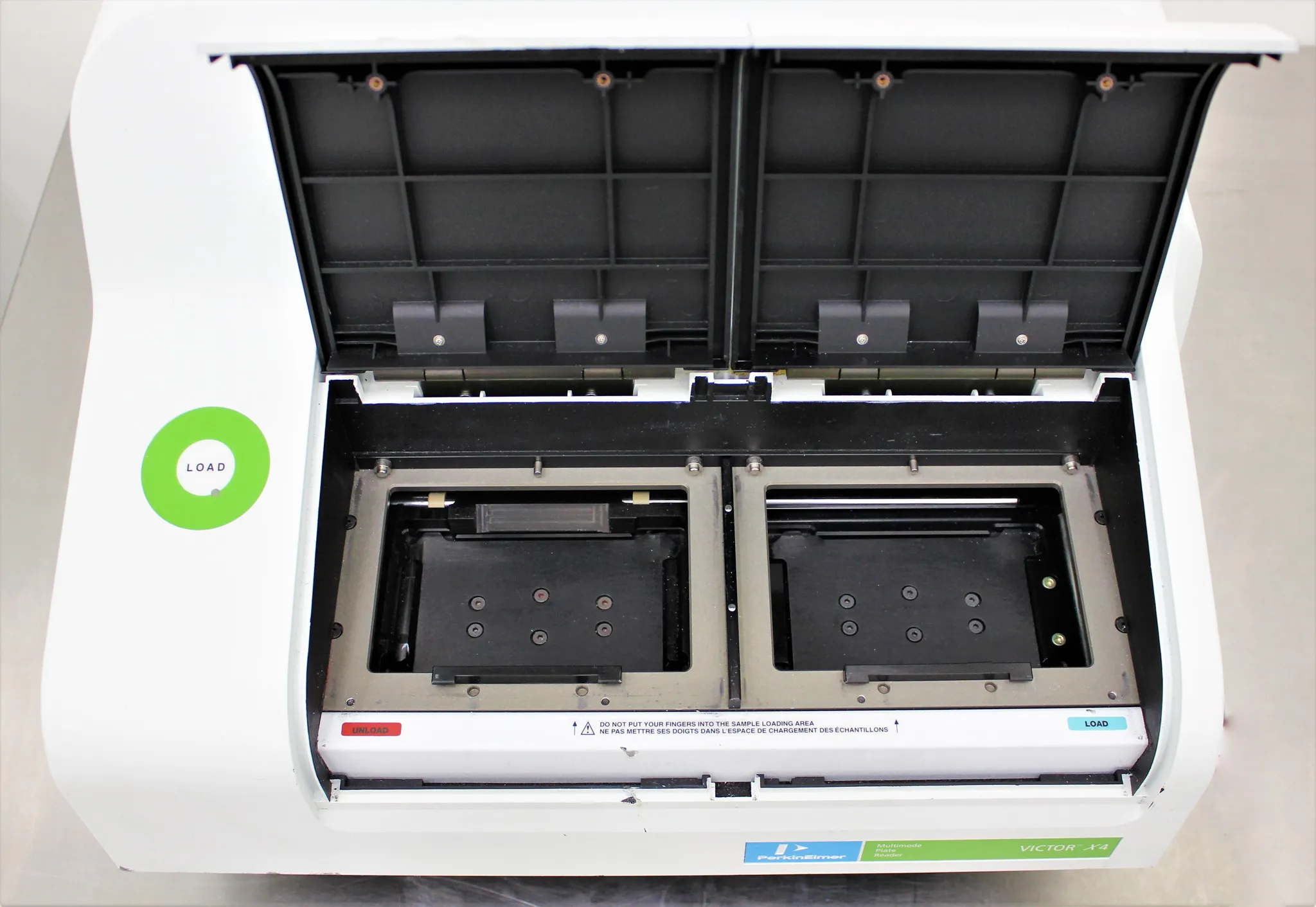

• Plate formats: 1 to 1536 wells
• Shaking: Linear, orbital, and double orbital with adjustable duration, speed, and amplitude
• Temperature control: Range from 2°C above ambient up to 50°C with uniformity of 1°C and heating time of 10 minutes from RT up to 37°C
• Dispenser: Module consists of 1-4 high-quality syringes with a dispense volume of 5-350 μL and an accuracy typically of 5% for 5 μL, 0.5% for 50 μL, and 0.05% for 350 μL
• Detection limits: Luminometry Lower limit of detection (LLD) of total flux of 20,000 photons/s at standard PMT, 100,000 photons/s at red-sensitive PMT, Flash luminescence of 80 amol/well, ATP Glow luminescence of 0.9 pg/well using Britelite, Fluorometry detection limits including the measurment range of 405 nm, TR-Fluorometry detection limits including europium, terbium, samarium, and dysprosium, and Fluorescence polarization detections for fluorescein

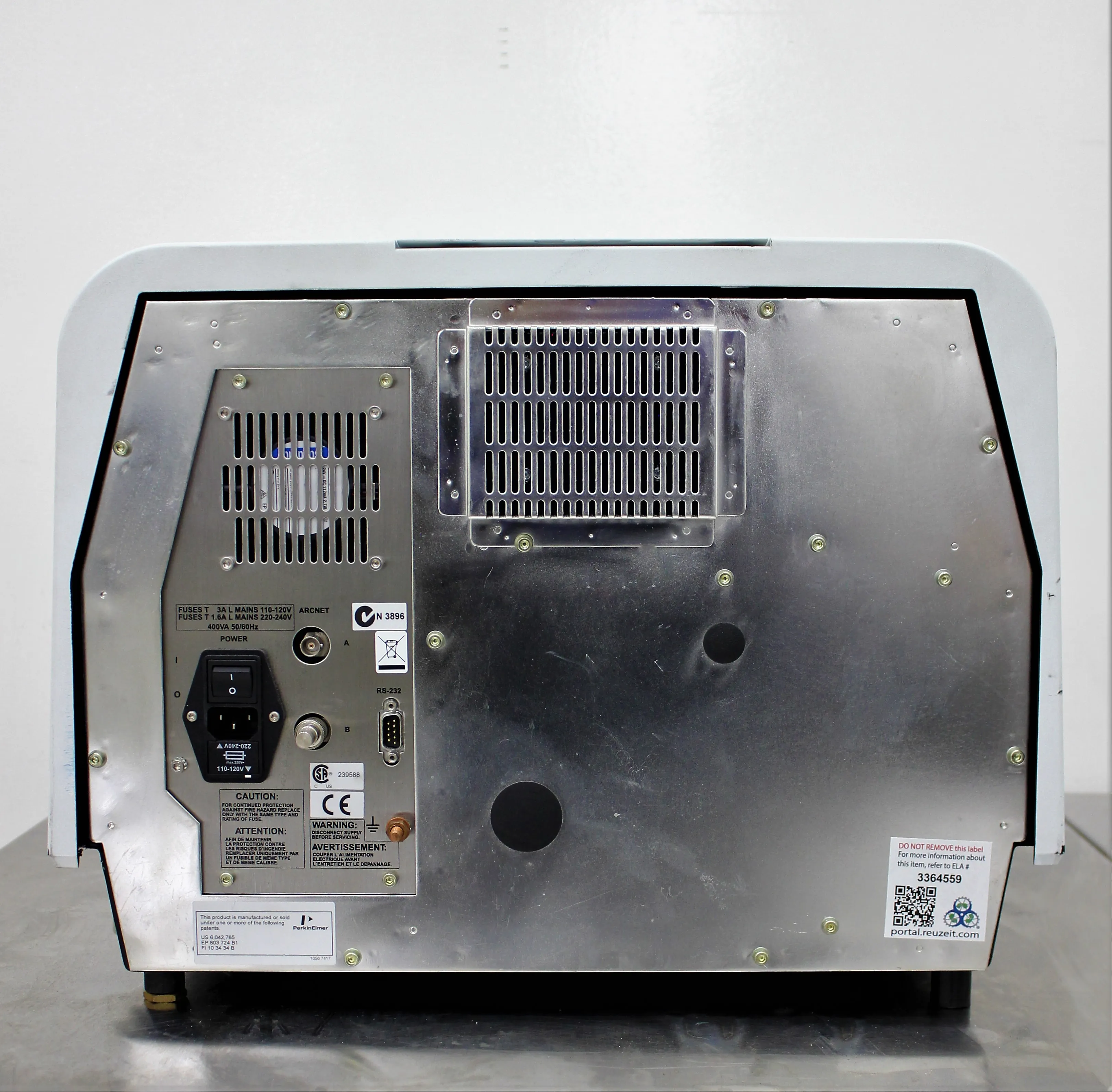

• Main voltage: 110-120 V/220-240 V, 50/60 Hz

Metric: 70 kg
Imperial: 155 lb

Metric: 26 cm x 29 cm x 22 cm
Imperial: 10.24 in x 11.42 in x 8.66 in

903180

903180 - Optical instruments and apparatus; spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR)
