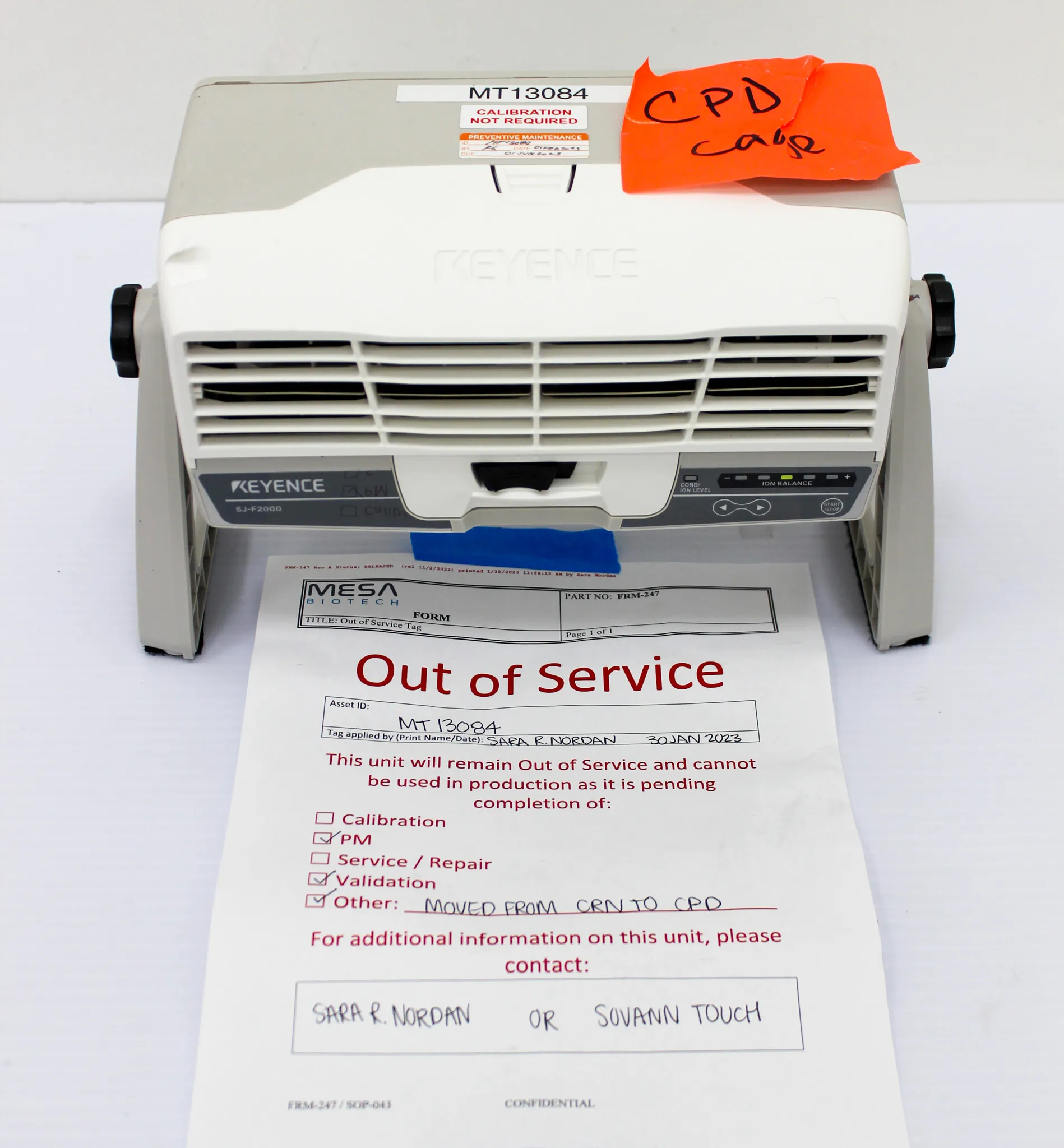

Keyence SJ-F2000 Single Static Eliminators/ Ionizer

Product Information

Introducing the Keyence SJ-F2000 single Static Eliminators/ Ionizer. This cutting-edge equipment by Keyence is a powerful tool for eliminating static electricity in the laboratory setting. With a voltage application method of Pulse AC and ion balance control method of I.C.C., this equipment is capable of running at an applied voltage of 7000V. The SJ-F2000 offers an ion balance of 5 V*1 and features a static elimination time of approximately 1 second. It operates at an ambient temperature range of 0 to +50°C and humidity between 35 to 65% RH. Scientists can benefit from this equipment's unique ability to provide a maximum wind speed of 3.5 m/s and a maximum air volume of 2.5 m3/min, equivalent to 88.29 CFM. Notably, the Keyence SJ-F2000 boasts a power source input type that supports a KEYENCE AC Adapter or DC Option, powered by a 24 VDC 10% power voltage. The product comes with a 30-Day Warranty, covering 100% Parts and Labor. Ideal applications include laboratory research, electronics assembly, and cleanroom environments. Unleash the potential of the Keyence SJ-F2000 to improve precision and quality in laboratory experiments, offering a robust solution to static electricity challenges.

• Pulse AC voltage application method
• Pulse AC method for ion balance control
• Maximum air volume of 2.5 m3/min

• Model: SJ-F2000
• Type: 300 mm (11.81")
• Voltage application method: Pulse AC method
• Applied voltage: 7000V
• Ion balance control method: I.C.C.
• Ion balance: 5 V*1
• Static elimination time: Approx. 1 second
• Operating distance: 50 mm (1.97" min)
• Maximum wind speed: 3.5 m/s (11.48 ft/s*1)
• Maximum air volume: 2.5 m3/min (88.29 CFM)
• Ozone density: 0.005 ppm max.
• Power source input type: KEYENCE AC Adapter or DC Option
• Power voltage: 24 VDC 10%
• Current consumption: 0.9 A
• Pollution degree: 2
• Ambient temperature: 0 to +50°C (32 to 122°F)
• Relative humidity: 35 to 65% RH

Metric: 4.08232932 kg
Imperial: 9 lbs

Metric: 33.02 cm x 12.7 cm x 22.86 cm
Imperial: 13 in x 5 in x 9 in

90271000

90271000 - Instruments and apparatus for physical or chemical analysis: For measuring or checking the ozone content
