Allegro 9538 Explosion-Proof Axial Fan Blower with Ducting
- Make Allegro
- Hertz 60Hz US
- Model 9538
- Serial 305162
- Weight 150.0 Lb
- Voltage 120V

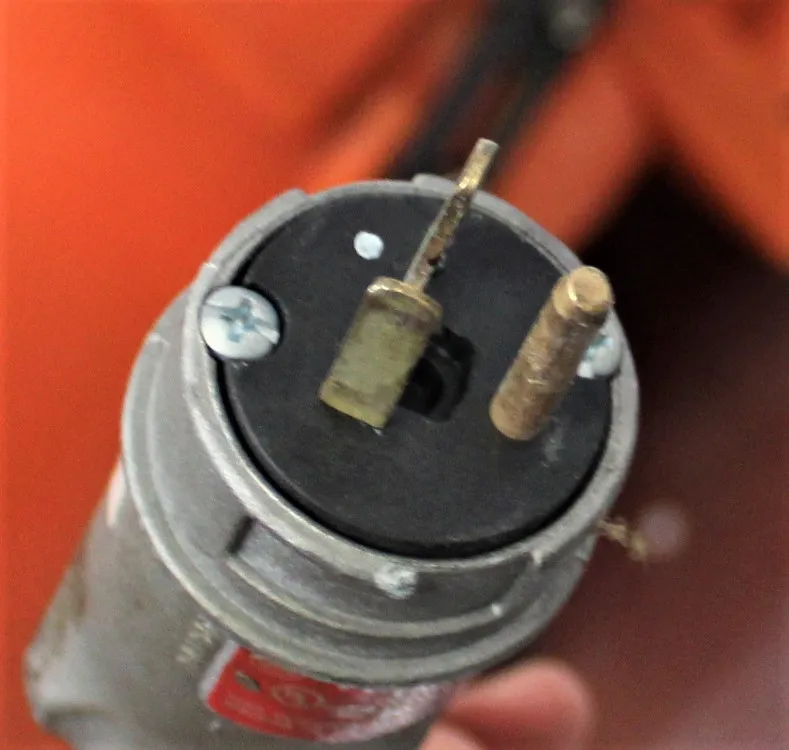

- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 50.0in x 50.0in x 15.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information
The Allegro 9538 is an explosion-proof axial fan blower with a high output from a compact design, sacrificing no airflow, making it a standout among laboratory and medical equipment. It is designed for an explosion-proof environment, certified to CSA Standard C22.2 No. 113. The construction includes lightweight, corrosion, UV, and chemical-resistant polyethylene housing and canister assembly, with a super quiet, safety orange design. The 1/3 HP motor is UL recognized, CSA certified, with a voltage of 115V, 60 Hz, and single phase. This product impressivley meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements, while delivering a current draw of 2.2A and a maximum RPM of 3250. The product is incredibly user-friendly due to its bottom enclosure protecting electrical components, carry handle molded into blower and canister housing, and steel powder-coated grill. The included Polypropylene six-blade fan with an aluminum hub delivers exceptional performance, while the black single-ply lightweight vinyl/polyester ducting is non-collapsible and retractable, designed for use in a variety of laboratory applications.
Key Features- UL/CSA listed explosion-proof motor
- Lightweight and corrosion-resistant construction
- High output from compact design with minimal sacrifice in airflow
- User-friendly features including molded carry handle and steel powder-coated grill
- Polypropylene six-blade fan with aluminum hub for exceptional performance
- Construction: Polyethylene housing and canister assembly, lightweight, corrosion, UV and chemical resistant

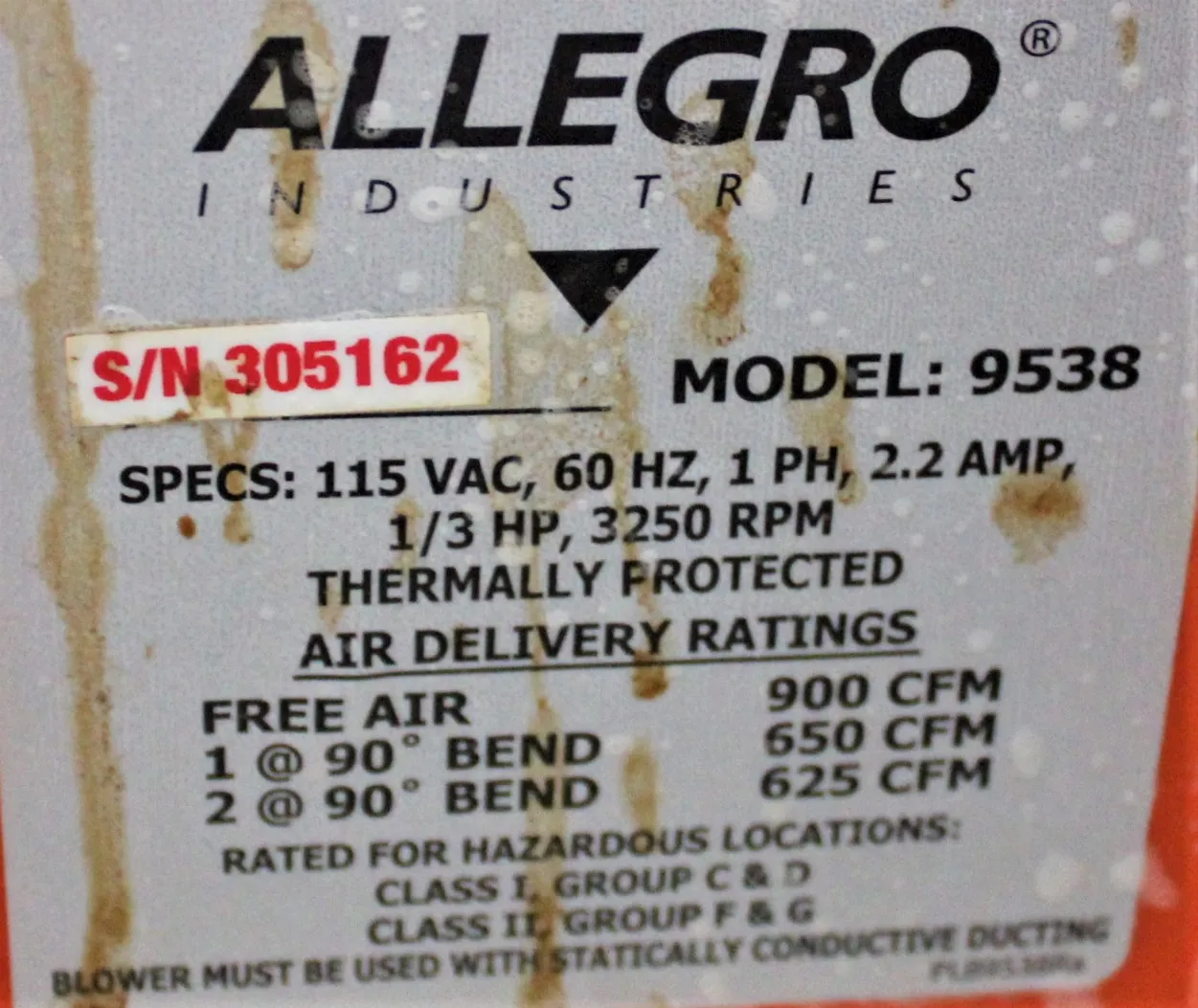

- Motor: 1/3 HP, UL Recognized, CSA Certified, Voltage/Hz: 115V, 60 Hz, Single Phase, Max RPM: 3250, Current Draw: 2.2A
- Fan: Polypropylene six blade fan, aluminum hub

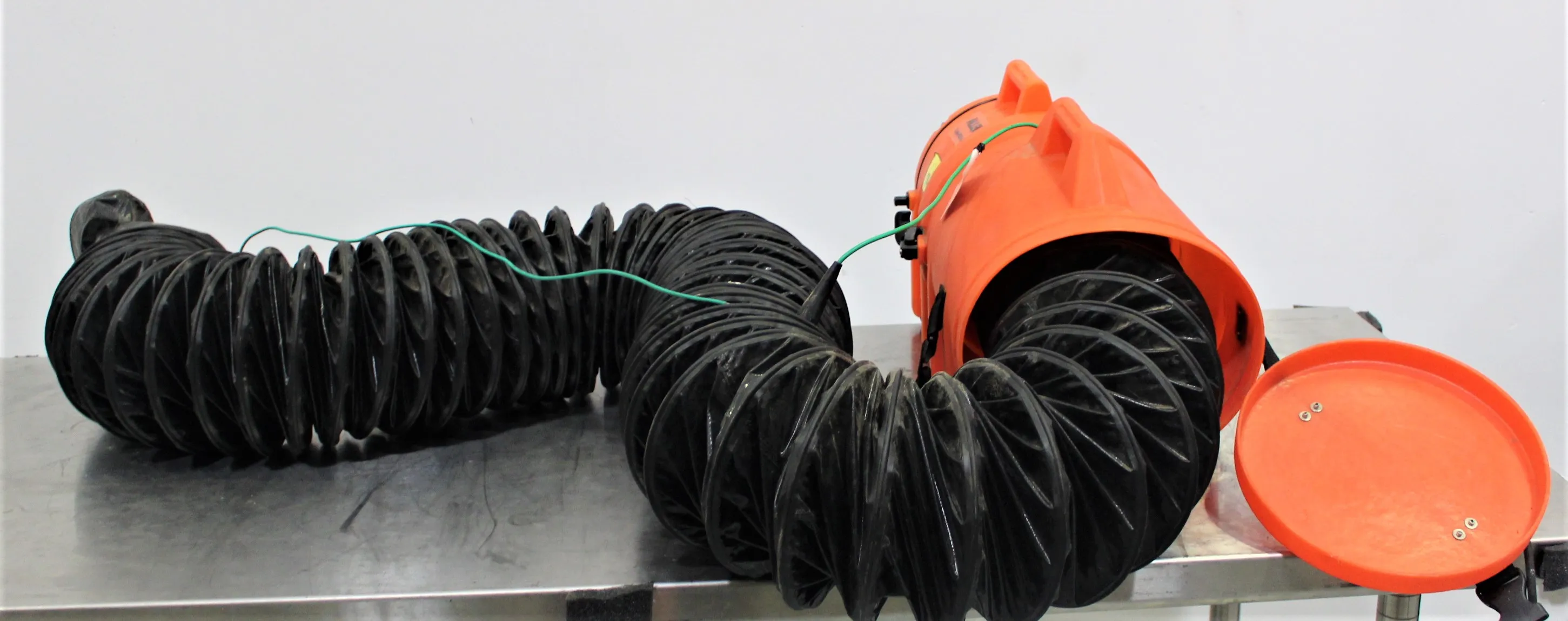

- Ducting: Black single-ply lightweight vinyl/polyester, coated with neoprene 250F (121.1C) temp. resistant, non-collapsible retractable design
Metric: 68 kg
Imperial: 150 lbs
Metric: 50 cm x 50 cm x 15 cm
Imperial: 19.69 in x 19.69 in x 5.91 in
8414593000
Harmonized Code Details8414593000: Portable electric fans
