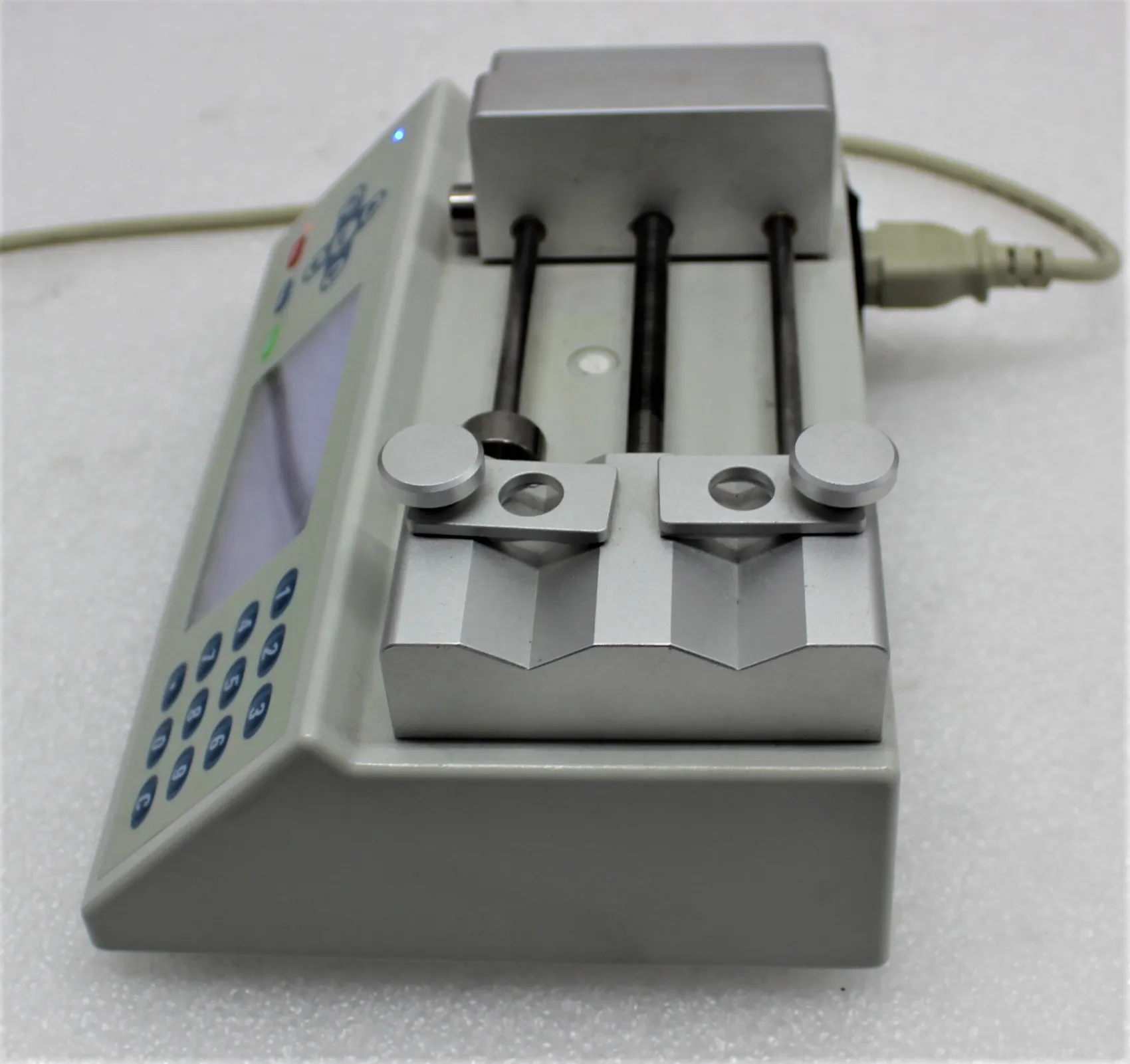

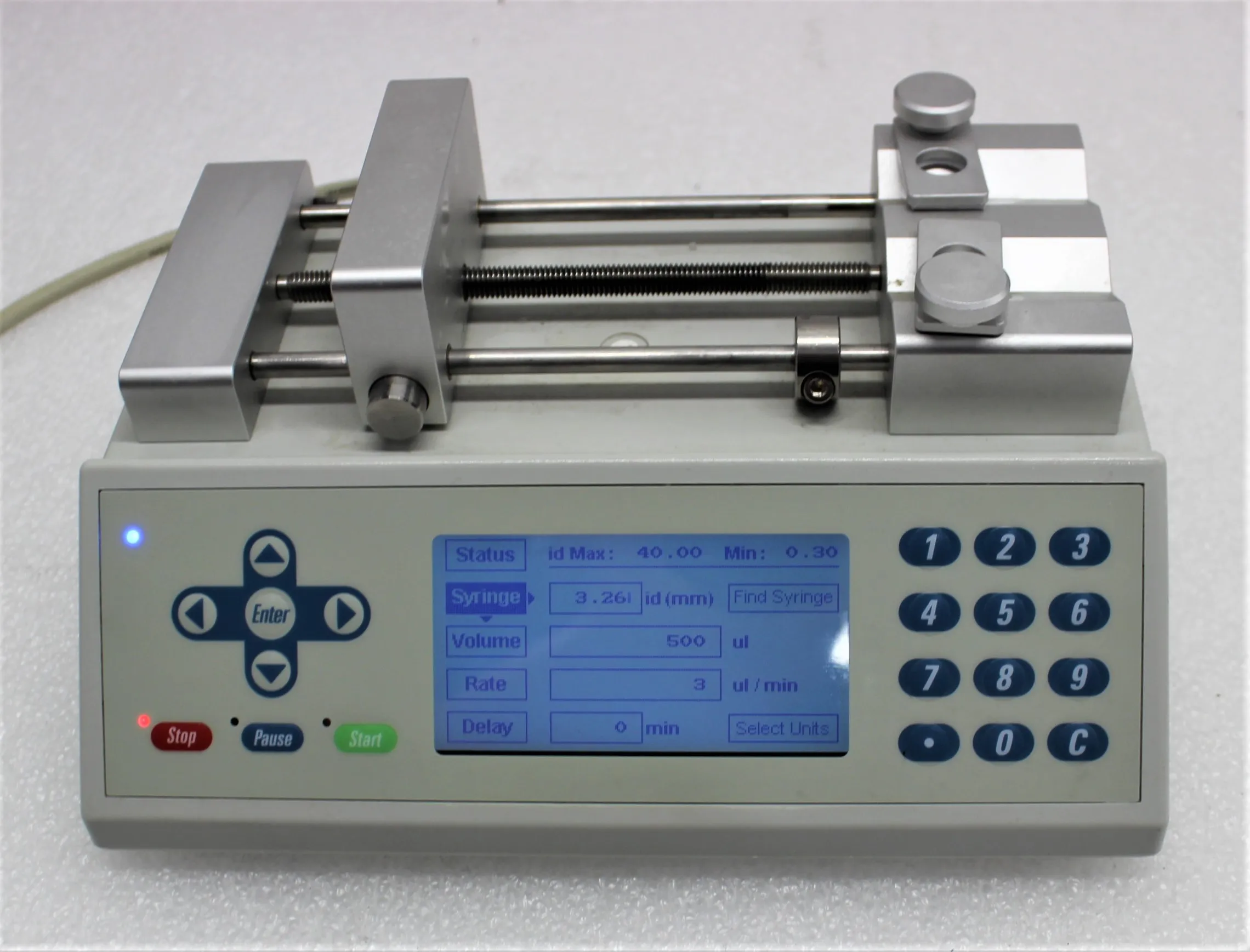

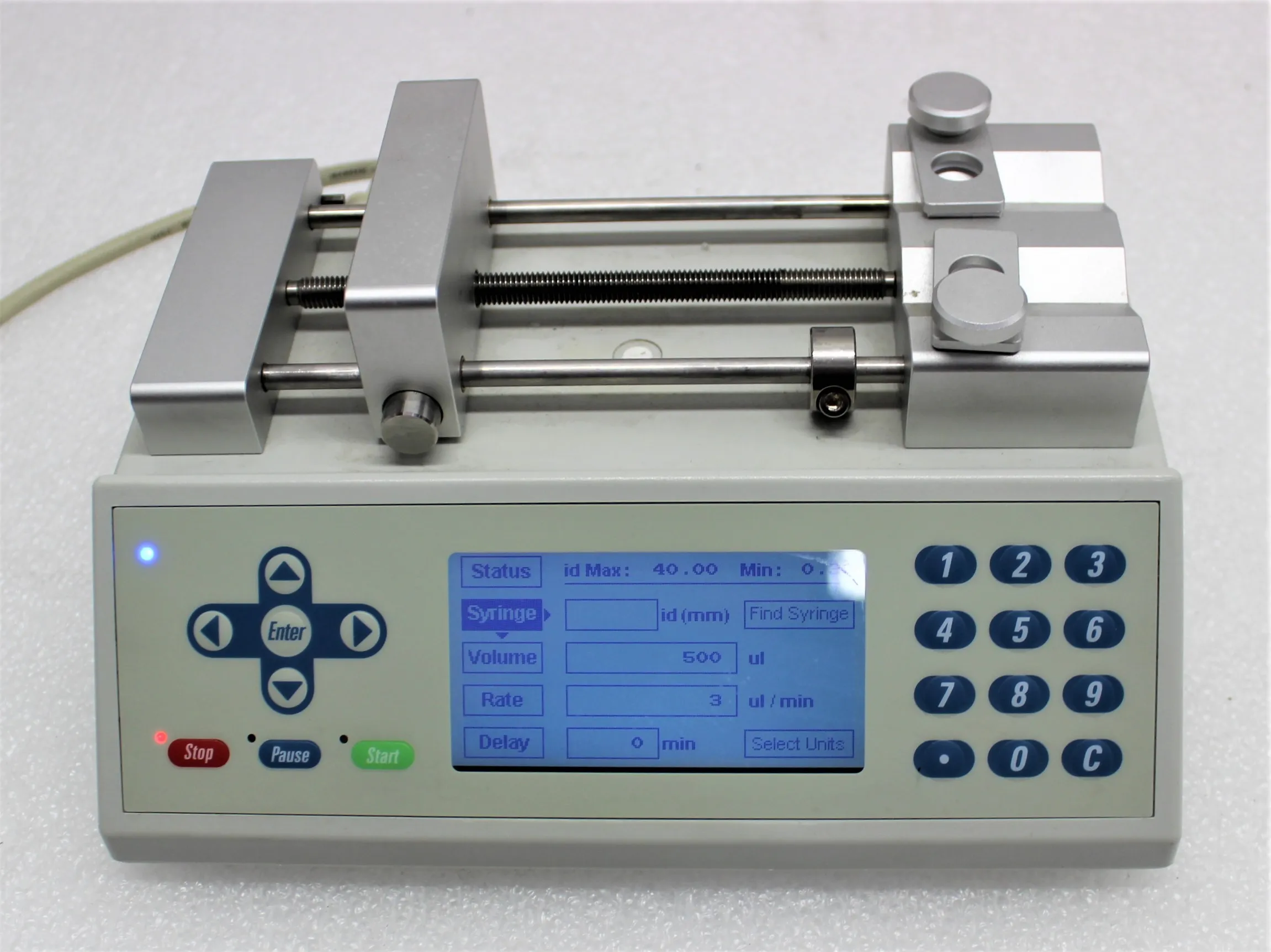

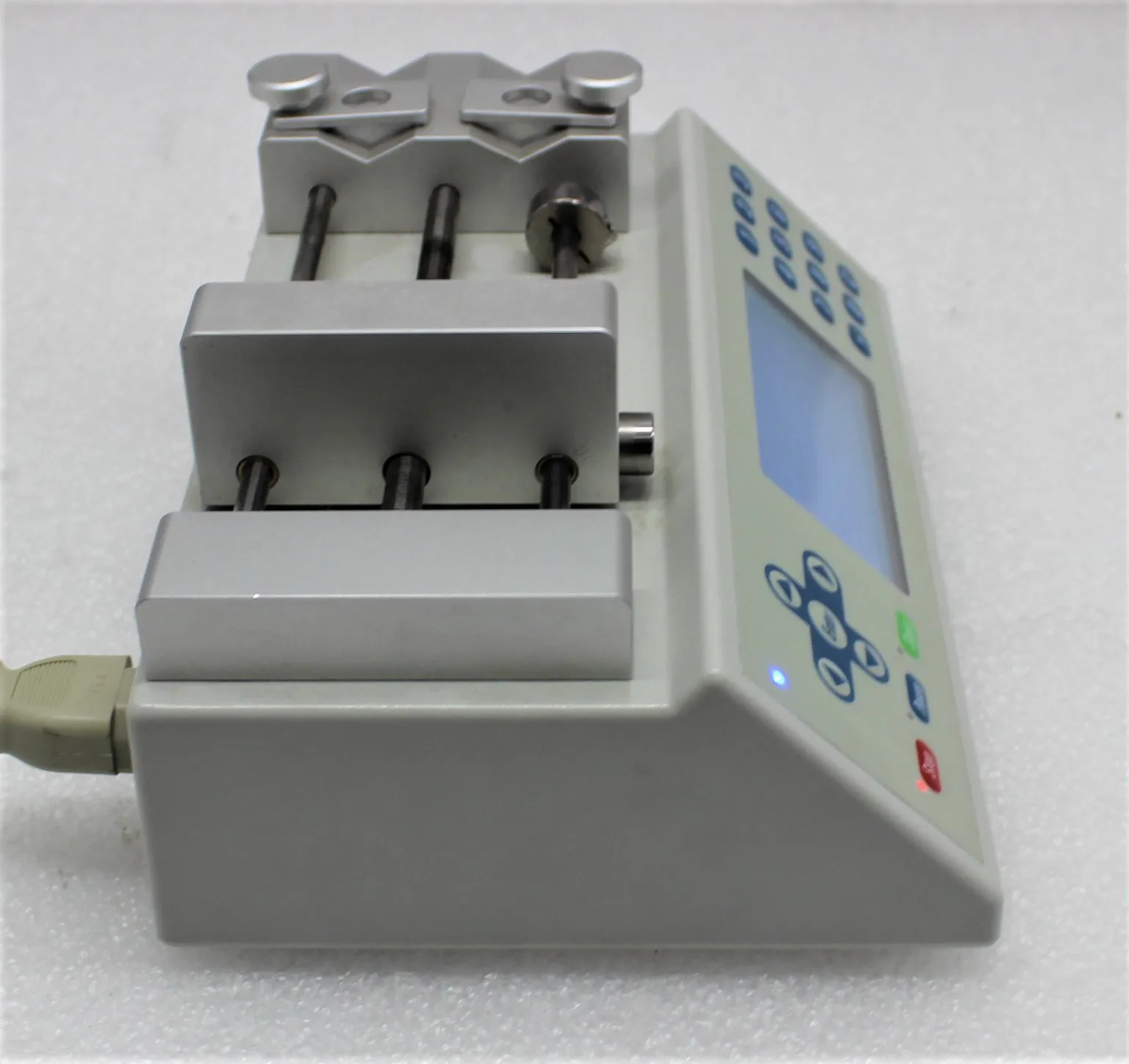

Chemyx Fusion 101 Syringe Pump System

Product Information

Introducing the Chemyx Fusion 101, a top-performing, economical syringe pump system ideal for synthetic chemistry, electro-spinning, drug infusion, and ESI microliter injections. This infusion-only pump features a D9 RS232 port for precision dispensing and is compatible with ASCII commands from Labview, Labwindows, HyperTerminal, and Visual Studio. The bright LCD and simple menu interface make it user-friendly, while the smart operation capabilities ensure continuous monitoring and status updates. Our pump provides precise steady flow rates, offers customizable settings, and even remembers your last settings in case of a power failure. Be prepared to be astounded by the fusion of precision and affordability in this remarkable syringe pump.

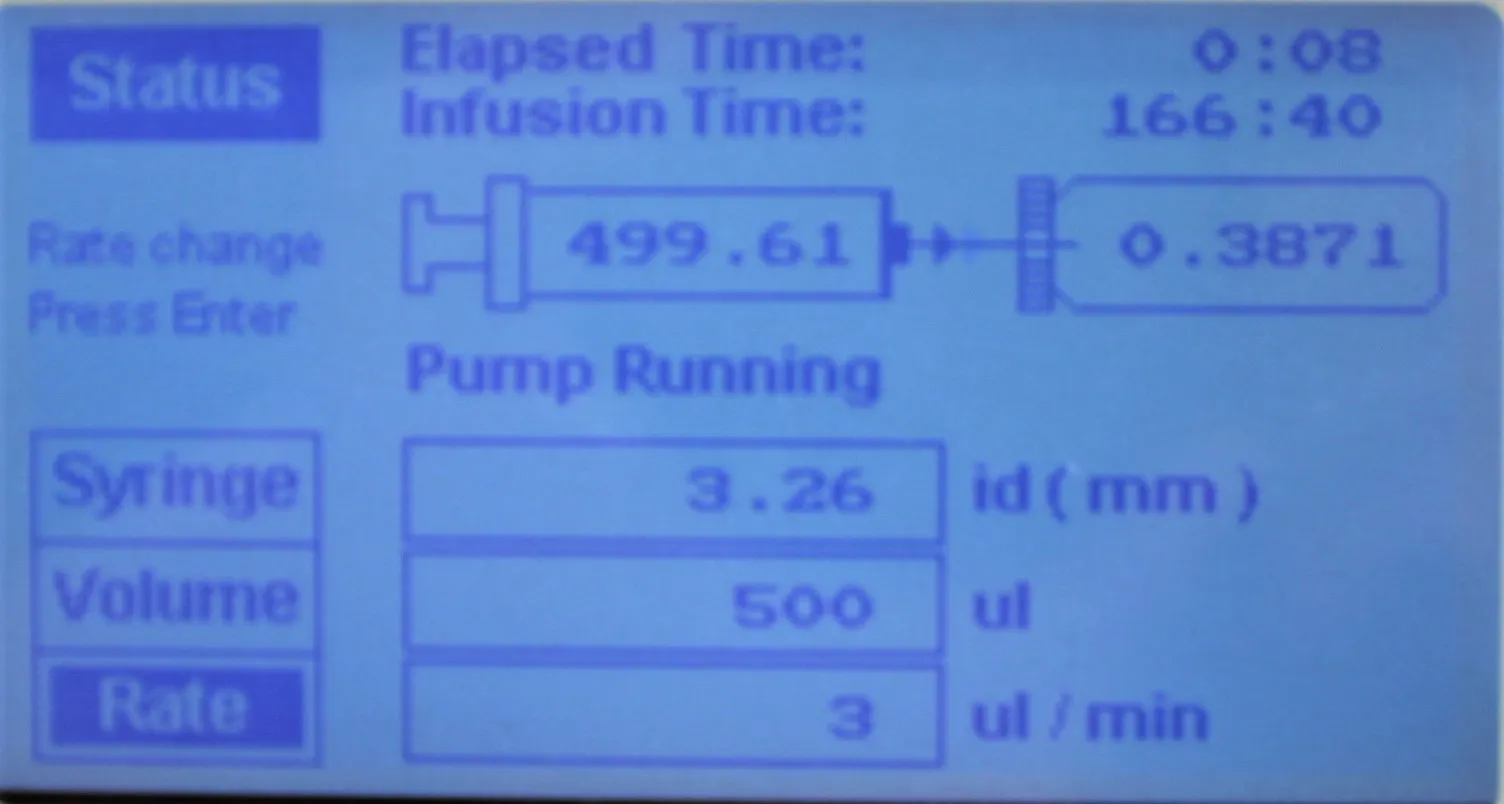

• Bright LCD and easy-to-use menu interface
• Wide compatibility with major manufacturers' syringe dimensions
• Smart operation with continuous system monitoring
• Resumption of operation after power failure

• Infusion Mode
• Accuracy: < 0.35%
• Reproducibility: < 0.05%
• Syringe Size (Min/Max): 0.5L to 60mL
• Syringe Flow Rates: See Syringe Library for Min & Max Flow Rates
• Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
• Maximum Flow Rate: 90 mL/min (with 60mL syringe)
• Linear Force: 29lb (13.1kg)
• Display: 4.3 inch LCD Screen

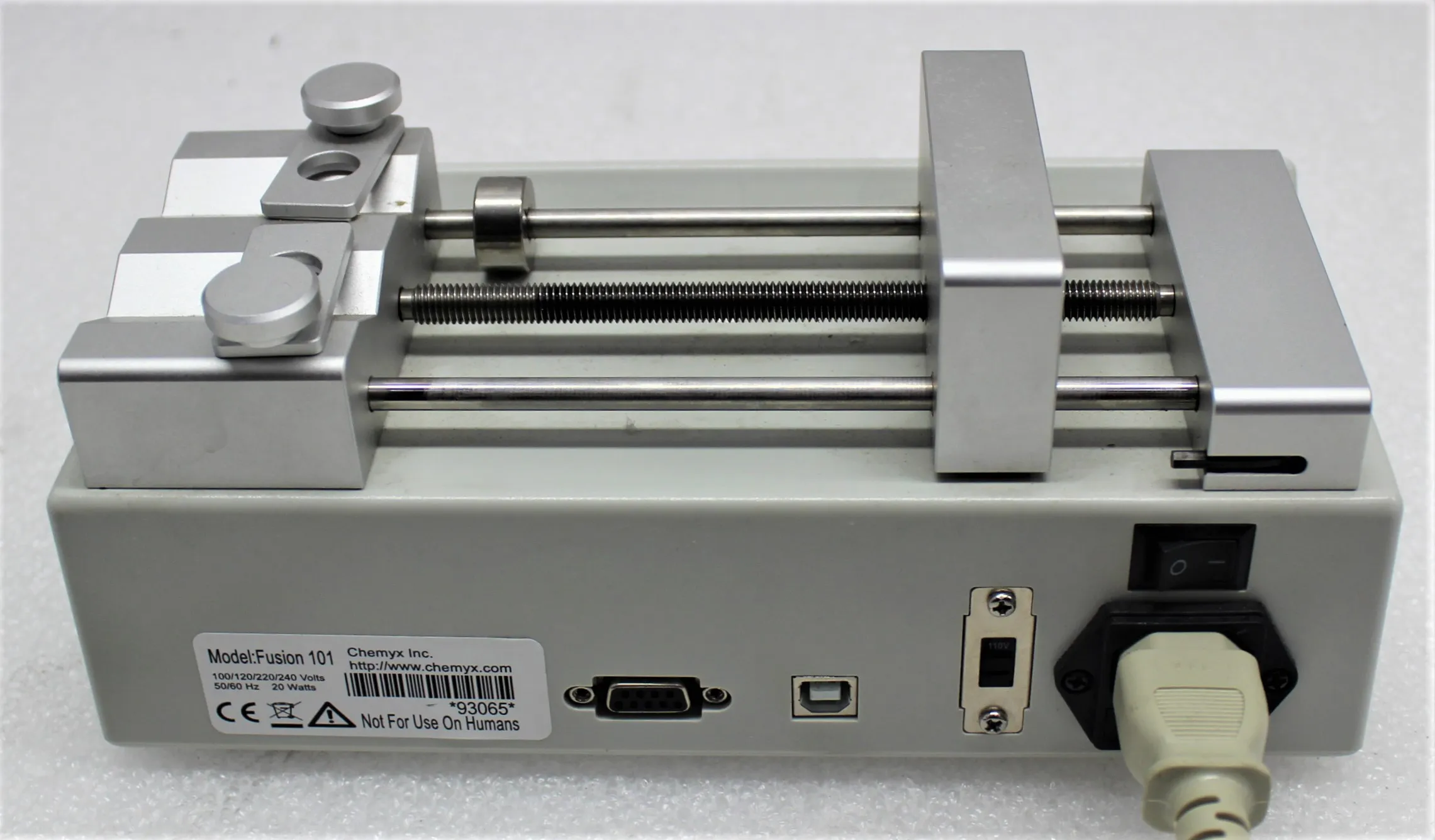

• Connectivity: RS232 and TTL Ports
• System Dimensions: 9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
• Motor Drive: 0.9 Stepper Motor with Micro-stepping
• Step Resolution: 0.198 m/step
• Operating Temperature: 4C to 40C (40F to 104F)
• Storage Temperature: -10C to 70C (14F to 158F)
• Humidity: 20% to 80% RH, non-condensing
• Installation Category: II
• Regulatory Compliance: CE, RoHS, REACH, FCC, IC

Metric: 3.175 kg
Imperial: 7 lbs

Metric: 24 cm x 17 cm x 11 cm
Imperial: 9.5 in x 6.8 in x 4.4 in

901831

The harmonized code 901831 reflects the classification for Syringes, needles, catheters, cannulae, and the like.
