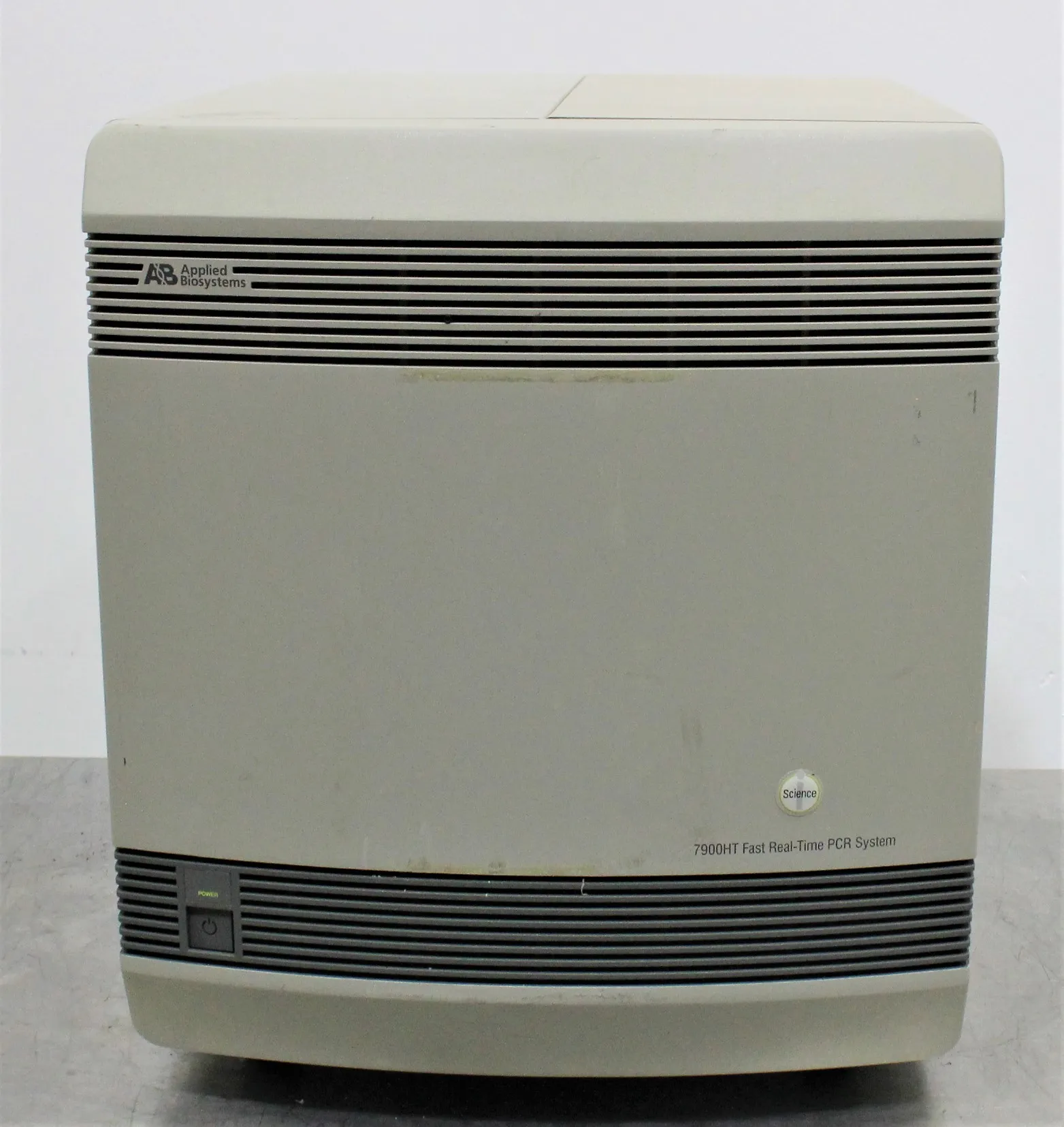

Applied Biosystems ABI prism 7900HT PCR Thermal Cycler

Product Information

The Applied Biosystems ABI prism 7900HT is a sequence detection system instrument designed for automated, high-throughput detection of fluorescent PCR-related chemistries. It supports real-time PCR applications for gene expression, SNP genotyping, viral load analysis, miRNA qualification, and pathogen detection. The 7900HT system enhances high-throughput performance by streamlining operation, making results easy to interpret. Manufactured to support interchangeable block formats, a capacity of up to 36 x 96-well plates, or up to 84 x 384-well plates, with fast sample ramp rates and high sensitivity down to 10 copies. Its thermal cycling system is Peltier-based, with precise temperature control and high uniformity. The system uses extended-life 488 nm argon-ion laser excitation source with an optics range from 500 to 650 nm, ensuring high sensitivity and accurate results.

• Interchangeable block format
• High sensitivity down to 10 copies
• Peltier-based thermal cycling system
• High uniformity and precise temperature control
• Extended-life 488 nm argon-ion laser excitation source with a range from 500 to 650 nm

• Block Format: Interchangeable
• Capacity: Up to 36 x 96-well plates, or Up to 84 x 384-well plates
• Detection Method: Primer-Probe Detection, SYBR
• Dynamic Range: Up to 9 logs of linear dynamic range
• High Throughput Compatibility: High Throughput-Compatible, Multiplexing
• Optics: Extended-life 488 nm argon-ion laser excitation source, No filters (CCD acts as spectrograph with continuous detection 500 -650 nm)
• Passive Reference Dye: No ROX, Other Passive Reference Dye, ROX (Pre-mixed), ROX (Separate Tube)
• Reaction Speed: Fast
• Sample Ramp Rate: Fast mode: 3.0Csec, Standard mode: 1.6Csec
• Sensitivity: Down to 10 copies
• Temperature Accuracy: 0.25C of display temperature
• Temperature Range (Metric): 4-100C
• Temperature Uniformity: 0.5C
• Thermal Cycling System: Peltier-Based System

Metric: 79.4 kg
Imperial: 175 lbs

Metric: 33 cm x 21 cm x 24 cm
Imperial: 13 in x 8.3 in x 9.4 in

841989

The harmonized code 841989 is applicable for refrigerators, freezers and other refrigerating or freezing equipment; heat pumps other than air conditioning machines of heading 8415. This code corresponds to the equipment's refrigerating or freezing technology.
