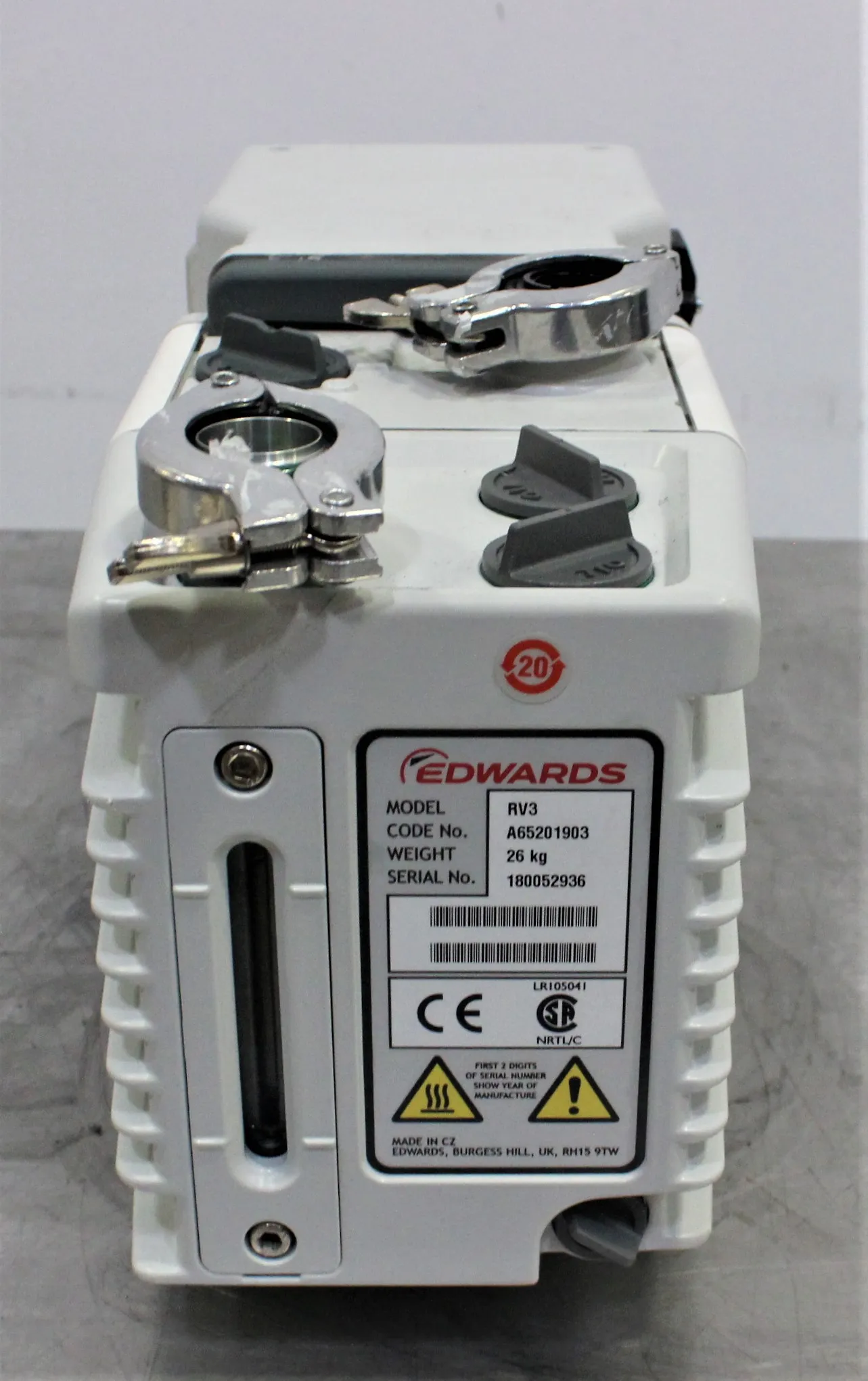

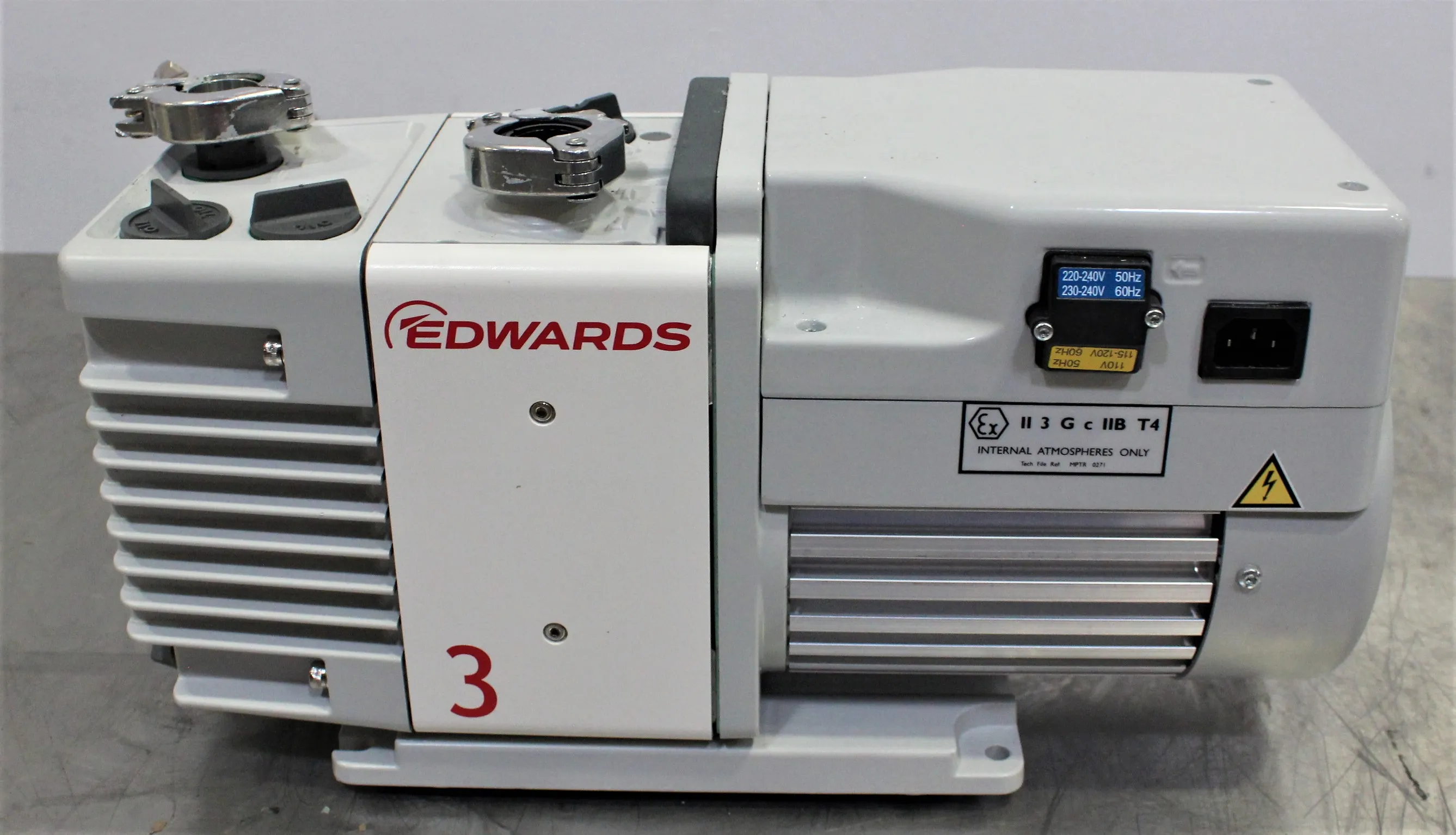

Edwards RV3 Vacuum Pump

Product Information

The Edwards RV3 Vacuum Pump is the perfect choice for a range of laboratory requirements from centrifugal concentrators, rotary evaporators, freeze dryers, gel dryers, vacuum ovens, or general-purpose applications. This pump has a unique dual mode that allows it to handle very high gas loads without compromising vacuum, with an easily reconfigurable design. It can operate at a quiet 48dBA, boasts accessible controls, and requires no special tools to use or service. The fast-acting inlet valve prevents oil and gas suckback in the event of power or oil pressure loss, ensuring consistent performance. With high vacuum and high throughput modes, this pump provides flexibility to handle different requirements seamlessly. The adjustable gas ballast control maximizes vapor handling capability, catering to various needs efficiently.

• Dual mode for handling high gas loads without compromising vacuum
• Quiet operation at 48dBA
• Fast-acting inlet valve to prevent oil and gas suckback
• Easily reconfigurable design
• High vacuum and high throughput modes
• Adjustable gas ballast control for vapor handling
• NW25 inlet/outlet connections

• Maximum Pressure: 1.5 x 10-3 mbar
• Horsepower: 0.5 hp
• Electrical Requirements: 115V 50/60Hz
• Noise Level: 48 dB (A)
• Weight: 21.6 kg / 47.61 lb.
• Maximum Temperature: 40°C / 104°F
• Flow Rate: 76 L/min.
• Overall Height: 9 in. / 22.86 cm
• Overall Length: 17 in. / 43.18 cm
• Overall Width: 6.25 in. / 15.88 cm
• Voltage: 115 V
• Includes: Pump, 2m electrical supply cable, inlet screen, Ultragrade 19 Oil, lifting bracket
• Model: RV3

Metric: 21.6 kg
Imperial: 47.61 lbs

Metric: 43.18 cm x 15.88 cm x 22.86 cm
Imperial: 17 in x 6.25 in x 9 in

841410

This code refers to vacuum pumps, and specifically, it covers dry, oil-free vacuum pumps for laboratory purposes. The Edwards RV3 Vacuum Pump falls under this category perfectly, making it the most appropriate harmonized code.
