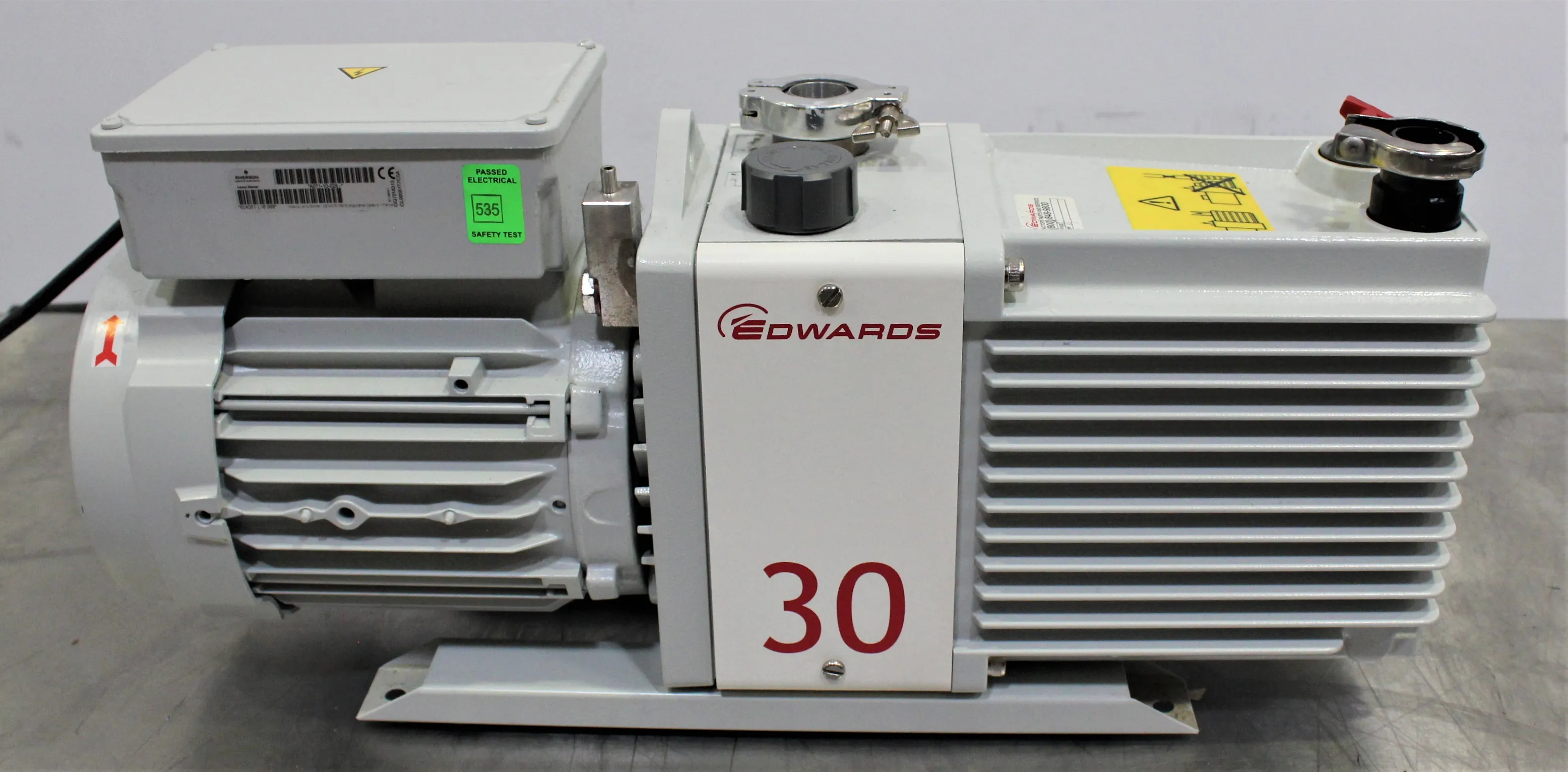

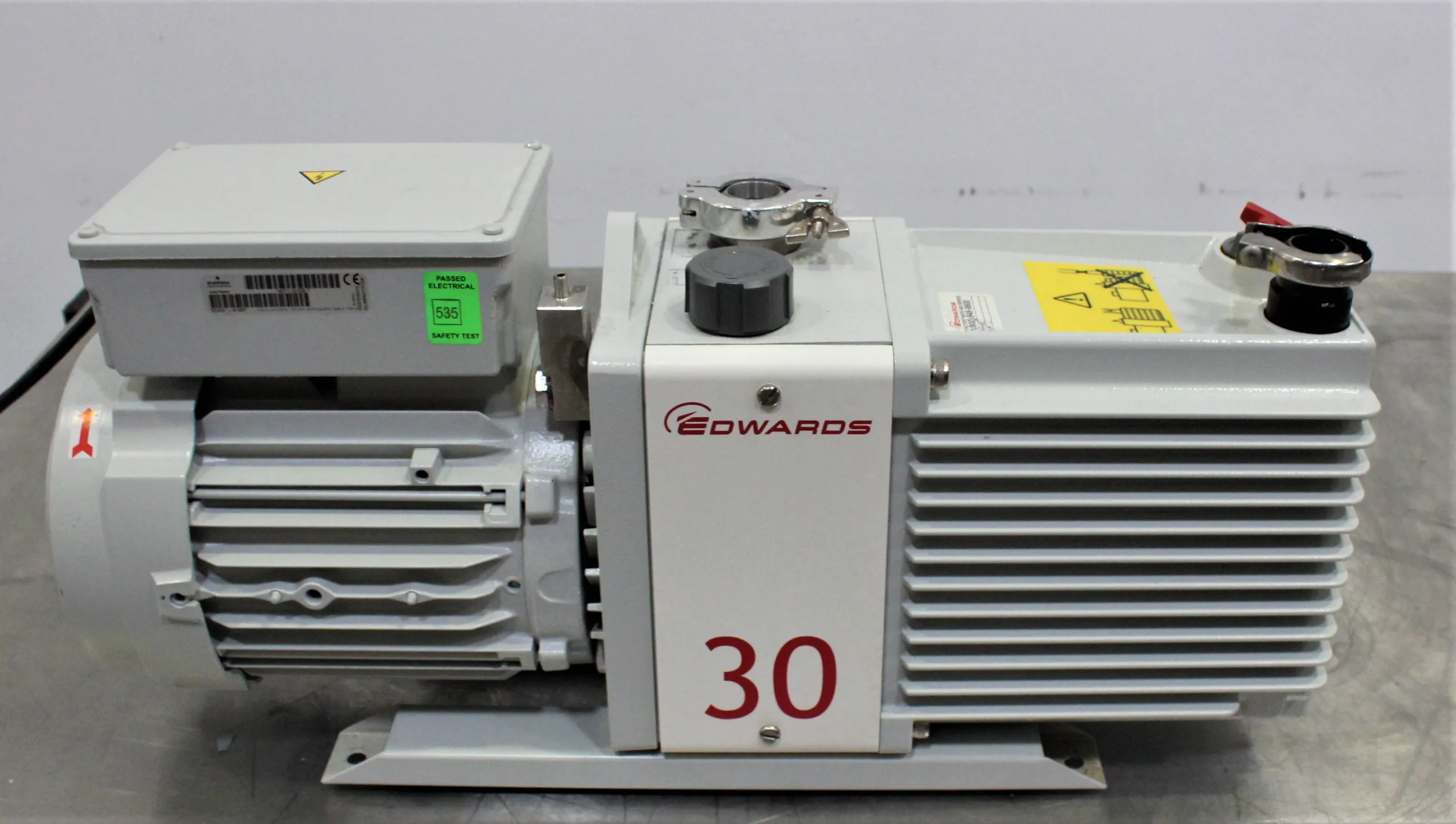

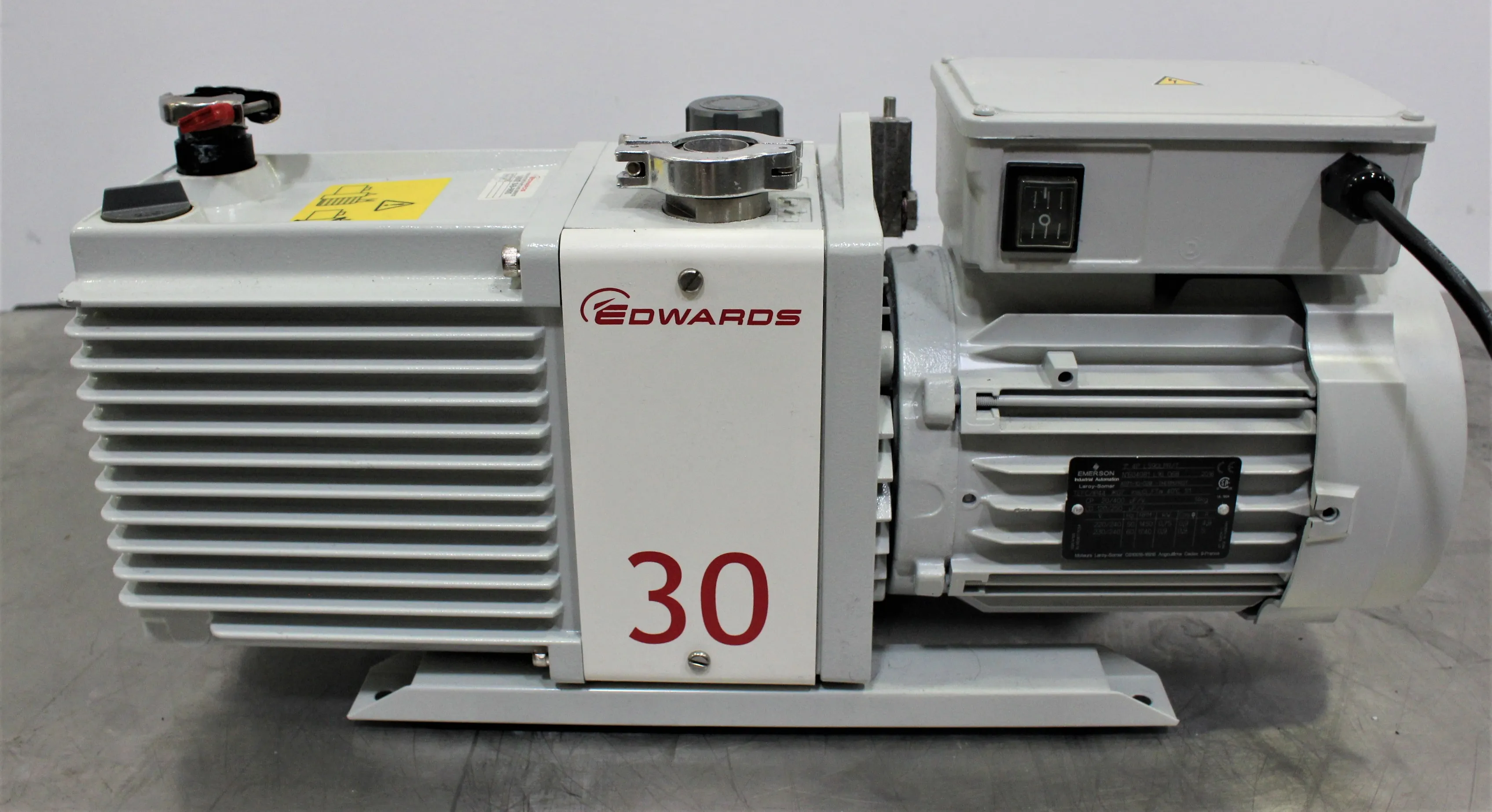

Edwards E2M30 Rotary Vane Vacuum Pump - Class 3 Service

Product Information

The Edwards E2M30 Rotary Vane Vacuum Pump is a two-stage, direct drive, sliding vane, oil-sealed pump that offers excellent ultimate pumping speed while providing quiet operation. With outstanding vapor handling capabilities, the E2M30 is a reliable and versatile vacuum pump. There are a multitude of applications for the Edwards E2M30, including use with sterilization, mass spectrometry, lasers, vacuum distillation, epoxy degassing, brake line evacuation, freeze drying, space research, refrigeration dehydration, vacuum ovens, backing combinations, thin film coating, and other vacuum processes. Manufacture Specification: Maximum Displacement: 19 cfm at 50 Hz, 23 cfm at 60 Hz; Maximum Speed: 16.2 cfm at 50 Hz, 19.4 cfm at 60 Hz; Motor Rotational Speed: 1440 r min-1, 1720 r min-1; Ultimate Vacuum: Without gas-ballast:1 x 10-3 mbar, With gas-ballast:1.5 x 10-2 mbar, With Fomblin:1 x 10-2 mbar; Noise Level: 57 dB(A) at 50 Hz; Maximum Water Vapor Inlet Pressure: 30 mbar / 23 torr; Maximum Water Vapor Pumping Rate: 0.7 kg h-1; Maximum Permitted Outlet Pressure (at full pump throughput): 0.5 bar gauge, 1.5 bar absolute, 1.5 x 105Pa

Metric: 29.48 kg
Imperial: 65 lbs

Metric: 30 cm x 30 cm x 20 cm
Imperial: 11.81 in x 11.81 in x 7.87 in

841410

Vacuum pumps; liquid ring vacuum pumps and other rotary pumps
