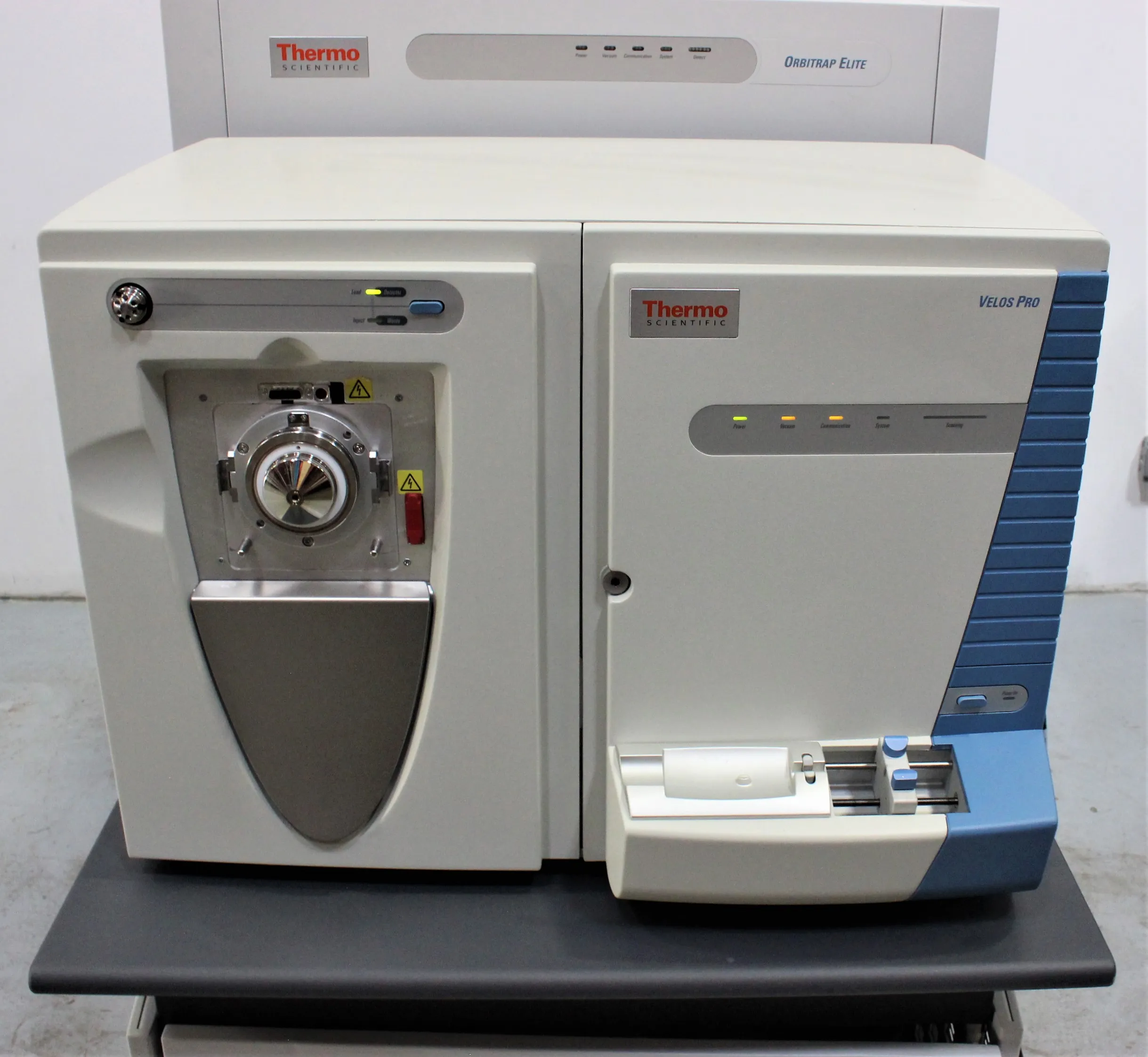

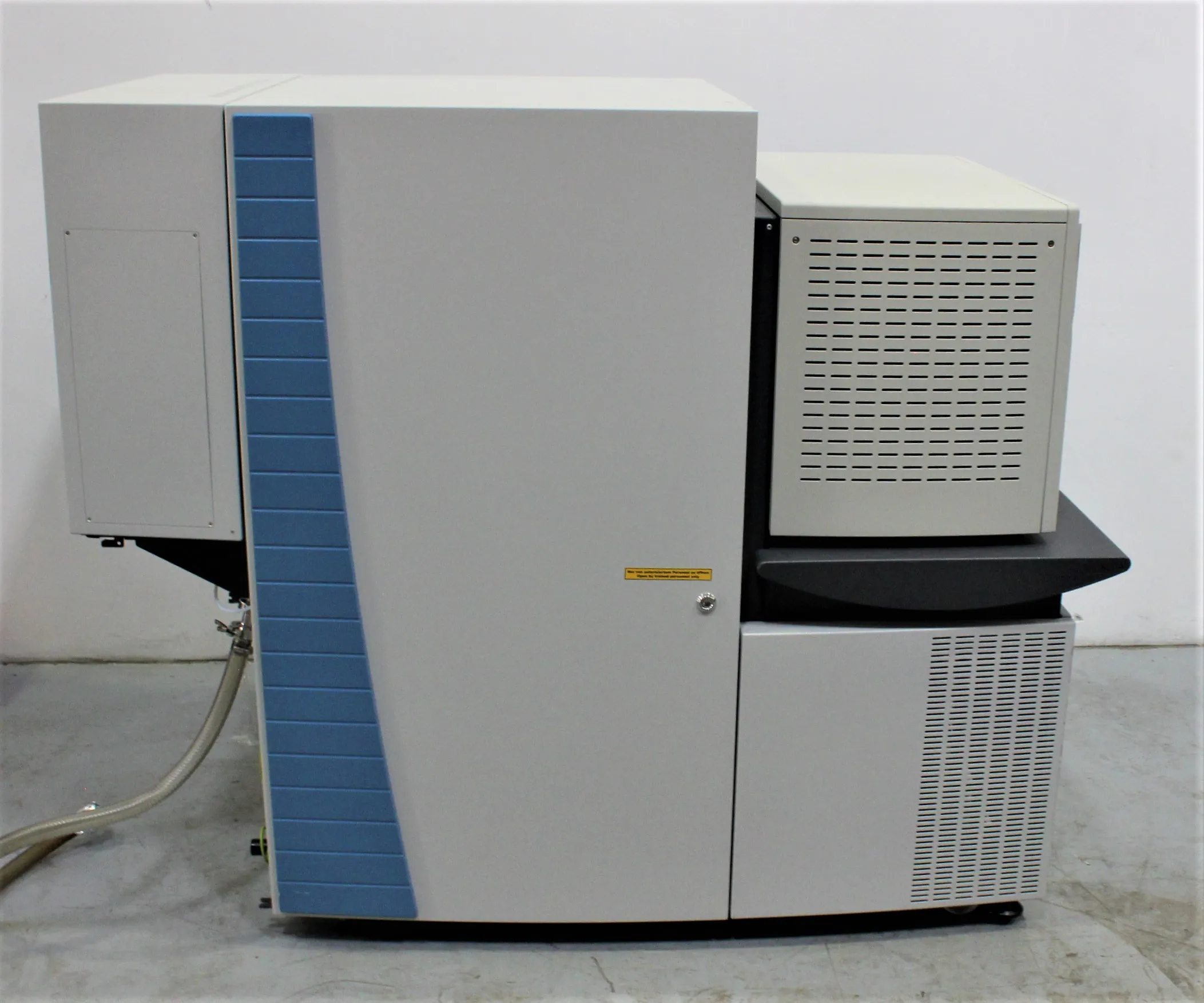

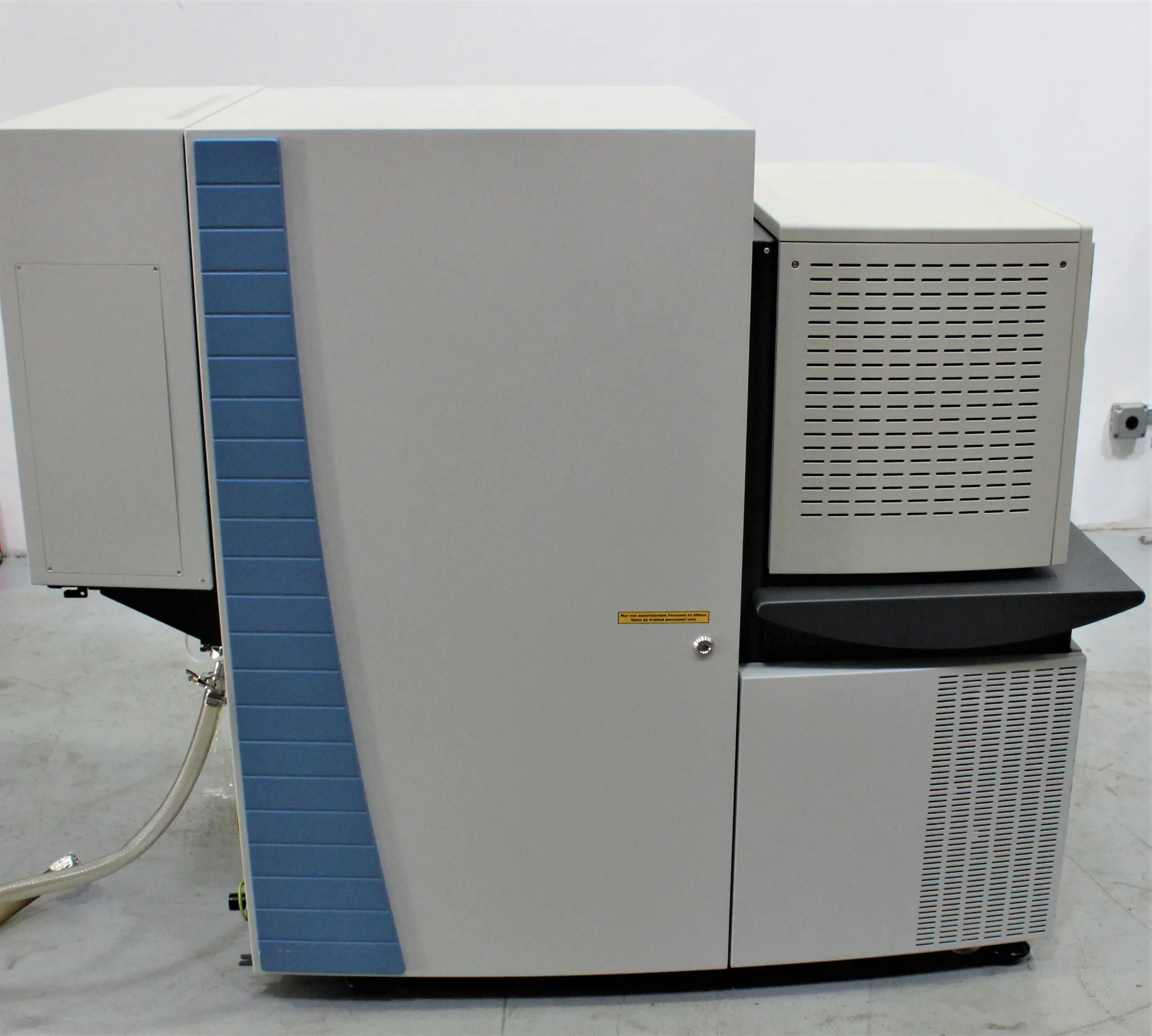

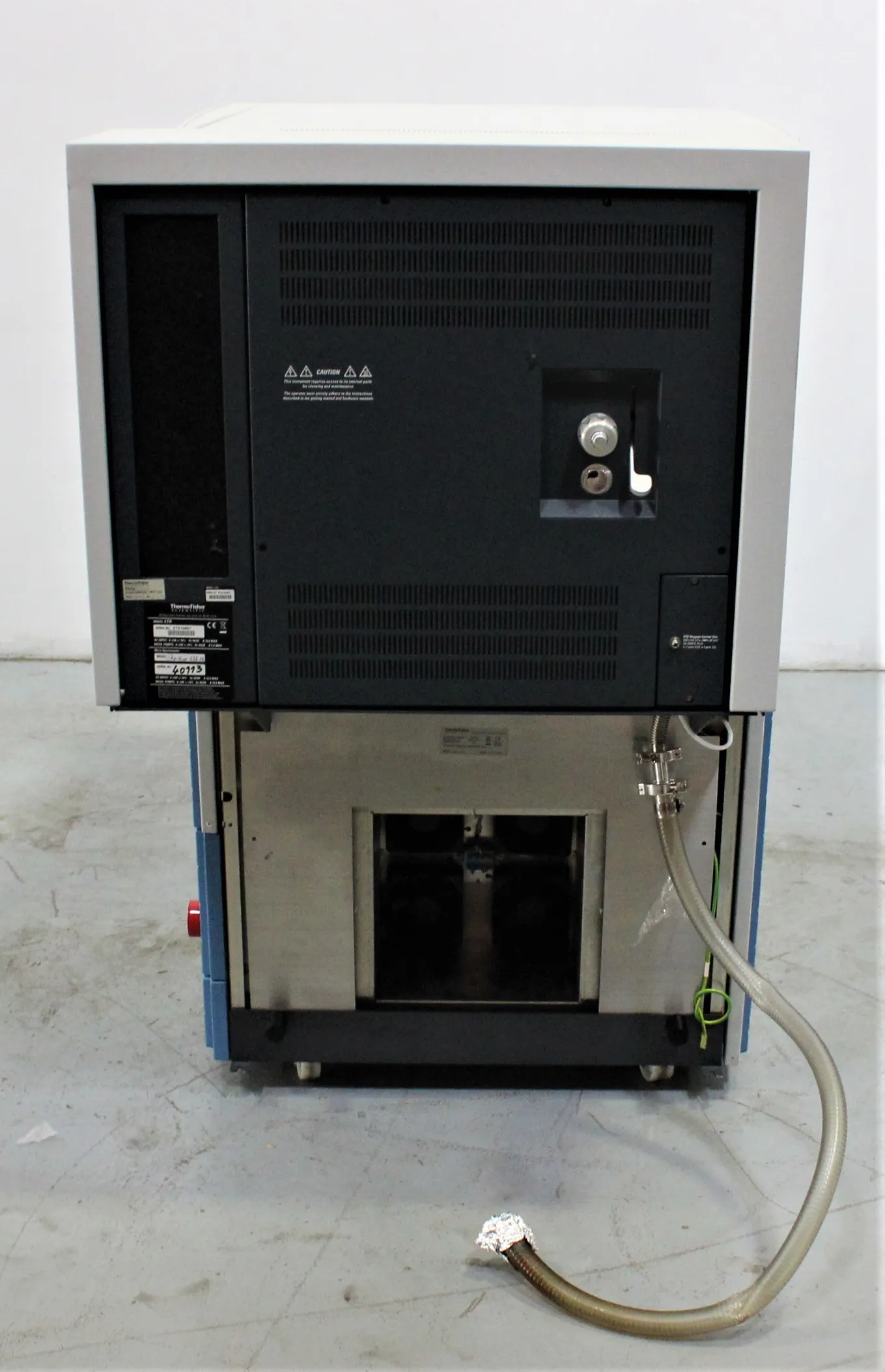

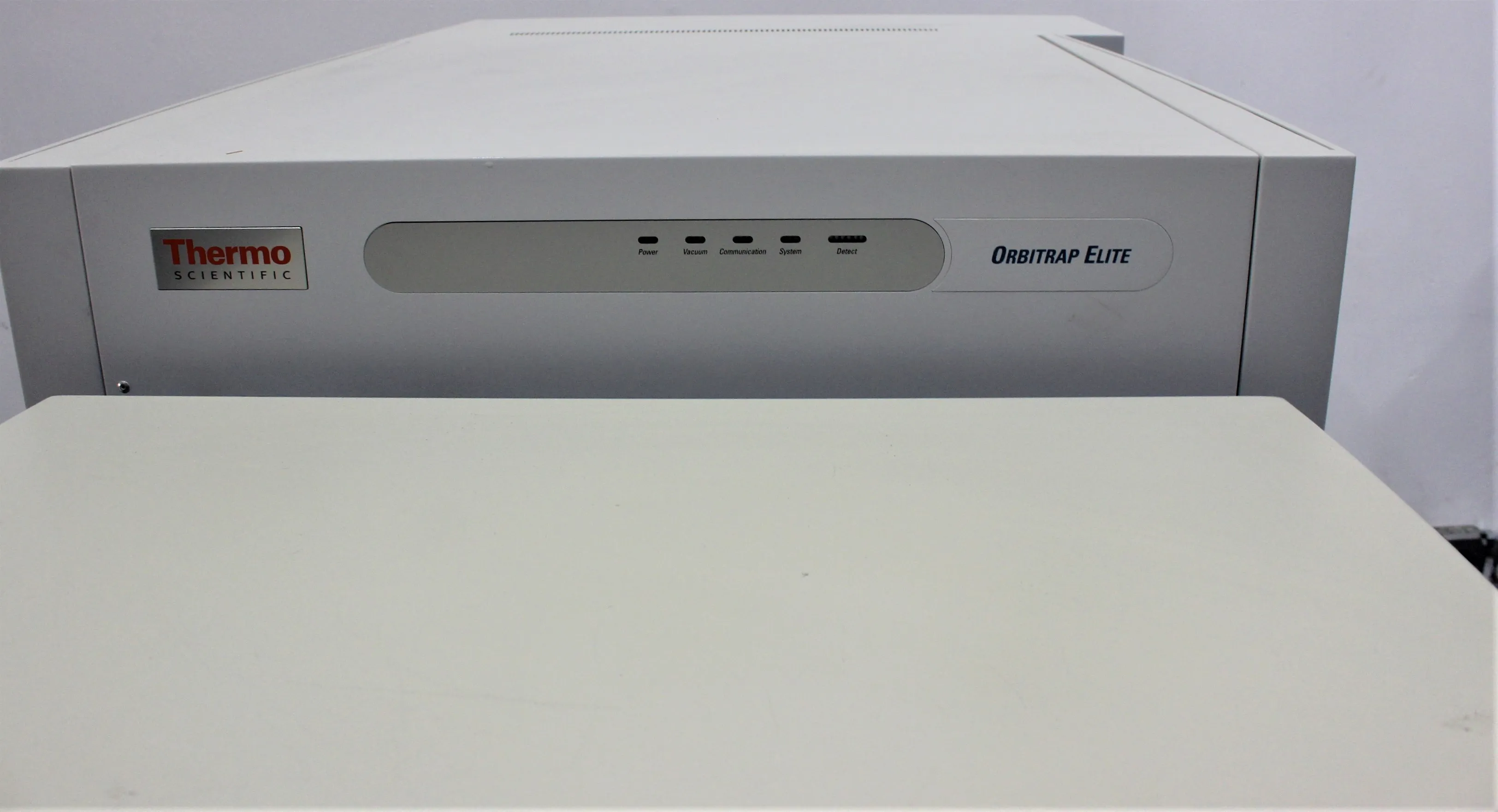

Thermo Scientific Orbitrap Elite & LTQ Velos Pro with ETD Mass Spectrometer

Product Information

Our top-of-the-line Thermo Scientific Orbitrap Elite is the ultimate hybrid mass spectrometer that combines the high-field Orbitrap analyzer with the latest dual-pressure linear ion trap, the Thermo Scientific LTQ Velos Pro with ETD. With unparalleled speed, sensitivity, and dynamic range, this powerful system provides high-resolution analysis for complex and low abundance samples. Ideal for applications including proteomics, metabolomics, and lipidomics.

• Hybrid mass spectrometer with Orbitrap analyzer and dual-pressure linear ion trap
• High resolution and ultrahigh sensitivity for in-depth analysis
• Ideal for proteomics, metabolomics, and lipidomics applications

• Mass Range: m/z 50-2000, m/z 200-4000
• Resolution: 60,000 at m/z 400, minimum resolution 7,500, maximum resolution >100,000 at m/z 400
• Mass Accuracy: < 3 ppm with external calibration, < 1 ppm using internal calibration
• MS/MS: Electrospray Ionization (ESI)
• Sensitivity: -2 L of a 50 fg/L solution of reserpine injected at a ow of 500 L/min will produce a minimum signal-to-noise ratio of 100:1
• Dynamic Range: >5,000 within a single scan
• MS Scan Power: MS n, for n = 1 through 10
• ETD: 3 L/min infusion of a 1 pmol/L solution of Angiotensin I will produce an electron transfer dissociation fragmentation efficiency of >15%
• Analog Inputs: One (1) analog input (0-1 V), One (1) analog (0-10 V)

Metric: 690 kg
Imperial: 1517 lbs

Metric: 79 cm x 44 cm x 66 cm
Imperial: 31.1 in x 17.3 in x 26 in

902720

The chosen harmonized code 902720 covers mass spectrometers and provides accurate classification for this equipment.
