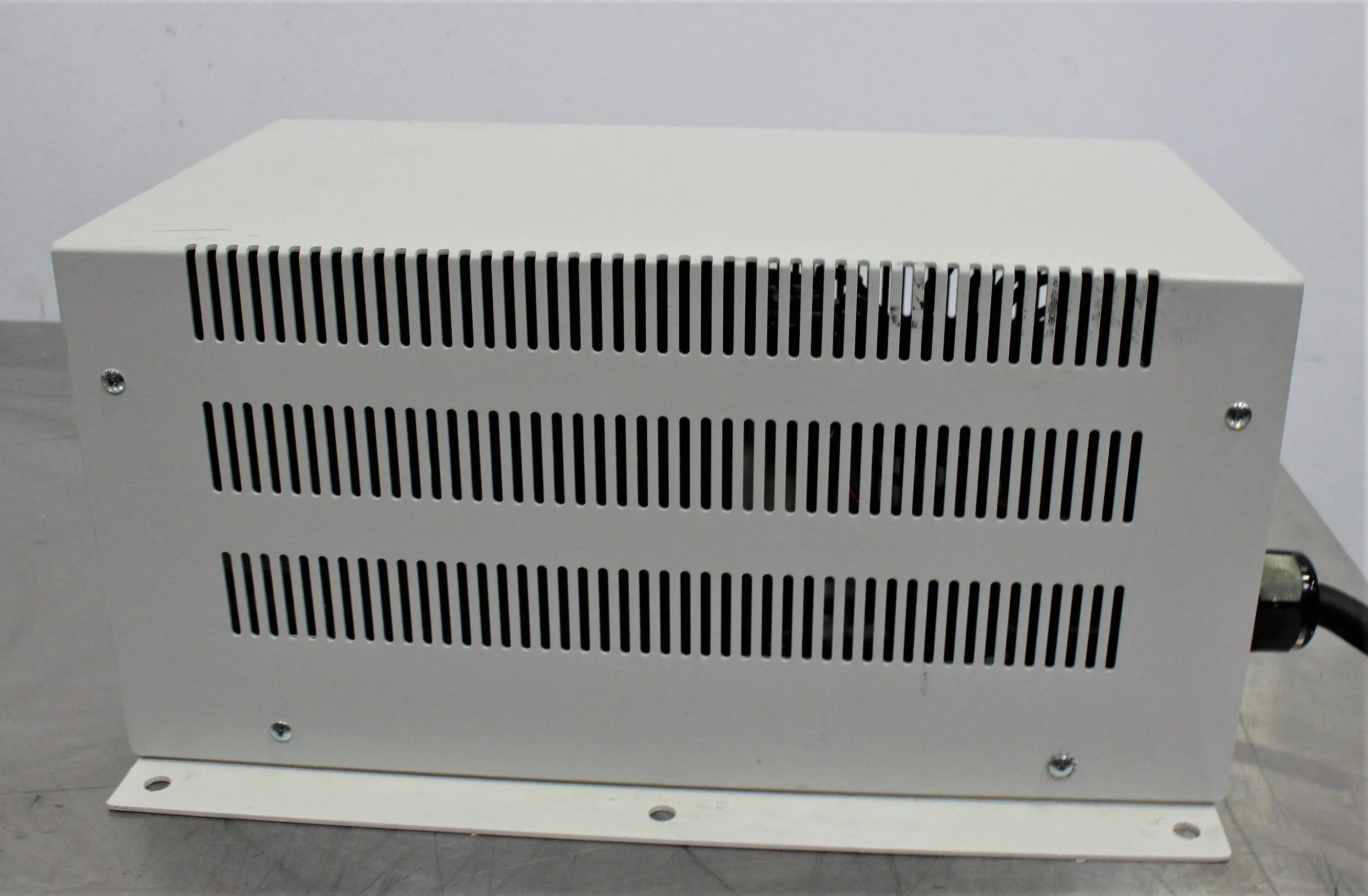

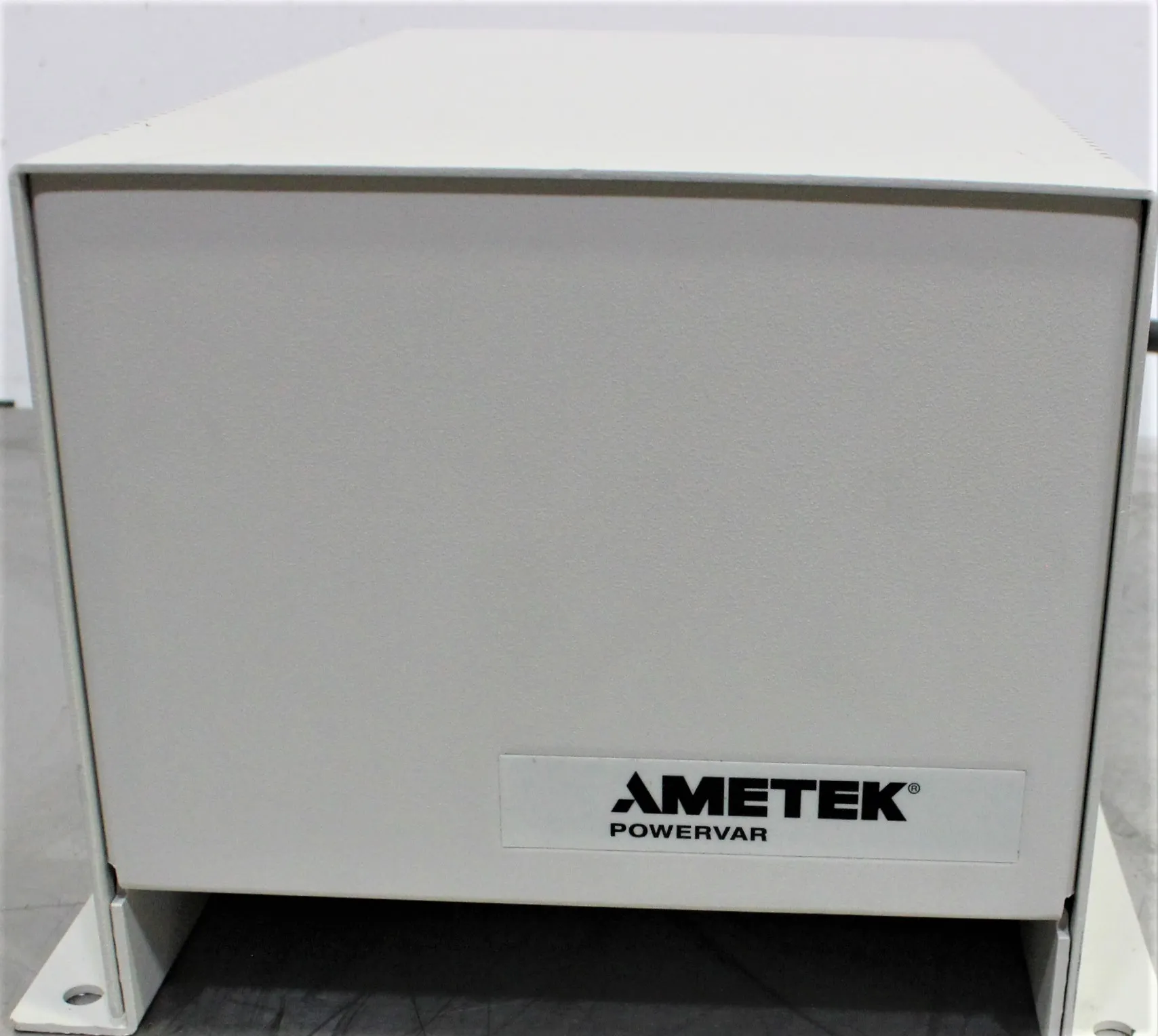

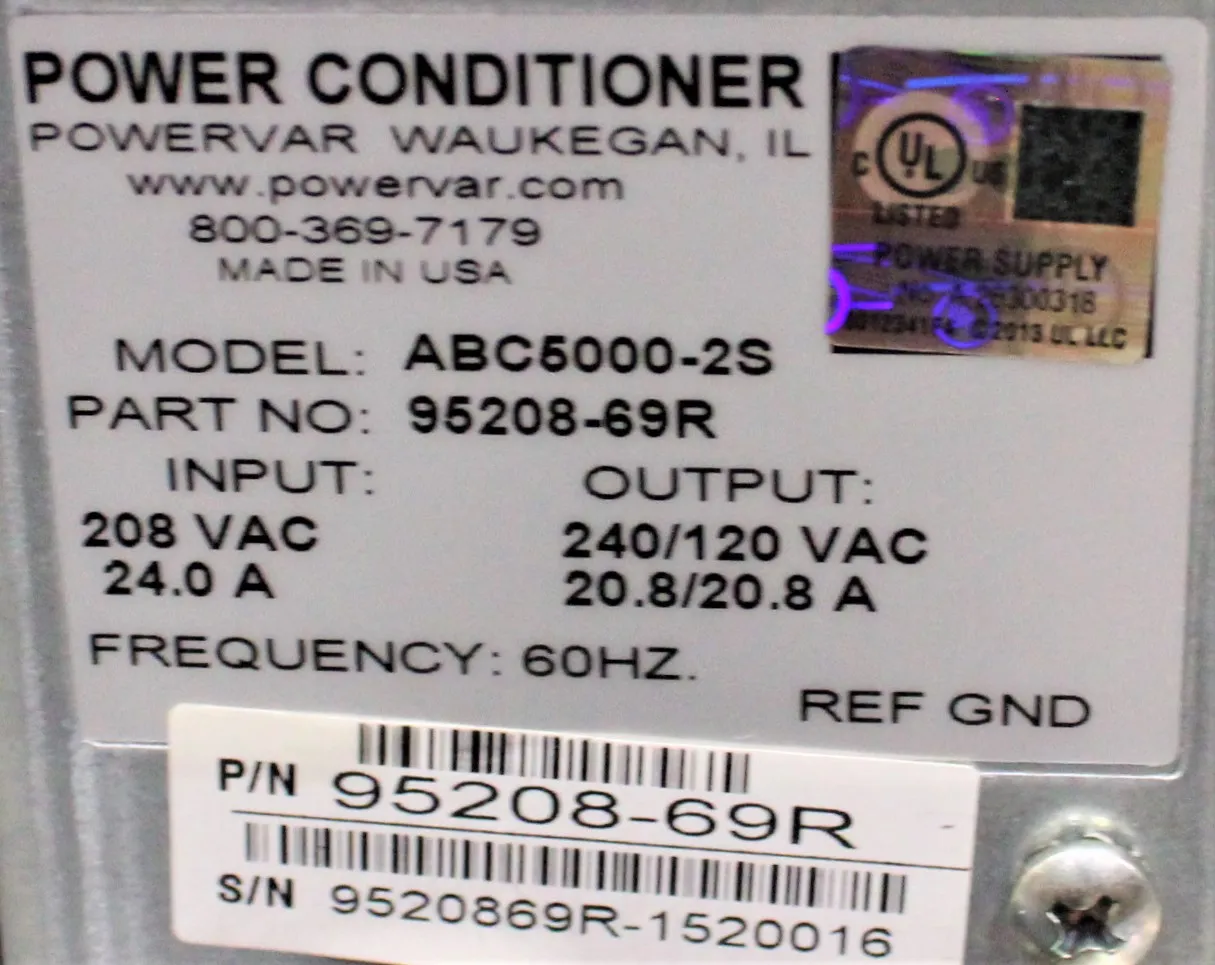

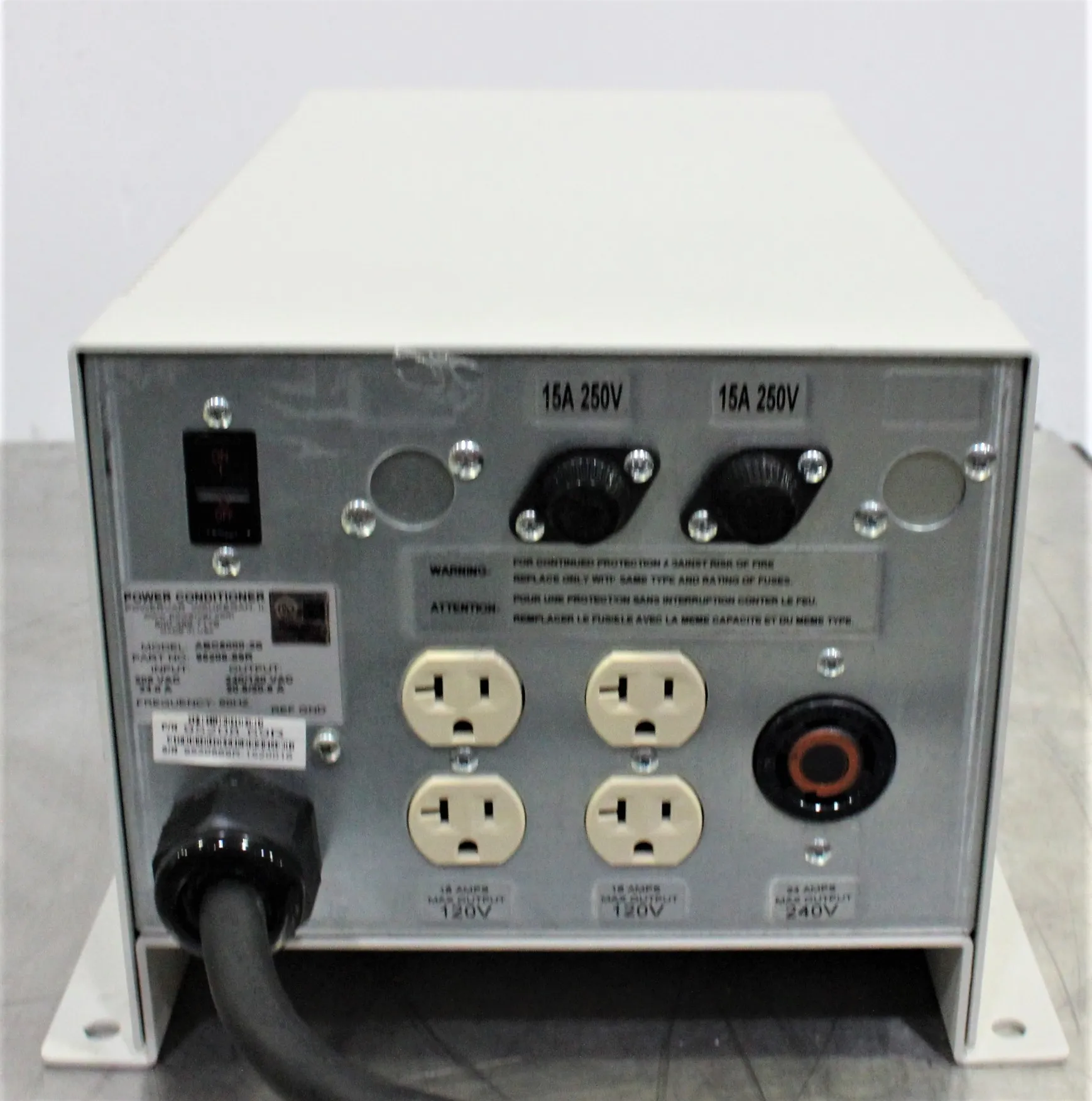

AMETEK Powervar ABC5000-2S Power Converter

Product Information

If you have a small or mid-range computer system, multiple network servers, a large phone or voice-mail system, or other critical equipment that requires more power, AMETEK Powervar single-phase conditioners can save you time and frustration. Manufacture Specification VA Rating: 5.0 kVA Frequency: 60 Hz. BTU/Hr. Output: 512 T.H.D. Max. %: <1% Load Surge Current @: *1/2 cycle 500 amps *1 second 100 amps *10seconds 48 amps Input Voltage: 208 or 240 Output Voltage: 120/240 Output Current: 20.8 amps per leg Efficiency: 97% Voltage Drop No Load to Full Load: 3% Wall mountable: Yes Compliance: UL and cUL, RoHS

• 5.0 kVA rating
• Frequency of 60 Hz
• Efficiency of 97%
• Input Voltage 208 or 240
• Output Voltage 120/240
• Compliance with UL and cUL, RoHS

• VA Rating: 5.0 kVA
• Frequency: 60 Hz
• BTU/Hr. Output: 512
• T.H.D. Max. %: <1%
• Load Surge Current @: 1/2 cycle 500A, 1 second 100A, 10 seconds 48A
• Input Voltage: 208 or 240
• Output Voltage: 120/240
• Output Current: 20.8A per leg
• Efficiency: 97%
• Voltage Drop No Load to Full Load: 3%
• Wall mountable: Yes
• Compliance: UL and cUL, RoHS
• Warranty: 30-Day Warranty, 100% Parts and Labor
• Voltage: 220V
• Hertz: 60Hz US
• Warehouse Location: REUZEit West Coast US - R
• Serial Number: 952086R-1520016

Metric: 74.8427 kg
Imperial: 165 lbs

Metric: 66.04 cm x 45.72 cm x 43.18 cm
Imperial: 26 in x 18 in x 17 in

850440

Other inductors; power supplies (excluding charging units) for ADP machines and units for automatic data processing machines and units thereof
