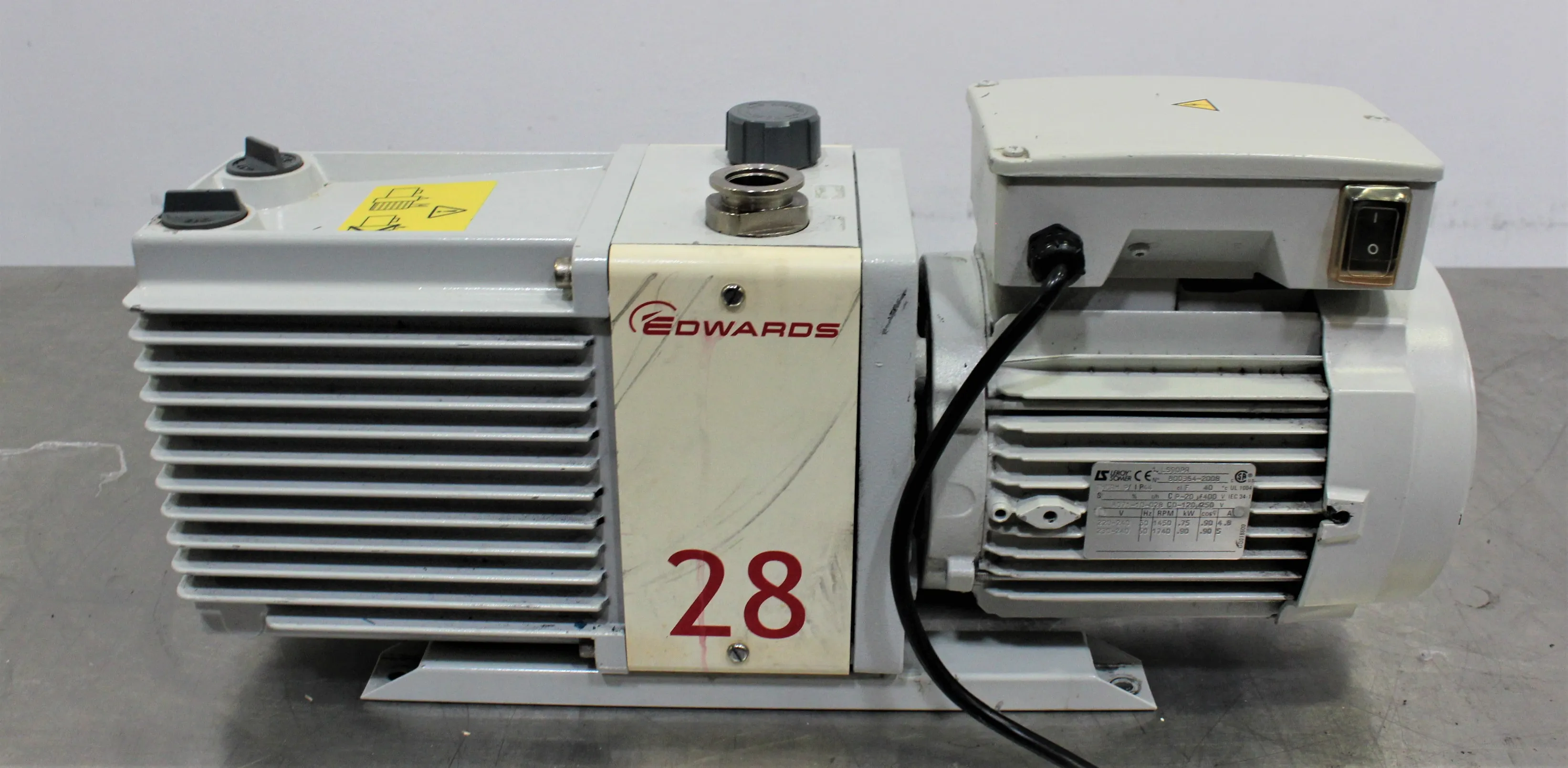

Edwards E2M28 Rotary Vane Vacuum Pump
Same item available with different options / conditions
- Make Edwards
- Hertz 60Hz US
- Model E2M28

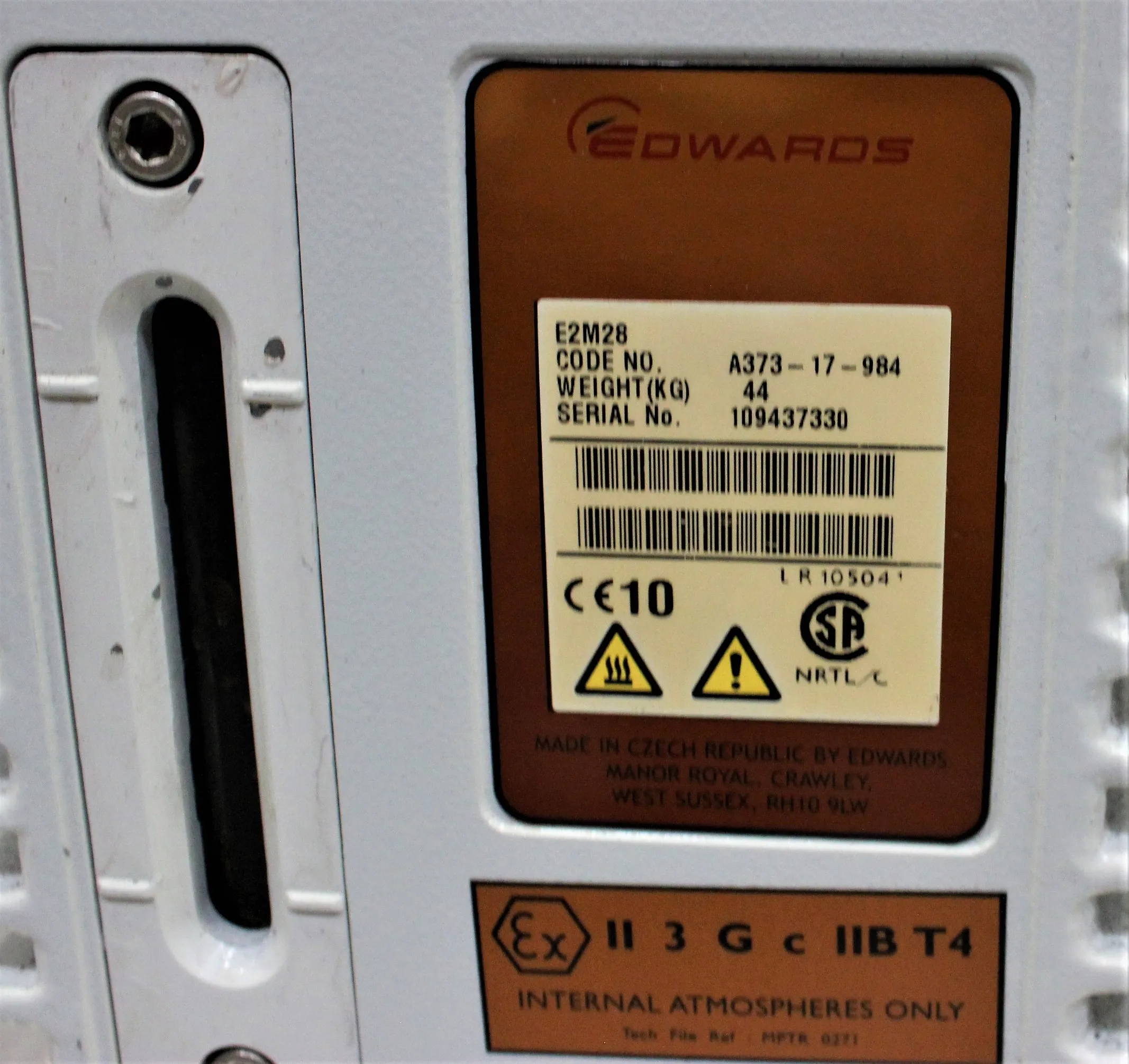

- Serial 109437330
- Weight 120.0 Lb
- Voltage 220V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 31.0in x 15.0in x 19.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information
The Edwards E2M28 Rotary Vane Vacuum Pump offers excellent ultimate pumping speed while providing quiet operation. With outstanding vapor handling capabilities, the E2M28 is a reliable and versatile 208V vacuum pump. There are a multitude of applications for the Edwards E2M28, including use with sterilization, mass spectrometry, lasers, vacuum distillation, epoxy degassing, brake line evacuation, freeze drying, space research, refrigeration dehydration, vacuum ovens, backing combinations, thin film coating, and other vacuum processes. Manufacture Specifications Max water vapor inlet pressure 22.5 torr (30 mbar), Max allowed pressure at outlet 0.5 bar gauge/7 psig, Max water vapor capacity 700 grams/hour, Operating temperature range 54F to 104F (12C to 40C), Oil capacity Minimum 1.4 quart (1.3 L), maximum 1.6 quart (1.5 L), Oil type Ultragrade 19, Nominal rotation speed 1400/1720 rpm, Noise level 57 dB(A), Inlet connection NW25/KF25, Outlet connection Nozzle 15mm external removable from 3/4 in BSP tapped hole
Key Features
Metric: 54.43 kg
Imperial: 120 lbs
Metric: 58.42 cm x 33.02 cm x 48.26 cm
Imperial: 23 in x 13 in x 19 in
841410
Harmonized Code DetailsVacuum pumps, air or other gas compressors and fans; ventilating or recycling hoods incorporating a fan whether or not fitted with filters
This item is sold out, please see other similar options.
Edwards E2M28 Oil-Sealed Rotary Vacuum Pump 230V 50/60Hz
Edwards E2M28 Two Stage Rotary Vane Vacuum Pump, Oil-Sealed, 115/200-230 V, 1-ph, 50/60 Hz
Edwards E2M28 Oil-Sealed Rotary Vacuum Pump 230V 50Hz/60Hz
Testimonials
“REUZEit has been a great partner for our used equipment needs and always provide timely updates of new arrivals of consigned equipment.”
“Great company to work with. Tammy completed our first international equipment shipment with ease.”
“Fast response, open to adjusting schedule as needed, and great customer interaction.”

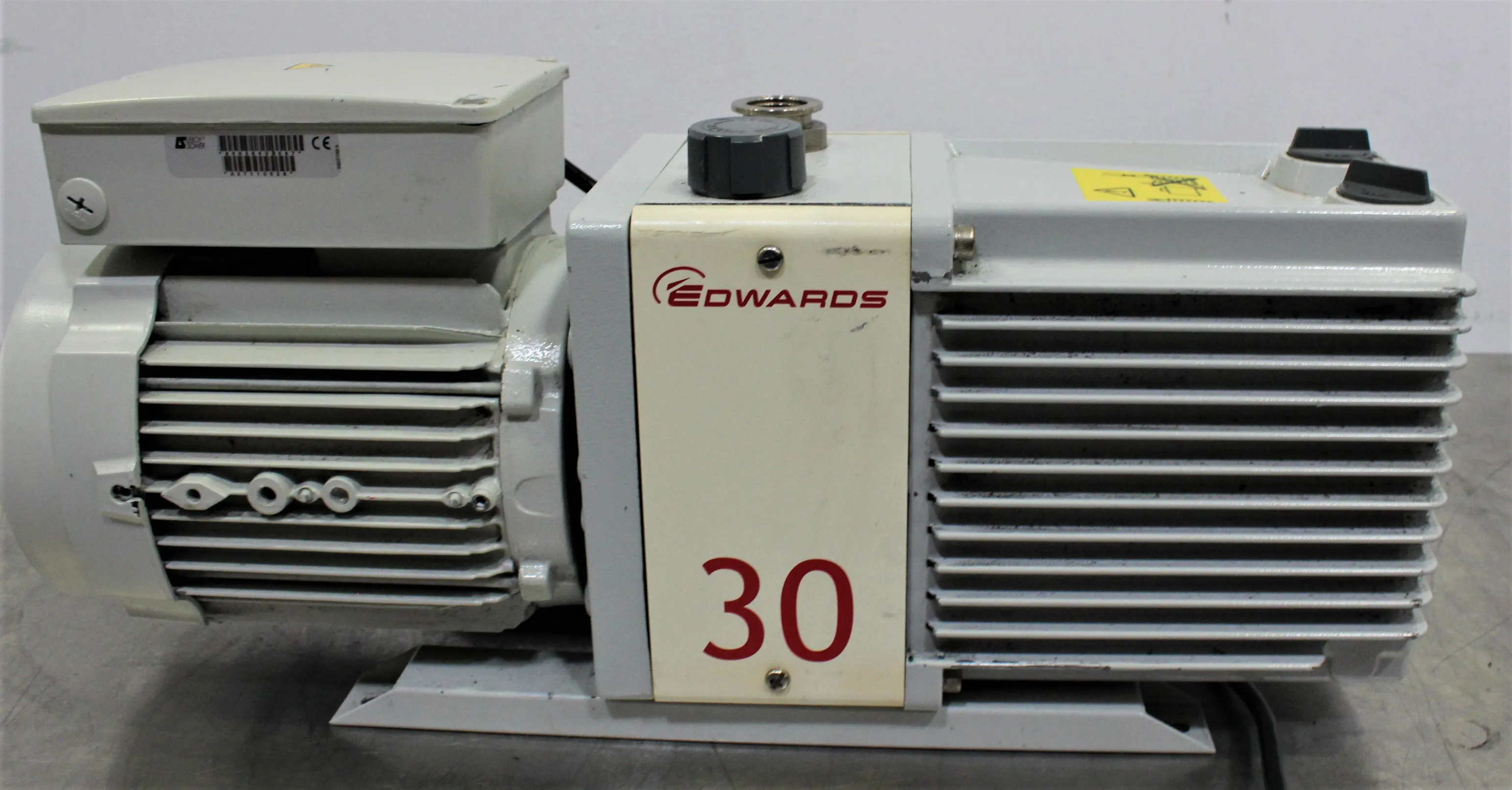

Edwards 30 Vacuum Pump E2M30 Rotary Pump CLEARANCE! As-Is
