EXFO OmniCure S2000 UV Curing Bonding System

sku: 3367512
Out Of Stock
Ask a question
Condition : New
Warranty : 30-Day Warranty, 100% Parts and Labor
Region : US
$185.00
Apply For Finance
Make Offer
Enquiry Here
ADD TO CART
  • Make EXFO
  • Hertz 50Hz/60Hz
  • Model S2000
  • Serial S2000-1128
  • Weight 10.0 Lb
  • Voltage 120V/220V
  • Includes Power cord included |
  • Warranty 30-Day Warranty, 100% Parts and Labor
  • Dimensions 22.0in x 15.0in x 17.0in
  • Shipping Type FedEx Ground
  • Item Condition New
  • Manufacturing Date Does Not Apply

Product Information

As the global leader in bonding systems for precision assembly with light-cured adhesives, the OmniCure S2000 provides the power, control and repeatability required for high-speed automated manufacturing assembly. Recognized worldwide, the S2000 is designed to adhere to regulatory validations and is RoHS compliant, ensuring environmentally friendly operations. The system utilizes high pressure 200 Watt mercury vapor short arc with integrated Intelli-Lamp UV curing lamp technology. With panel controls for Power On/Off, Display Mode, Adjust UP/DOWN, START/STOP, lock/unlock, the S2000 includes a variety of panel displays for accumulated UV lamp usage, exposure time, iris setting, lamp status, and more. The warm-up period is a typical 4 minutes, with high efficiency and line isolated power supply. Recommended applications include precision assembly, electronics, medical devices, optical devices, and other systems relying on UV curing for bonding and sealing.

Key Features

  • High pressure UV curing lamp technology
  • Integrated Intelli-Lamp for automatic control
  • Variety of panel controls and displays
  • High efficiency, line isolated power supply
  • RoHS compliant for environmentally friendly operations
Specifications

  • UV Curing Lamp Technology: High pressure 200 Watt mercury vapor short arc with integrated Intelli-Lamp

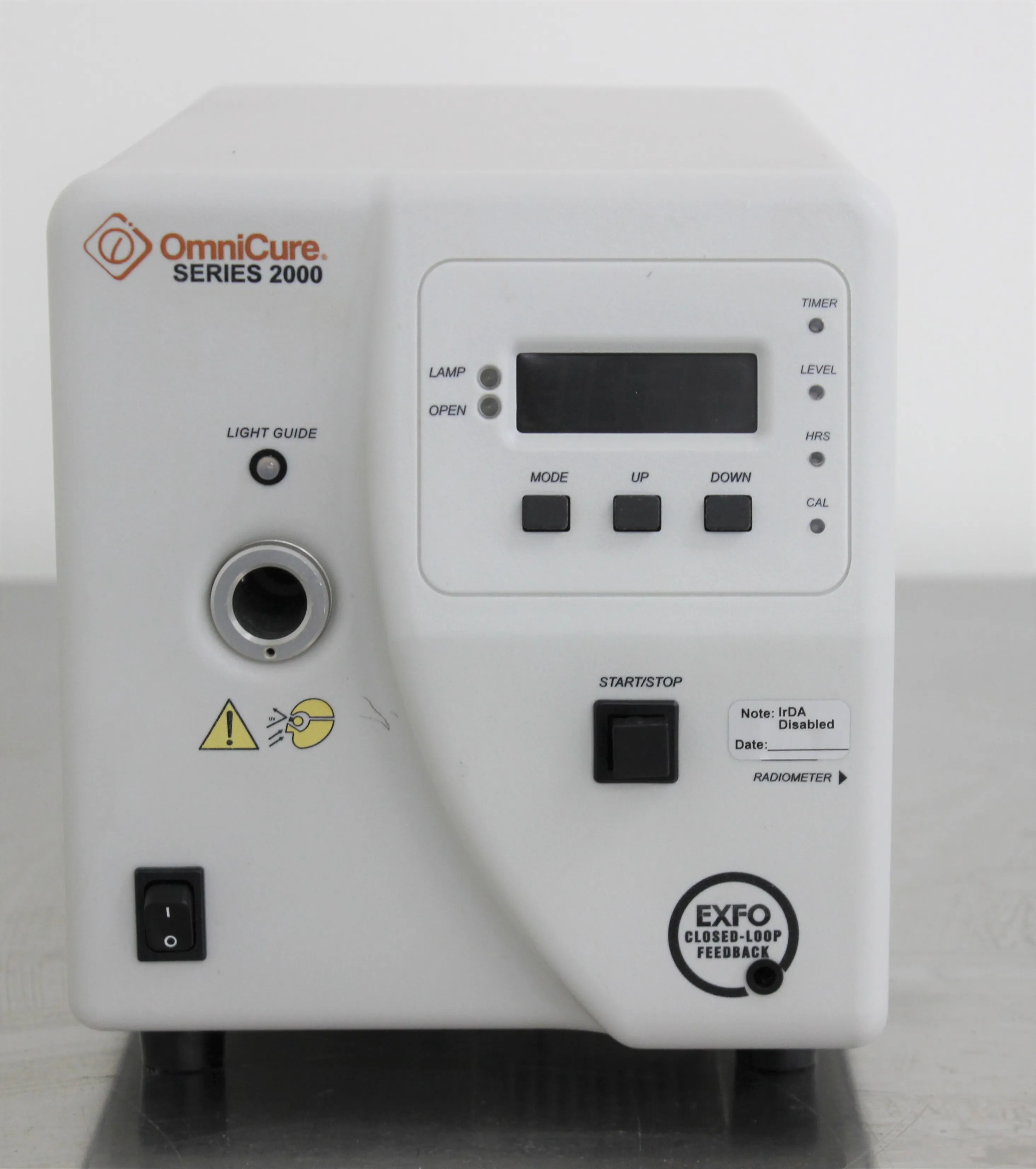

  • Panel Controls: Power On/Off, Display Mode, Adjust UP/DOWN, START/STOP, lock/unlock
  • Panel Displays: Accumulated UV Lamp Usage, Exposure Time, iris setting (0-100%), lamp status
  • Warm-up Period: 4 minutes (typical)
  • Power Supply: High efficiency, switch mode, line isolated
Weight

Metric: 4.53592 kg
Imperial: 10 lbs

Dimensions

Metric: 22.86 cm x 15.24 cm x 17.78 cm
Imperial: 9 in x 6 in x 7 in

Harmonized Code

85392900

Harmonized Code Details

The harmonized code 85392900 is used for the equipment, as it specifically relates to electrical machines and apparatus, having individual functions. This code is a suitable fit for the EXFO OmniCure S2000 due to its electrical and control functionalities and specifications.
