Chemyx Fusion 101 Syringe Pump for Synthetic Chemistry and Drug Infusion

Product Information

The Chemyx Fusion 101 is a high-performance, low-cost syringe pump designed for use in synthetic chemistry, electro-spinning, drug infusion, and ESI microliter injections. It features a graphic LCD interface, RS232 port for computer control, and an integrated syringe dimensions library. With selectable rate units, stall detection, and silent operation, this pump accommodates glass, plastic, and microsyringes. It ensures accuracy and reproducibility, with a syringe size ranging from 0.5L to 60mL, and a flow rate varying from 0.0001 L/min to 90 mL/min. The Fusion 101 is a versatile and reliable tool for various laboratory applications.

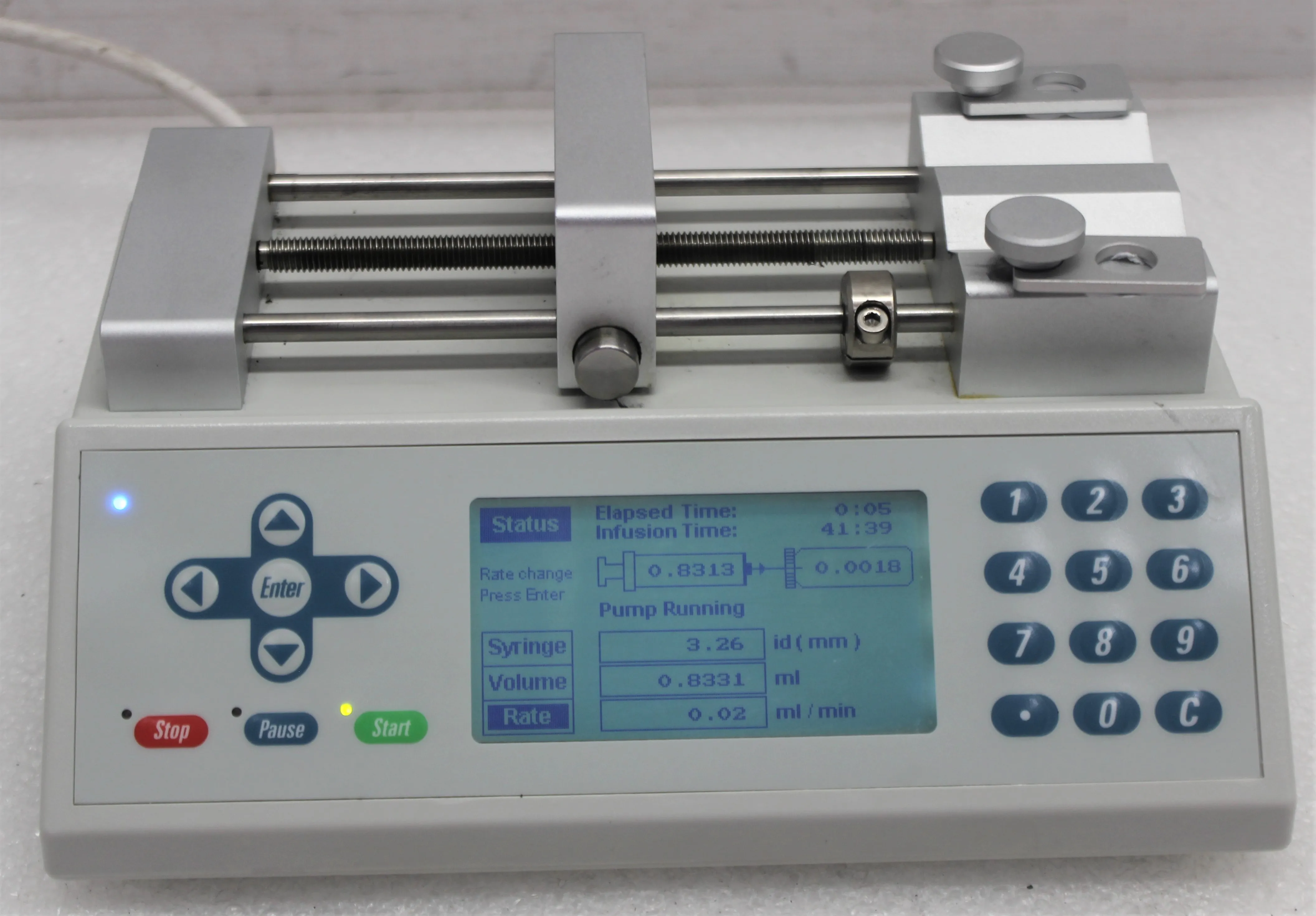

• Graphic LCD interface
• Integrated syringe dimensions library
• Selectable rate units: l/hr, l/min, ml/hr, ml/min
• Stall detection with audible alarm
• Silent operation
• Accommodates any syringe: glass, plastic and microsyringes
• Accuracy < 0.35%
• Reproducibility < 0.05%

• Accuracy: < 0.35%
• Reproducibility: < 0.05%
• Syringe Size (Min/Max): 0.5L to 60mL
• Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
• Maximum Flow Rate: 90 mL/min (with 60mL syringe)

Metric: 4.08 kg
Imperial: 9 lbs

Metric: 17.78 cm x 33.02 cm x 10.16 cm
Imperial: 7 in x 13 in x 4 in

901890

901890 - Instruments and apparatus for measuring or checking the flow, level, pressure or other variables of liquids or gases (excl. meters, regulators)
