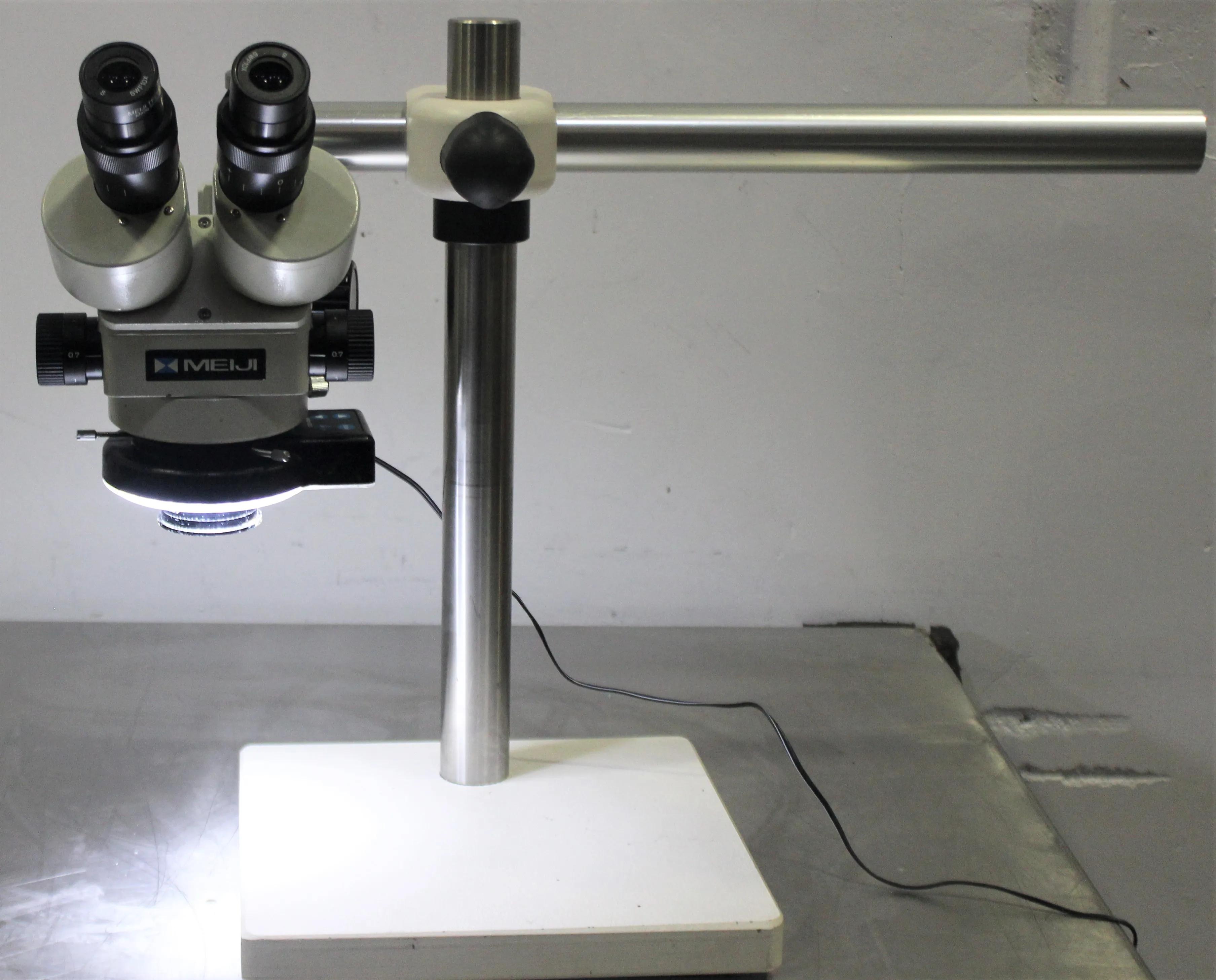

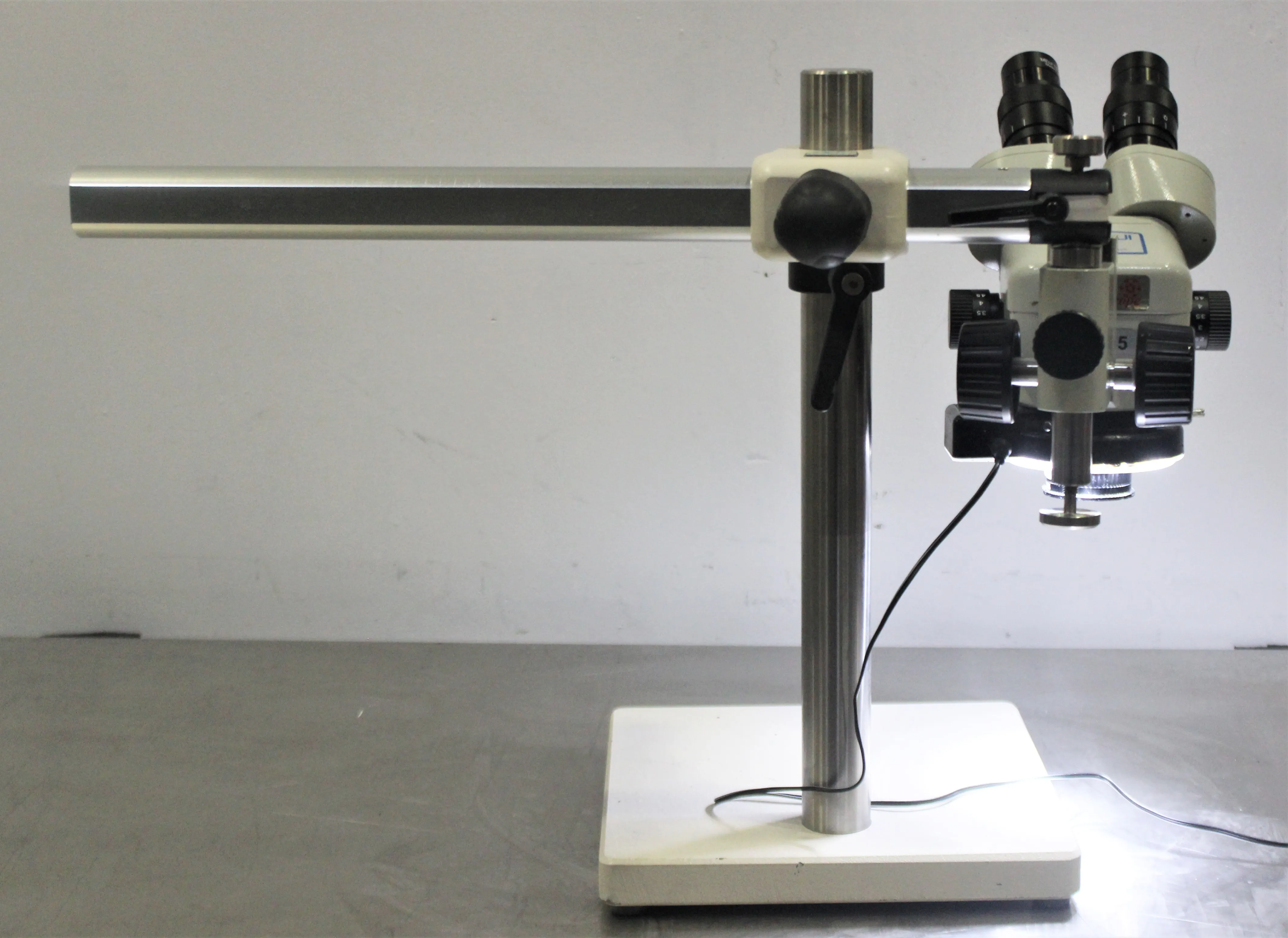

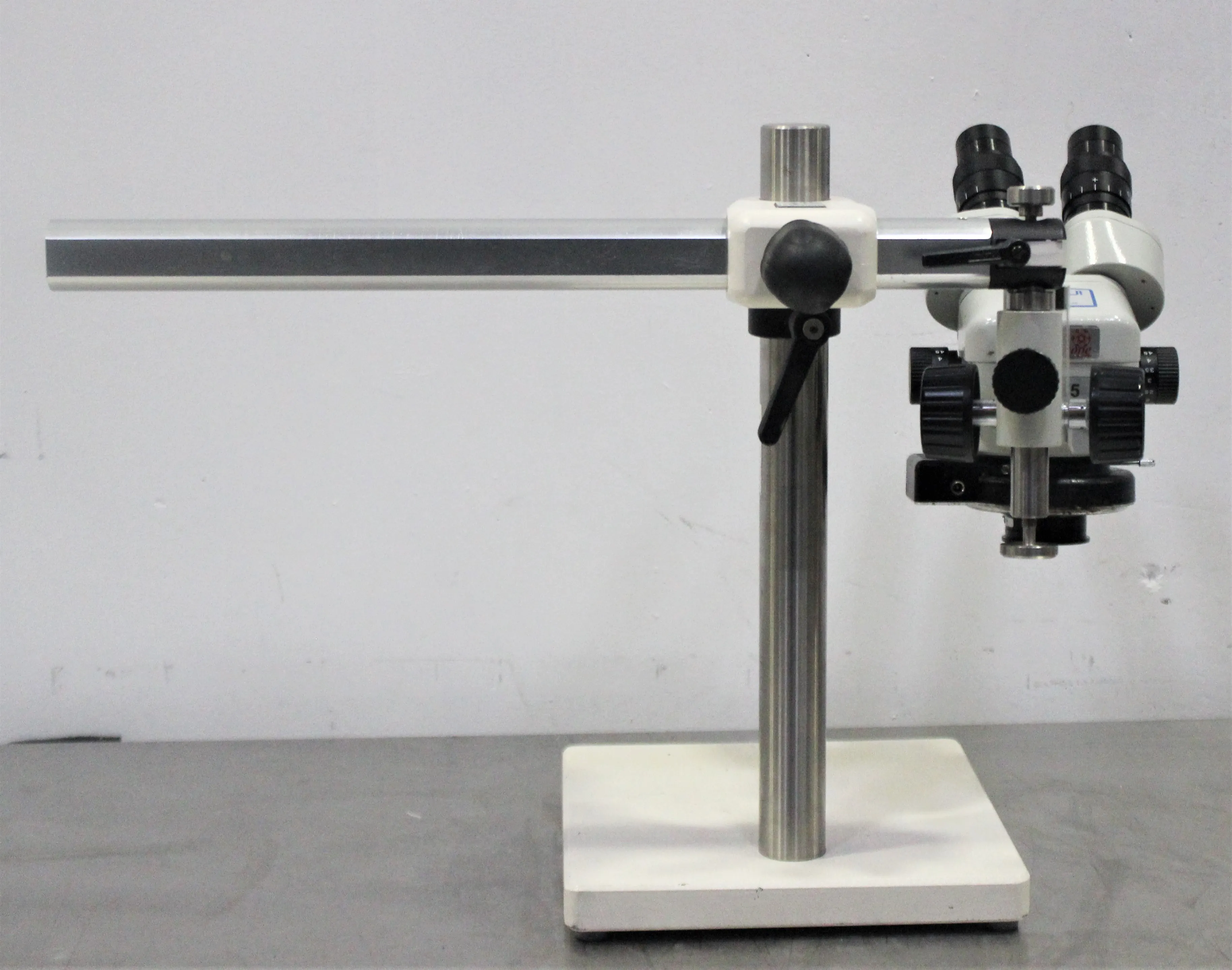

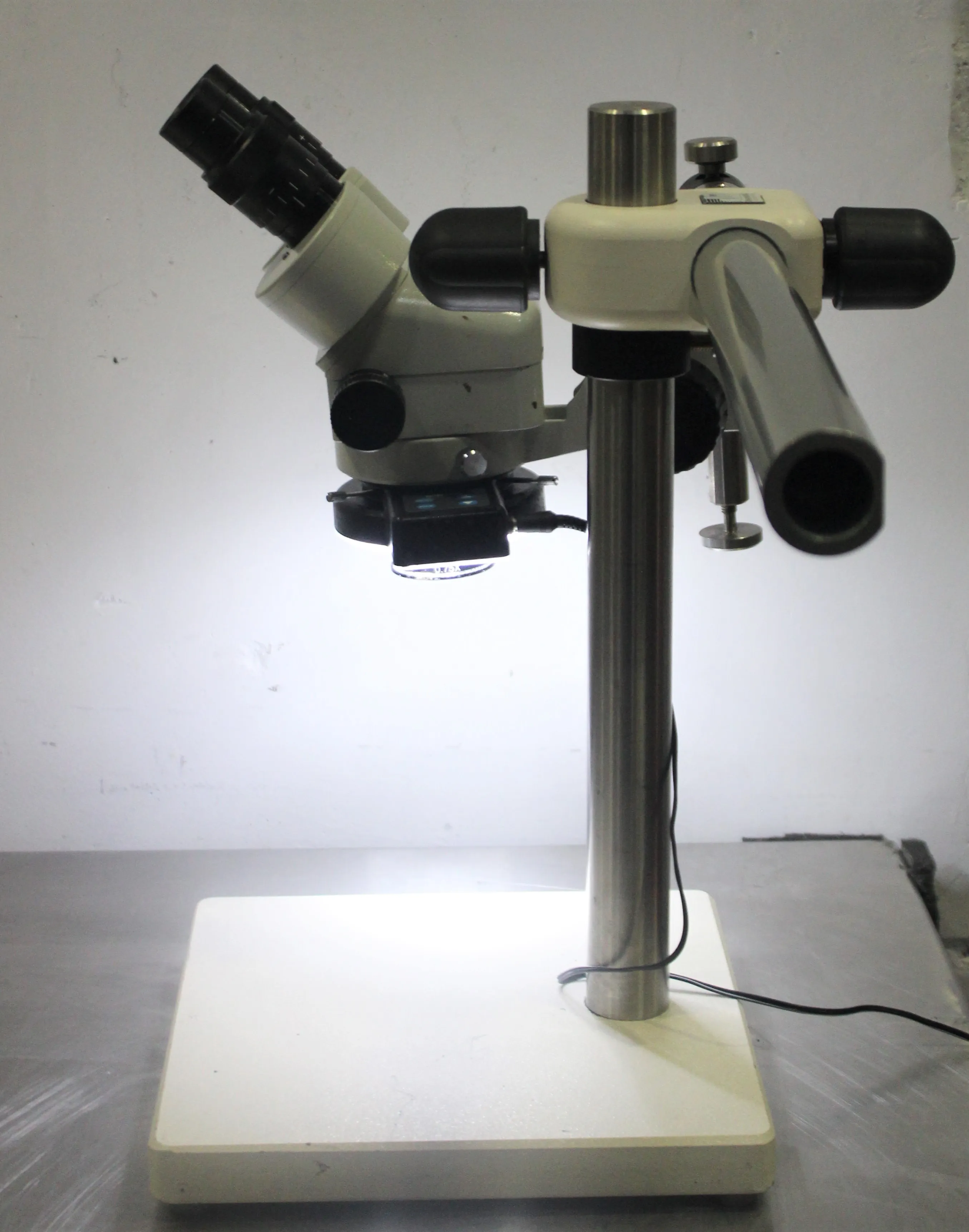

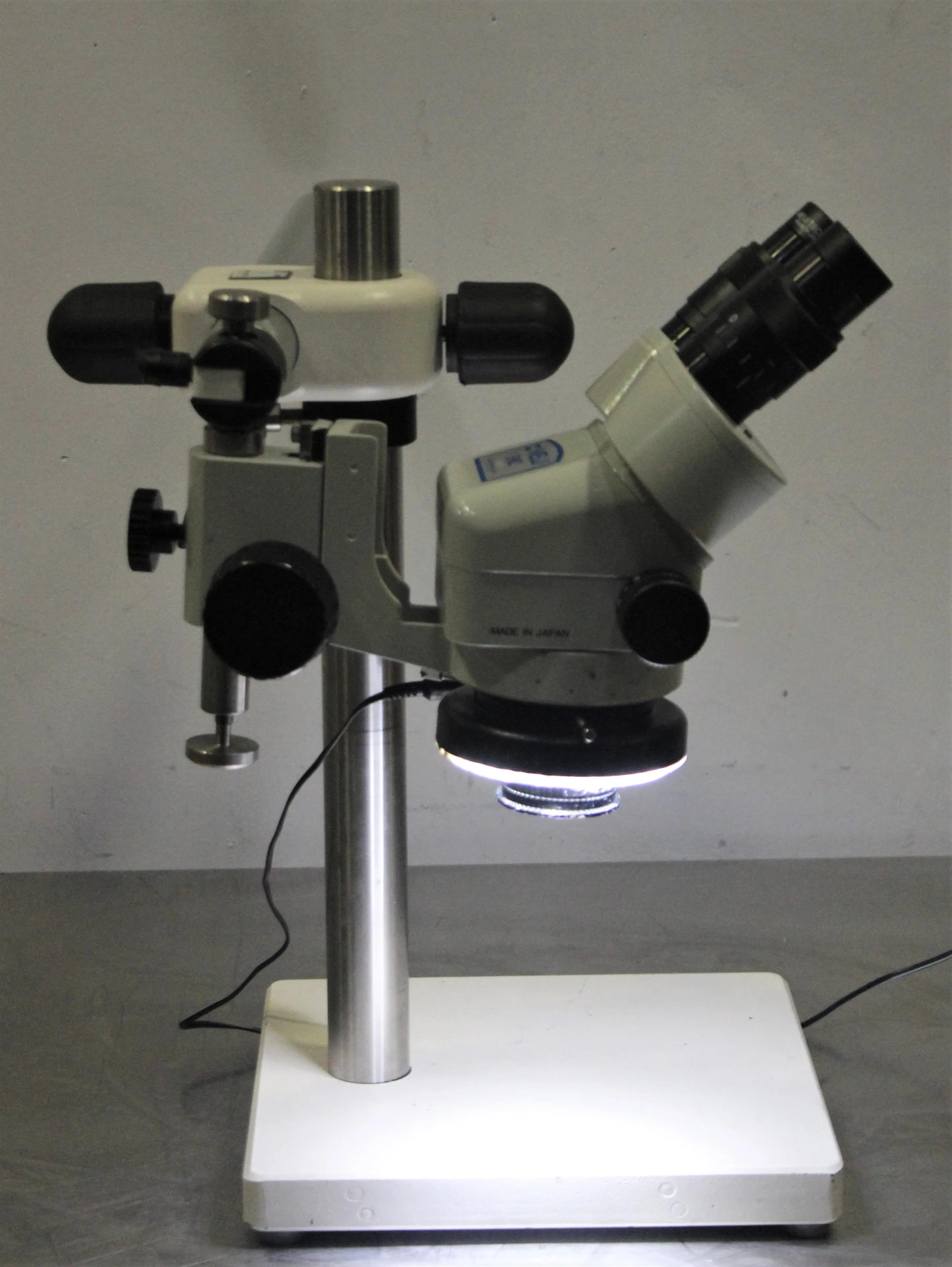

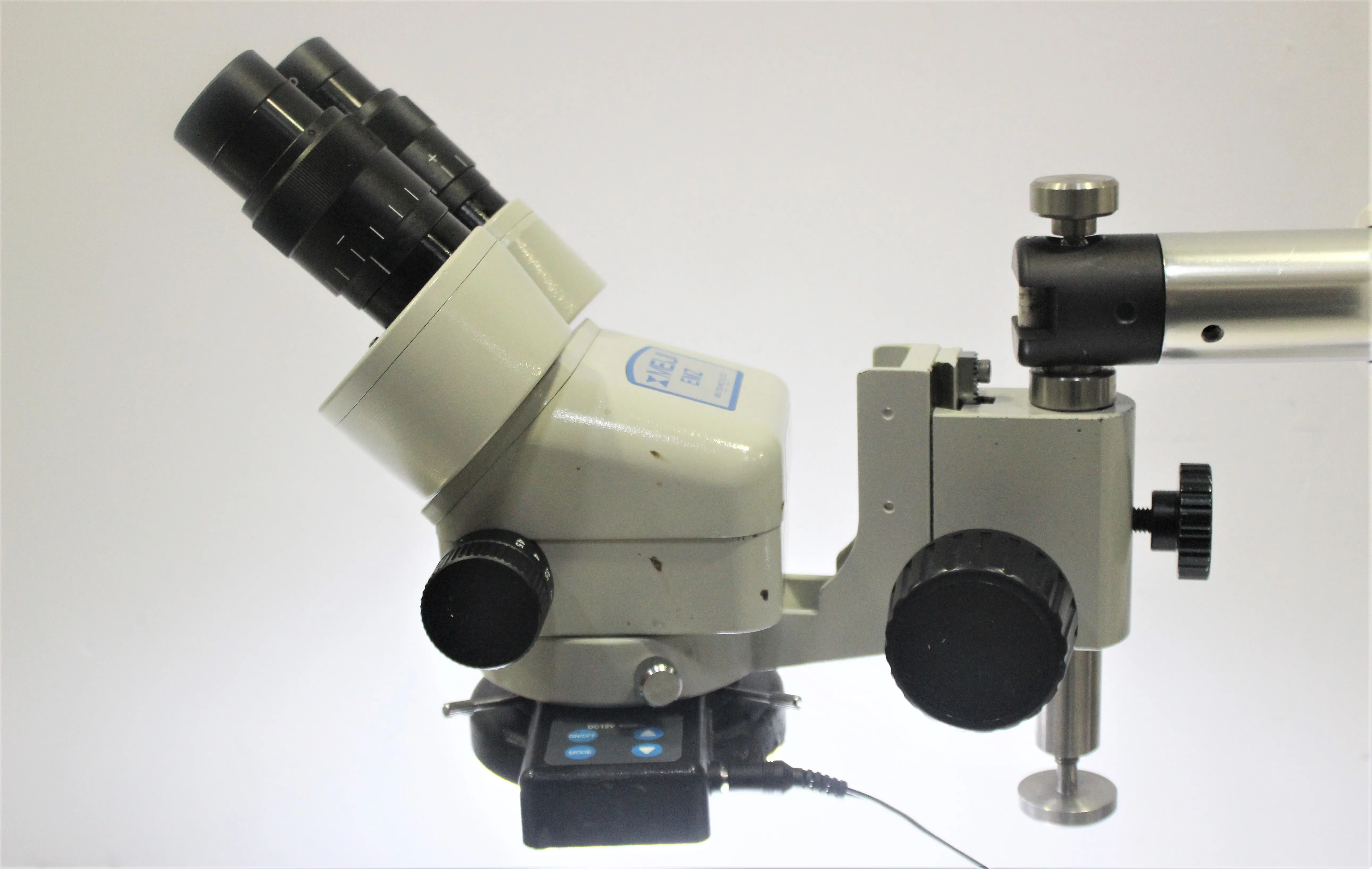

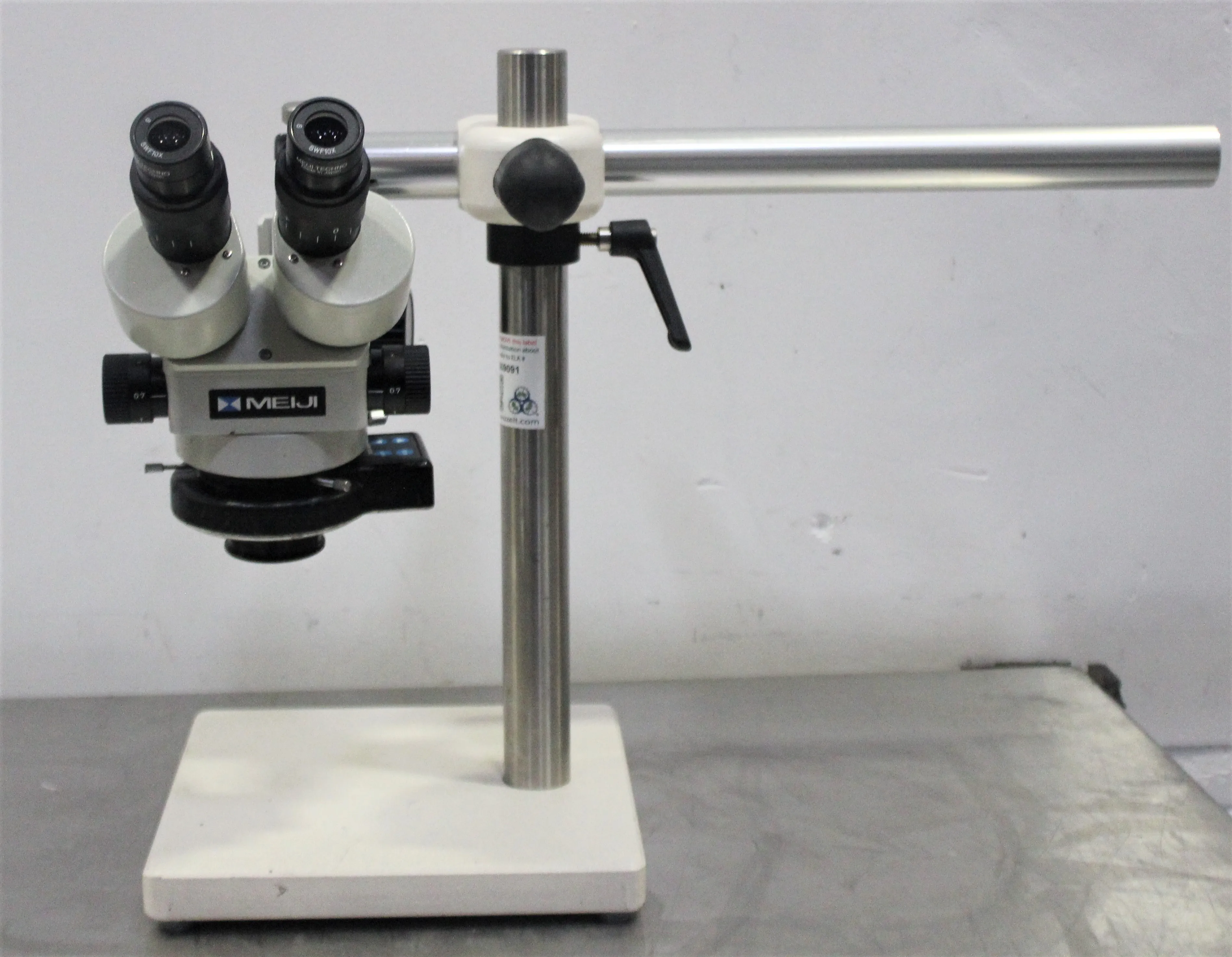

Meiji EMZ-5 Microscope with Greenough Optics and High Resolution Imaging

Product Information

Introducing the Meiji EMZ-5, a versatile and high-performing microscope with a zoom range of 6.5:1. This microscope delivers incredibly sharp and high-contrast images throughout its zoom range, attributed to the innovative Greenough optics. Brighter and more distinct images are achieved, even at the periphery of the field of view. Manufactured with precision, the EMZ-5 provides exceptional resolution, making it ideal for semiconductor, medical device, and routine inspection applications. Built to accommodate a variety of scientific needs, this Meiji microscope is a staple in any modern laboratory setting.

• Greenough optics for improved image flatness and contrast
• Versatile zoom range of 6.5:1 for high resolution observation
• Precision construction, ideal for a range of scientific fields

• Zoom Ratio: 6.5:1
• Zoom Range: 0.7x - 4.5x
• Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
• Magnification: 7x - 45x (with 10x eyepieces)
• Objective Lens: Brass Construction
• Field of View: 32mm - 5.1mm
• Working distance: 93mm
• Eye tube Inclination: 45°

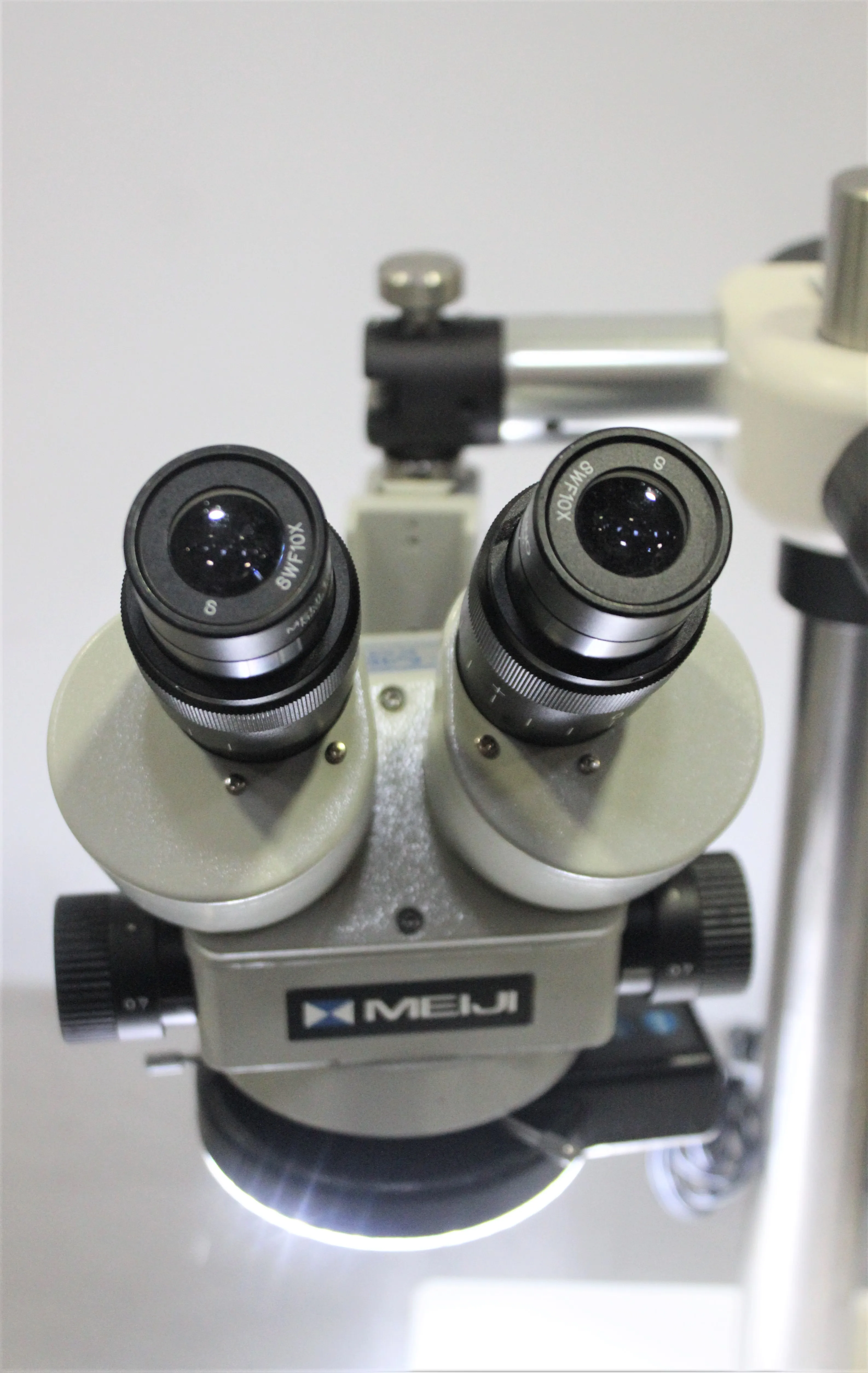

• Eyepieces: 10x Super Widefield, Pair. Inter-pupillary Distance: 54mm - 75mm
• Dioptric Adjustment: Dual (+/- 5 diopters)

Metric: 17.0 kg
Imperial: 38.0 lbs

Metric: 27.0 cm x 24.0 cm x 21.0 cm
Imperial: 10.63 in x 9.449 in x 8.268 in

9011804000

The harmonized code 9011804000 is for compound optical microscopes, designed for laboratory research use. This code aligns with the advanced features and specifications of the Meiji EMZ-5, making it a suitable classification.
