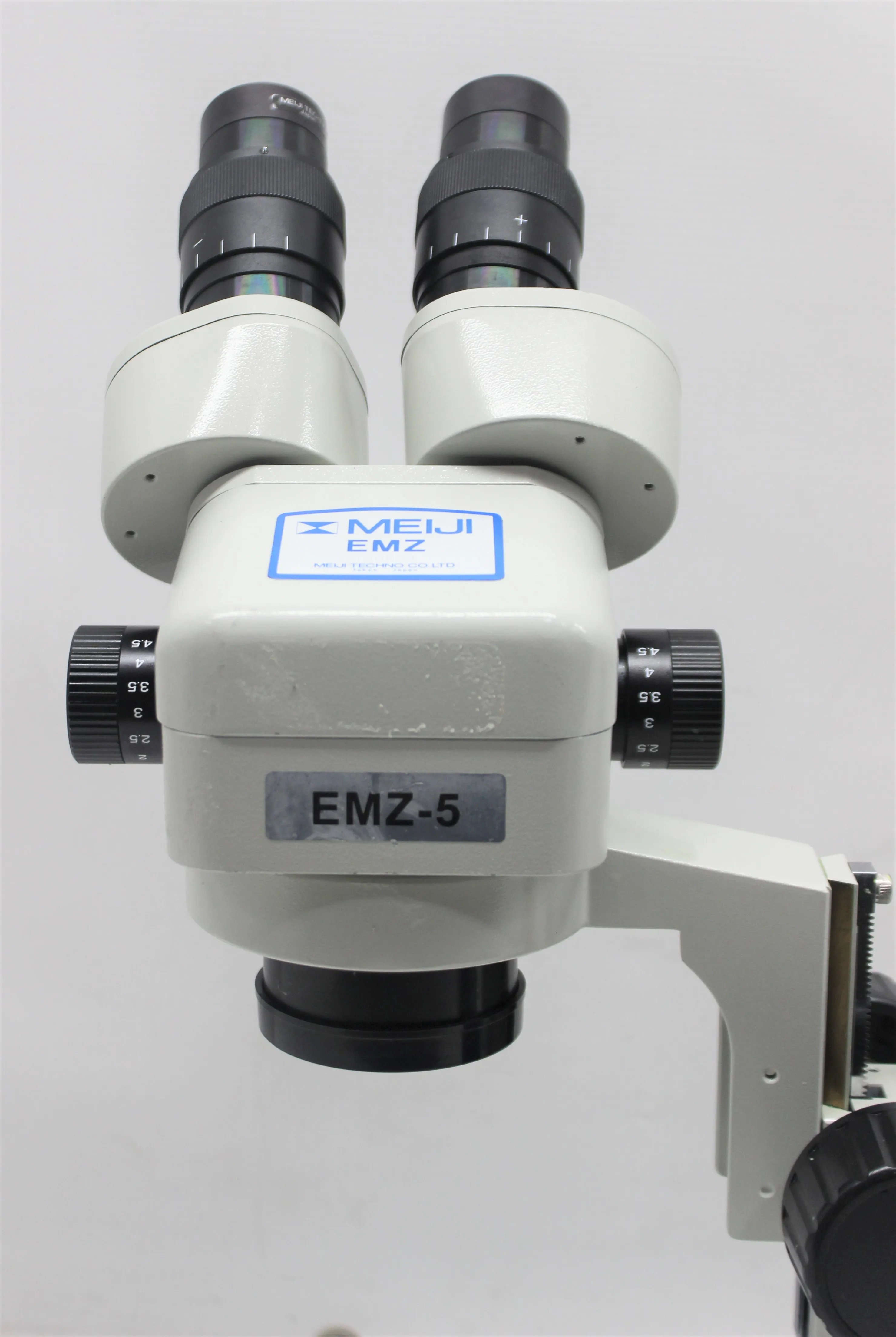

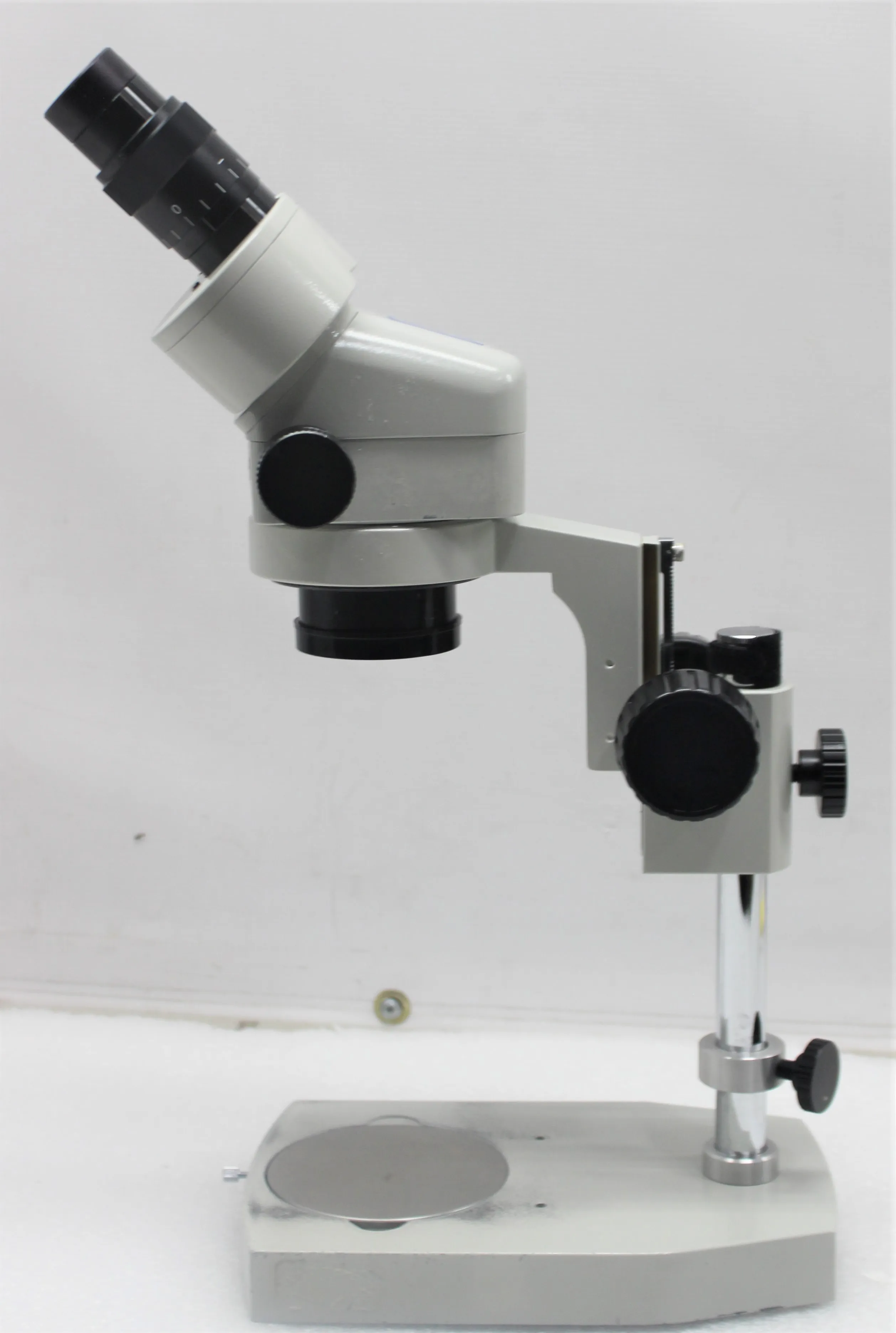

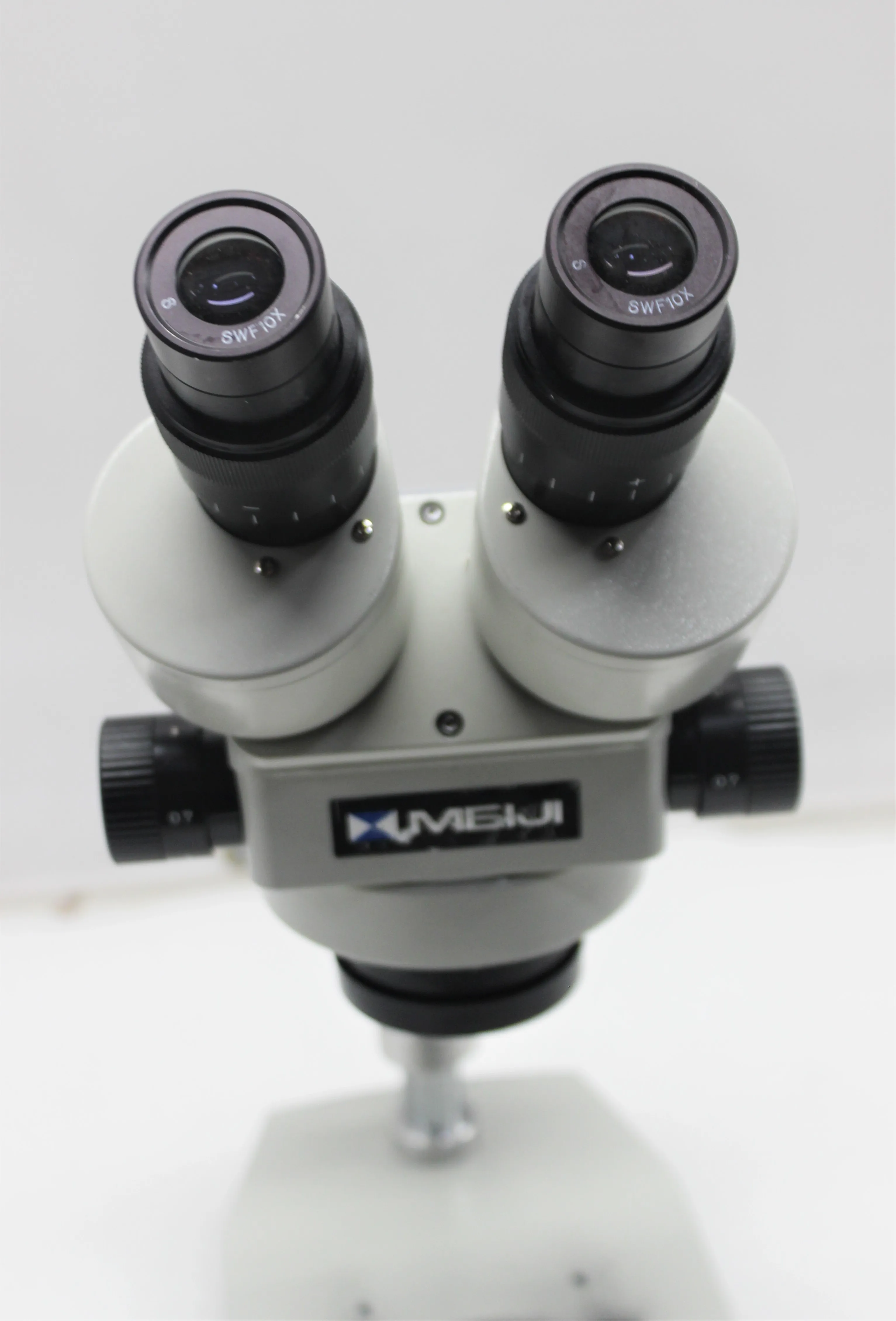

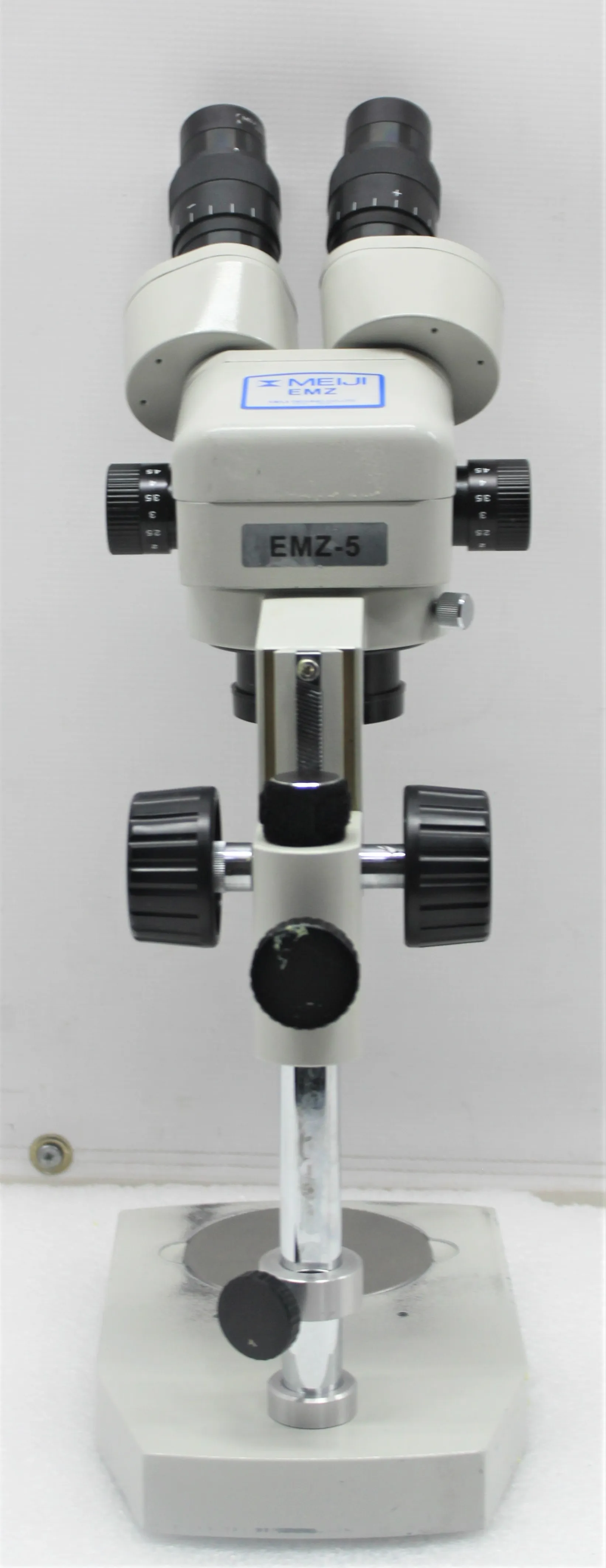

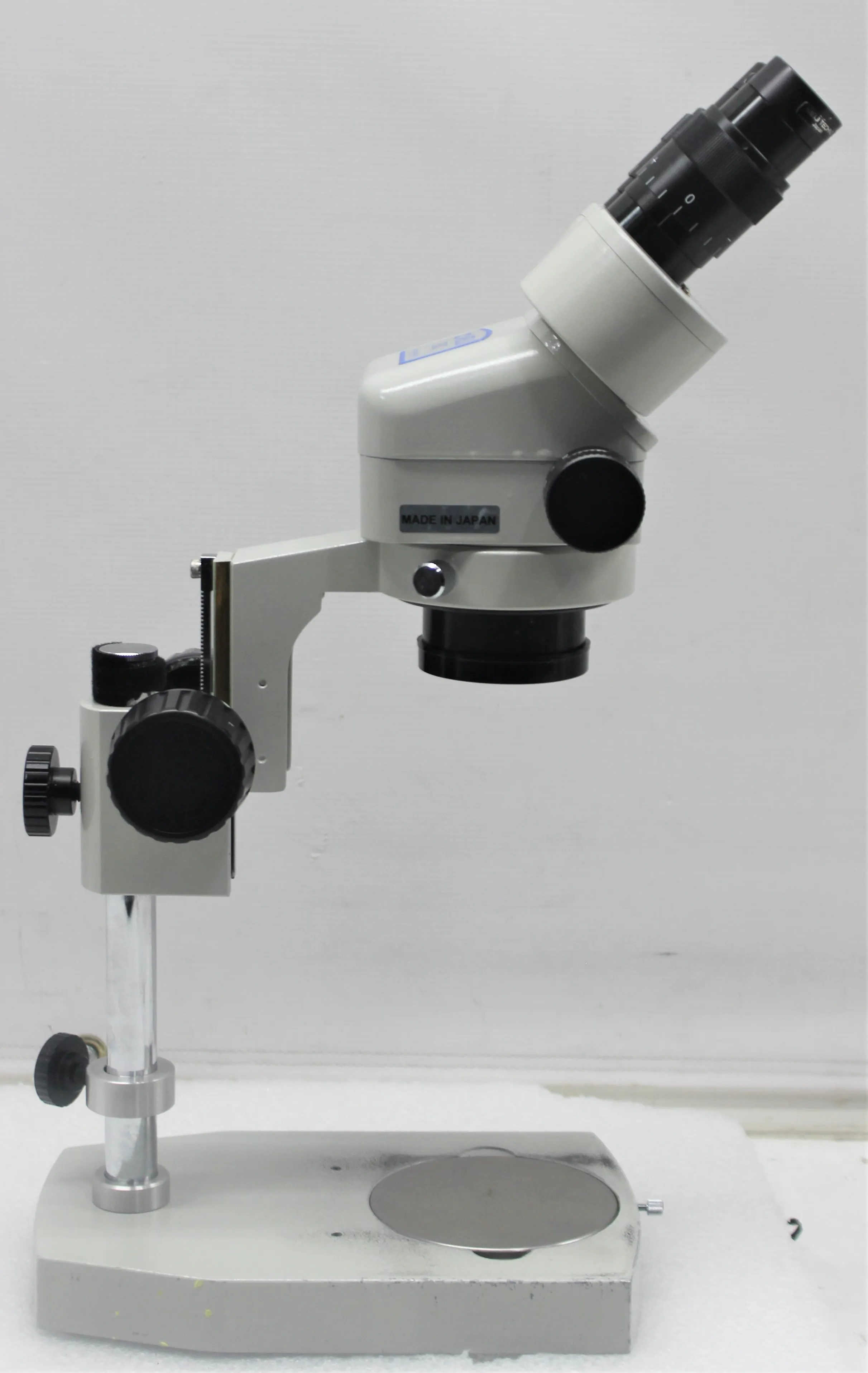

Meiji EMZ-5 Microscope with Greenough Optics and High-Resolution Imaging

Product Information

Introducing the Meiji EMZ-5, a powerful microscope delivering sharp, high-contrast images with an excellent zoom range of 6.5:1, allowing for exceptionally high-resolution imaging. The Greenough optics employed improve image flatness and contrast, resulting in brighter and more distinct images, even at the periphery of the field of view. This microscope offers high-resolution observation in precision-oriented semi-conductor, medical device, and routine inspection. Each piece of equipment is carefully inspected and tested to ensure quality and reliability. The Meiji EMZ-5 is perfect for detailed observation in various scientific and industrial applications. Dive into a world of microscopic wonders with the exceptional capabilities of the Meiji EMZ-5.

• Sharp, high-contrast images
• Zoom range of 6.5:1 for high-resolution imaging
• Improved image flatness and contrast with Greenough optics
• Bright and distinct images throughout the field of view
• Ideal for precision-oriented semi-conductor, medical device, and routine inspection

• Zoom Ratio: 6.5:1
• Zoom Range: 0.7x - 4.5x
• Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
• Zoom Control: Dual
• Magnification: 7x - 45x (with 10x eyepieces)
• Objective Lens: Brass Construction
• Field of View: 32mm - 5.1mm
• Working Distance: 93mm
• Eye Tube Inclination: 45 degrees
• Eyepieces: 10x Super Widefield, Pair
• Inter-pupillary Distance: 54mm - 75mm
• Dioptric Adjustment: Dual (+/- 5 diopters)

Metric: 5.44 kg
Imperial: 12 lbs

Metric: 22.86 cm x 20.32 cm x 45.72 cm
Imperial: 9 in x 8 in x 18 in

901180

Microscopes for photomicrography, cinephotomicrography or microprojection
