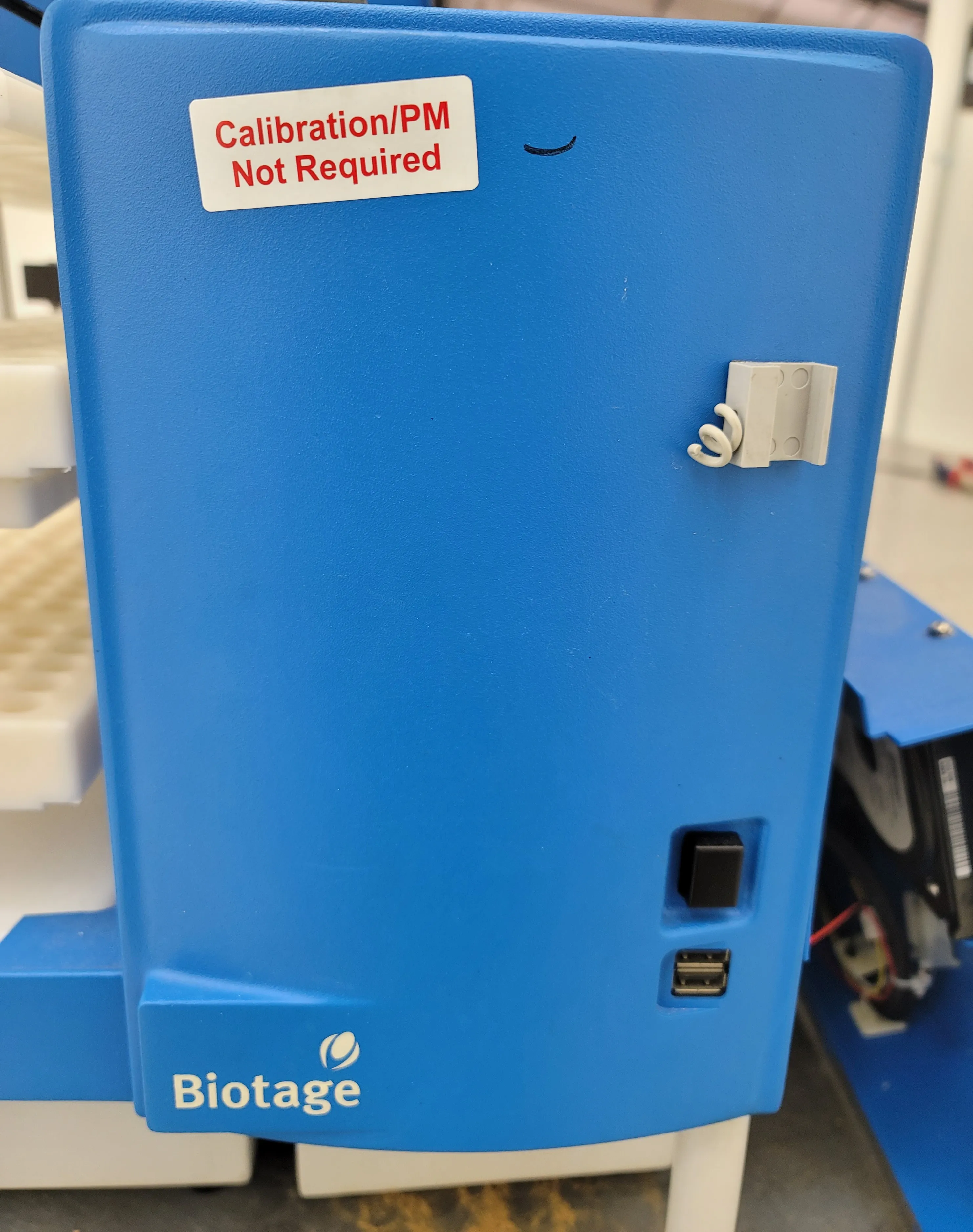

BIOTAGE SP4 Flash Chromatography System with Extended Arm

Product Information

The BIOTAGE SP4 Flash Chromatography System with extended arm gives users multi-column functionality, multi sample purification, and an expanded fraction bed in a similar compact footprint to that of the BIOTAGE SP1. This user-friendly chromatography system features a full-color LCD touch screen that guides users through a windows-based interface, getting them set up quickly and displaying statuses and data at eye level. Users can either create their own methods through wizard navigation, with step-by-step sample loading, or choose from the preprogrammed options. It offers a 4-valve system with independent waste and solvent monitoring and four separate iso block collection racks. The flash purification system is also configured for double the fraction capacity collecting on two racks at the same time for a volume up to 5760ml. The Biotage Sp4 supports vessels from 9ml up to 240mL bottles, depending on the racks used. This system is ideal for applications such as natural product purification, peptide synthesis, and method development for challenging purifications.

• Multi-column functionality
• Full-color LCD touch screen interface
• Independent waste and solvent monitoring
• Double fraction capacity with two racks
• Supports vessels from 9ml to 240mL bottles

• Flow rate range: 0.1 to 10 ml/min
• Pressure limits: up to 6000 psi
• 4-valve system with independent waste and solvent monitoring
• Volume capacity: up to 5760ml
• Vessel suppport range: 9ml to 240mL bottles

Metric: 0.45 kg
Imperial: 1 lbs

Metric: 50.8 cm x 30.48 cm x 45.72 cm
Imperial: 20 in x 12 in x 18 in

90272000

90272000 - Chromatographs and electrophoresis instruments, other than liquid
