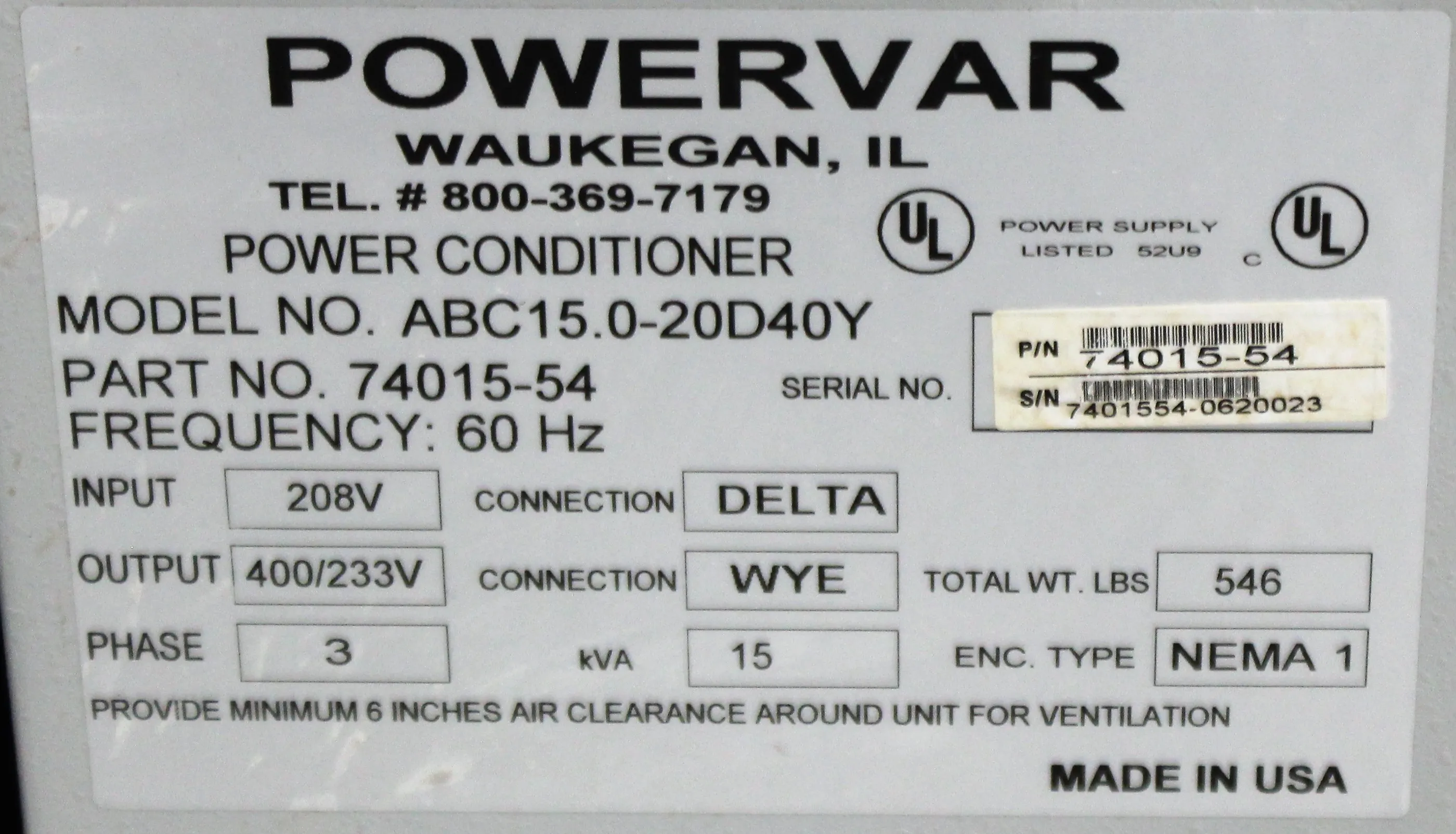

Powervar ABC15.0-20D40Y 15 kVA Transformer

Product Information

The Powervar ABC15.0-20D40Y is a 15 kVA transformer designed to eliminate high-frequency noise and high-voltage impulses (also known as spikes or surges) from the AC power that runs electronic equipment. It installs between the power source and the critical load, providing protection for all transformer phases that power a large system. This three-phase device contributes to the reliable operation of sophisticated electronic systems. Its powerful noise rejection capabilities ensure higher manufacturing yield, better image quality, and longer equipment life. The ABC15.0-20D40Y is widely used in laboratory and pharmaceutical settings, offering clean power for sensitive equipment.

• High-frequency noise and high-voltage impulse elimination
• Three-phase device for large system protection
• Over 97% efficiency at full load, unity power factor

• Continuous Capacity: 15 kVA
• BTU/Hr. Output: 1536
• Efficiency: > 97% (at full load, unity power factor)
• Step Load Change: + 0.8% (at unity power factor)
• Noise Rejection: With unit under power and the isolation transformer configured for a transformation ratio of 1:1 and with an ANSI/IEEE C62.41, Category A pulse applied either normal mode or common mode at the input, the noise output voltage will be less than 10 volts normal mode and less than .5 volts (of one volt) common mode in all four quadrants (CM-NM, NM-NM, CM-CM, NM-CM)

Metric: 293 kg
Imperial: 646 lb

Metric: 41 cm x 28 cm x 36 cm
Imperial: 16.14 in x 11.02 in x 14.17 in

850431

Electric transformers, static converters (static inverters), Rectifiers
