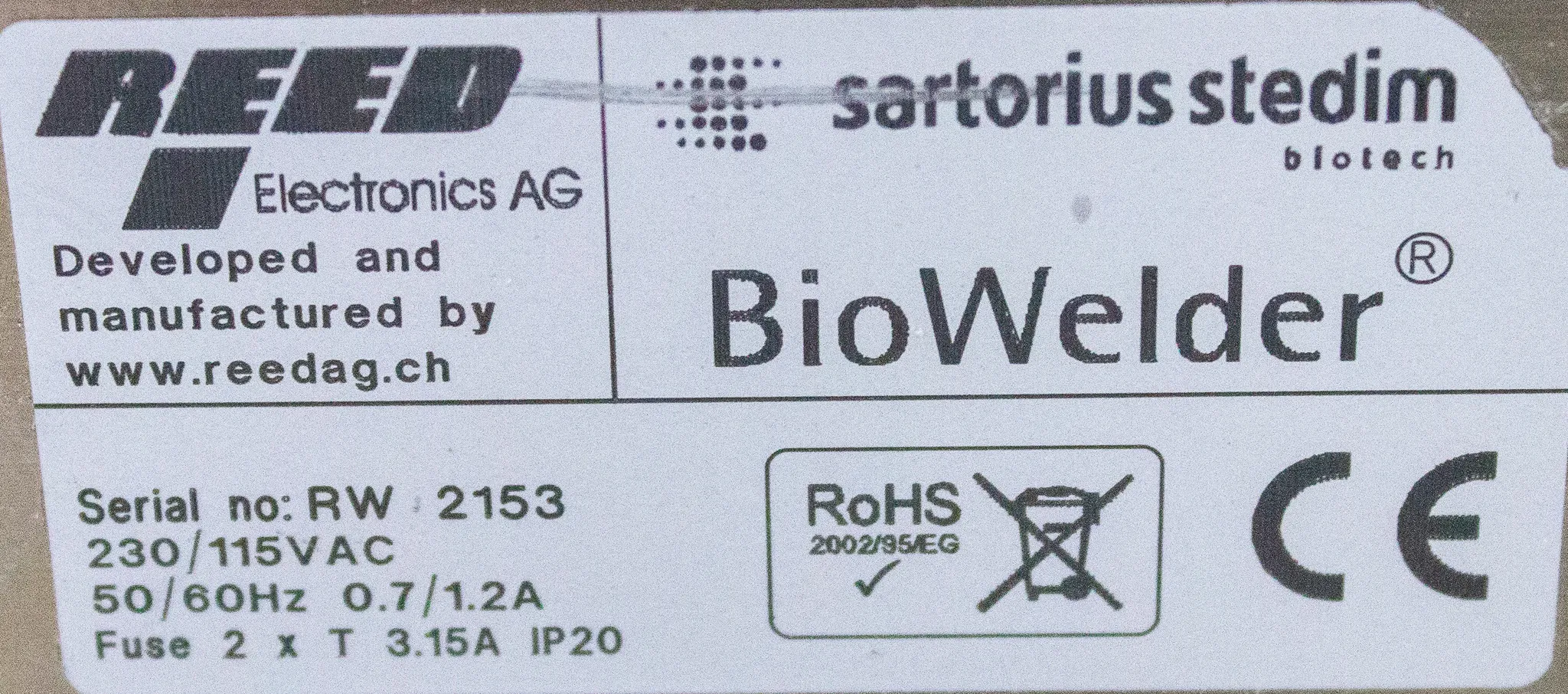

Sartorius Stedim Biowelder Tube Welder

Product Information

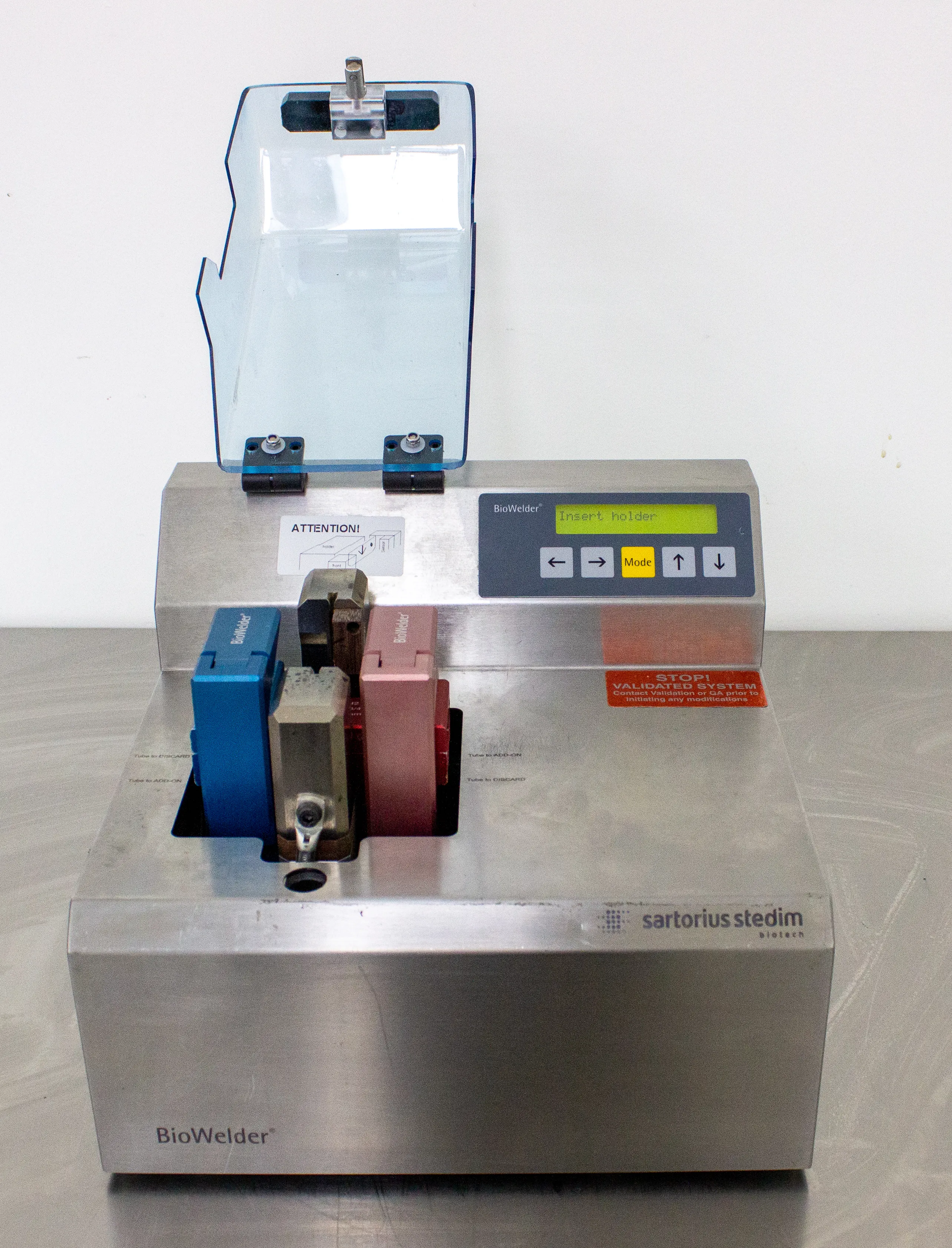

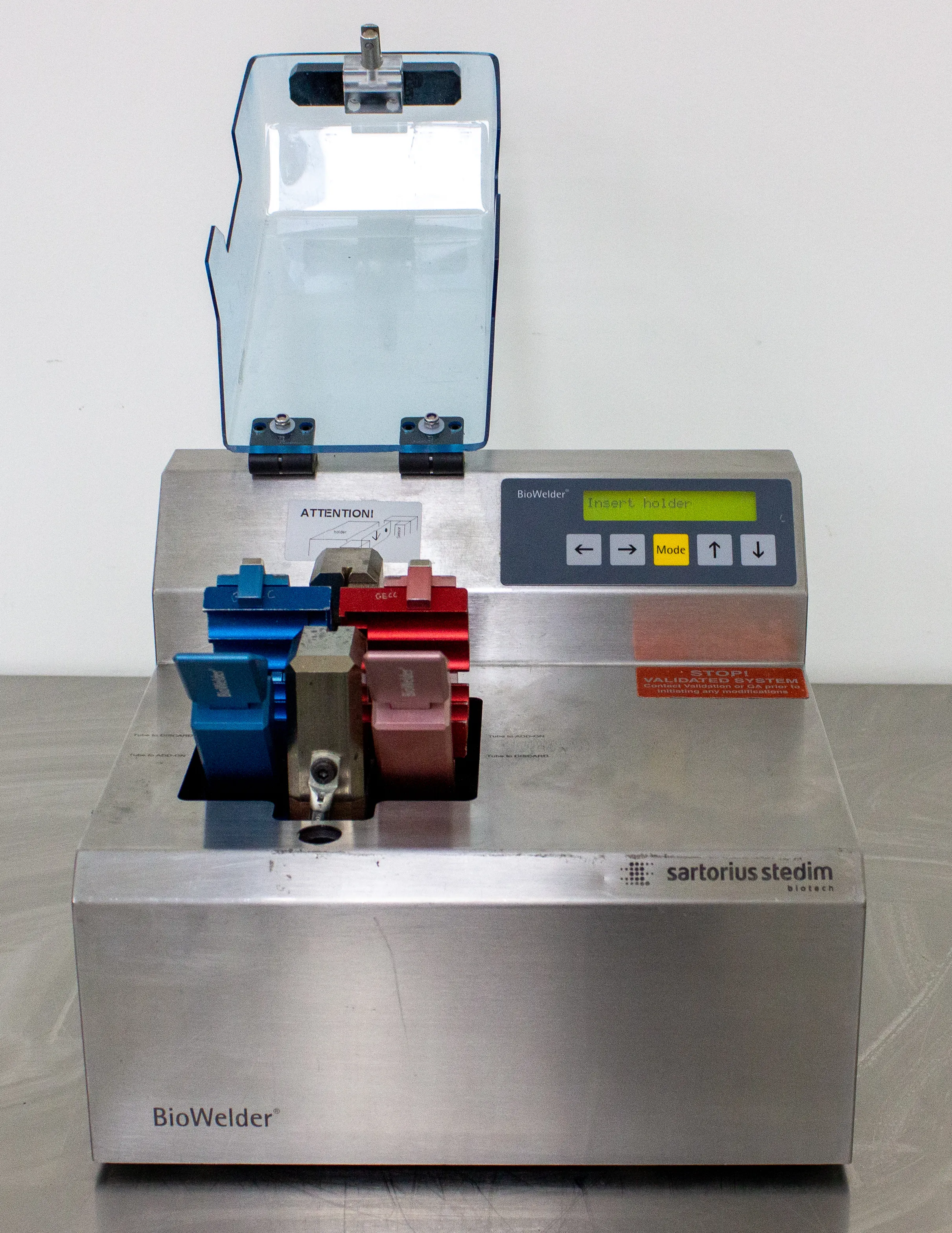

The Sartorius Stedim Biowelder Tube Welder is a high-quality thermal welding system used in life science laboratories and pharmaceutical production facilities. This particular unit has been tested for basic power on functionality and is in Very Good condition. It is fully automated and can weld thermoplastic tubing up to 3/4 inch O.D. The BioWelder comes with preinstalled settings for various tubing types such as C-Flex, AdvantaPure, and Sanipure, making it versatile for different applications. The welding process is kept sterile and endotoxin free, and the unit's data output can be printed for validation. The compact design and automated operation make it an essential tool for aseptic connections without a laminar flow hood. The housing is made of stainless steel, ensuring durability and easy maintenance. This unit is suitable for applications such as biopharmaceutical manufacturing, medical device assembly, and laboratory research.

• Fully automated operation
• Sterile and endotoxin-free welding process
• Preinstalled settings for various tubing types
• Compact, portable design
• Data output for validation

• Housing: Stainless steel
• Max. Tube OD: 3/4 inch (1.9 cm)
• Min. Tube OD: 1/4 inch (0.6 cm)
• Welding Cycle: 60-90 seconds depending on tube dimension

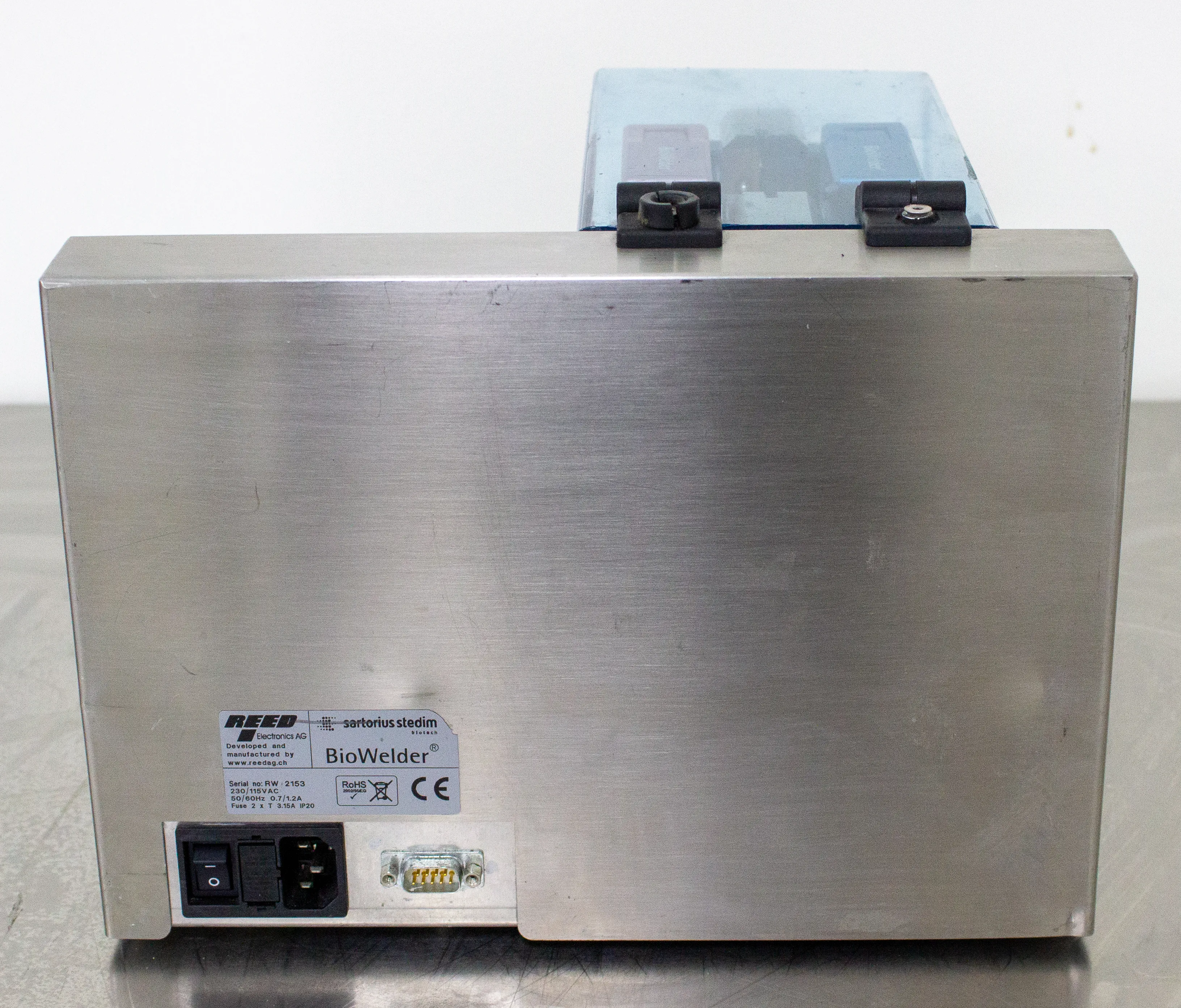

• Interface: RS232 for printer
• Blade: Cr-Ni-Alloy, single-use
• Ambient Temperature: 20°C - 30°C (ideal: 22°C)
• Relative Humidity: 20%-80% (ideal: 60%)

Metric: 13.61 kg
Imperial: 30 lb

Metric: 36.576 cm x 36.576 cm x 27.94 cm
Imperial: 14.4 in x 14.4 in x 10.98 in

8515196000

This harmonized code is for electric machines and apparatus solely for aseptic connections without a laminar flow hood, used in medical, surgical, dental, or veterinary sciences.
