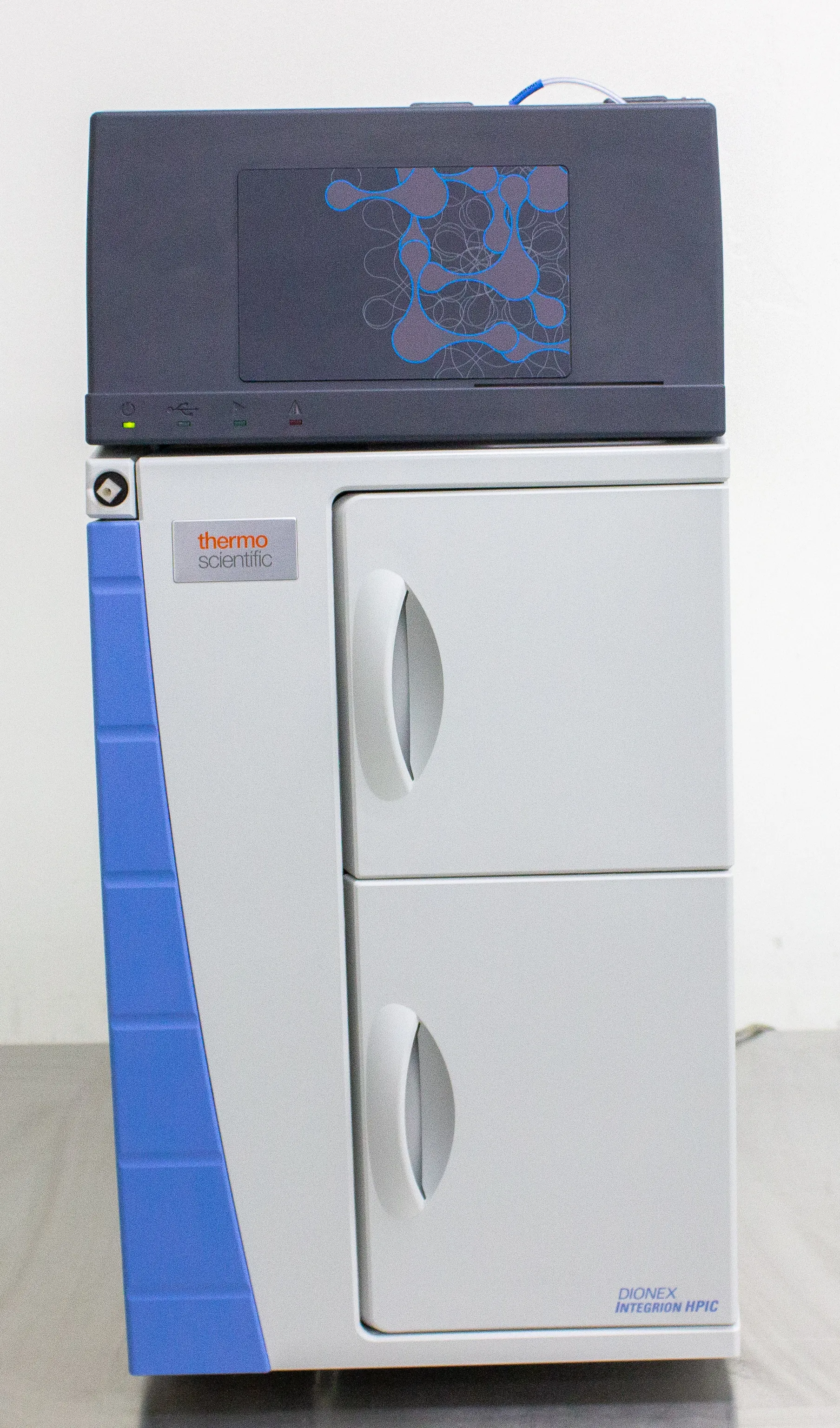

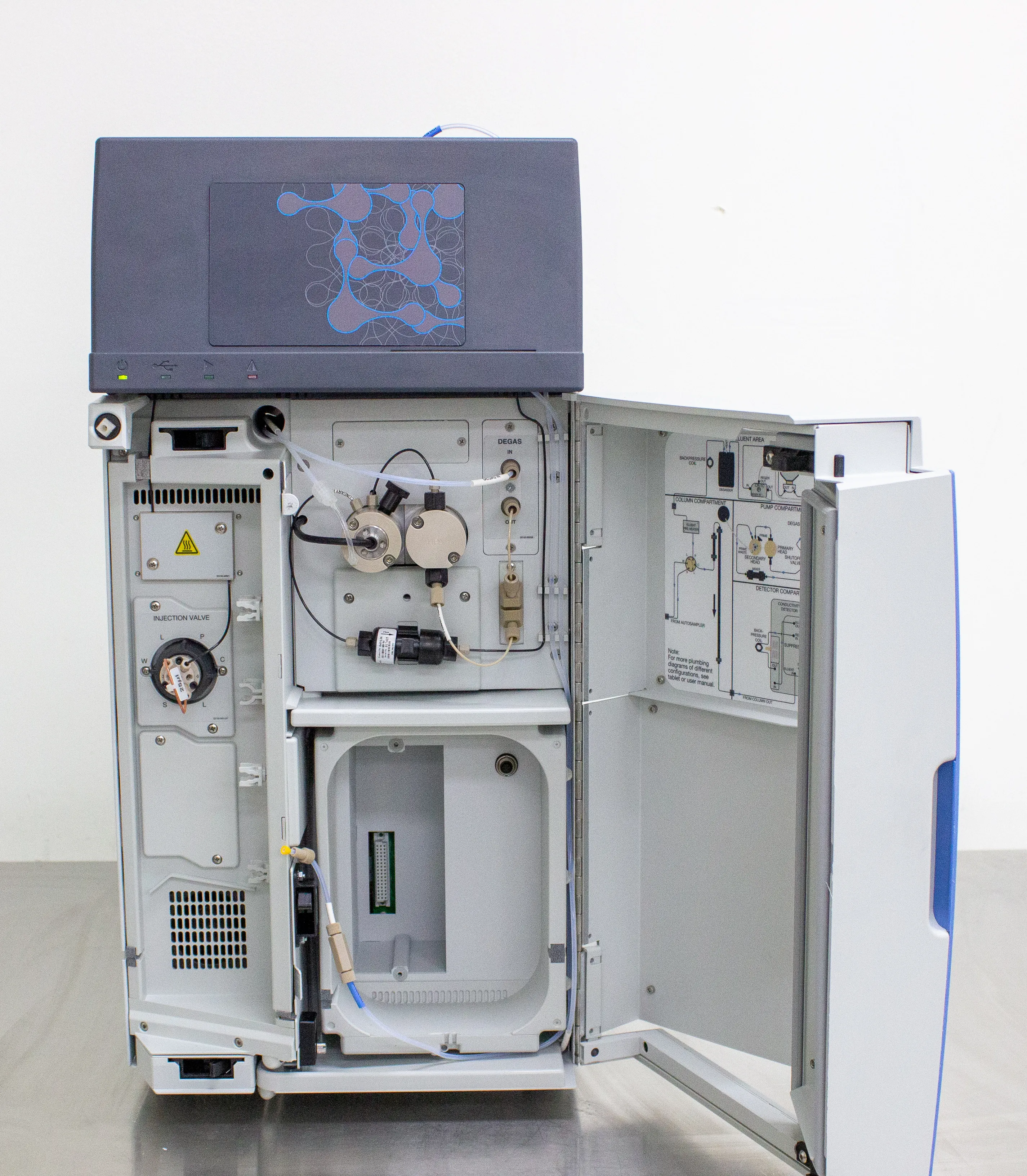

Thermo Scientific Dionex Integrion RFIC/HPIC System P/N 22153-60313

Product Information

Meet your routine ion analysis demands using the easy-to-use and reliable Thermo Scientific Dionex Integrion HPIC system. This system performs versatile and efficient analyses through comprehensive application solutions and interactive wellness features. The Dionex Integrion system's flexible detector configurations meet your analysis needs for today and tomorrow. Its high-pressure capabilities enable faster analysis without compromising data quality. Use the system's automated eluent generation (EG) to eliminate error-prone manual eluent preparation and achieve better method reproducibility. Maximum System Uptime: Consumables Device Monitor prevents consumable installation errors and logs the consumable use and performance. High-pressure up to 5000 psi capability allows faster results without compromise to data quality using 4m columns. The logical flow-path provides easy component access on a compact platform. The thermally regulated environment of the detector compartment ensures reproducible, sensitive detection. The forced-air column oven regulates the temperature from 5C above ambient to 80C.

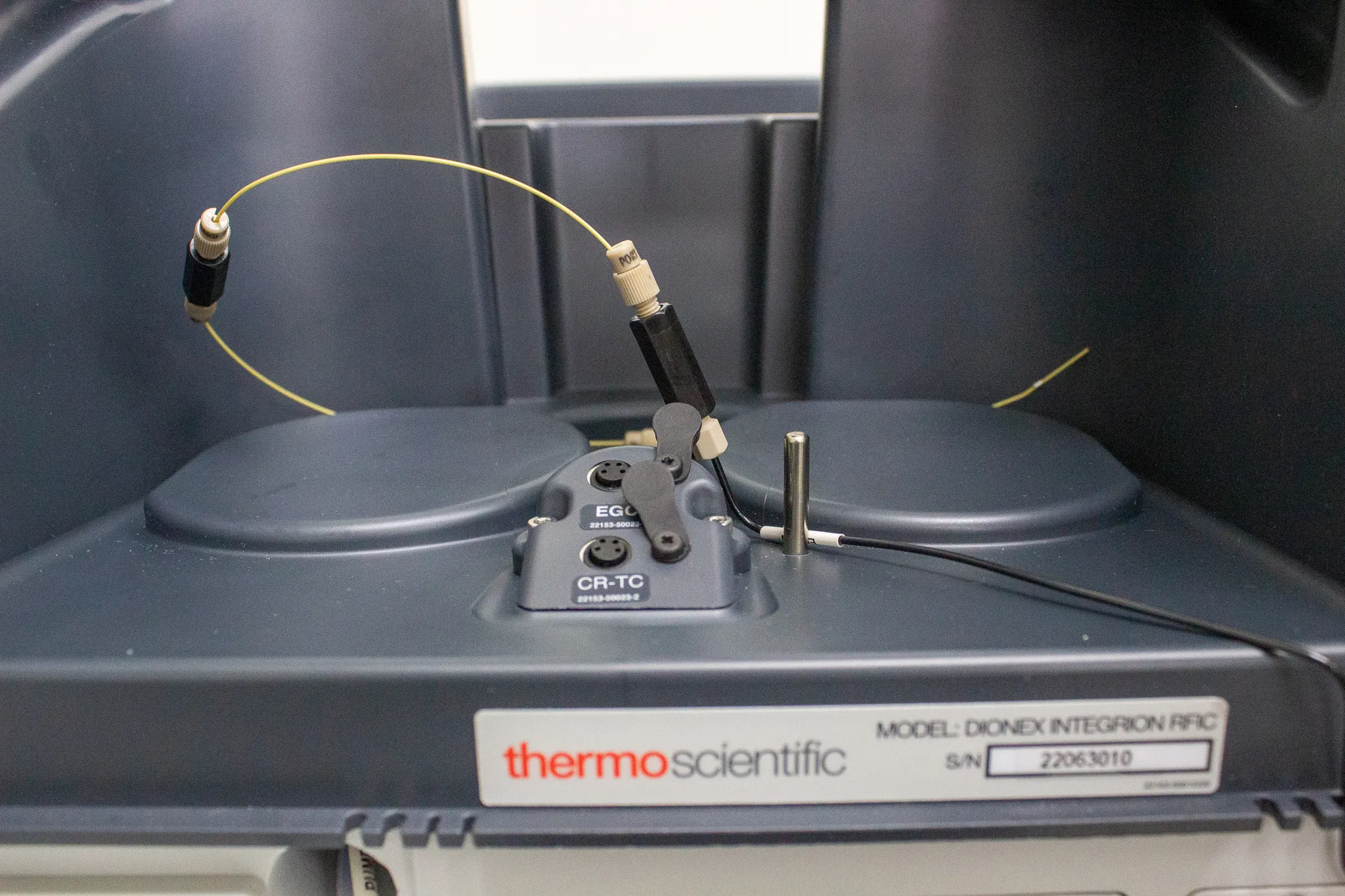

• Automated eluent generation (EG)

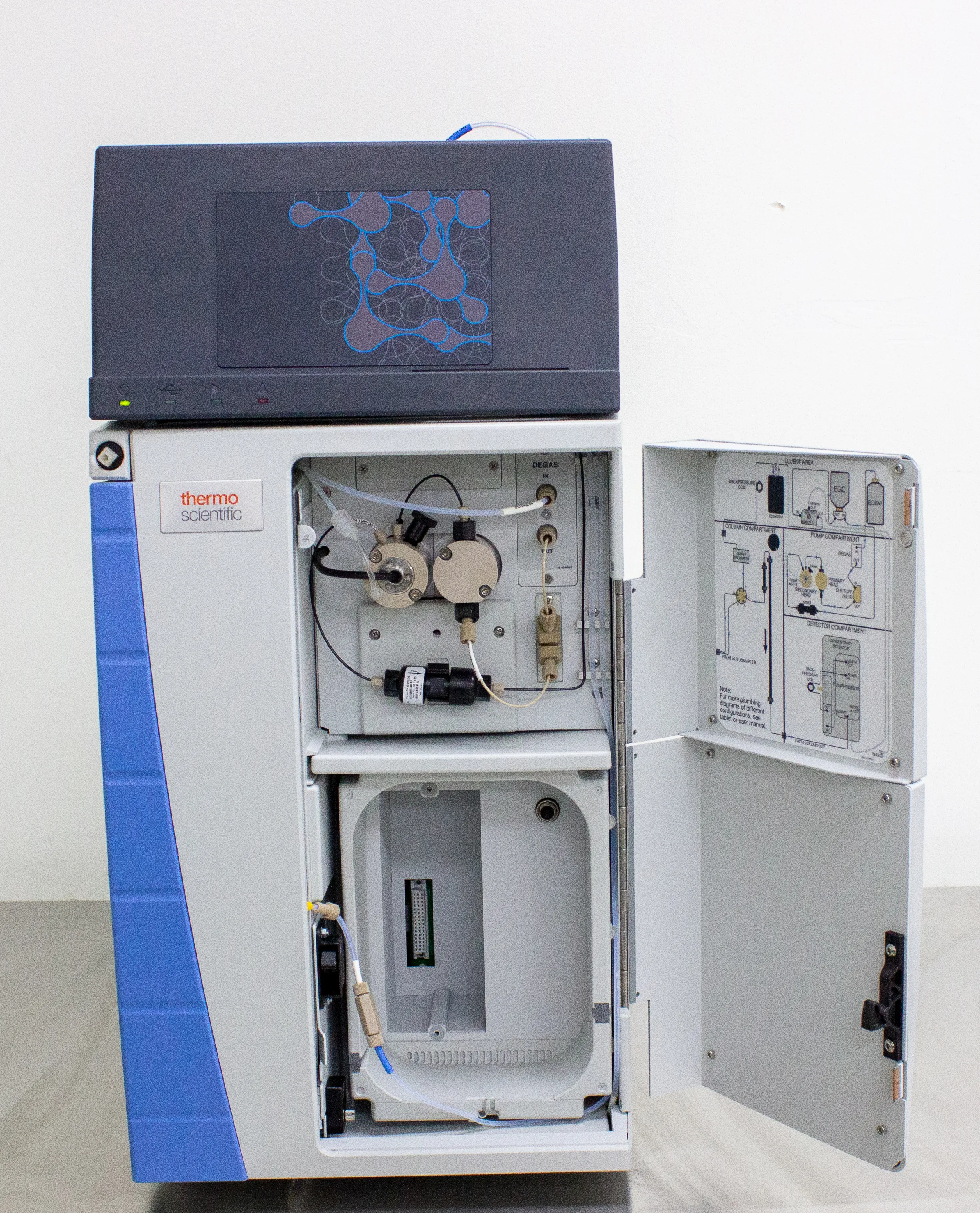

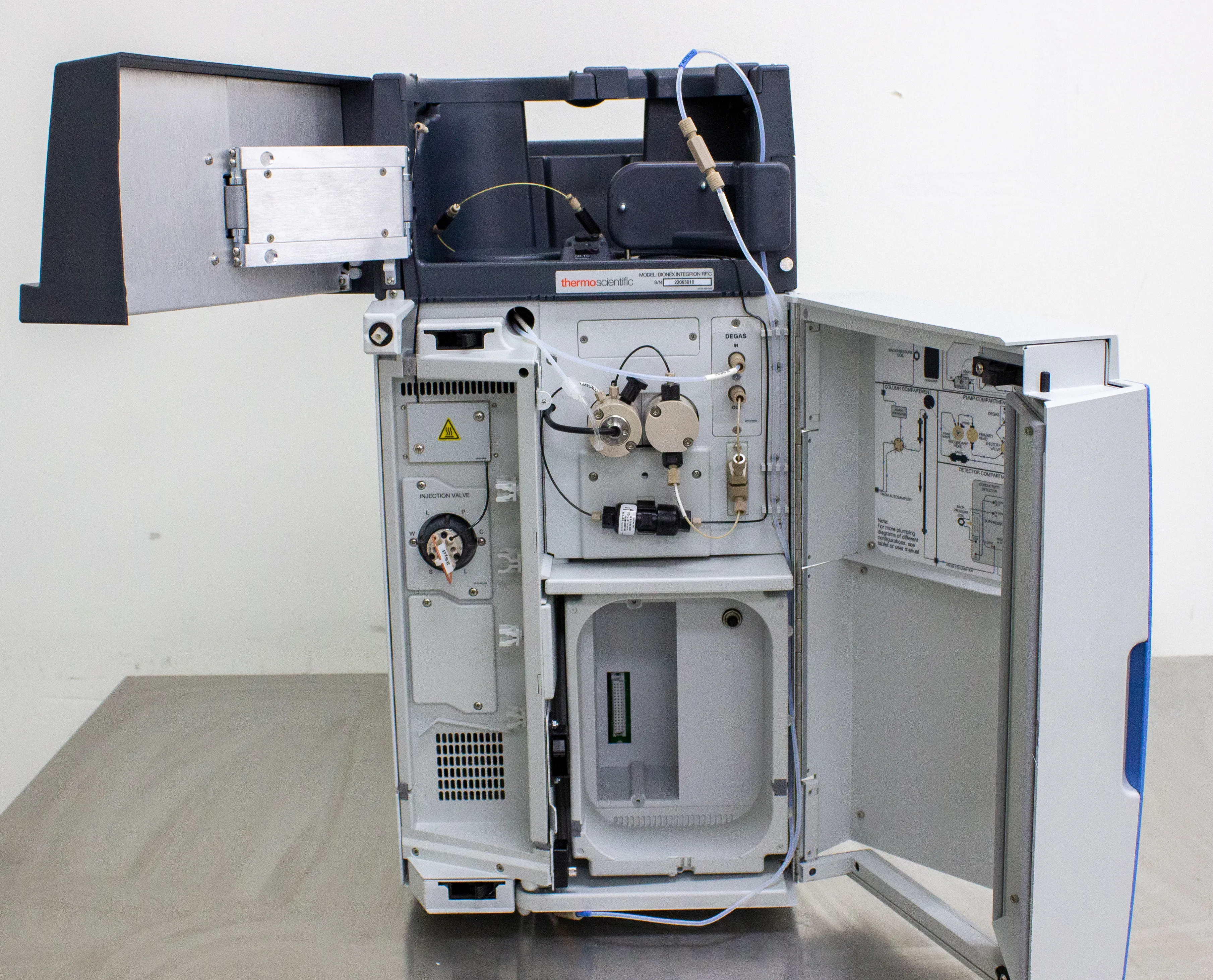

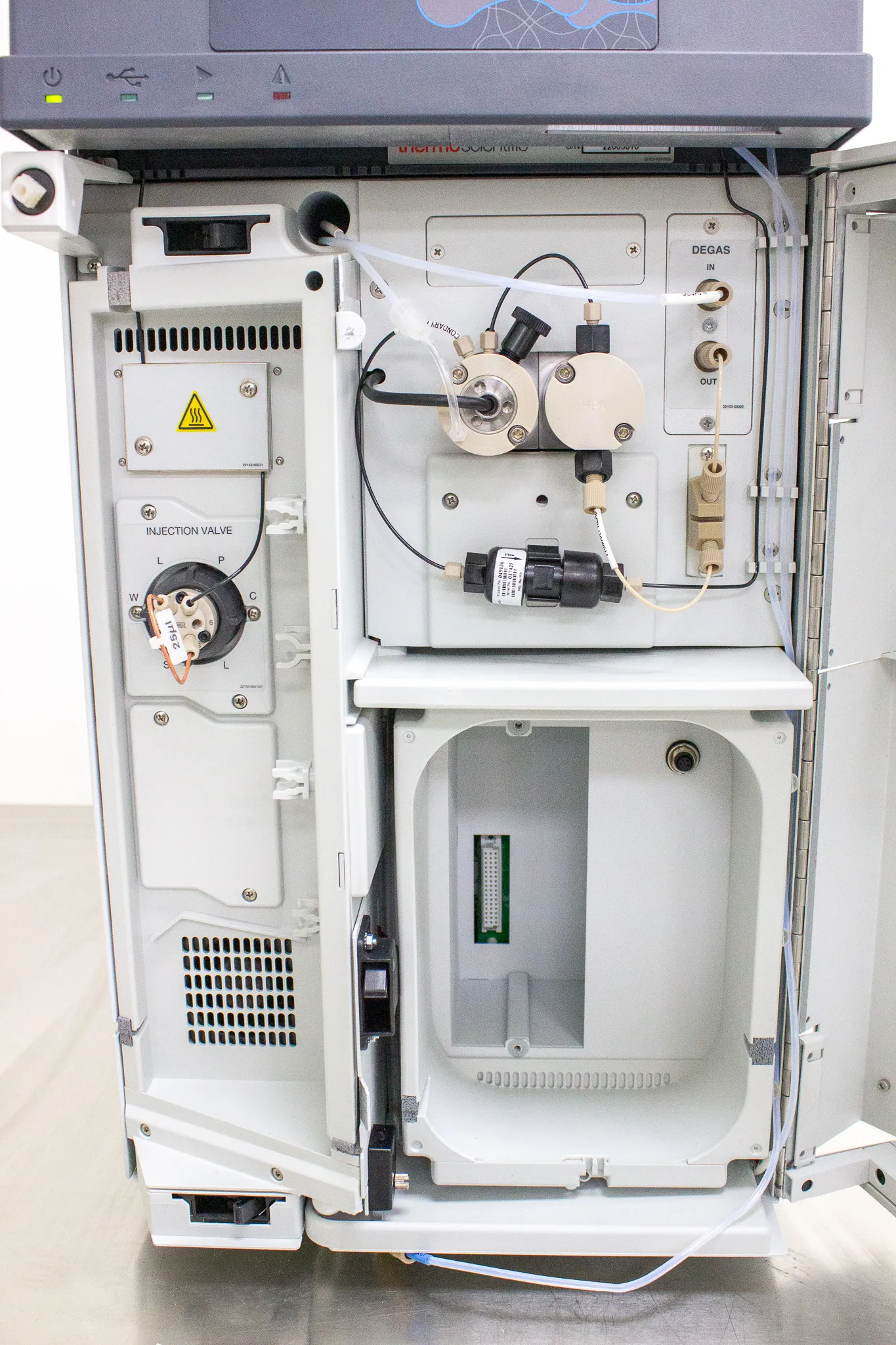

• Logical flow-path for easy component access
• Forced-air column oven for regulated and reproducible results

• Max. PressurePump: 41 MPa (6000 psi)
• Eluent Generator: 35 MPa (5000 psi)
• CD Flow Cell: 10 MPa (1500 psi)
• ED Cell: 0.7 MPa (100 psi)
• Type: HPIC Base System
• Detector Type: CD, ED
• Flow RatePump: 0.000 to 10.000 mL/min
• Eluent Generator: 0.1 to 3 mL/min
• Pressure RangePump: 0 to 41 MPa (0 to 6000 psi)
• Voltage: 120V/220V
• Hertz: 50Hz/60Hz

Metric: 43.09 kg
Imperial: 95 lbs

Metric: 66.04 cm x 40.64 cm x 81.28 cm
Imperial: 26 in x 16 in x 32 in
