ProteinSimple Wes Western Blot System

Product Information

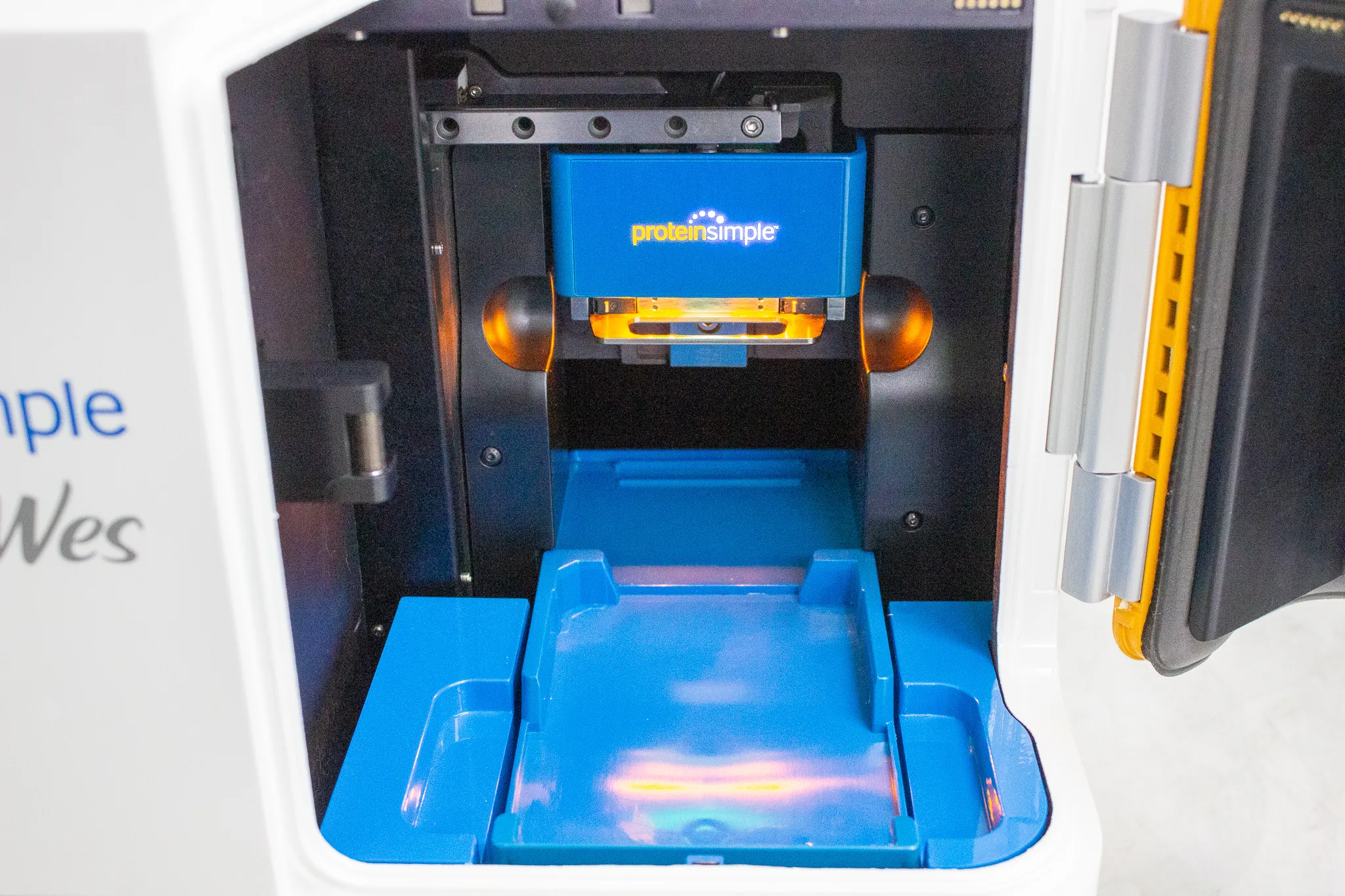

The ProteinSimple Wes Western Blot System manufactured by Proteinsimple is an environmentally conscious, high-performance western blot machine with rapid turnaround. This capillary-based system can process up to 24 samples per run, fully automating protein separation, immunoprobing, detection, and data analysis. It is capable of achieving reproducible results with up to 25 points of data in about 3 hours. The Wes system is simple to operate, offering significant hands-on time reduction. The equipment possesses a unique capillary-based design that uses significantly fewer consumables, which leads to high throughput from minimal sample sizes and reduces variability. It features HDR detection capabilities with up to 6 logs of dynamic range and provides size and charge assay data analysis through Compass software. This system is hands-free and performs quantitative analysis automatically, displaying data in various forms and offering 21 CFR Part 11 compliance tools. The ProteinSimple Wes Western Blot System is a widely versatile and reliable equipment, making it invaluable in research and diagnostic laboratories.

• Fully automated capillary-based system
• Rapid processing of up to 24 samples per run
• High throughput from minimal sample sizes
• Requires significantly fewer consumables compared to traditional instruments
• HDR detection capabilities with up to 6 logs of dynamic range

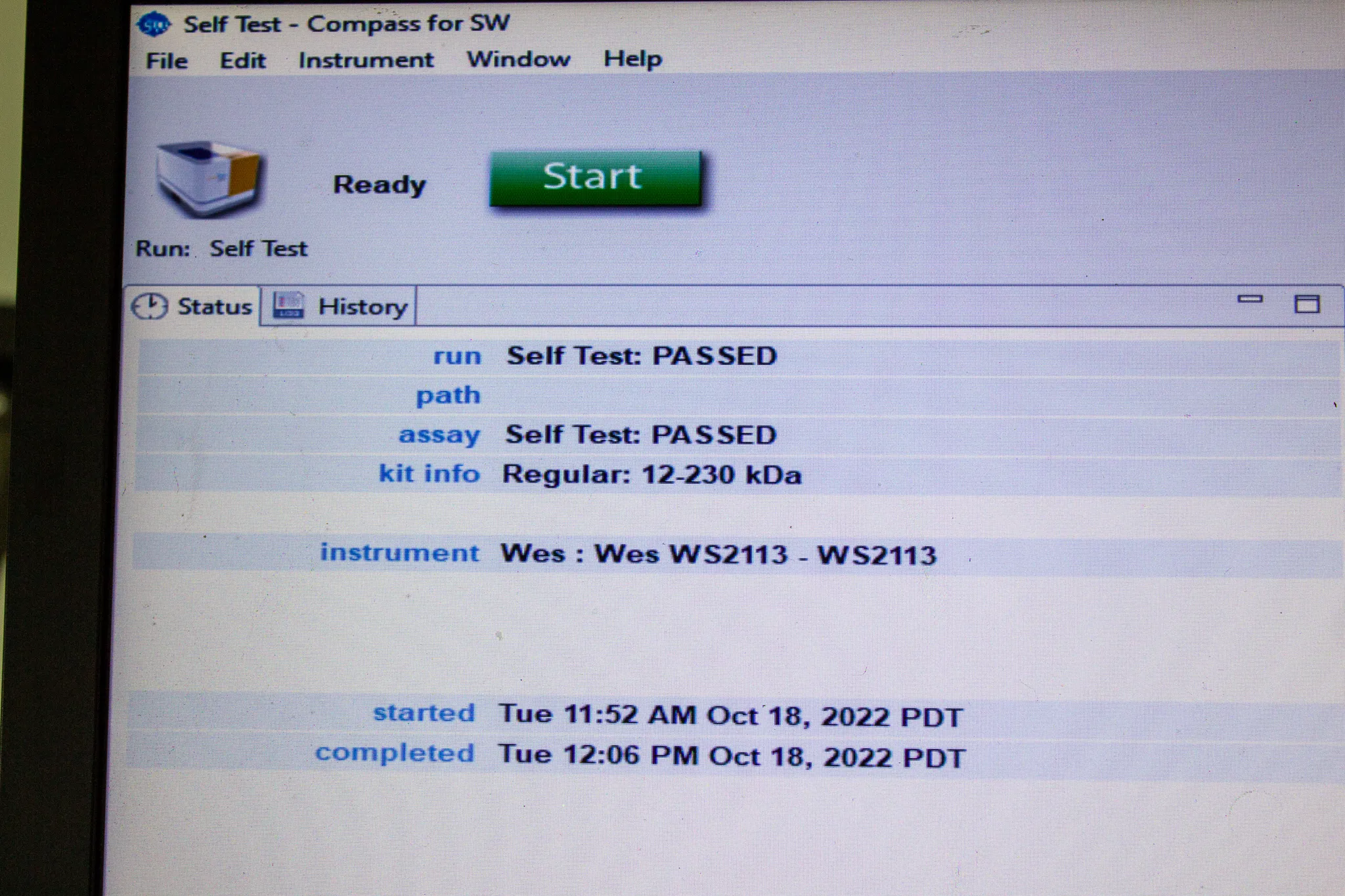

• Compass software for size and charge assay data analysis
• Hands-free, quantitative analysis with 21 CFR Part 11 compliance tools

• Proteins size range: 2-440 kDa
• Minimum sample size: 3uL per capillary
• Capillary dimensions: 5 cm length, 100 m width, 400 nL volume
• Maximum Number of Samples: 25 (75 samples per day)
• Sizing CV: less than 10%
• Intra-assay CV: less than 15%
• Resolution: 15-20% for MW <20 kDA, 10% for MW >20 kDa
• Dynamic Range: 2-3 logs (Total Protein Specification), 3-4 logs (Immunoassay Specification)
• Sensitivity: ng (Total Protein Specification), Low pg (Immunoassay Specification)
• Process Time: approximately 3 hours

Metric: 24.494 kg
Imperial: 54.0 lb

Metric: 21.0 cm x 14.0 cm x 13.0 cm
Imperial: 8.27 in x 5.51 in x 5.12 in

9027300000

The selected harmonized code 9027300000 is applicable to 'Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR)' which includes instruments primarily designed for identifying, measuring, and analyzing the spectrum of optical radiations.
