Agilent 1290 Infinity Series G4220A Binary Pump

Product Information

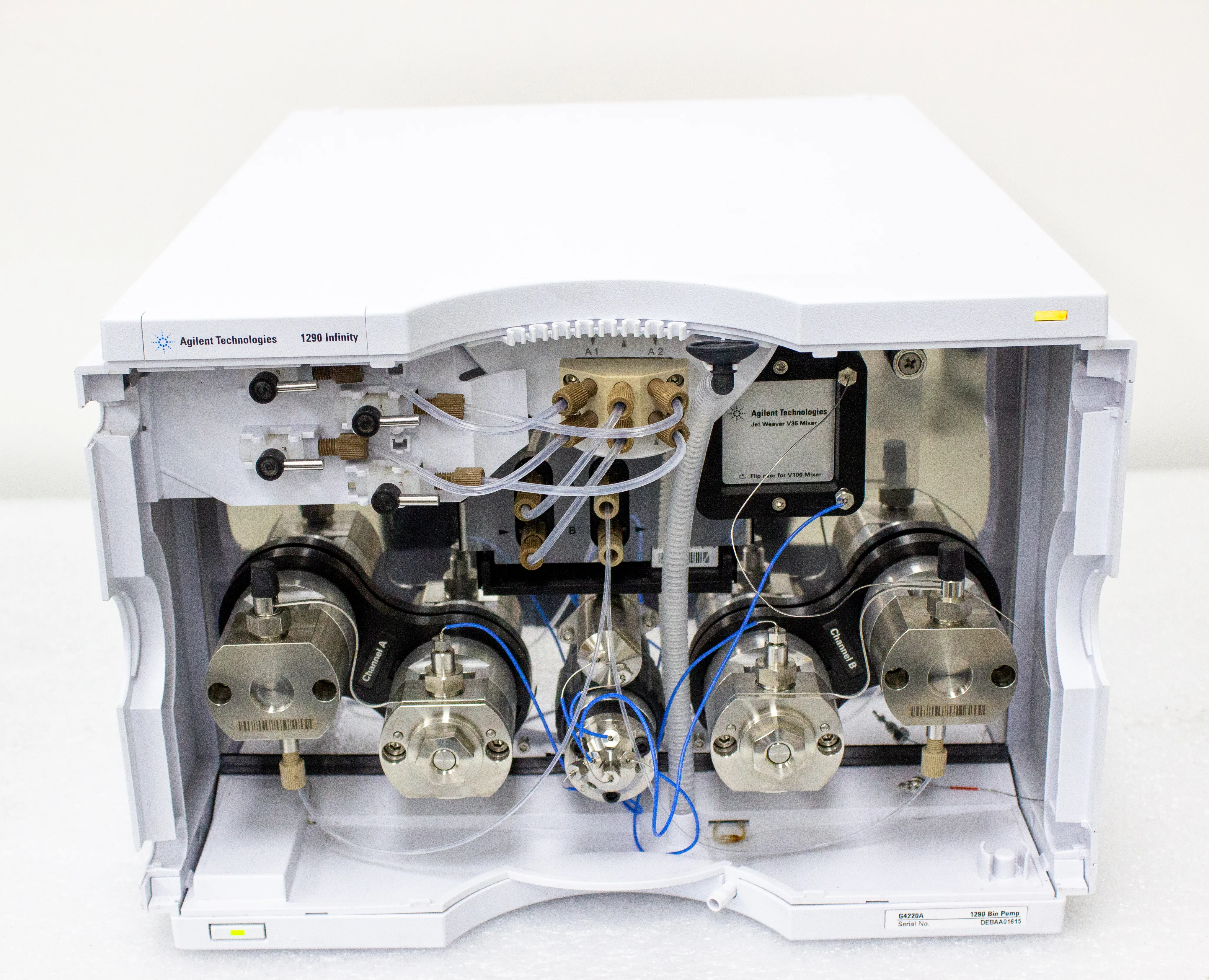

As we delve into the mesmerizing world of laboratory equipment, we come across the remarkable Agilent 1290 Infinity Series G4220A Binary Pump. This incredible instrument, tested for basic power function, exhibits slight wear from normal use. The pump, comprising two identical pumps integrated into one housing, creates binary gradients by high-pressure mixing. It is also equipped with a degassing unit, enabling the best flow stability for maximum detector sensitivity. With applications ranging from high throughput methods to fast gradients on high-resolution columns, this pump delivers flow in the range of 0.05-5 mL/min against up to 1200 bar. The hydraulic system features dual pistons and servo-controlled variable stroke design, offering exceptional flow precision. Additionally, the pump operates with a compressibility compensation for automatic gradient formation and includes extensive diagnostics and safety features.

• Two identical pumps integrated into one housing
• Delivers flow range of 0.05-5 mL/min against up to 1200 bar
• Hydraulic system with dual pistons and servo-controlled variable stroke design
• Offers compressibility compensation for automatic gradient formation
• Includes extensive diagnostics and safety features

• Hydraulic System: Two dual pistons in series pumps with proprietary servo-controlled variable stroke design, power transmission by ball screws.
• Flow Range: Setpoints 0.0015 ml/min, in 0.001 ml/min increments, executed in 300 pl/step increments.
• Flow Precision: 0.07 % RSD or 0.005 min SD, with flow accuracy of 1 % or 10 l/min.
• Pressure Operating Range: Up to 120 MPa (1200bar), up to 2ml/min, 80MPa (800 bar) at 5 ml/min with pressure pulsation of <1 % amplitude or < 0.5 MPa (5 bar).
• Compressibility Compensation: Automatic, pre-defined, based on mobile phase selection.
• Gradient Formation: High pressure binary mixing with delay volume Jet Weaver V35: <45 l.
• Solvent Selection Valve: Default.
• Integrated Degassing Unit: Number of channels: 2, internal volume per channel: 1.5 mL.
• Control: Agilent ChemStation for LC (B.04.02 or above), EZChrom Elite (3.3.2 SP1 or above), OpenLAB (3.3.2 SP3), Masshunter (B.02.01 SP1 or above), Local control via Agilent Instant Pilot (G4208A) (B.02.08 or above).
• Safety: Extensive diagnostics, error detection & display, leak detection with safe leak handling, low voltage in major maintenance areas, early maintenance feedback (EMF) for continuous tracking of instrument usage, extensive GLP features.

Metric: 24 kg
Imperial: 53 lbs

Metric: 55.88 cm x 45.72 cm x 43.18 cm
Imperial: 22 in x 18 in x 17 in

841381

This code, referring to certain pump classes, is relevant due to the specific design and flow precision capabilities of this unique laboratory equipment.
