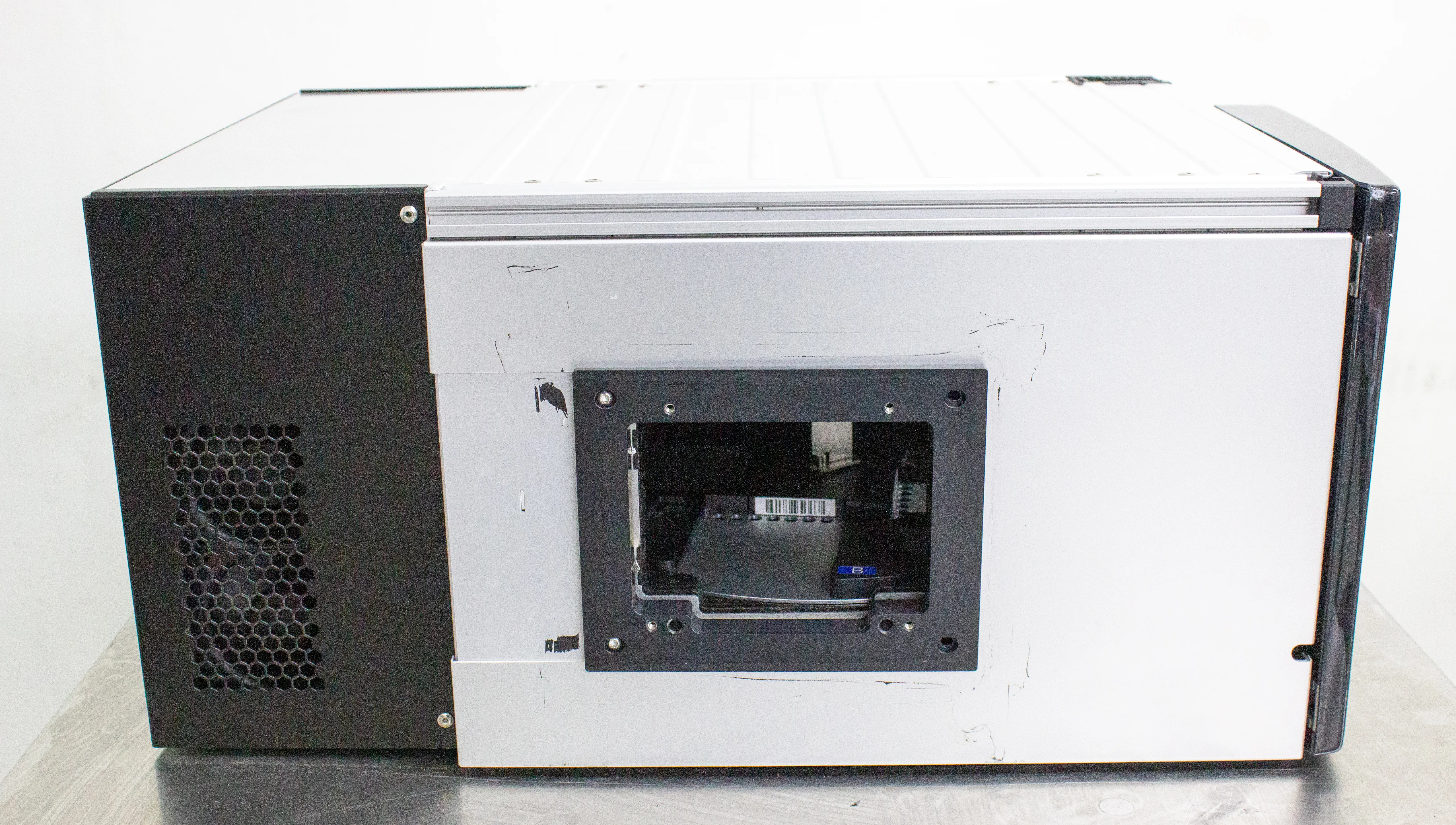

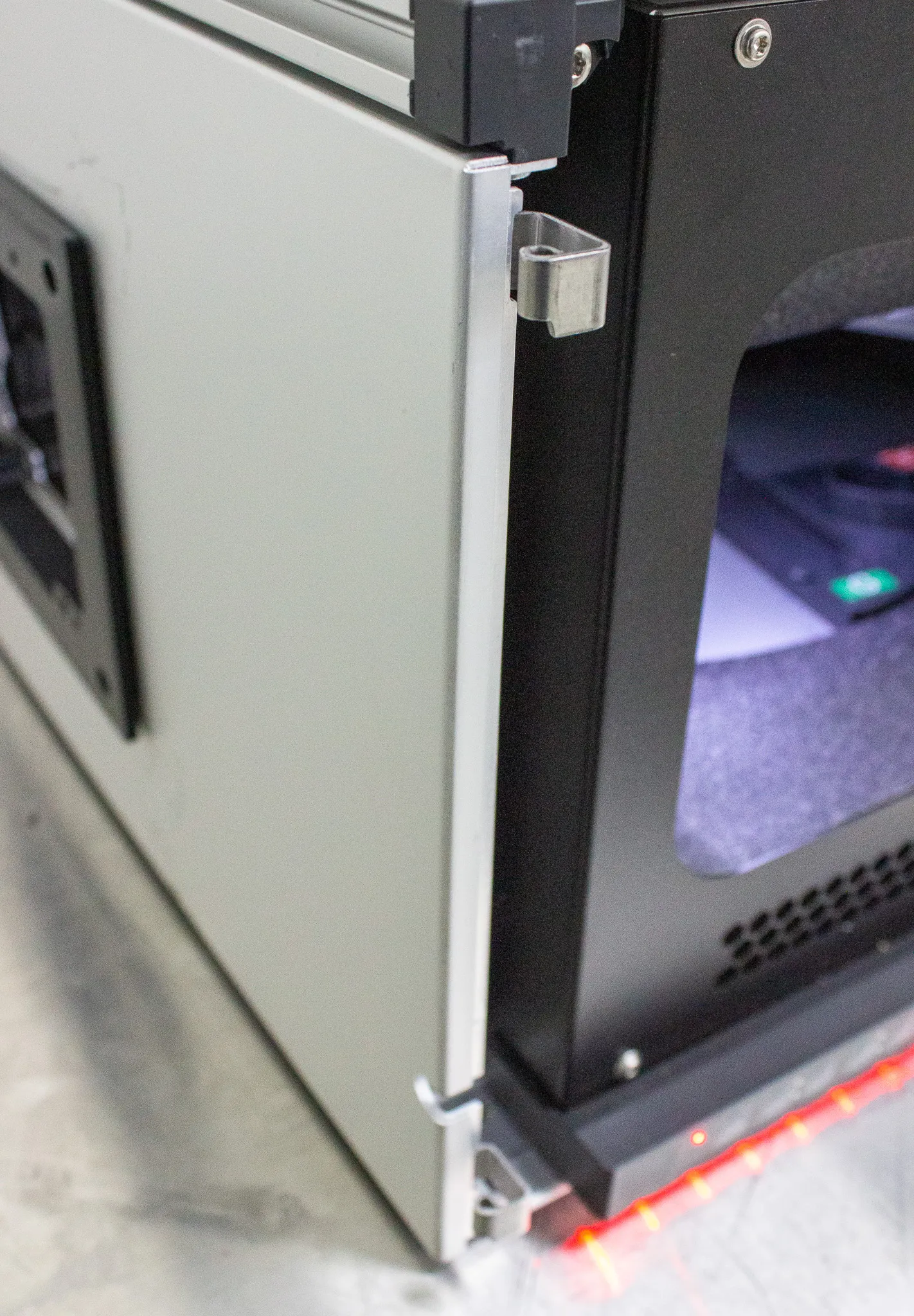

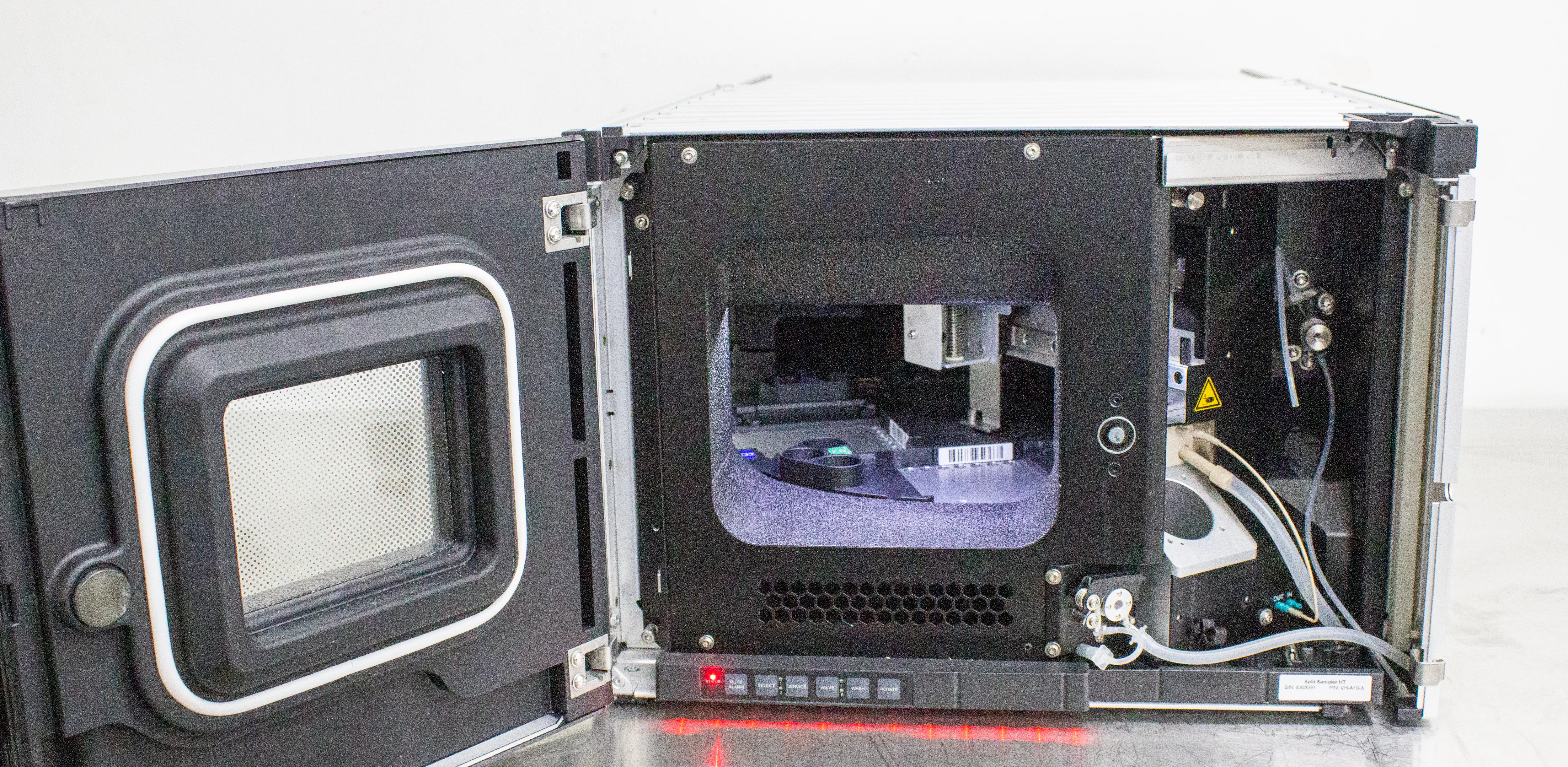

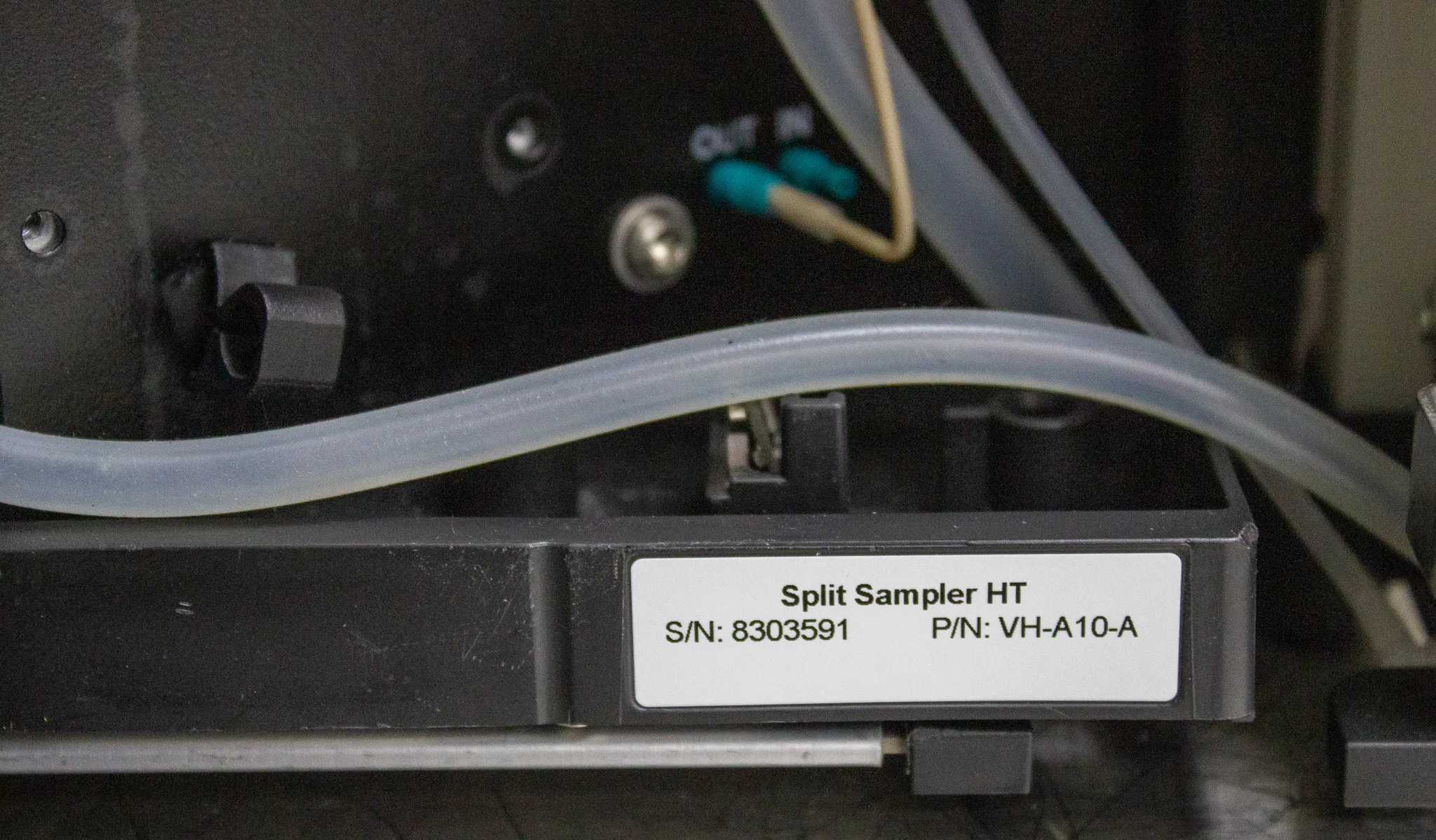

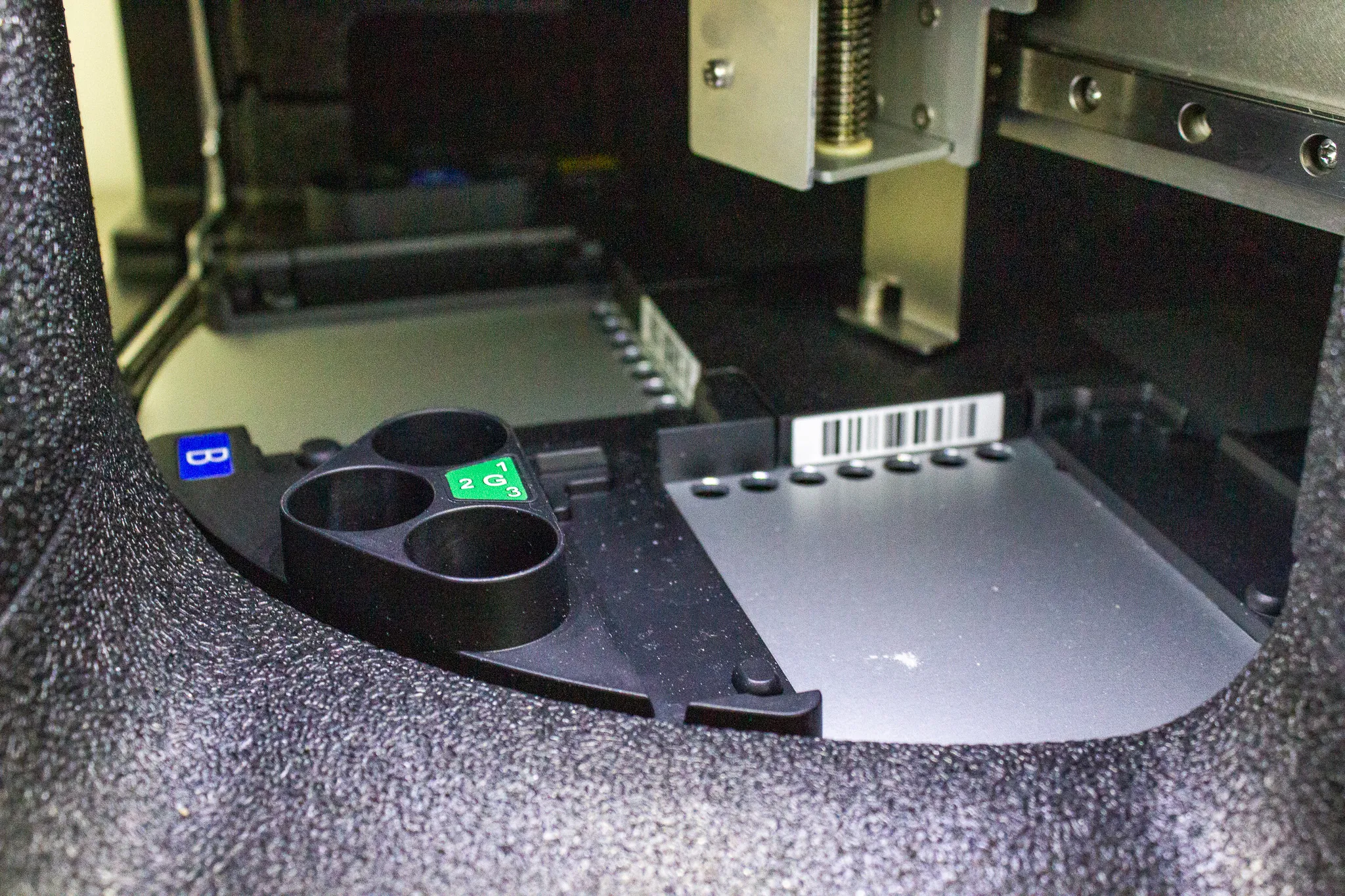

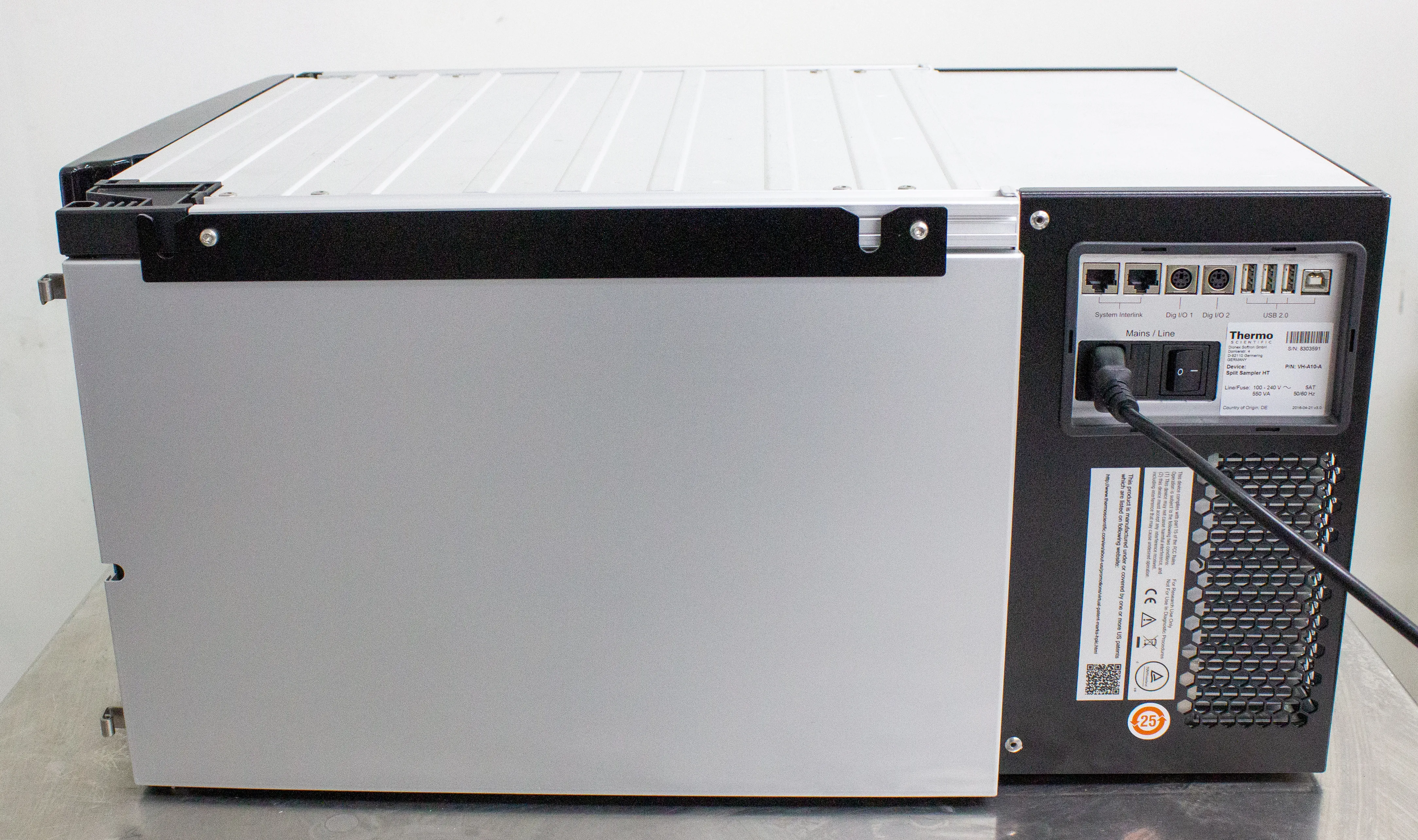

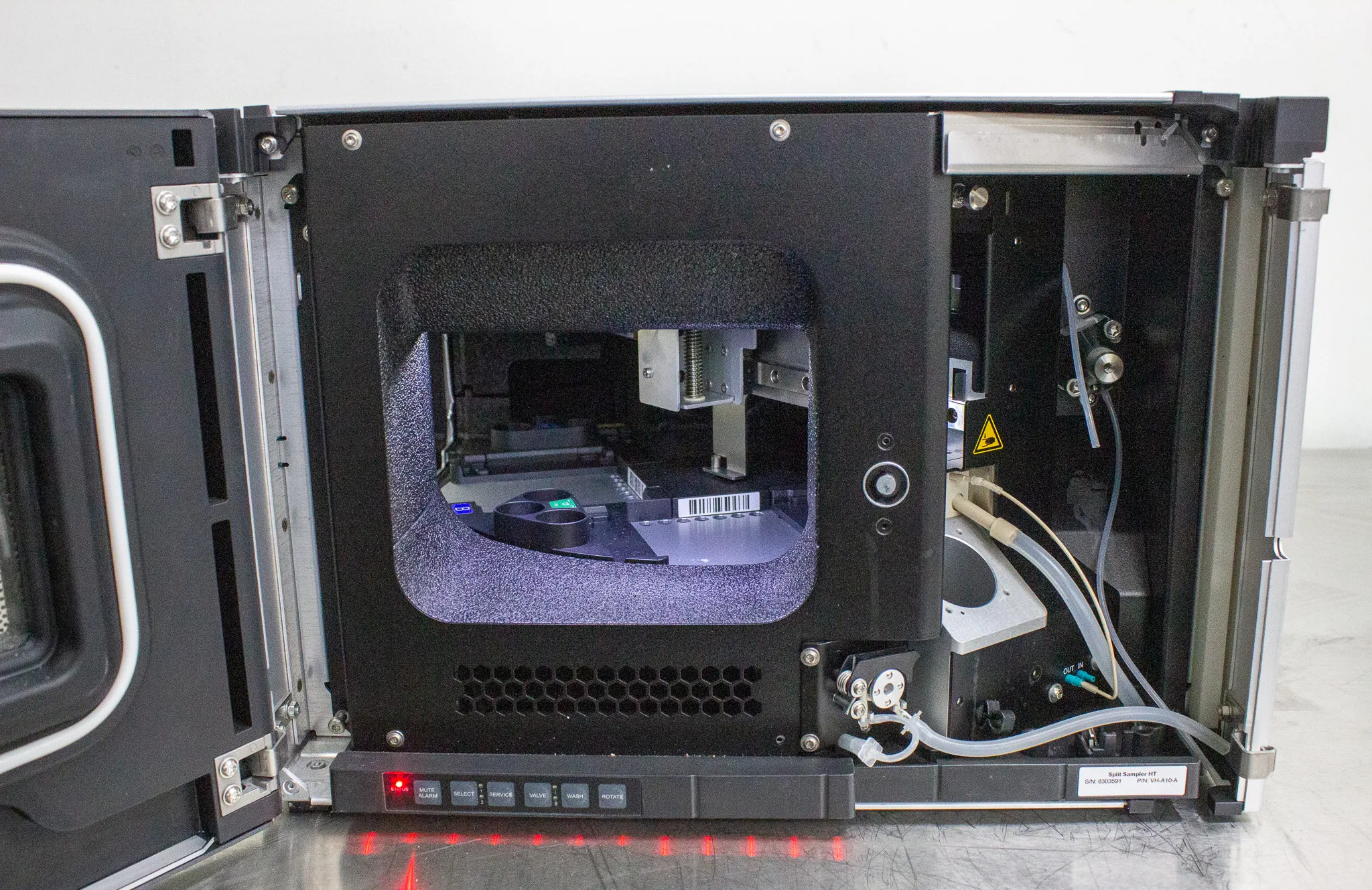

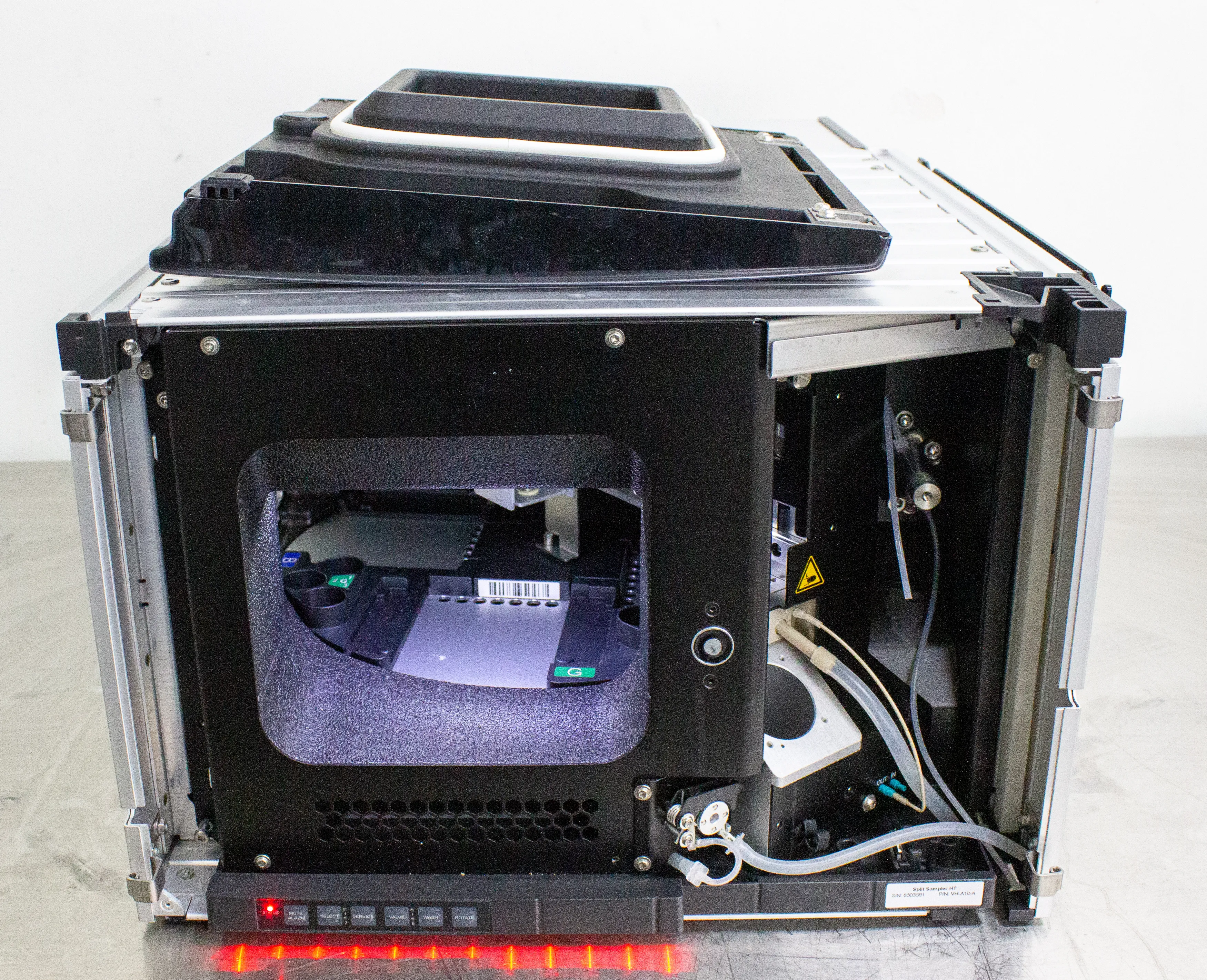

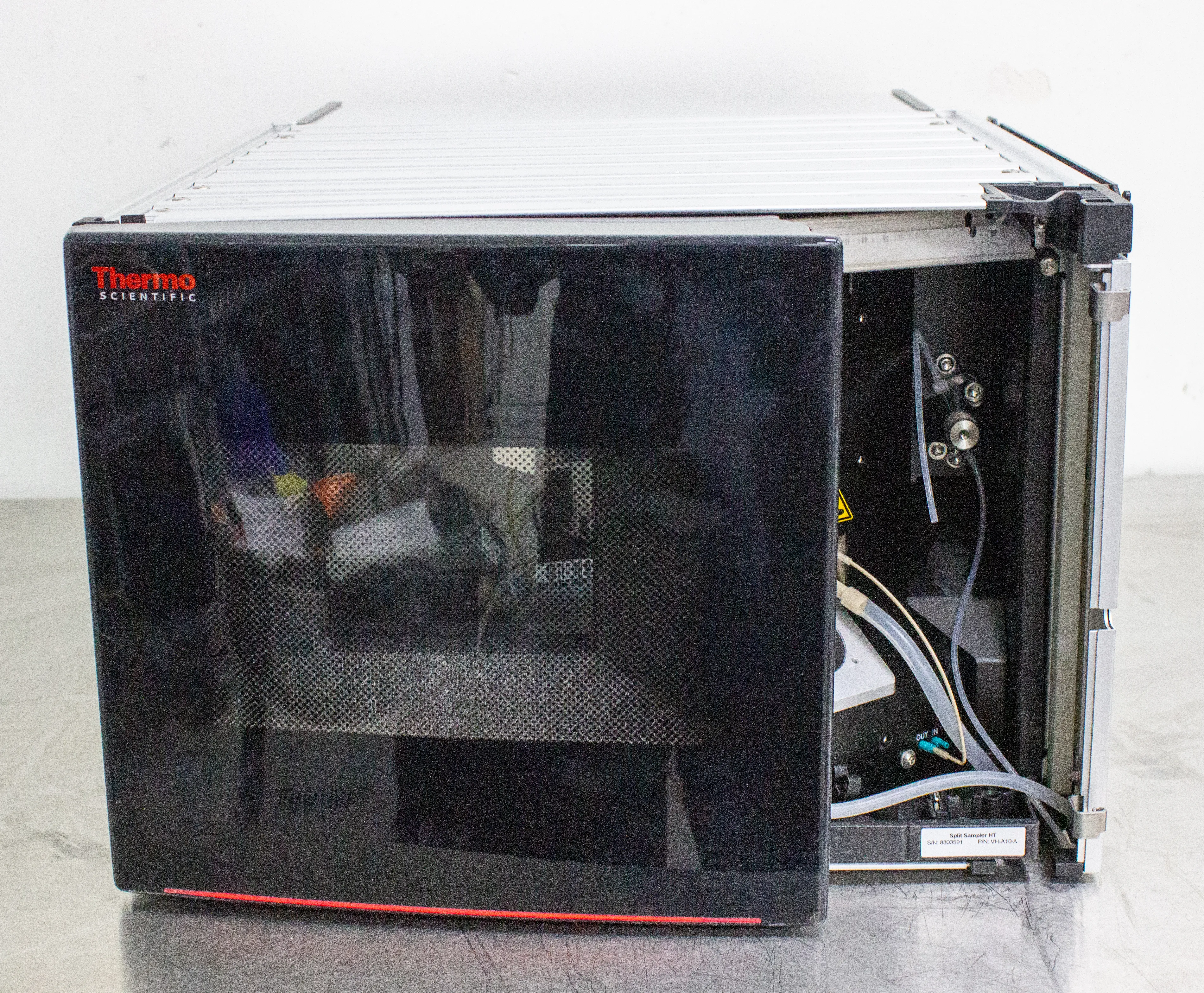

Thermo Scientific Vanquish Split Sampler HT P/N VH-A10-A

Product Information

The Thermo Scientific Vanquish Split Sampler HT P/N VH-A10-A is a groundbreaking auto sampler with unparalleled precision and capacity. Despite being advertised for parts or repair, its capabilities are truly remarkable. The high-throughput performance ensures the highest confidence in peak identification and quantitation possible. The sampler provides fully biocompatible fluidics, unsurpassed sample dosing precision, and is optimized for ruggedness and uptime, even under the toughest system pressure of up to 1500 bar (22,000 psi) and challenging eluent conditions. It has the ability to record UHPLC data over several days unattended, without running out of samples.

• Maximum injection precision
• Biocompatible fluidics
• High-throughput performance
• Optimized for ruggedness and uptime
• Unsurpassed sample dosing precision

• Injection Cycle Time: <15 s for 5 L depending on settable injection parameters independent from sample position
• Injection Volume Precision: <0.25% area RSD for 1 L (caffeine aq. soln.); Typically, <0.5% area RSD for 0.5 L (caffeine aq. soln.)
• Injection Volume Range: 0.01 to 25 L, min. step = 0.01 L; Optional: 0.01 to 100 L
• Injection Type: Split loop injection
• Biocompatible Version: Yes, pH range 2-12, buffer and/or chloride concentration up to 1 mol/L

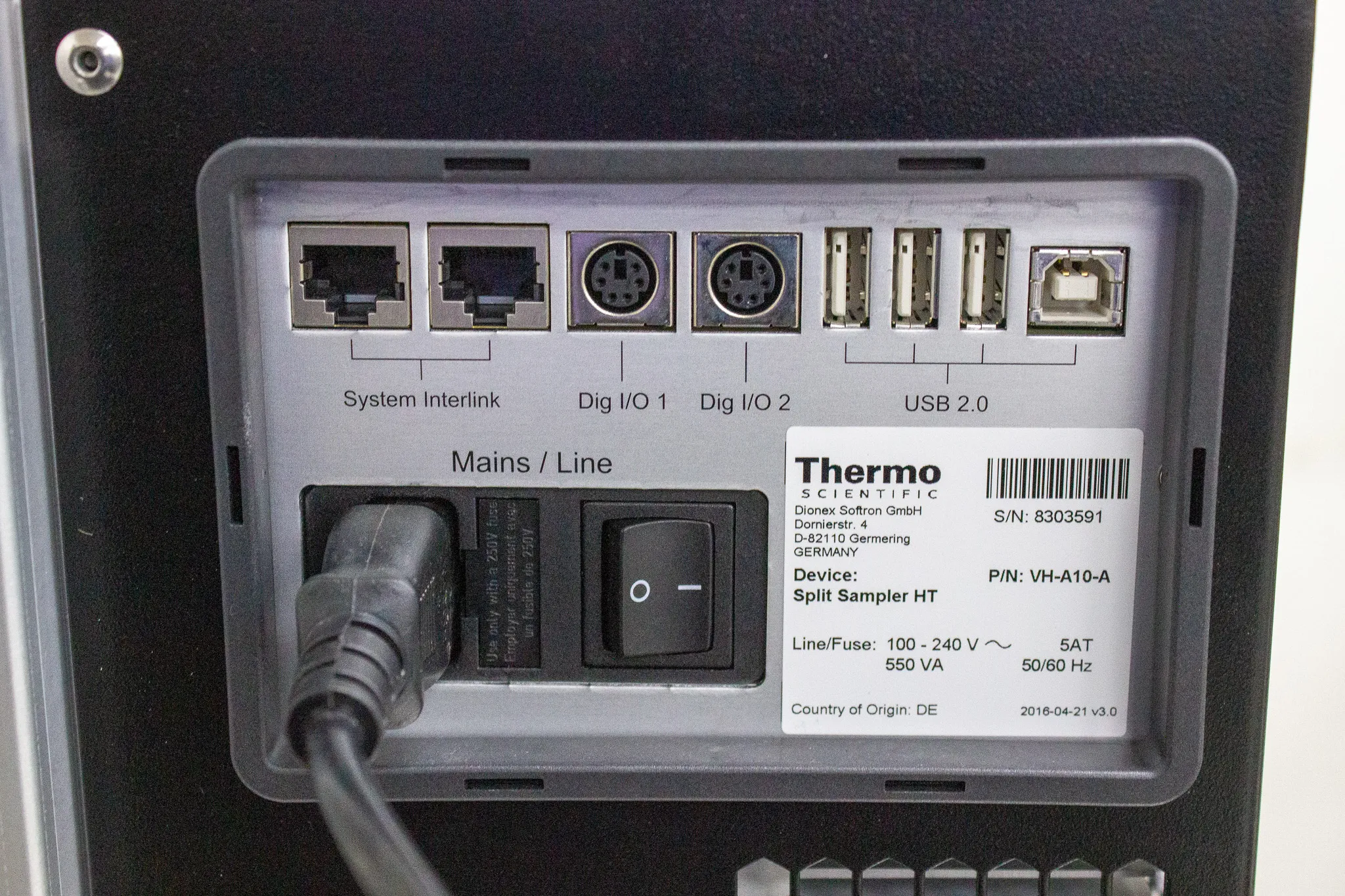

• PC Connection: USB 2.0; 3-port-HUB to connect further Vanquish modules
• Dimensions: 290 mm x 420 mm x 620 mm (11.4 in. x 16.5 in. x 24.4 in.)
• Carryover: <0.004% with Chlorhexidine; <0.0004% with caffeine (typically)

Metric: 26.76 kg
Imperial: 59 lbs

Metric: 29 cm x 21 cm x 19 cm
Imperial: 25 in x 17 in x 12 in

902720

9027.20. Automation systems; Other instruments for physical or chemical analysis
