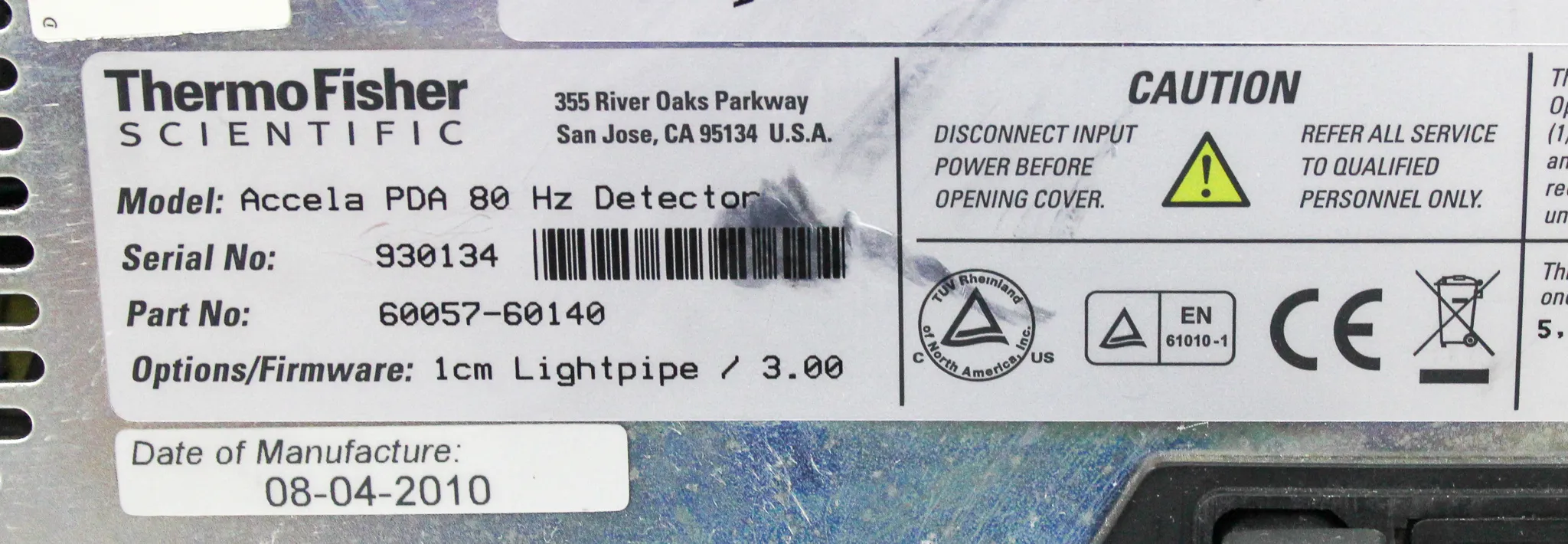

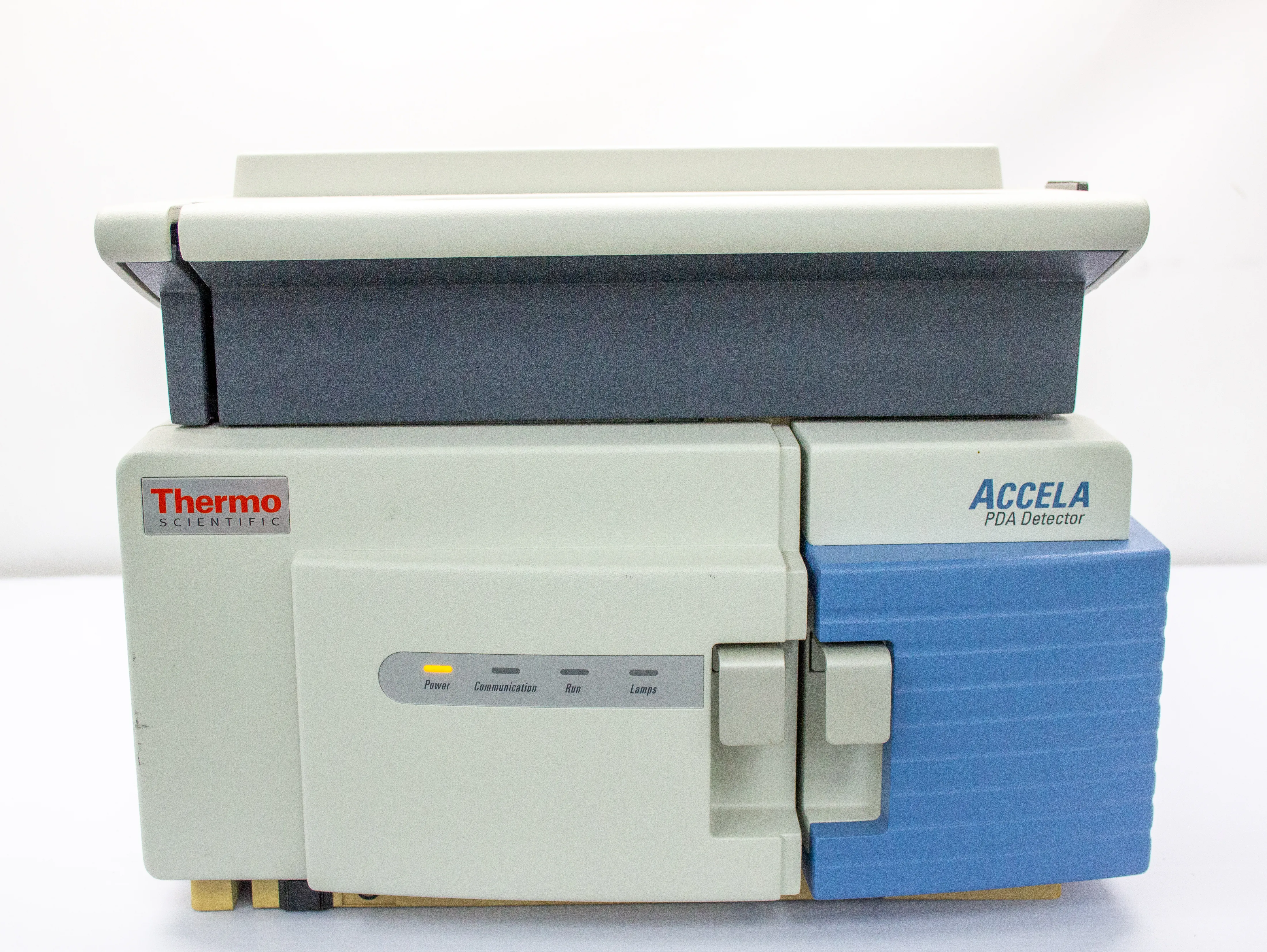

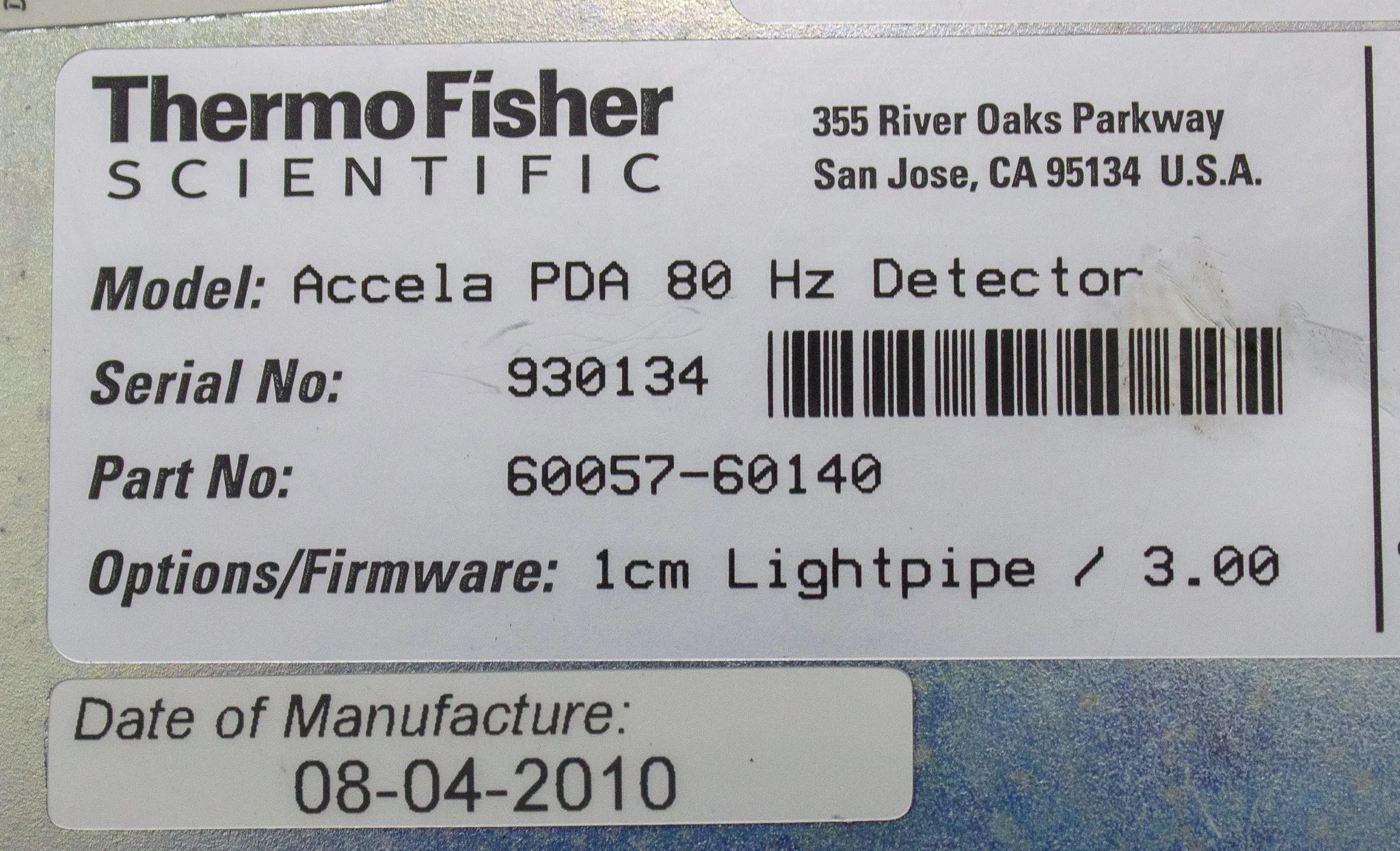

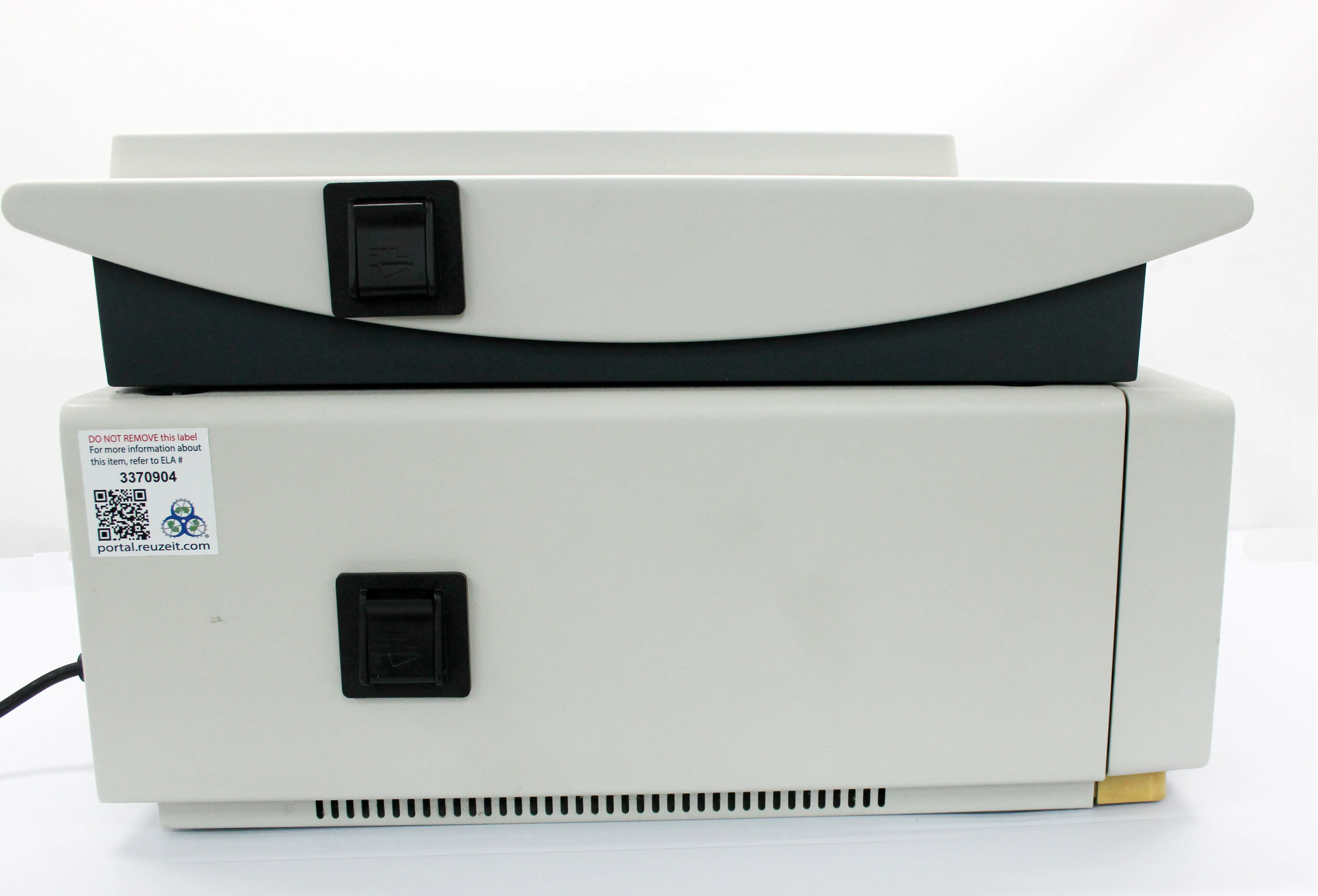

Thermo Scientific Accela PDA 80 Hz Detector 60057-60140, Used

Product Information

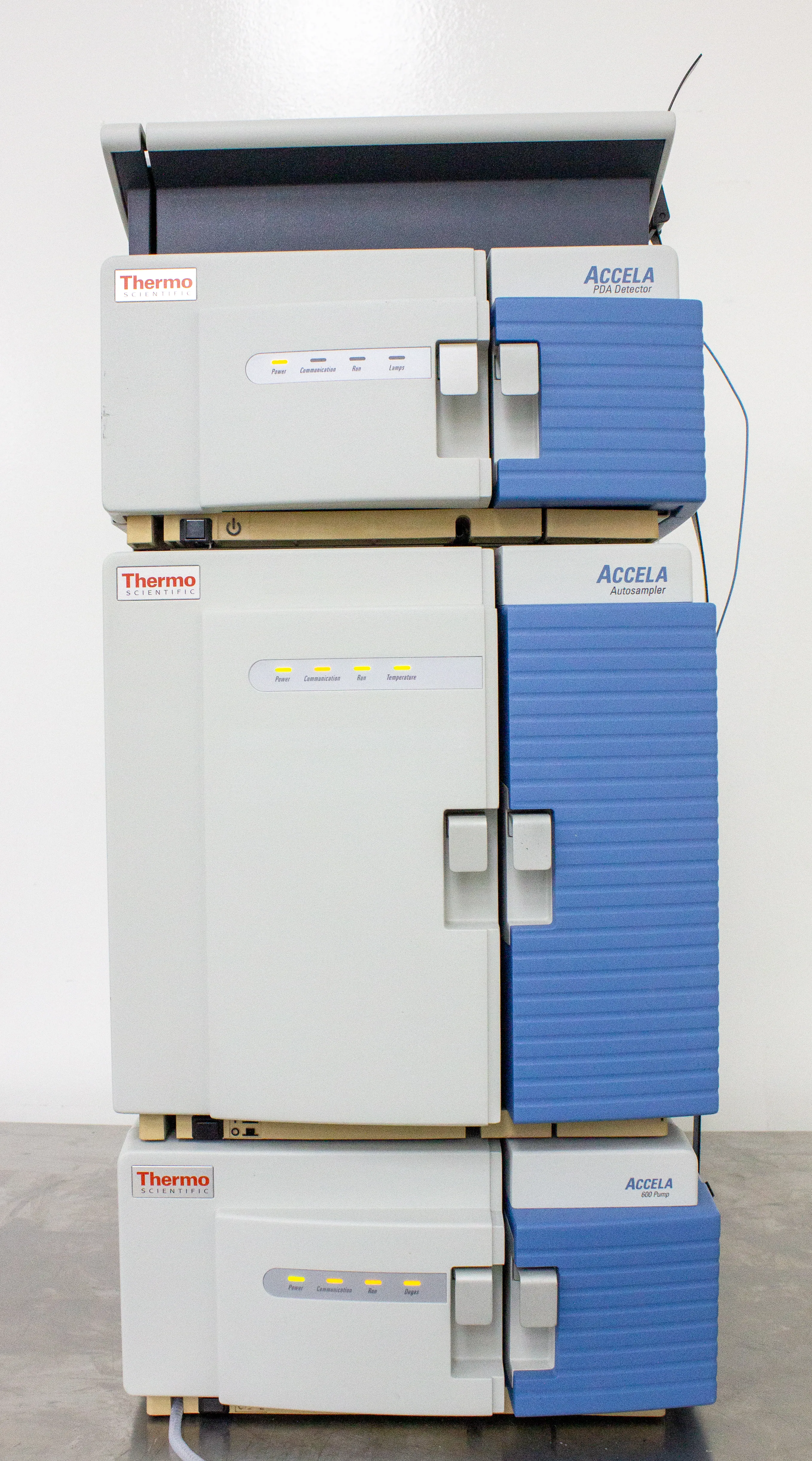

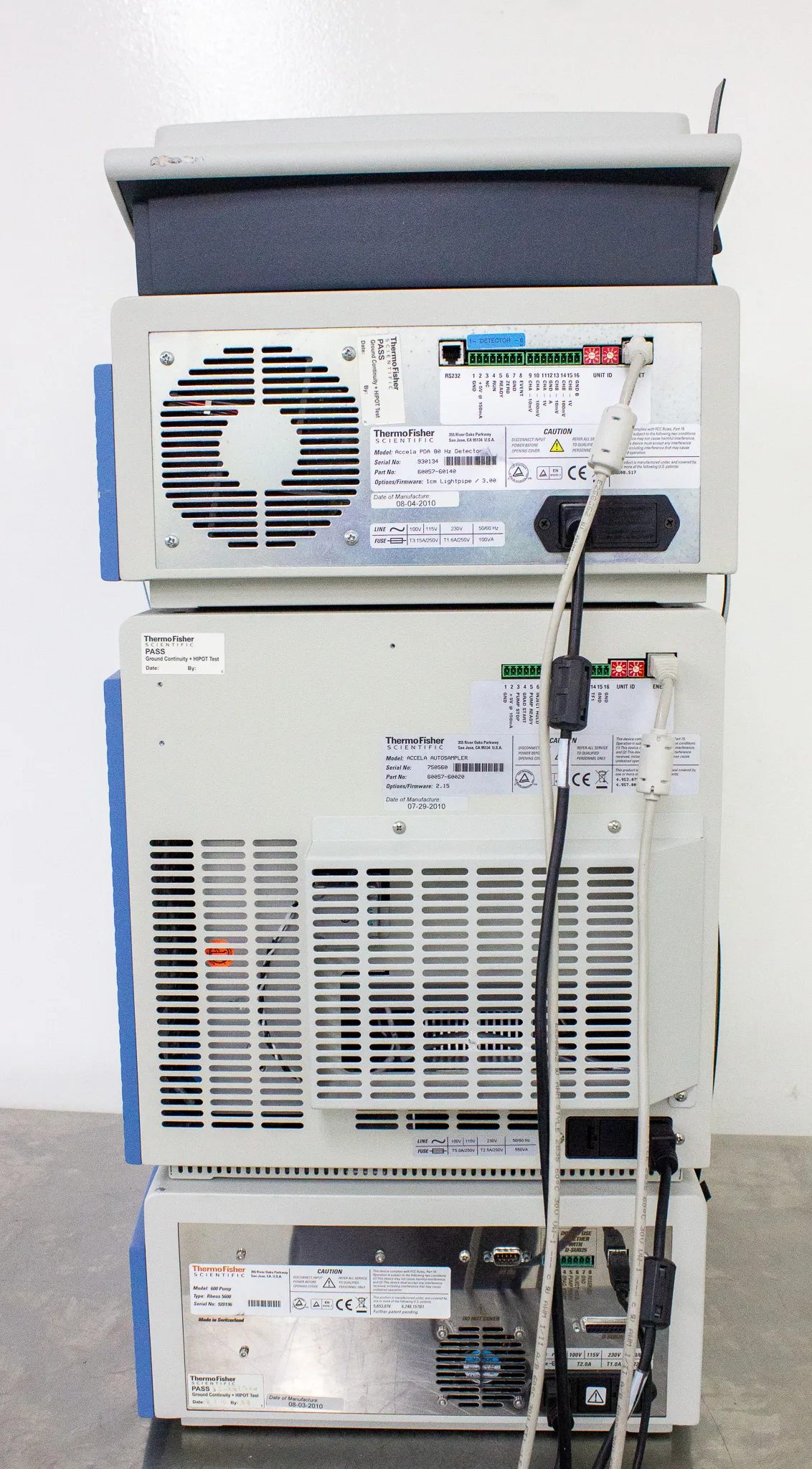

The Thermo Scientific Accela PDA 80 Hz Detector 60057-60140 has been used and tested, but requires new lamps and an interior panel cover. This detector is a component of the robust modular Thermo Scientific Accela Systems, offering a large suite of integrated features for enhanced application flexibility and efficiency. It utilizes Thermo Scientific LightPipe technology to ensure fast photo diode array detection with optimal sensitivity. With specific path length and flow cell options, it is tailored for U-HPLC and HPLC applications, providing maximum sensitivity and peak resolution. The detector's proprietary LightPipe technology, wavelength accuracy, resolution, and absorbance range make it suitable for various laboratory applications, from quality assurance and control to advanced drug discovery. The unit's ease of maintenance, reduced flow cell volume, and advanced wavelength calibration contribute to its reliability and productivity.

• Thermo Scientific LightPipe technology for fast photo diode array detection
• Proprietary LightPipe technology for highest sensitivity
• Specialized flow cell options for U-HPLC and HPLC applications
• Advanced wavelength calibration and resolution for chromatographic efficiency
• Easy maintenance features with integrated wavelength validation

• Wavelength Range: 190-800 nm at 1 nm increment
• Wavelength Accuracy: 1 nm at 254 nm and 640 nm
• Wavelength Resolution: 1.2 nm (512 pixel array)
• Absorbance Non-Linearity: < 5% at 2.0 AU at 257 nm
• Absorbance Range: -2.0 to +4.0 AU, 20-bit resolution
• Drift: < 1 mAU/hr after warm-up at 254 nm at a stable temperature (1C)
• Light Source: Pre-aligned Deuterium and Tungsten lamps
• Channels: Three wavelength selectable channels
• Short-Term Noise: < 6 AU/cm at 254 nm at 5 Hz (20 Hz scan rate)

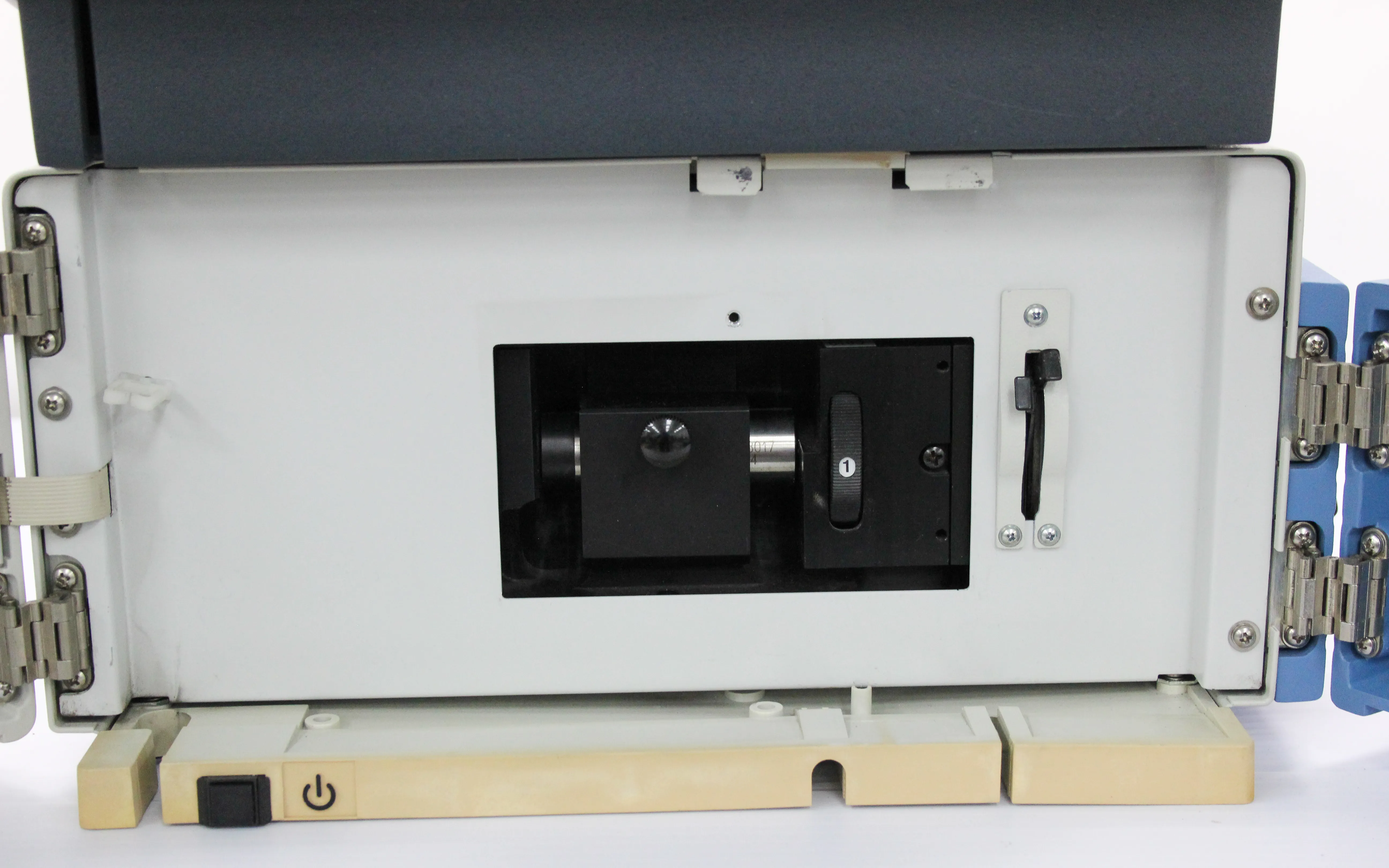

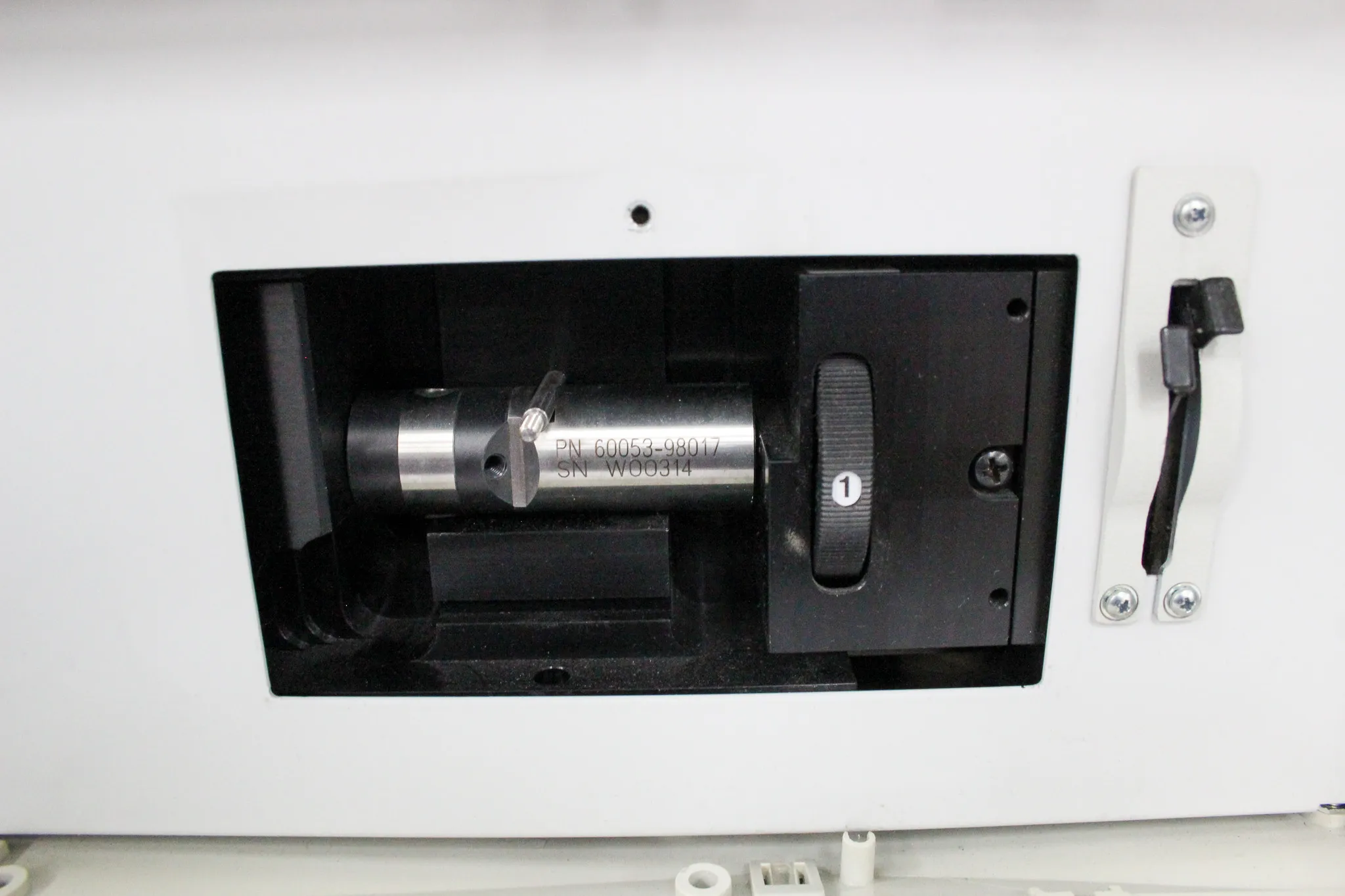

• Cell Dimensions: 10 mm, 2 L and 50 mm, 10 L LightPipe flow cells
• Cell Pressure Range: 0-1000 psi

Metric: 63.5 kg
Imperial: 140 lb

Metric: 25 cm x 19 cm x 38 cm
Imperial: 9.8 in x 7.5 in x 14.9 in

902730

902730 - Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR)
