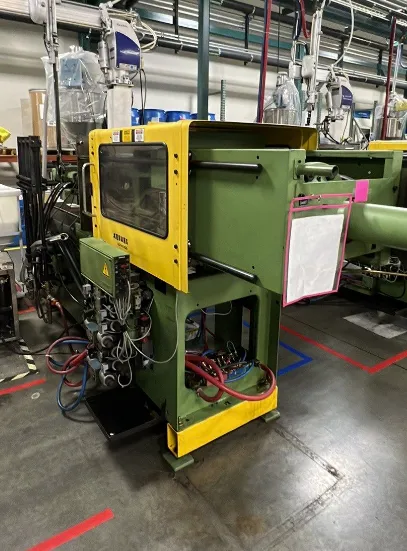

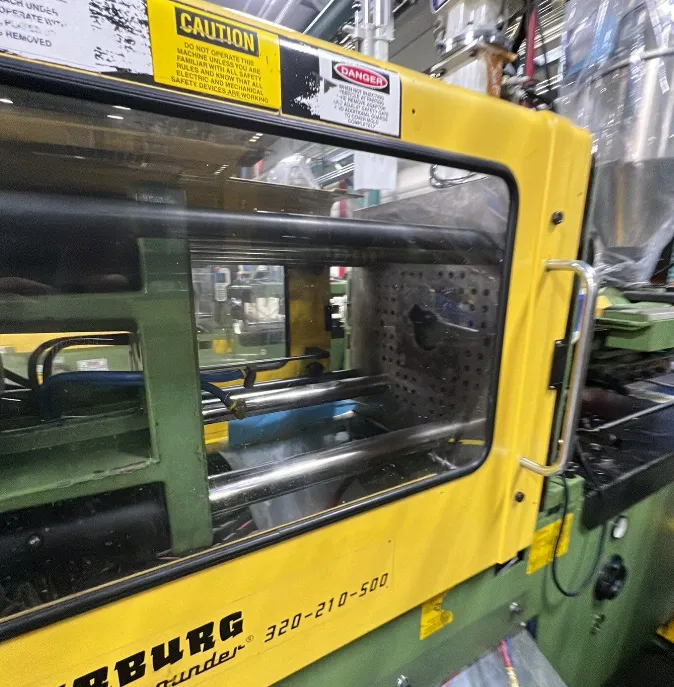

Arburg Allrounder 320 C Injection Molding Machine

Product Information

The Arburg Allrounder 320 C by Arburg is an essential part of the production landscape for any plastic moulding operation. As part of the Allrounder series, it boasts a modular design allowing for versatility in deployment and offers high precision and efficiency in the injection moulding process. With advanced control systems ensuring consistent, reliable results, the Arburg Allrounder 320 C is a reliable workhorse in the plastics industry. It offers various clamping force options to accommodate a wide range of production needs and is known for its user-friendly interface, energy efficiency, and the ability to deliver high-quality moulded parts. The technical specifications reinforce its robust functionality, making it an ideal solution for various types and sizes of plastic parts production. Whether in a research lab or a production facility, the Arburg Allrounder 320 C will not disappoint. Explore countless applications in sectors such as automotive, electronics, housewares, and more!

• Modular design for versatile configuration

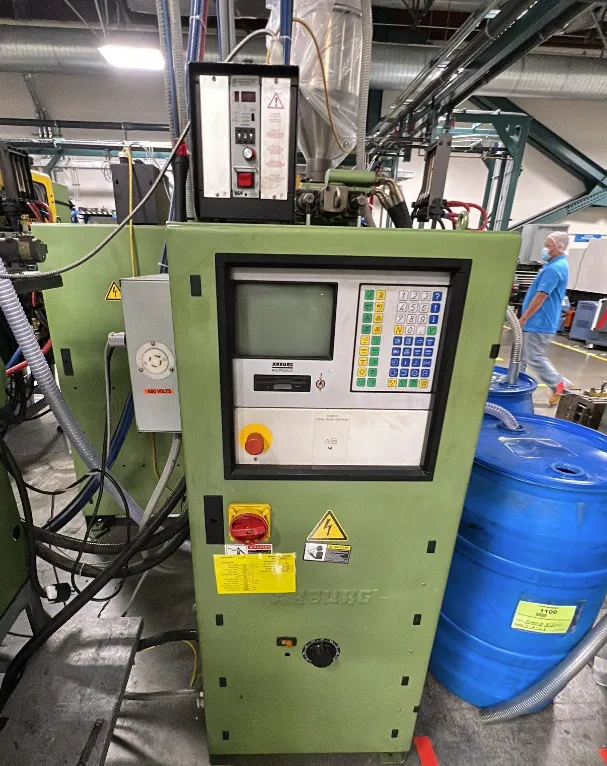

• User-friendly interface and advanced control systems
• High precision, efficiency, and energy efficiency

• Clamping Force: 500 kN
• Opening Force: 130/350 kN/mm
• Mould height: Min. 200 mm
• Platen daylight max.: 550 mm
• Distance between tie bars: 320 x 320 mm
• Mould mounting platens max.: 446 x 446 mm
• Weight of movable mould half max.: 180 kg
• Ejector force/stroke max.: 30/125 kN/mm
• Injection unit (acc. to EUROMAP): 100, 170

Metric: 2500 kg
Imperial: 5511.55 lbs

Metric: 78 cm x 39 cm x 67 cm
Imperial: 30.71 in x 15.35 in x 26.38 in

847710

Machinery for moulding or retreading pneumatic tyres
