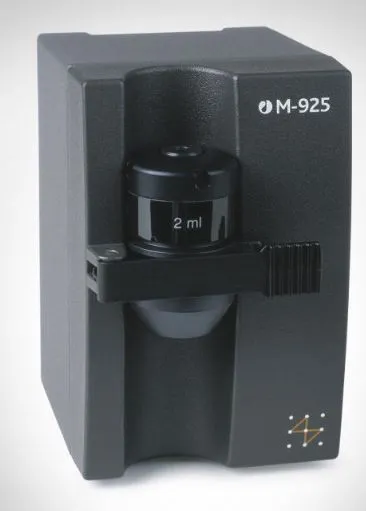

GE AKTA M-925 Dynamic Mixer Valve

Product Information

Ah, the GE AKTA M-925 Mixing Valve, a dynamic and versatile mixer that's a must-have for any laboratory. Whether working with the AKTA design Pump P-900 series or in AKTA design chromatography systems, this single chamber mixer with interchangeable volumes is a game-changer. With a max flow rate of 0.001 - 100 ml/min, a pH range of 1 - 13, and a viscosity up to 5 cP, this mixer is primed for a range of applications. Its innovative design features a static and dynamic chamber, elevating the mixing process. From chromatography applications to dynamic blending, this mixer does it all.

• Dynamic single chamber mixer
• Interchangeable mixing volumes
• Max flow rate of 0.001 - 100 ml/min
• pH range of 1 - 13
• Capable of handling viscosities up to 5 cP
• Features a static and dynamic mixing chamber

• Max Flow Rate: 0.001 - 100 ml/min
• Max Pressure: 12 ml chamber: 10 MPa at 0.1 - 100 ml/min (100 bar, 1450 psi), 0.6, 2, and 5 ml chambers: 25 MPa at 0.001 - 100 ml/min (250 bar, 3625 psi), 90 l and 0.2 ml chambers: 35 MPa at 0.001 - 5 ml/min (350 bar, 5075 psi)
• pH Range: 1 - 13, 1 - 14 (< 1 day exposure)
• Viscosity: Max 5 cP
• Internal Volume: 6 interchangeable mixing chambers - 90 l, 0.2, 0.6, 2, 5, and 12 ml
• Mixing Principle: 1 static chamber and 1 dynamic chamber

Metric: 3.62874 kg
Imperial: 8 lbs

Metric: 48.26 cm x 38.1 cm x 25.4 cm
Imperial: 19 in x 15 in x 10 in

841989

Machinery, plant or laboratory equipment, whether or not electrically heated, for the treatment of materials by a process involving a change of temperature, nesoi
