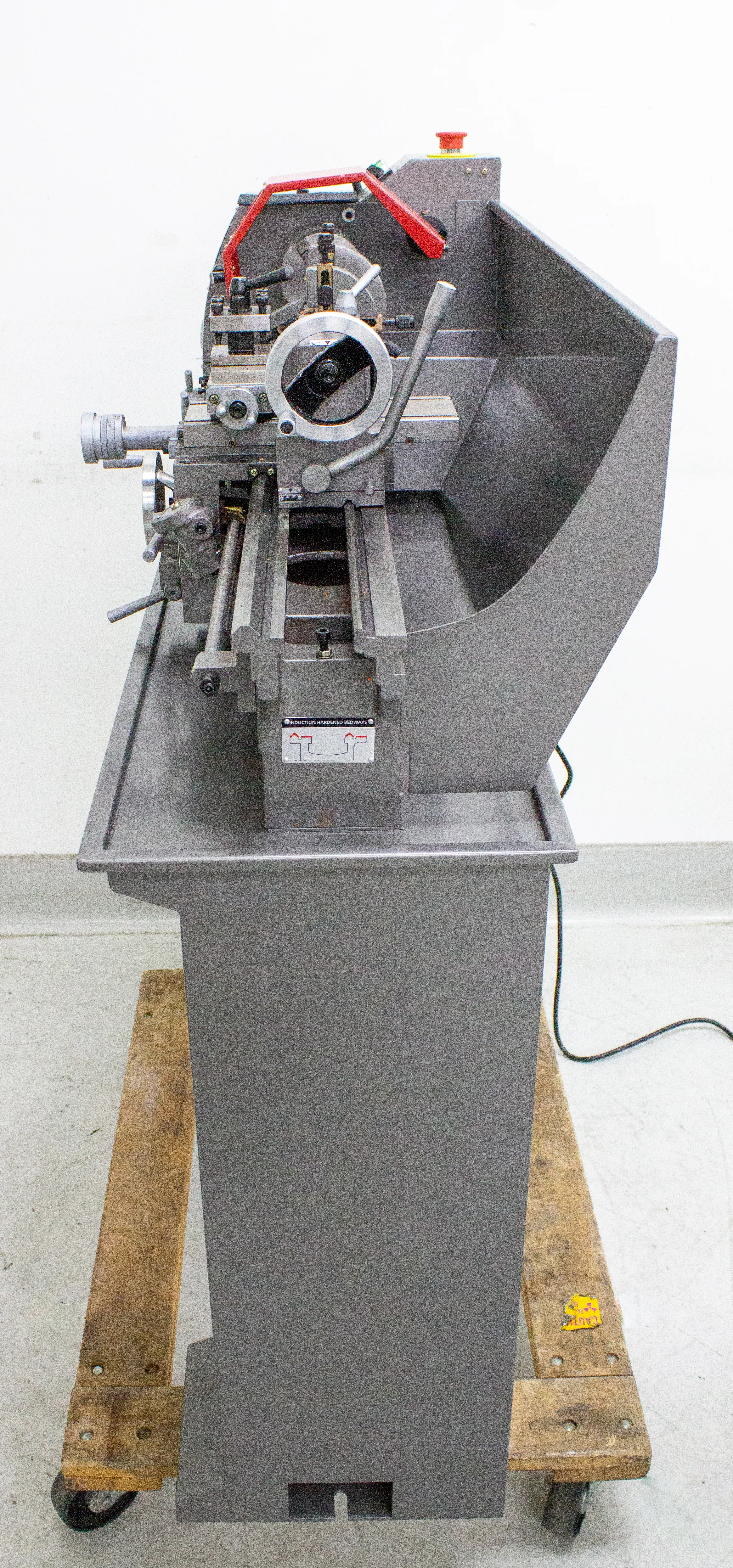

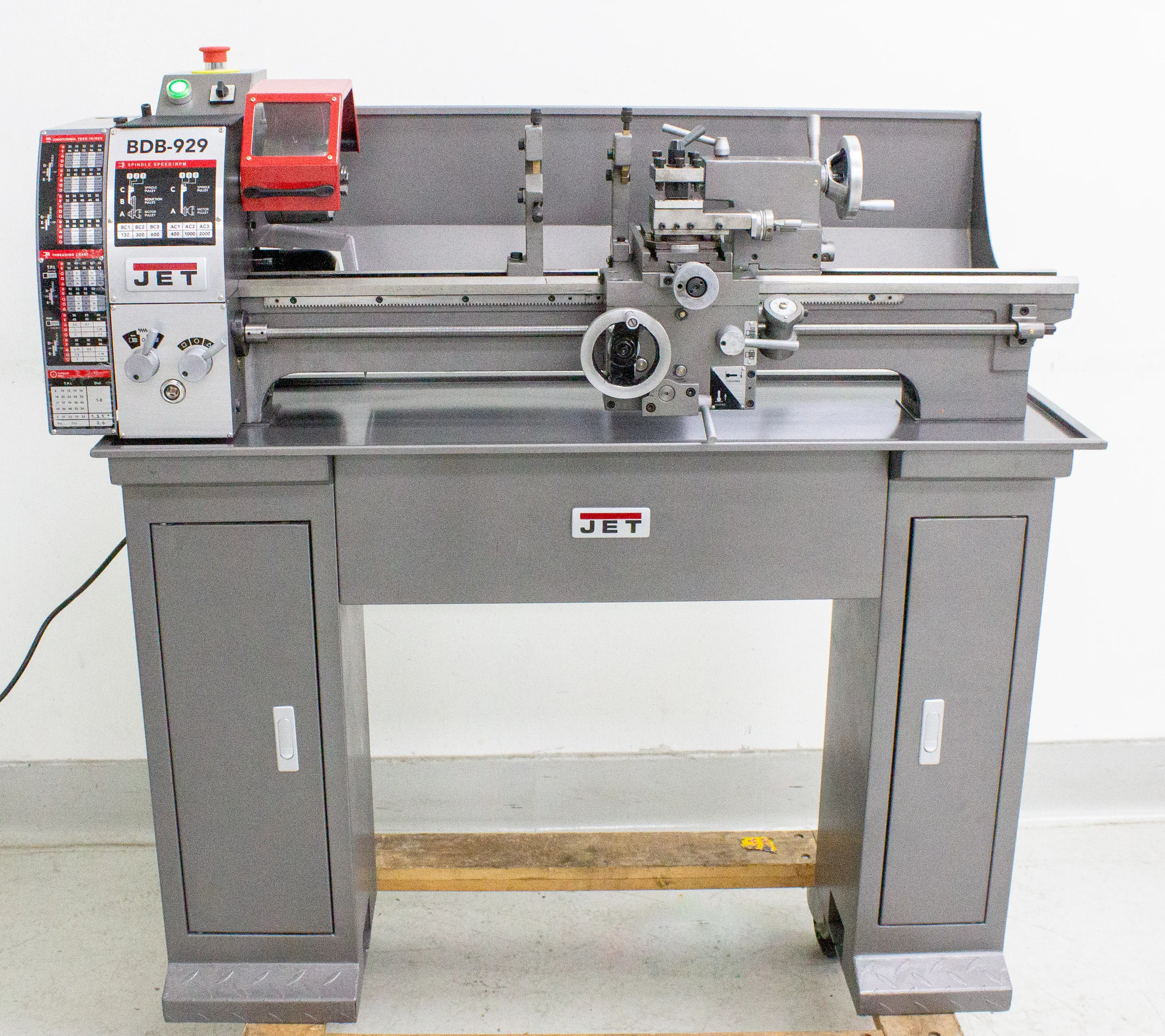

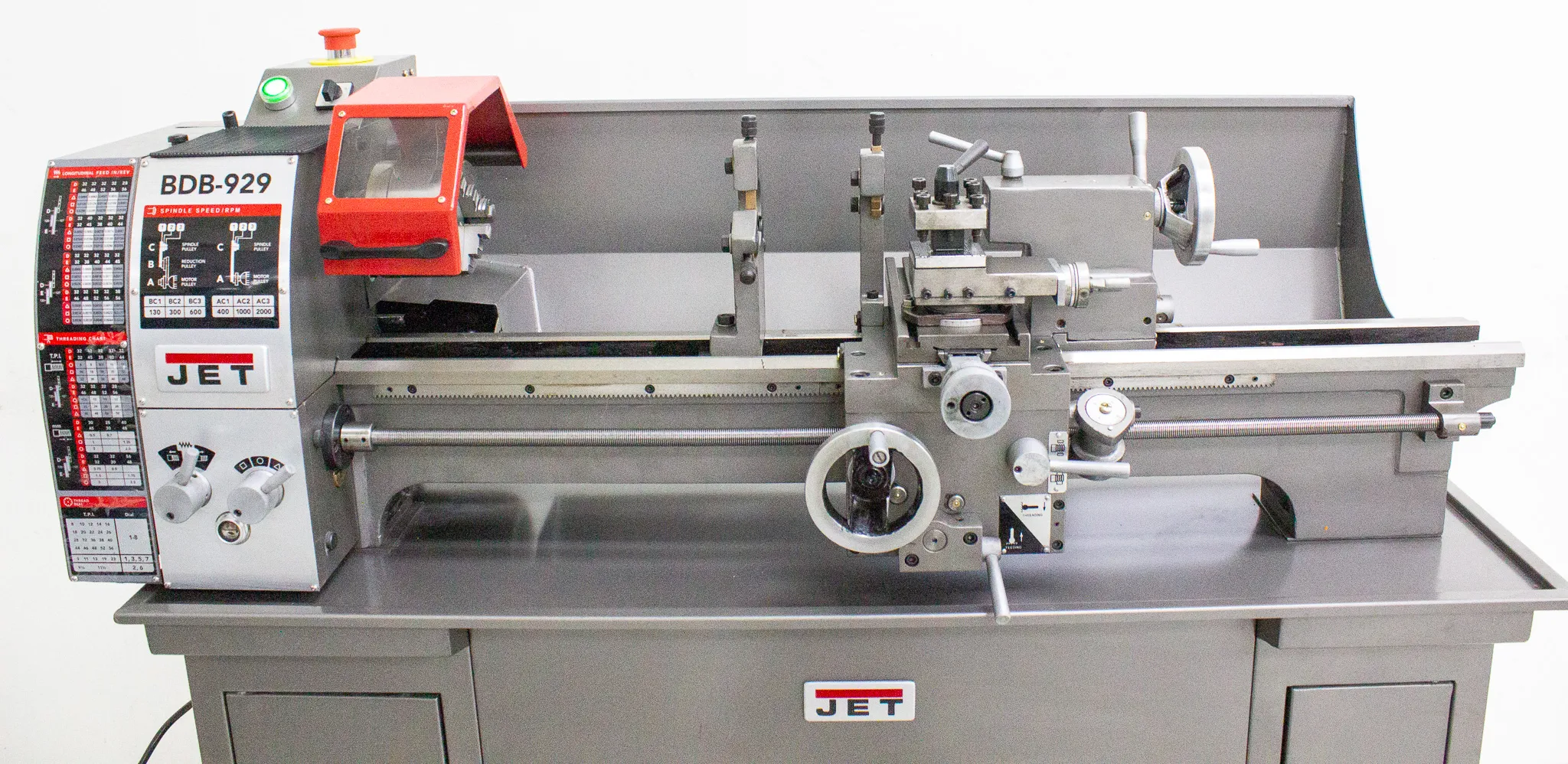

JET Belt Drive Bench Lathe with Stand Model BDB-929

Product Information

The JET Belt Drive Bench Lathe with Stand Model BDB-929 is an essential tool to improve your shop capabilities. This lathe is meticulously engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, ensuring smooth operation and the rigidity required for crafting professional pieces. It comes with a 30-day warranty, is tested to specifications, and is free from wear. With features such as backlash adjustments, full-length splash guard, power longitudinal feed, and a quick-change gearbox for inch and metric threads, this lathe is ideal for creating a wide range of components.

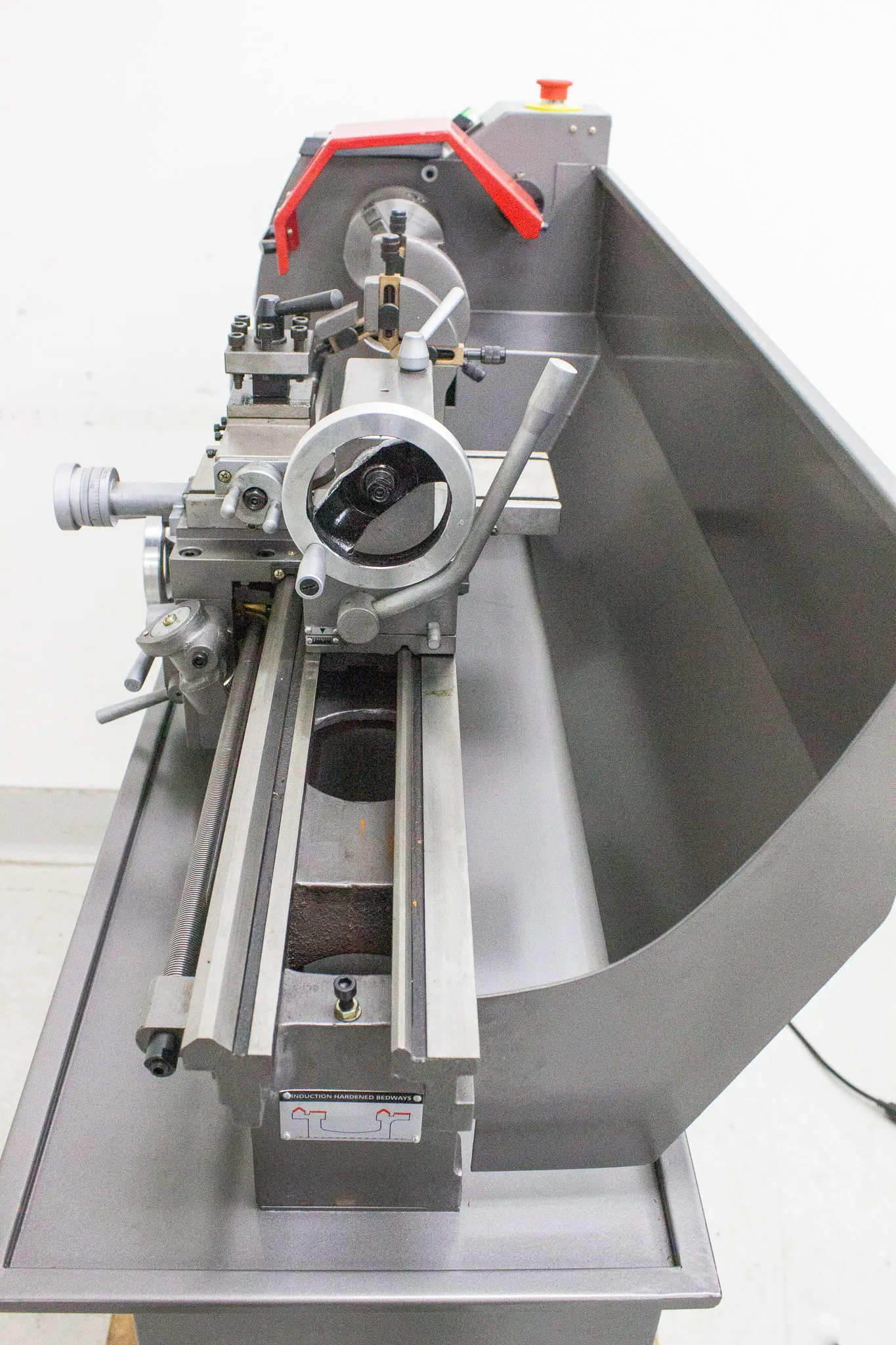

• Precision induction hardened ground bed-ways
• Precision tapered roller bearings
• Backlash adjustments
• Full-length splash guard
• Power longitudinal feed
• Quick-change gearbox for inch and metric threads

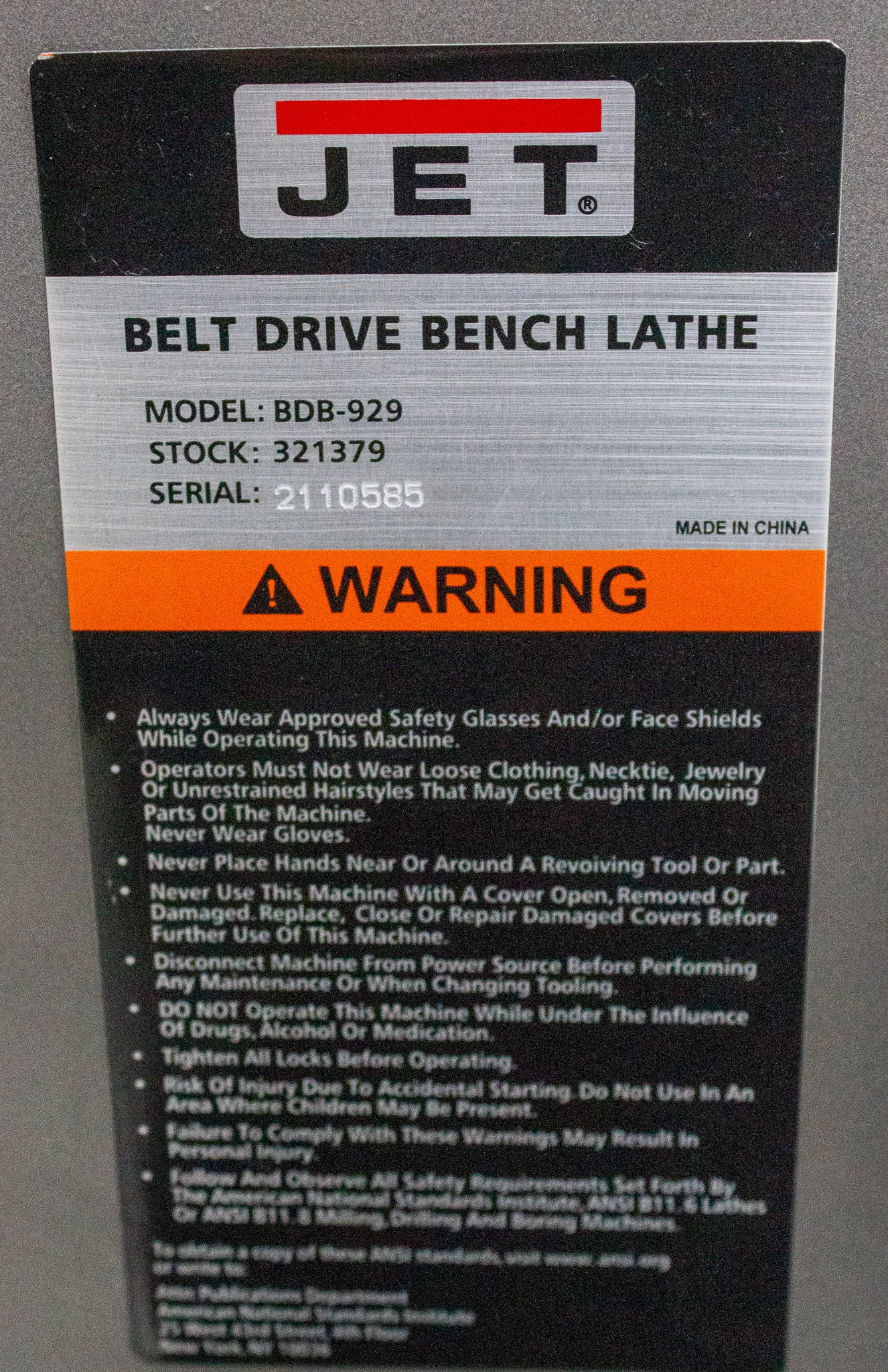

• Safety on/off switch

• Carriage Travel (In.): 26.5

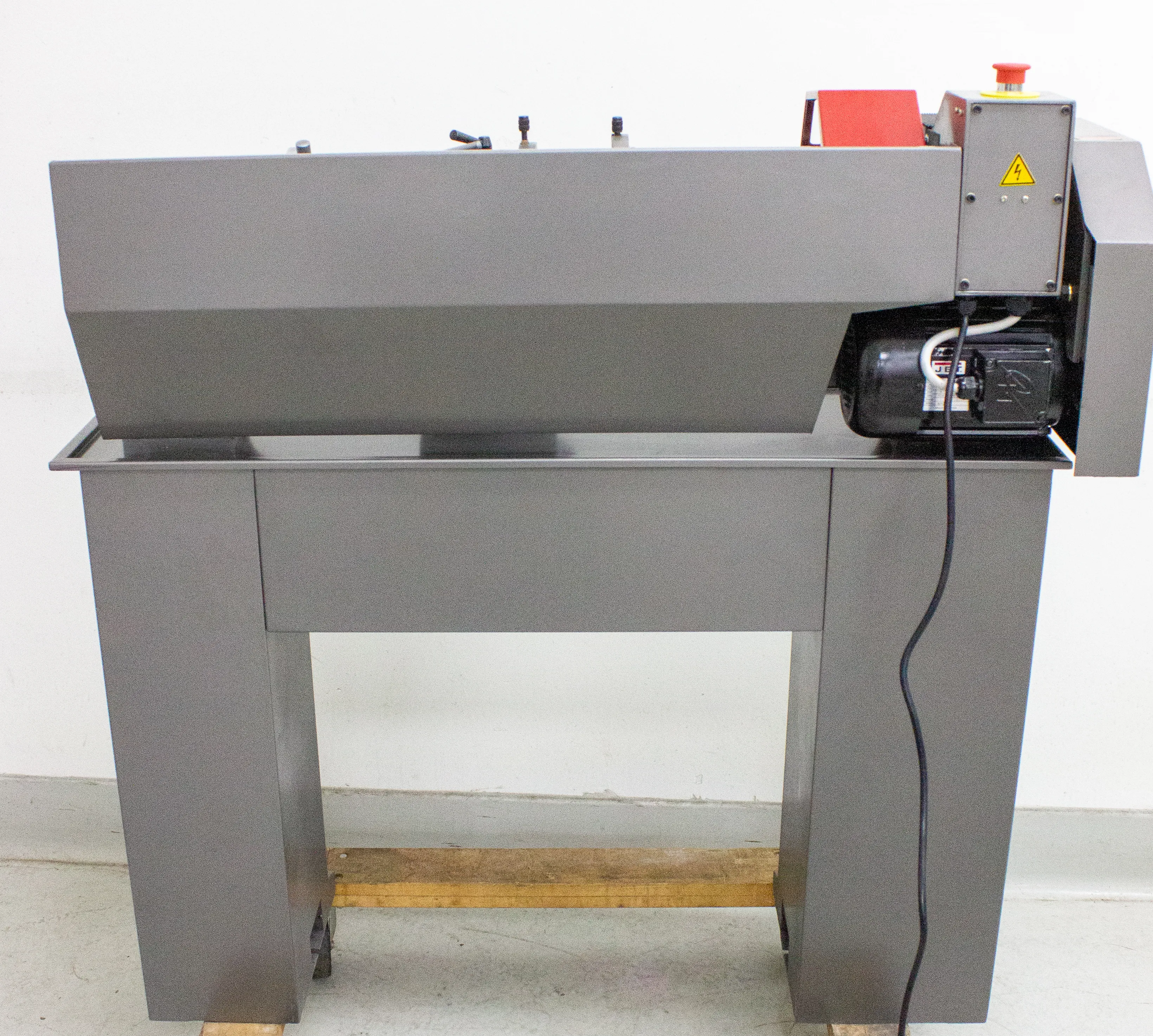

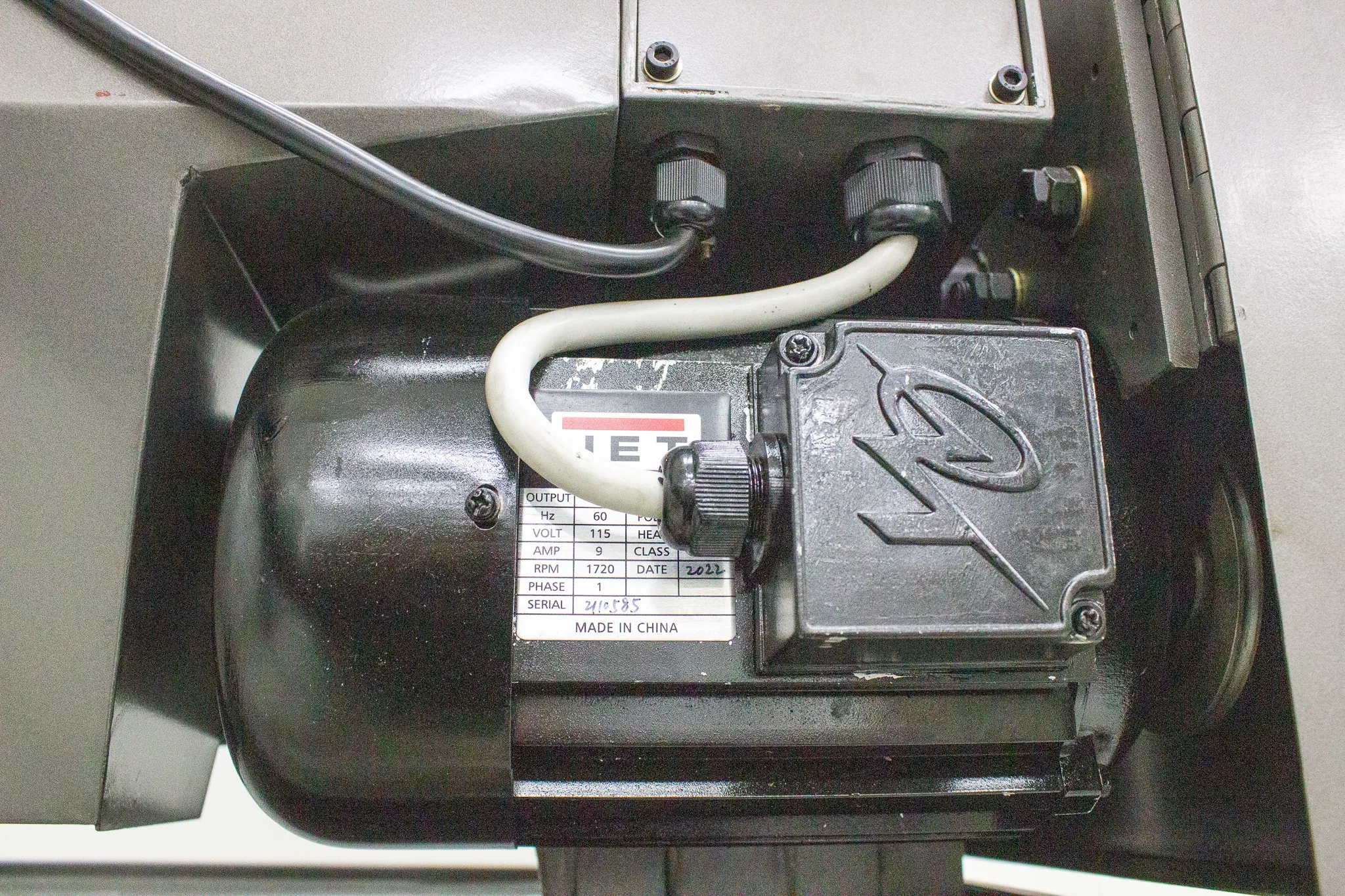

• Motor (HP): 3/4 HP, 115V, 1PH
• Number of Inch Threads: 27
• Number of Longitudinal and Cross Feed Rates: 60
• Number of Metric Threads: 12

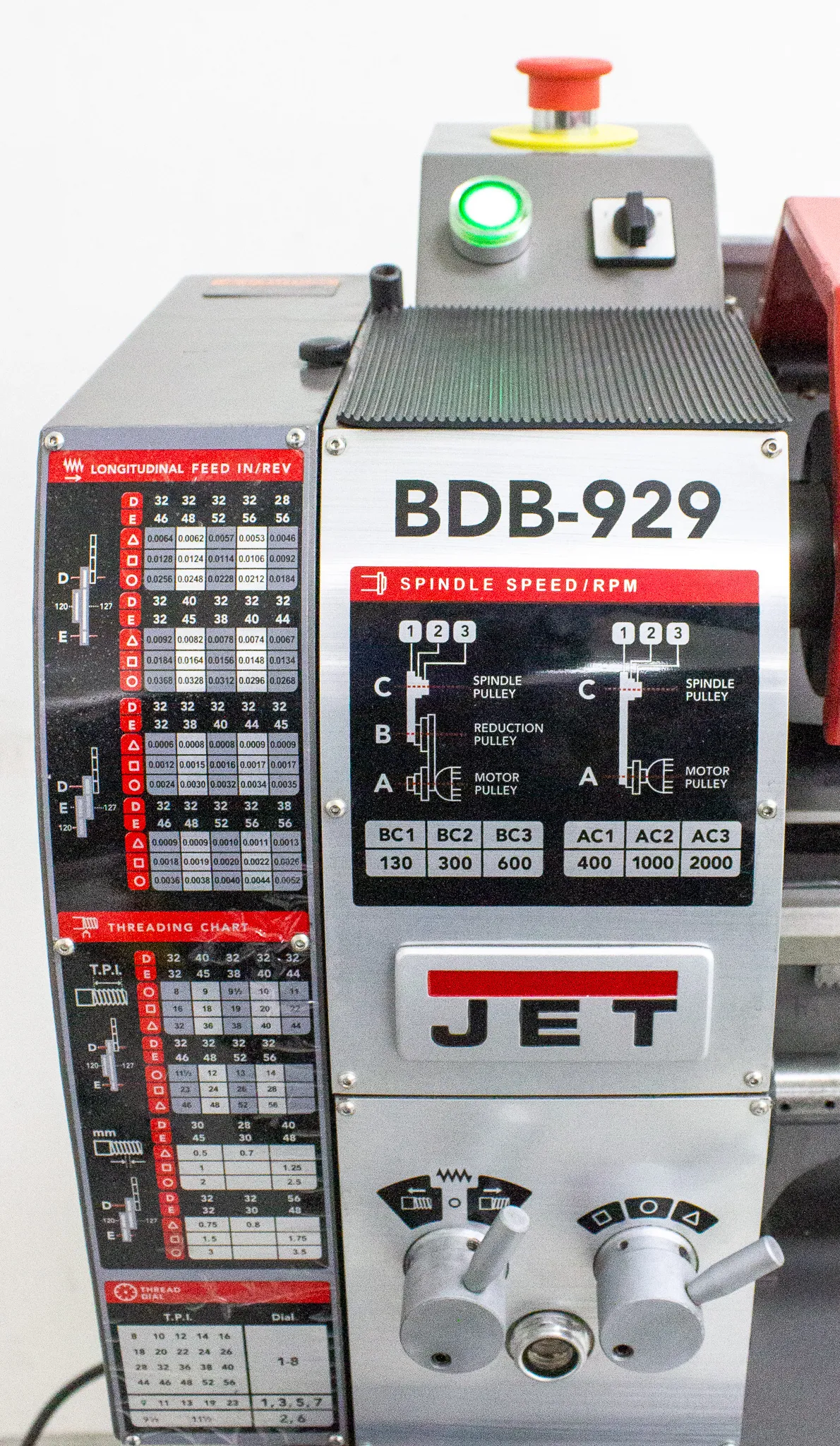

• Number of Spindle Speeds: 6
• Overall Dimensions (L x W x H) (In.): 51x22x20
• Range of Inch Threads (TPI): 8 - 56
• Range of Longitudinal Feeds (IPR): 0.0006-0.0368
• Range of Metric Threads: 0.5 - 3.5
• Range of Spindle Speeds (RPM): 130-2000
• Spindle Bore (In.): 3/4
• Spindle Mount: 1-1/2 x 8TPI
• Swing Over Bed (In.): 8-3/4
• Swing Over Cross Slide (In.): 5
• Tailstock Spindle Travel (In.): 1-9/16
• Weight (Lbs.): 287
• Width of Bed (In.): 4-1/2

Metric: 127.9 kg
Imperial: 282.192 lbs

Metric: 129.54 cm x 55.88 cm x 50.8 cm
Imperial: 51 in x 22 in x 20 in
