Jorestech Continuous Band Sealer Model E-CBS-630D

Product Information

Jorestech Continuous Band Sealer Model E-CBS-630D is a versatile and efficient digital bag closer suitable for most plastic bags like Polyethylene and Bo PET. It can be used for sealing a wide range of products including food, coffee, medicine, and more. The machine is capable of sealing bags made with thermoplastic materials such as Polyethylene (PE), Polypropylene (PP), and heat-sealable laminations. Its PID Digital Temperature Controller allows precise temperature control from 0 - 300C (572F) with dual alphanumeric displays. The sealer is semi-automatic, has a seal width of 10 mm (3/8 in), and can work with various bag formats such as Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, and Gusseted bags. It is a reliable and user-friendly sealing system suitable for laboratory and manufacturing settings.

• Dual Fit System for vertical and horizontal operation
• Capable of sealing a wide range of bags such as stand-up pouches, gusseted bags, and sachets

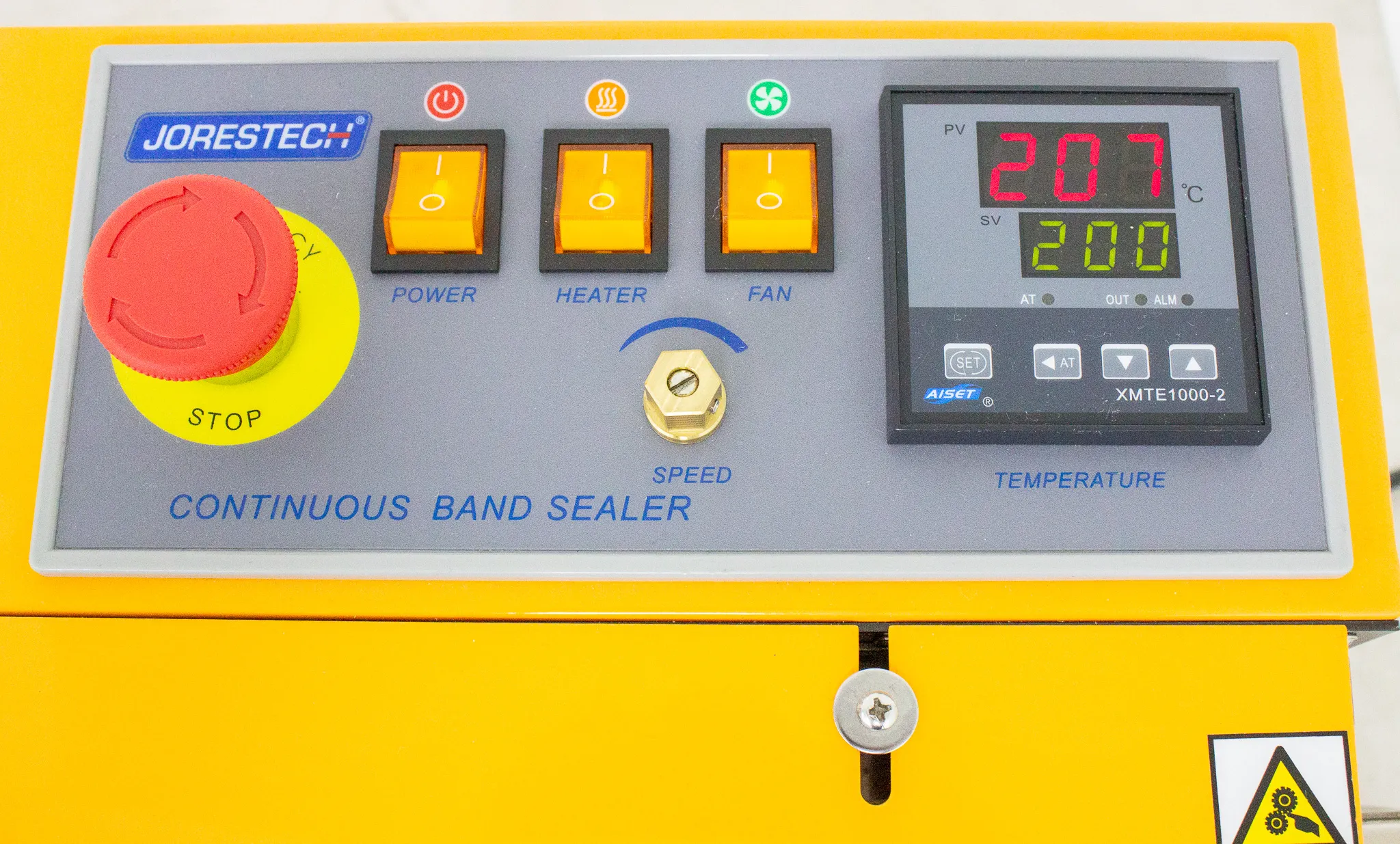

• PID Digital Temperature Controller for precise temperature control
• Compatible with thermoplastic materials like Polyethylene, Polypropylene, and heat-sealable laminations
• Semi-automatic operation
• Seal width of 10 mm (3/8 in)
• Works with various bag formats including Pillow, Pouch, and Stand-up bags

• Operation: Semi-Automatic
• Power Type: Constant Heat
• Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
• Seal Material: Most Heat Sealable Bags, BOPP, PVC, PE, PU, Bo PET, Cello, Laminated bags
• Seal Width: 10 mm / 3/8 in
• Compatible with Most Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
• Recommended Bag Height (Vertical Machines): 125 - 280 mm / 4.9 - 11 in
• Max Distance from Bag Opening to Top of Seal: 12 mm / 1/2 in

Metric: 20 kg
Imperial: 44 lb

Metric: 48 cm x 30 cm x 45 cm
Imperial: 19 in x 12 in x 18 in

842230

The chosen harmonized code 842230 refers to Machinery for filling, closing, sealing or labelling bottles, cans, boxes, bags or other containers; machinery for capsuling bottles, jars, tubes and similar containers; machinery for aerating beverages.
