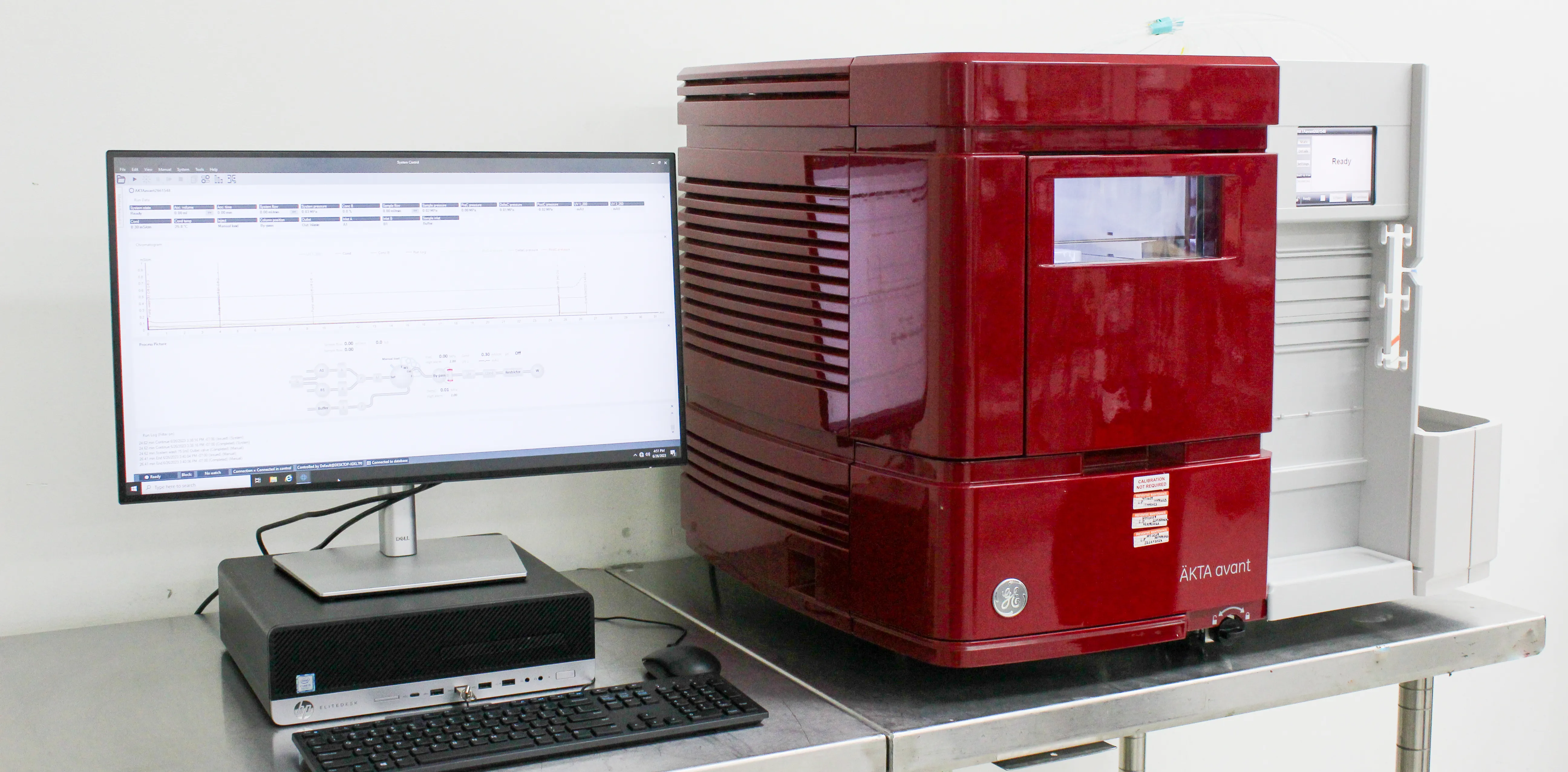

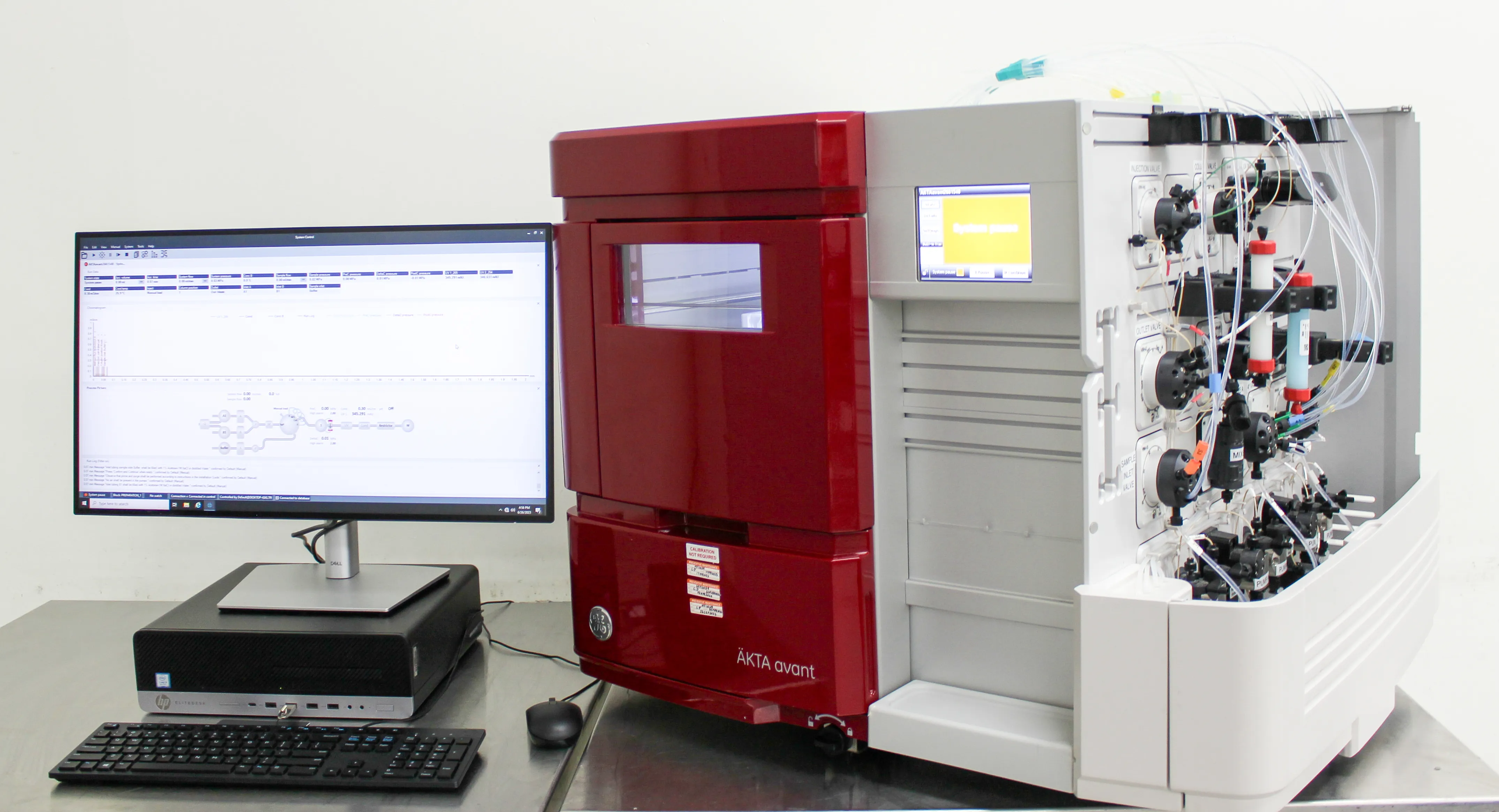

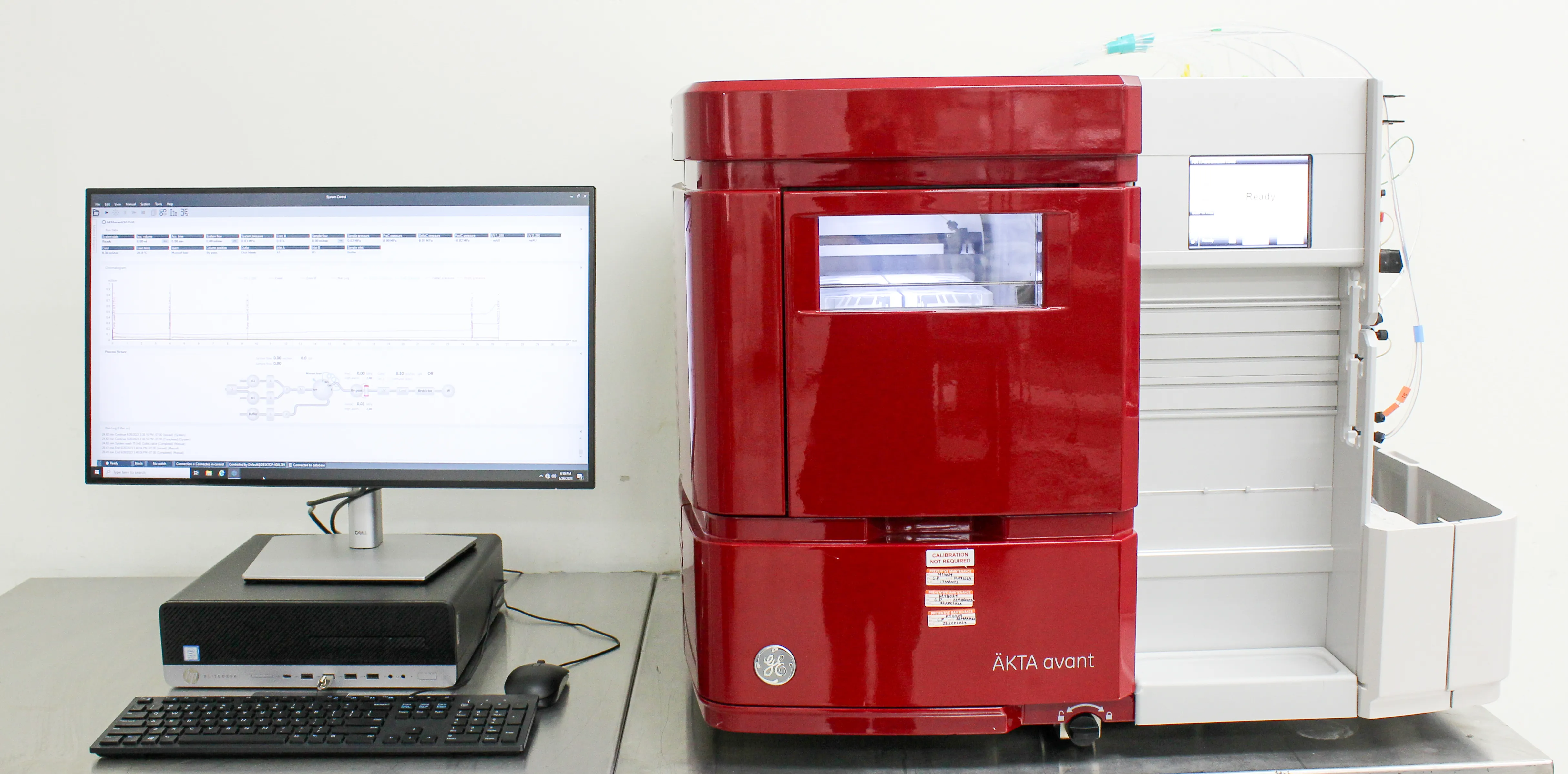

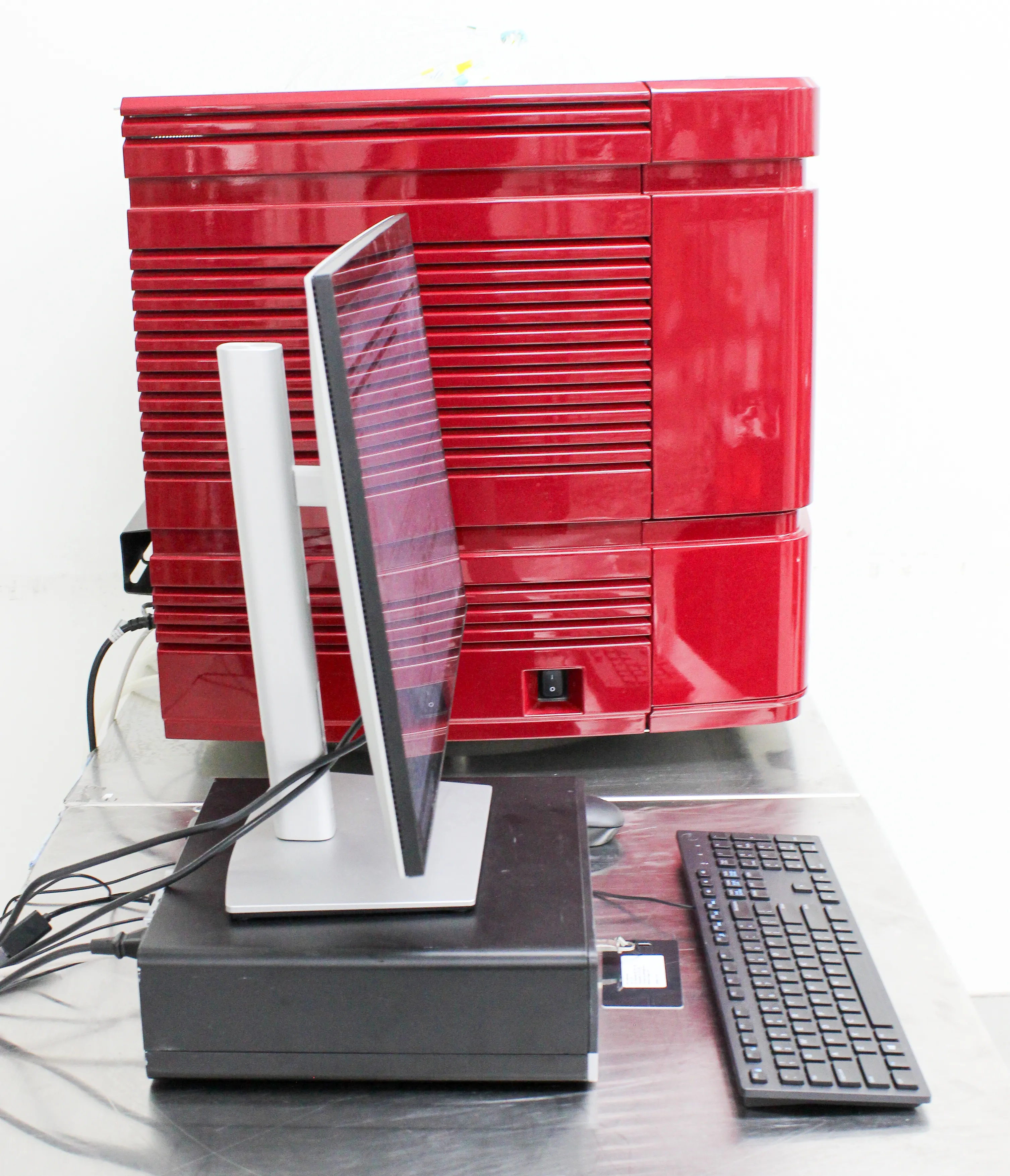

Cytiva AKTA Avant 150 Preparative Protein Purification Chromatography System

Product Information

Imagine a bustling protein production line inside your laboratory, powered by the Cytiva AKTA Avant 150. Purify proteins, bio-molecules, and other substances with ease, all while speeding up method development and process scaling. This compact, yet versatile, chromatography system is overflowing with high-tech features, including a fully integrated flow path with state-of-the-art valves, detectors, and a fraction collector. And to top it off, this little powerhouse is also easily controlled through the ultra-modern UNICORN software, making method creation, purification, and instrument maintenance easier than ever. With features like BufferPro for automatic buffer preparation, the system is designed to save you time and elevate your purification game. The AKTA Avant 150 offers a reliable and high degree of automation to support unattended operational security, demonstrating the power to grow alongside your lab. Revolutionize your protein purification game with AKTA Avant 150.

• Suitable for fast and secure process development and scale-up

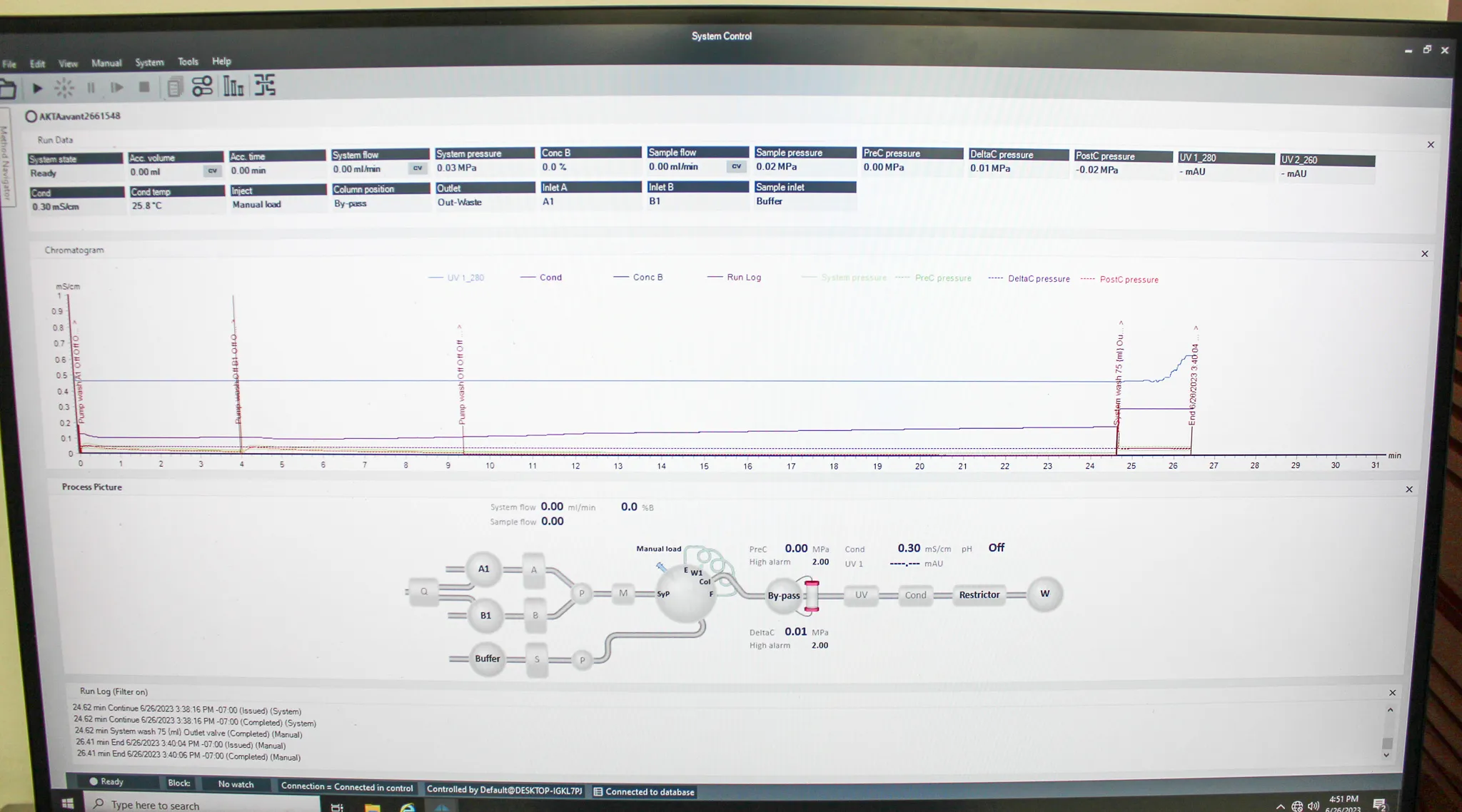

• Easily controllable through the UNICORN software
• Automated buffer preparation with BufferPro
• High degree of automation for unattended operational security

• Application: Fast and secure process development and scale-up
• Application supported: Affinity chromatography, gel filtration/size exclusion chromatography, ion exchange chromatography, and hydrophobic interaction chromatography
• Automatic buffer preparation: BufferPro
• Autosampler injection: No
• Buffer selection: 18 buffer inlets, option of up to 46
• Compliance: The product fulfills valid directives and standards when used within the conditions specified in the user manual. The product must also be used in the same state as it was delivered from Cytiva and connected only to other CE labeled Cytiva modules or other products as recommended. For regulatory details please see declaration of conformity.
• Depth: 710 mm
• Flow cell path length: 2 mm (optional 10 mm and 0.5 mm)
• Flow rate: 0.01 mL/min-150 mL/min
• Height: 660 mm
• Multiple sample injection: Yes, up to 7 samples
• Multiple wavelength detection: Yes, up to 3 wavelengths
• Multistep purification: No
• Operating pressure (sample pump) max: 5 MPa (50 bar, 725 psi)
• Operating pressure max: 5 MPa (50 bar, 725 psi)
• Power consumption: 800 VA
• Protection class: IP 20
• Pump type: Piston pump, metering type
• Relative humidity: 20% to 95% (noncondensing)
• Safety certifications: 2006/42/EC (MD), 2004/108/EC (EMC), 1999/5/EC (R&TTE)
• Tubing i.d. (flow path): 0.75 mm
• UV wavelength: 190-700 nm
• Viscosity: 0.35 to 5 cP (system pump), 0.7 to 10 cP (sample pump)
• Voltage: 100-120/220-240 VAC
• Width: 860 mm
• pH monitoring: 0-14
• Model: AKTA avant 150

Metric: 99 kg
Imperial: 218 lbs

Metric: 71 cm x 86 cm x 66 cm
Imperial: 27.95 in x 33.86 in x 25.98 in
