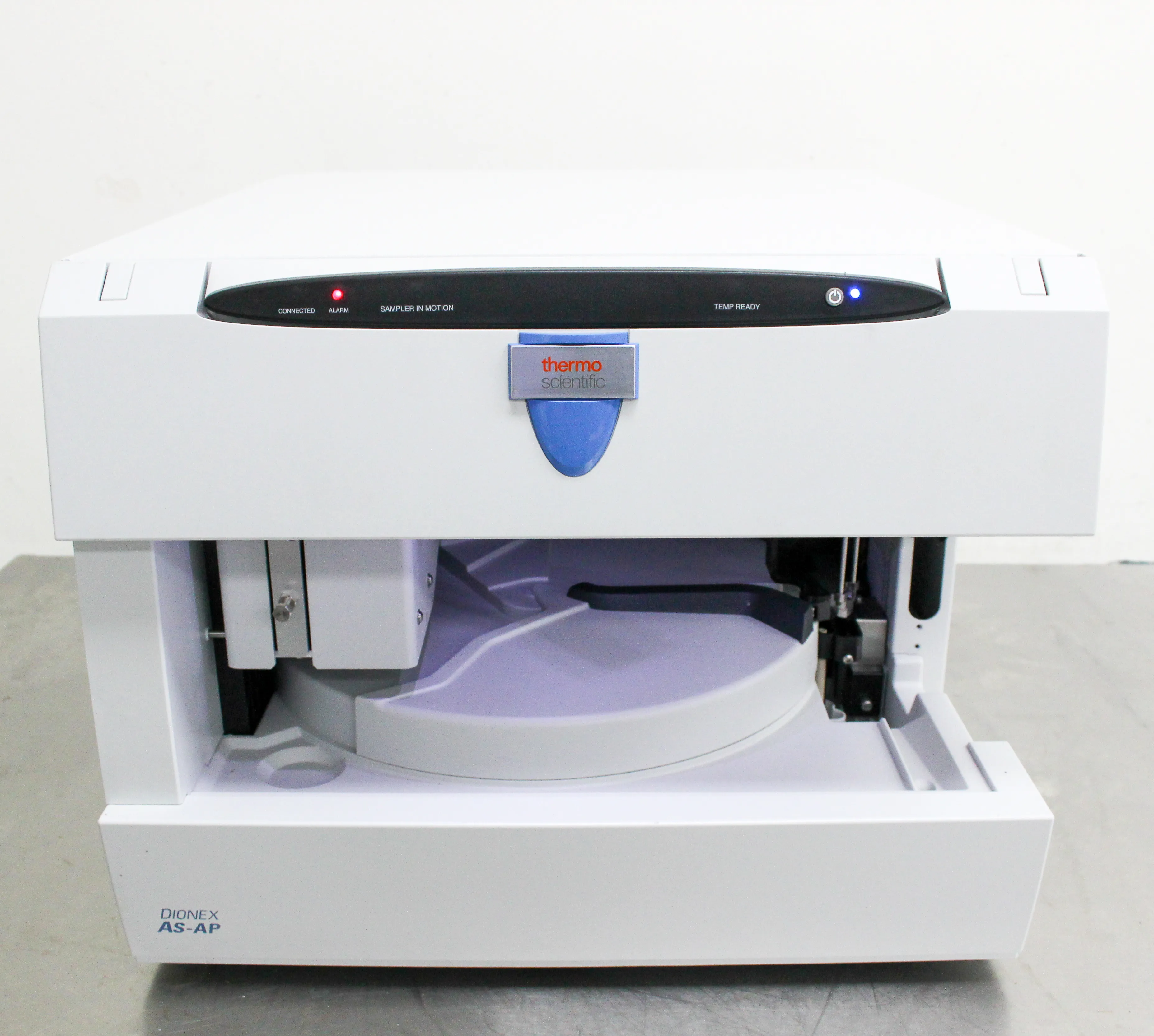

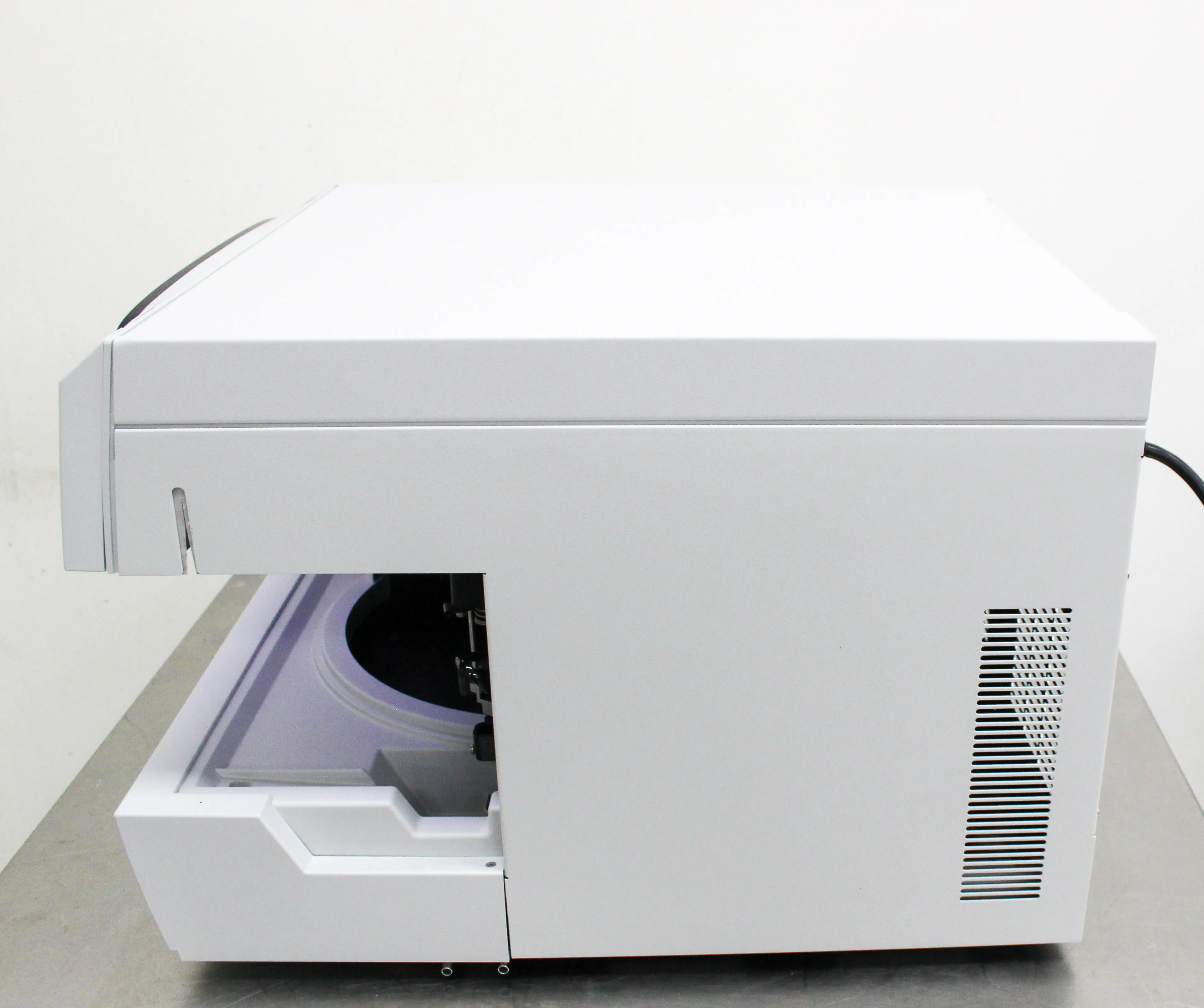

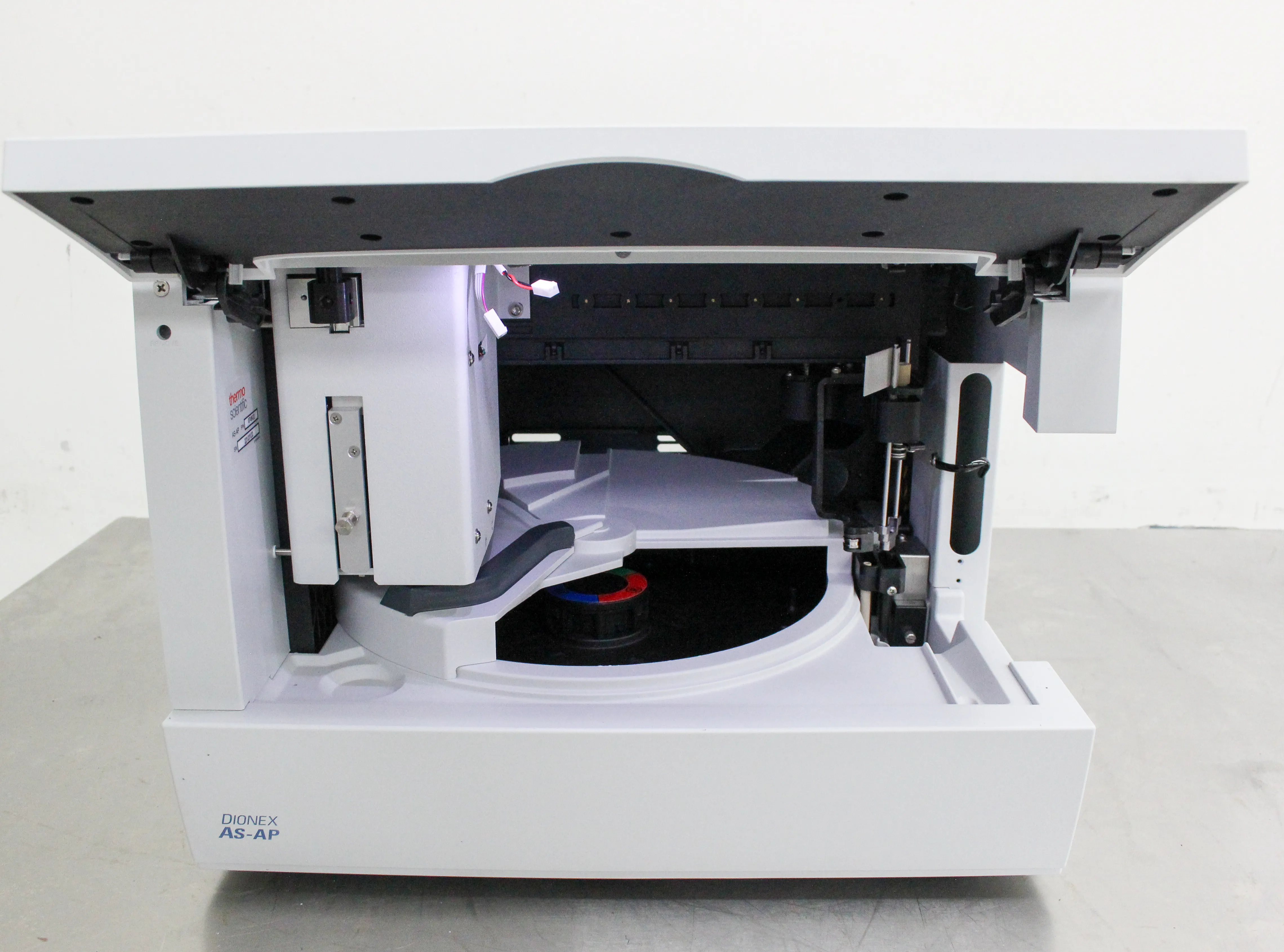

Thermo Scientific Dionex AS-AP HPLC Autosampler System (AS-IS FOR PARTS)

Product Information

The Thermo Scientific Dionex AS-AP Autosampler System, manufactured in the year of ████████, is an advanced HPLC autosampler known for its precision, reliability, and ruggedness. Although the current condition of the unit requires repair, it is designed for high performance, automated sample processing for ion chromatography applications. Noteworthy features include the capability of simultaneous injection without cross-contamination of chemistries, consistent operation at RSDs less than 0.3%, and a high sample capacity of up to 81 10 mL vials. The unit also facilitates sample preparation to automate sample and standard preparations, saving time and labor. The AS-AP Autosampler offers optional sample tray cooling, a chemistry-switching option, and a sample tray temperature control option. Practical applications include ion chromatography, pharmaceutical analysis, food and beverage testing, environmental analysis, and forensic testing.

• Simultaneous injection capability without cross-contamination
• Consistent operation at RSDs less than 0.3%
• High sample capacity of up to 81 10 mL vials
• Sample preparation function for automated sample and standard preparations
• Temperature control option for thermally sensitive samples within a range of 4-60°C

• Sample Capacity: 81 ea. 10 mL; 120 ea. 1.5 mL; Well Plates (3 x 96) or (3 x 384)
• Injections per Vial: 199
• Minimum Sample Volume: 10L can be sampled from a 300L micro vial; 20L can be sampled from a 500L micro vial
• Variable Volume Range: 1-1000uL in 0.1uL increments; 100-7500uL in 1uL increments
• Injection Precision: Fixed loop <0.3% RSD at 20uL; Partial loop <0.5% RSD at 20uL
• Dilution Precision: <1.0% RSD for a 1:10 dilution
• Dispensing Precision: <0.2% RSD (by weighing)
• Carryover: <0.01% with 500uL flush volume
• Operating Temperature Range: 4-60°C (40-140°F)

Metric: 28.1235 kg
Imperial: 62 lbs

Metric: 73.66 cm x 73.66 cm x 86.36 cm
Imperial: 29 in x 29 in x 34 in

9027200000

The Thermo Scientific Dionex AS-AP Autosampler is classified under harmonized code 9027200000 for chromatographs and electrophoresis instruments. This code is justified based on the specific features of the autosampler system. The harmonized code category includes chromatographs and electrophoresis instruments equipped with the possibility of detection and quantification. The AS-AP Autosampler aligns with this category due to its automated sample processing capabilities and high-performance operation.
