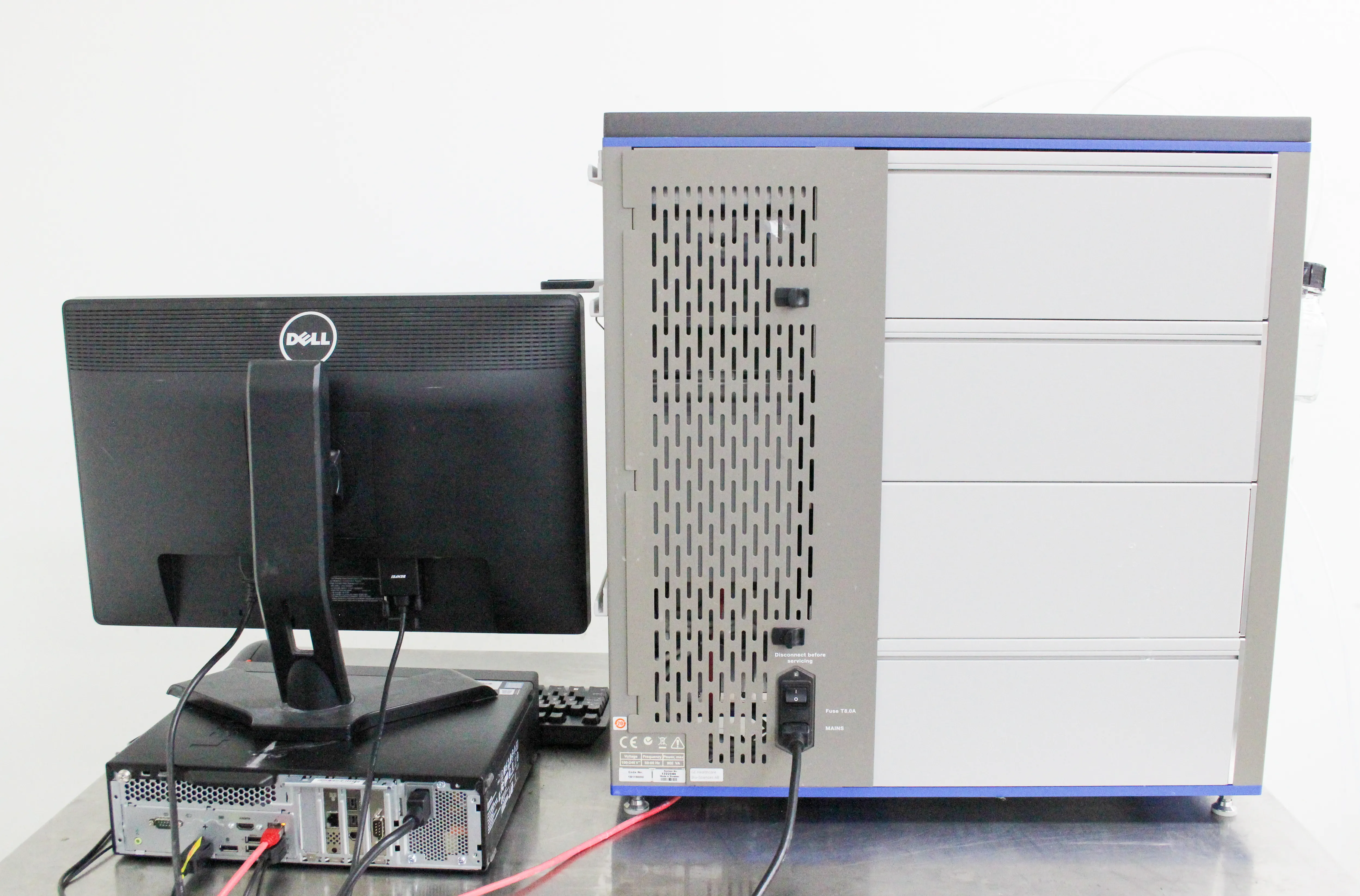

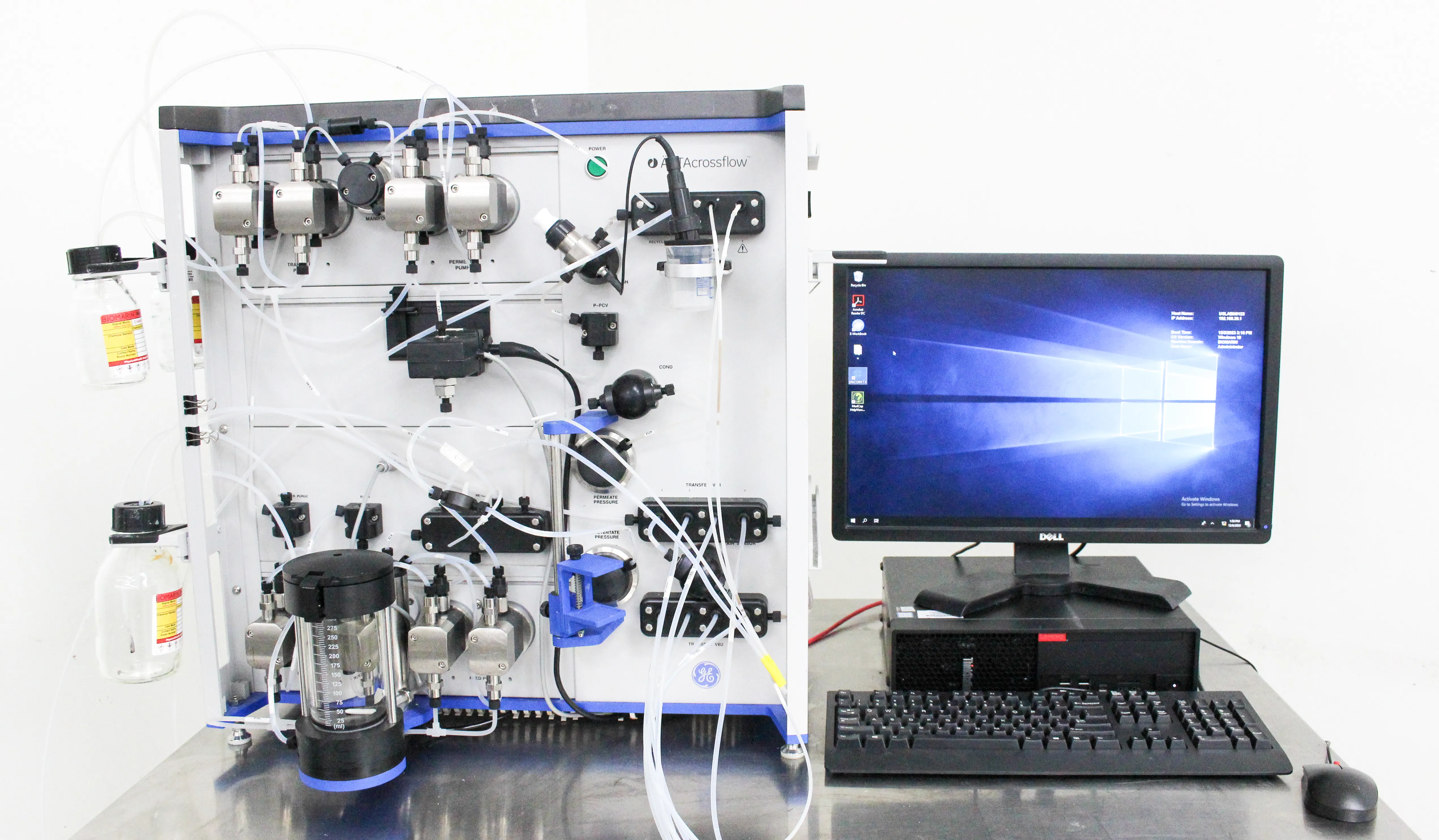

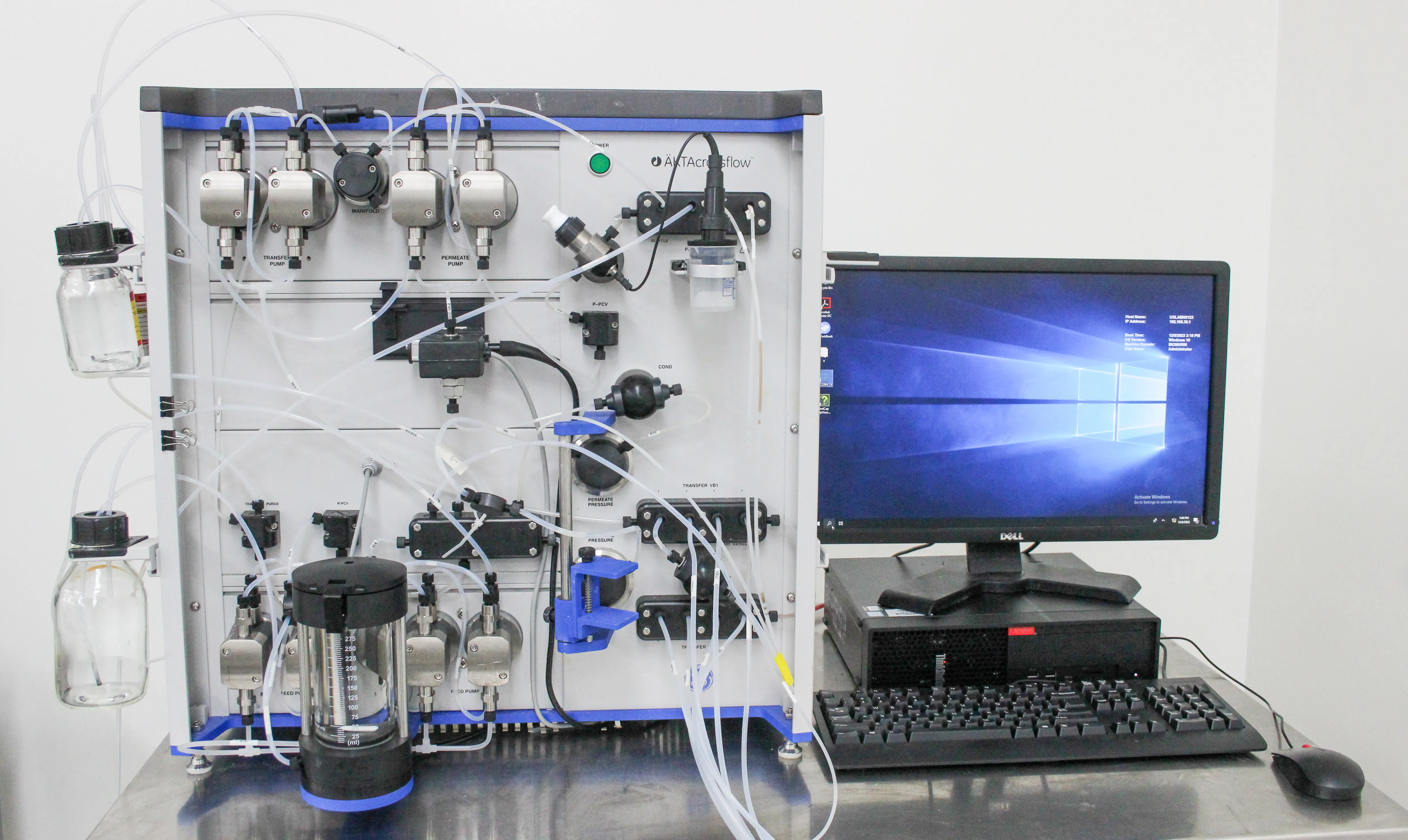

GE AKTAcrossflow Tangential Flow Filtration System 18118000
- Make GE ATKA
- Hertz 50Hz/60Hz
- Model AKTAcrossflow
- Serial 1322049
- Weight 200.0 Lb
- Voltage 120V/220V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 23.0in x 54.0in x 34.0in
- Shipping Type Freight
- Item Condition G (Good)
- Manufacturing Date Does Not Apply
Product Information

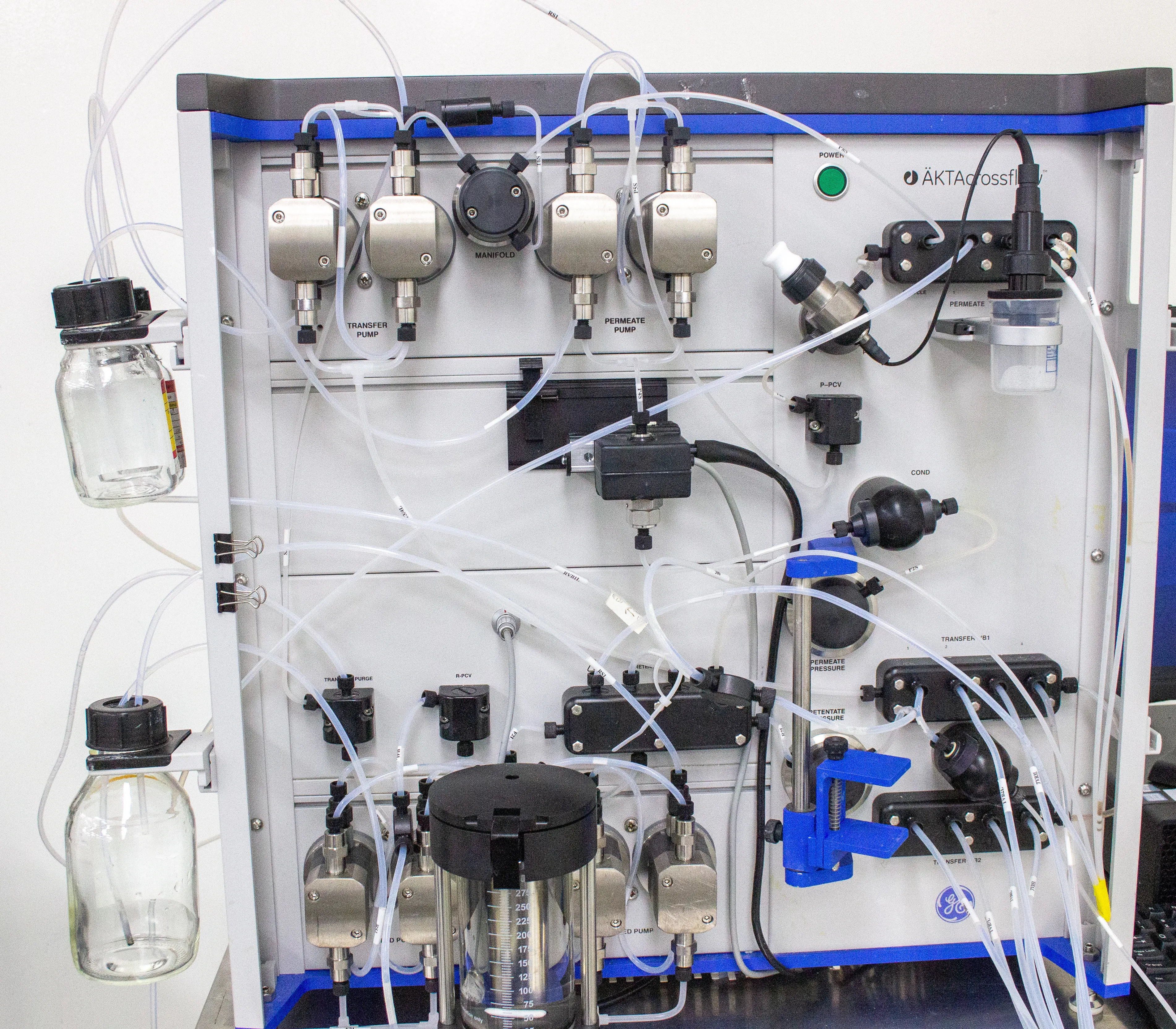

The GE AKTAcrossflow Tangential Flow Filtration System 18118000 is a valuable asset for process development and optimization at small scale. It is fully automated and suitable for a wide range of applications including ultrafiltration and microfiltration. The system offers a thorough and efficient process development with full TMP and flux scouting, and the UNICORN control software provides a familiar and user-friendly interface for both chromatography and tangential flow filtration. Its flexibility and suitability for small-scale processing makes it a versatile tool for laboratories. The AKTAcrossflow comes with a 30-day warranty and includes UV, pH and conductivity detectors as well as air, pressure and temperature sensors.
Key Features- Thorough and efficient process development with full TMP and flux scouting
- Flexibility in operation with options for hollow fiber filter cartridges or cross flow cassettes

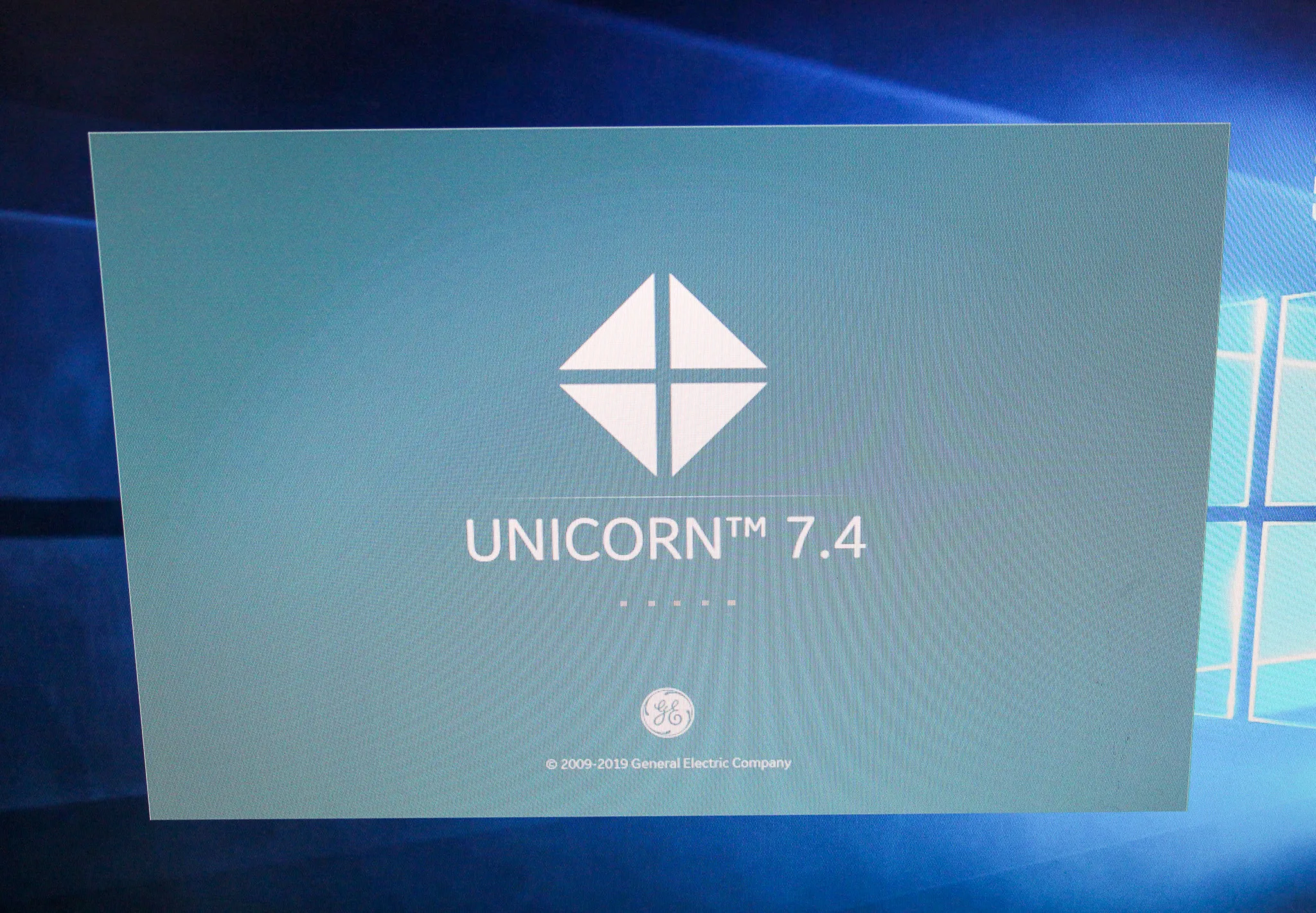

- Single, familiar UNICORN interface for both chromatography and tangential flow filtration
- Includes UV, pH and conductivity detectors as well as air, pressure and temperature sensors
- Fully automated and suitable for small-scale processing

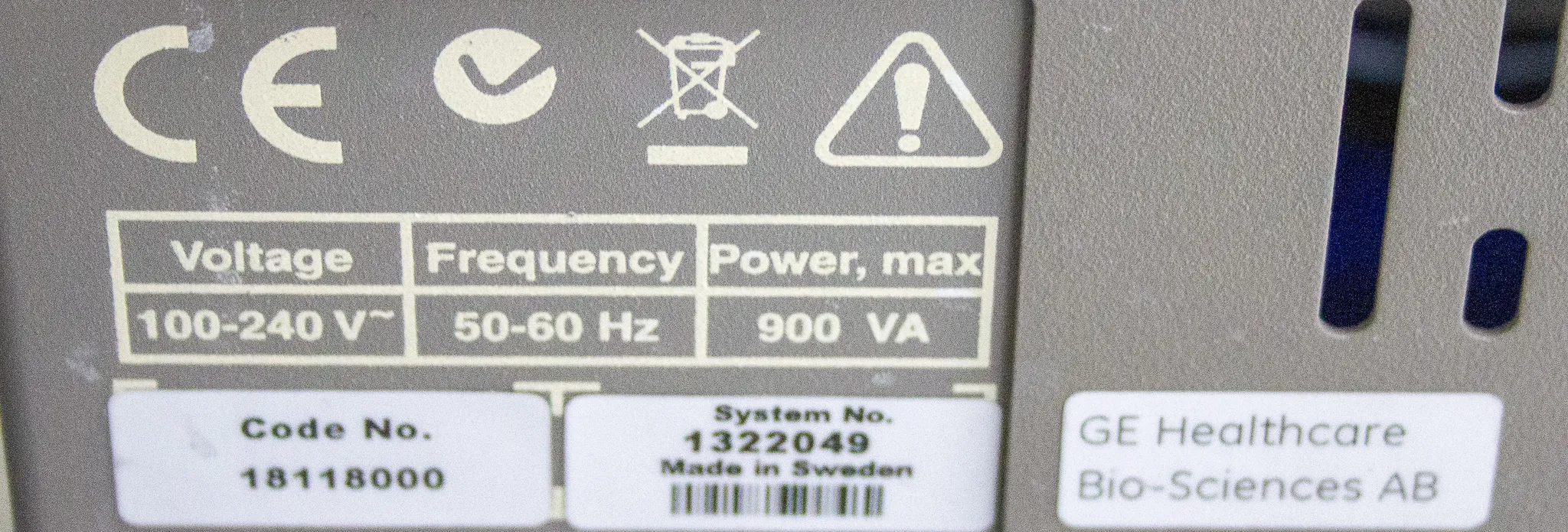

- Main Voltage: 100 to 240 V~ 10%, 50-60 Hz (Auto range)
- Weight: 70 kg
- Recirculation Volume Min.: 25 ml (with 1.7 mm i.d. tubing kit)
- Width: 620 mm
- Application: Well-suited for process development, filter screening, and process optimization at small scale
- Compliance: The product fulfills valid directives and standards when used within the conditions specified in the user manual. Must be used as delivered and connected only to other CE labeled GE Healthcare modules or other recommended products
- Flow Cell Path Length: 2 mm
- Connections: UNF 5/16
- Wavelength [Zn Lamp]: 214 nm
- Hold-Up Volume Recirculation Line: < 20 ml (with 1.7 mm i.d. tubing kit, empty reservoir)
- Length: 400 mm
- Operating Pressure Max.: 2 bar (75.4 psi)
- Material Compliance: USP Class V
- Height: 650 mm
- Protection Class: IP 20
- Complete Packsize: 1 Piece
- pH Range: 2 - 12
- Mixing Principle: Magnetic stirrer
Metric: 70 kg
Imperial: 154.32 lb
Metric: 400 cm x 620 cm x 650 cm
Imperial: 157.48 in x 244.09 in x 255.91 in
8419.89.9080
Harmonized Code DetailsThis code covers machinery, plant, or laboratory equipment whether or not electrically heated, for the treatment of materials by a process involving a change of temperature, and of non-electric instantaneous or storage water heaters, and is the most suitable for this type of tangential flow filtration system.
