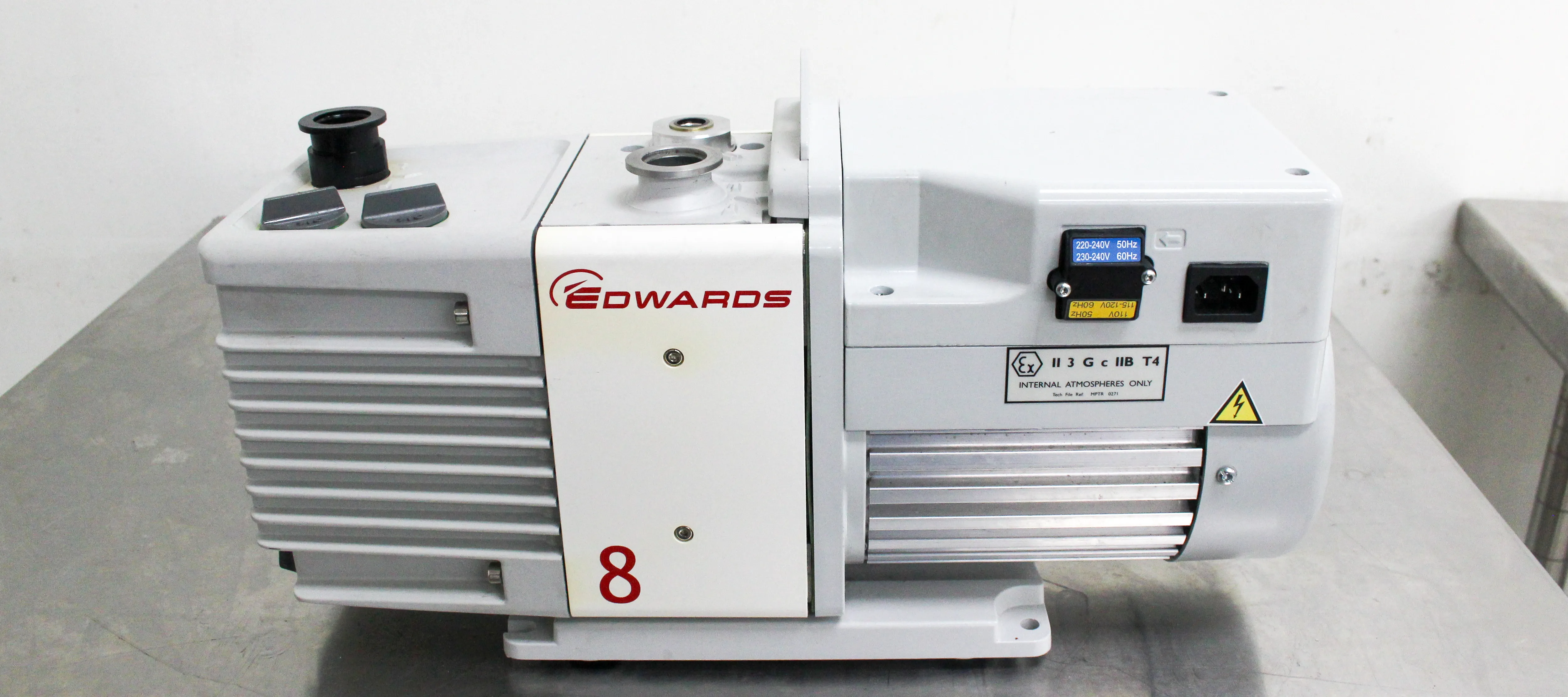

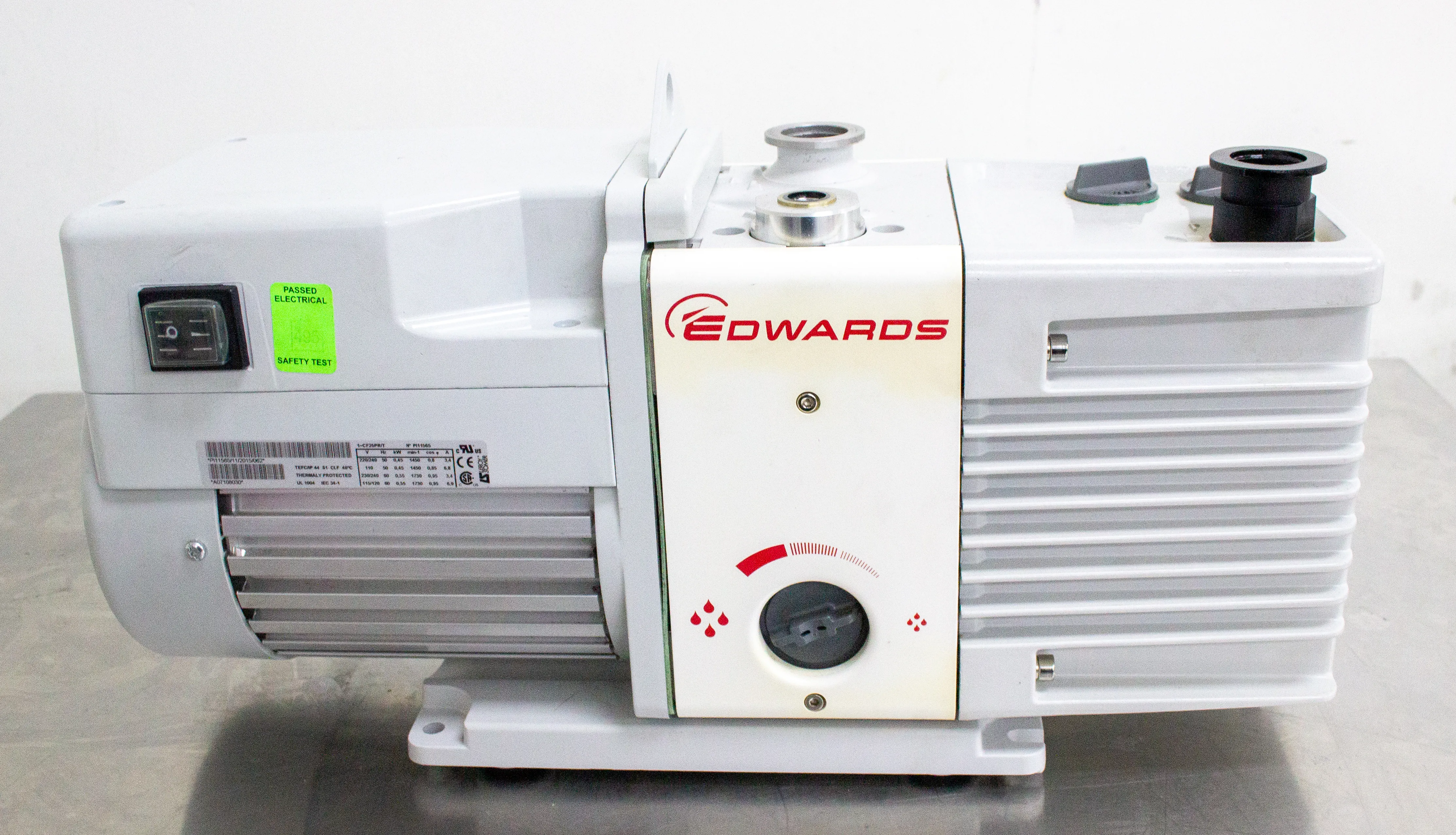

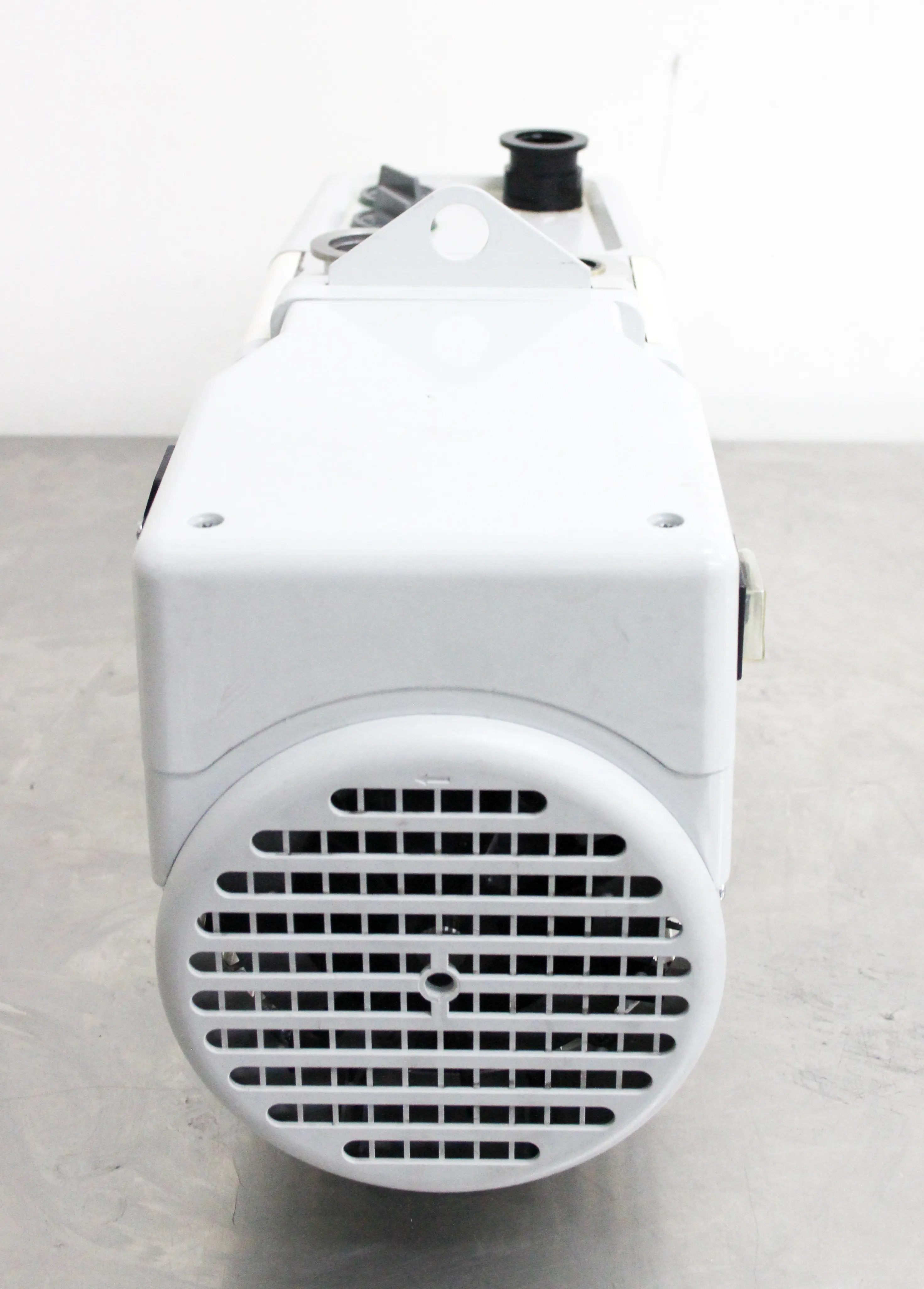

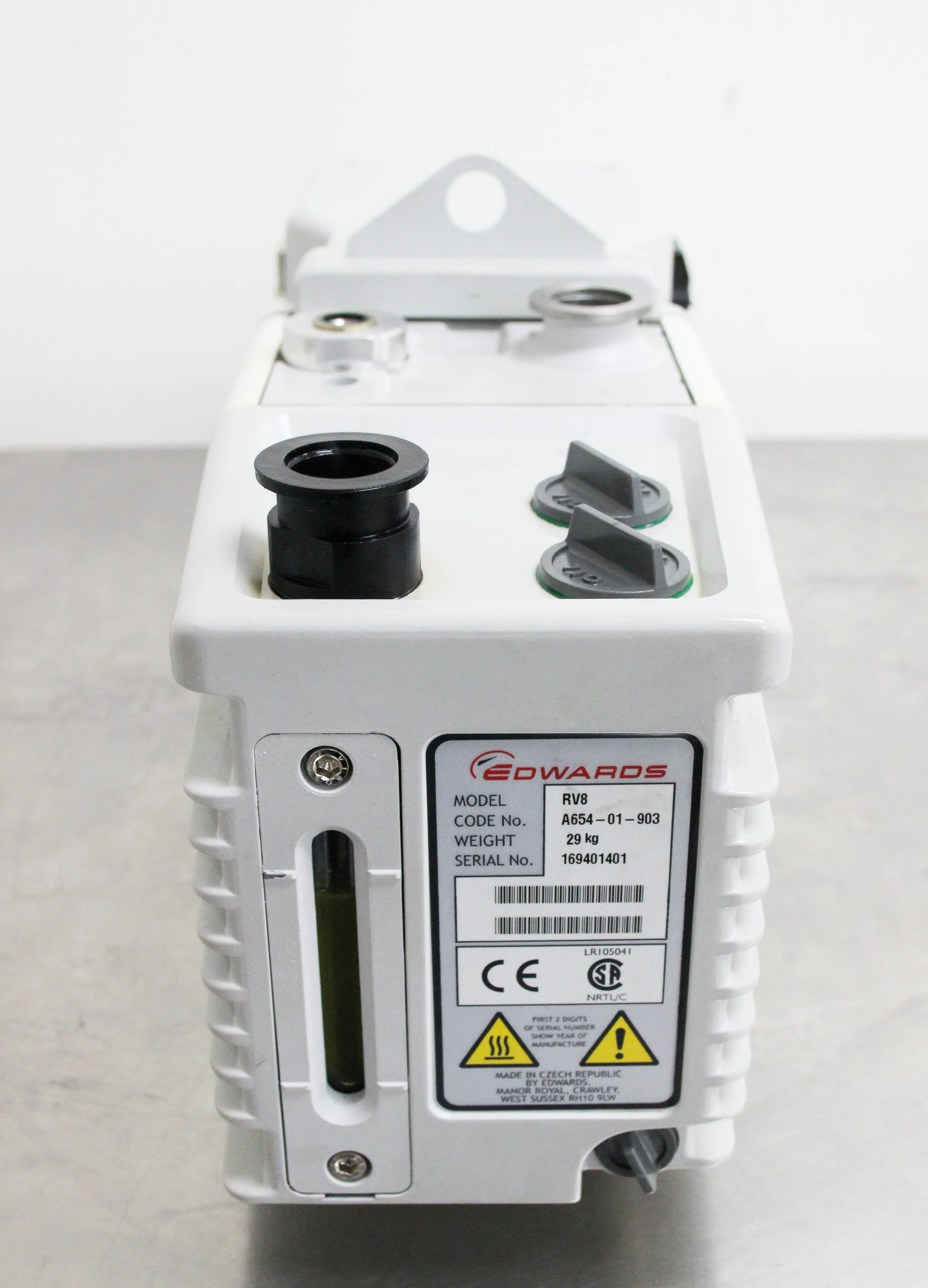

Edwards RV8 Two Stage Rotary Vane Pump A654-01-906

Product Information

The Edwards RV8 Two Stage Rotary Vane Pump A654-01-906 is a preowned unit with slight wear from normal use, tested to specifications and able to reach 3 microns on the pressure gauge. The pump features a two-stage, oil-sealed, and sliding vane design with gas ballast control and mode selector allowing for six different control combinations. It includes two motor variants covering all voltage and frequency conditions and is already prepared to work with Japanese voltage. With wetted parts made of cast iron, cast aluminum, fluorocarbon elastomer, nitrile, silicon, chemical-resistant polymers, nickel, and stainless steel, this pump is suitable for industrial use, chemical applications, sample preparation, mass spectrometry, electron microscopy, research & development, and high-energy physics.

• Two-stage, oil-sealed, sliding vane design
• Gas ballast control and mode selector with six different combinations
• Two motor variants covering all voltage and frequency conditions
• Prepared to work with Japanese voltage
• Suitable for industrial use, chemical applications, sample preparation, mass spectrometry, electron microscopy, research & development, and high-energy physics

• Max Vacuum (torr): 1.5 x 10-3 Torr
• Max Vacuum (with ballast): Gas ballast I: 2.3 x 10-2 Torr, Gas ballast II: 4.6 x 10-2 Torr
• Inlet Port: NW25
• Noise Level: 48 dB
• Oil Capacity: 0.75 Liters
• Min Operating Temperature (F): 53.6
• Min Operating Temperature (C): 12
• Max Operating Temperature (F): 104
• Max Operating Temperature (C): 40
• Power: 100 / 200 VAC
• Power: 50/60 Hz
• Height (in): 12.59
• Width (in): 8.66
• Length (in): 25.98
• Height (cm): 31.9786
• Width (cm): 21.9964
• Length (cm): 65.9892
• Description: RV8 rotary vane pump, speed at 50 Hz: 8.5 m3/hr, speed at 60 Hz: 10 m3/hr

Metric: 27 kg
Imperial: 60 lb

Metric: 65.9892 cm x 21.9964 cm x 31.9786 cm
Imperial: 25.98 in x 8.66 in x 12.59 in

8414200000

8414200000 - Vacuum pumps; other than hand- or foot-operated
