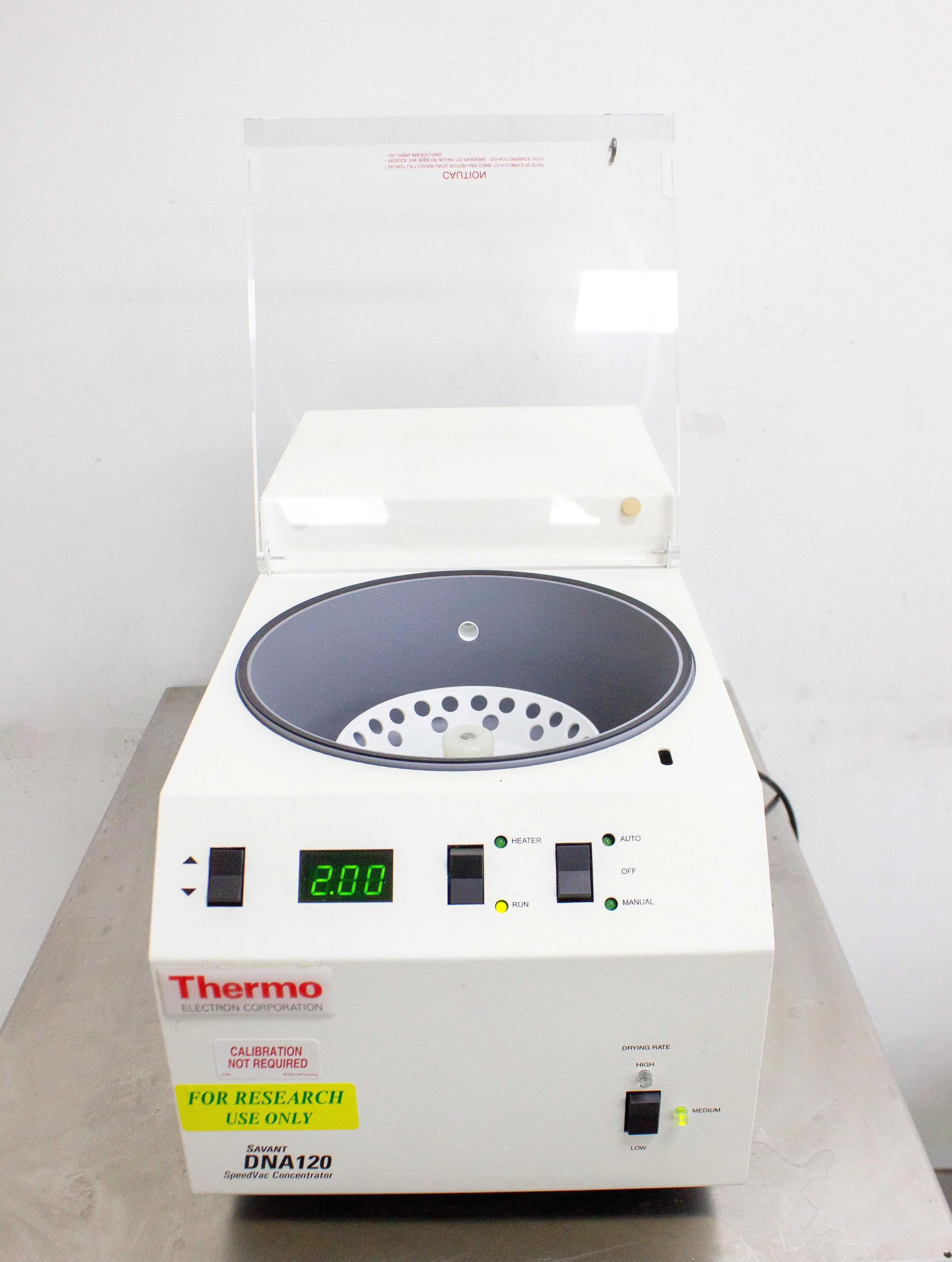

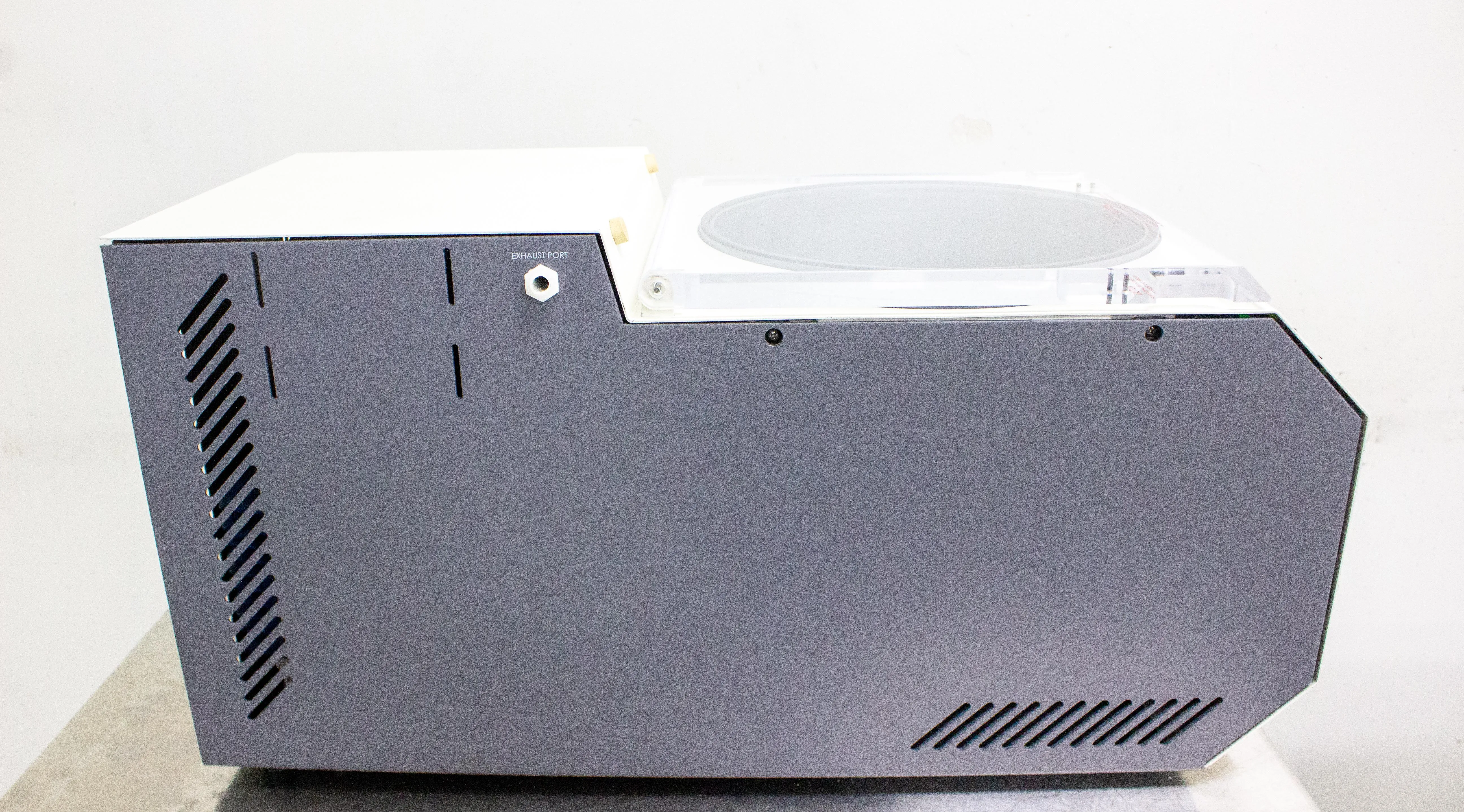

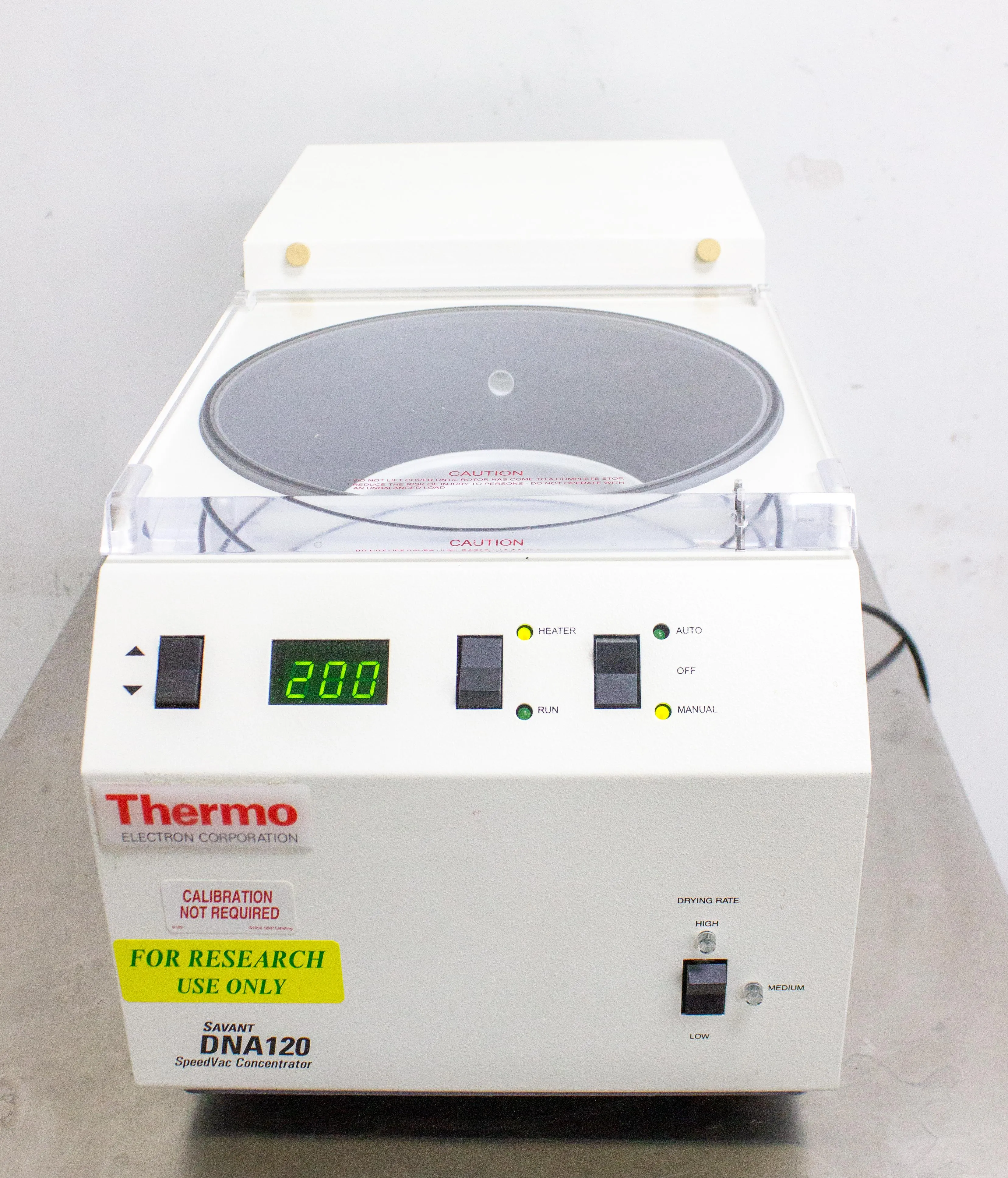

Thermo Savant DNA120 SpeedVac System DNA120

Product Information

The Thermo Savant DNA120 SpeedVac System is a dedicated centrifugal vacuum concentration system designed for efficient drying of low volume ethanol or isopropanol-water precipitates of DNA and RNA. Equipped with a glass cover, ammonia post-trap, and Ammonia Neutralizing Solution, it allows for automated, unattended, and odor-free drying. The SpeedVac combines centrifugal force with vacuum for bump-free sample drying, with a chamber heater to counteract evaporative sample cooling and a selection of LOW, MEDIUM, or HIGH drying rates. These features make it a valuable asset in molecular biology, biochemistry, and pharmaceutical research.

• Centrifugal vacuum concentration system
• Automated, unattended, odor-free drying
• Chamber heater to counteract evaporative sample cooling

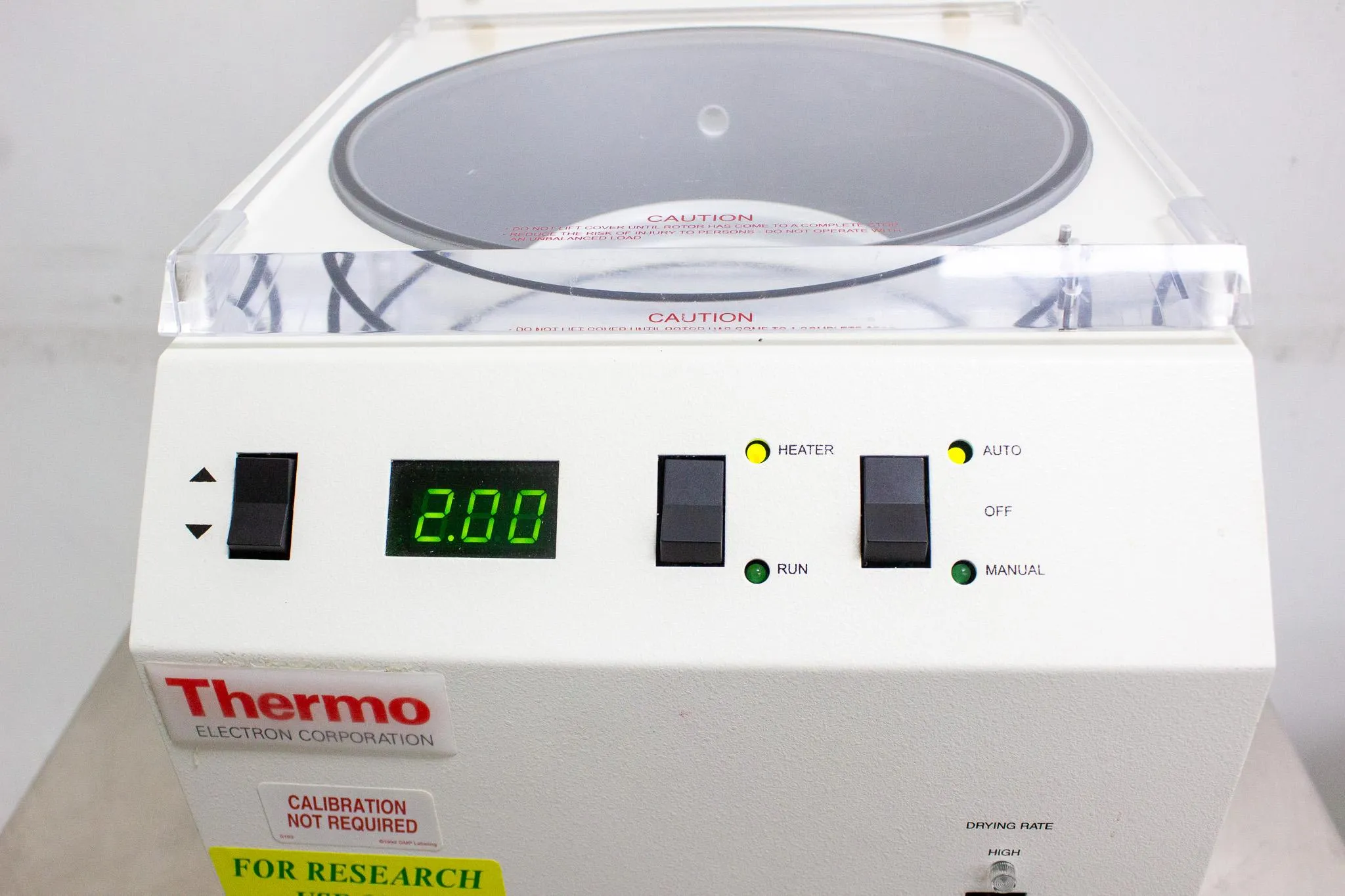

• Low, medium, and high drying rates selection
• Bump-free sample drying

• Vacuum Chamber: TEFLON-coated aluminum casting
• Cover: Transparent acrylic (DNA120) with safety interlock
• Drive & Speed: Maintenance-free induction motor; 1725 RPM with magnetic coupling to rotor drive shaft, RCF approximately 300 xg

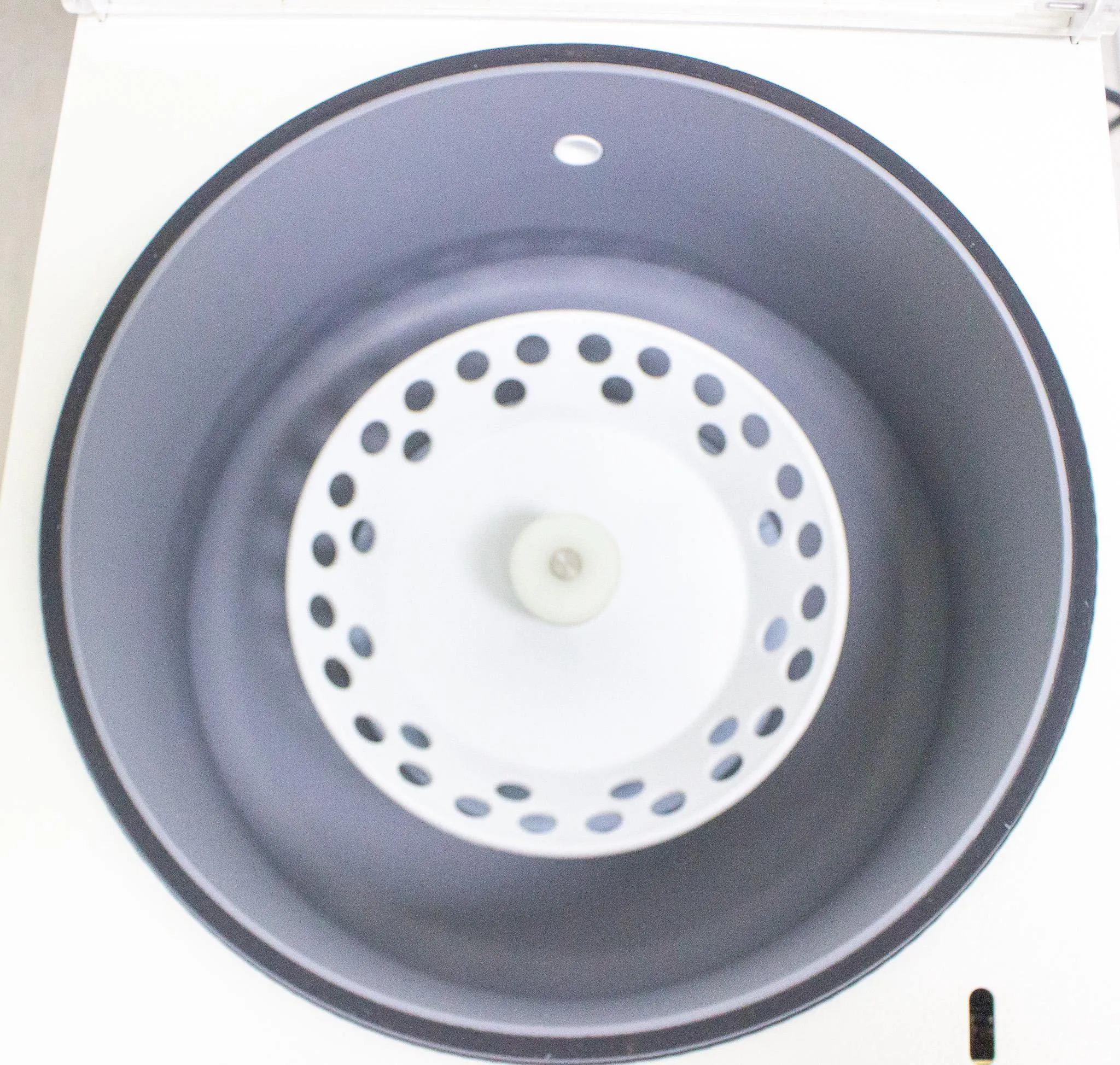

• Capacity: 24 x 1.5 ml tubes (RD24 rotor), 36 x 1.5 ml tubes (RD36 rotor), 48 x 0.5 ml tubes (RD48 rotor), 72 x 0.5 ml tubes (RD72 rotor), 2 microplates (RD2MP rotor)
• Chamber temperature: Controlled at ambient, 43 C, or 65 C with over-temperature safety shut-off
• Dimensions (W x D x H): 29 x 63 x 29 cm
• Pump: Oil-free diaphragm, displacement 36 l/min at 60 Hz, 30 l/min at 50 Hz
• Ultimate Vacuum Level: 7 torr (9 mbar)

Metric: 41.73 kg
Imperial: 92.4 lb

Metric: 29 cm x 63 cm x 29 cm
Imperial: 11.42 in x 24.8 in x 11.42 in

84193200

Thermo Savant DNA120 SpeedVac System falls under HS code 84193200 for machinery for the treatment of materials by a process involving a change of temperature, other than machinery of heading 8419.
