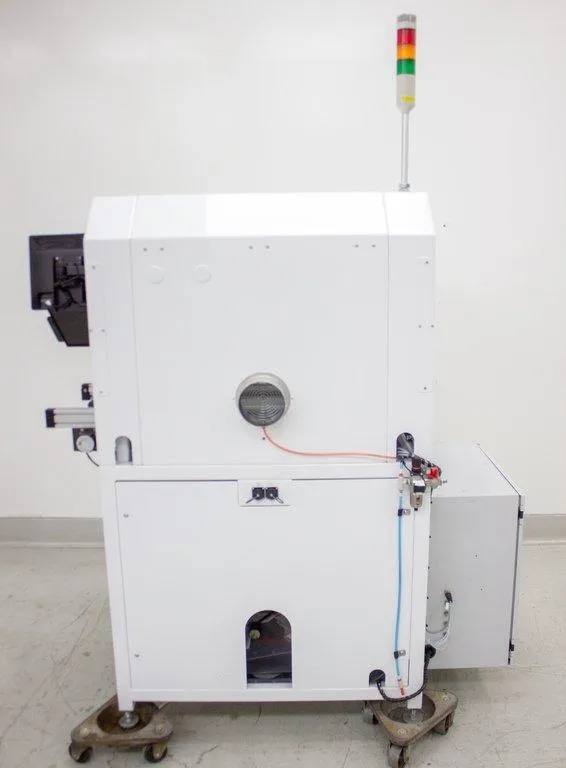

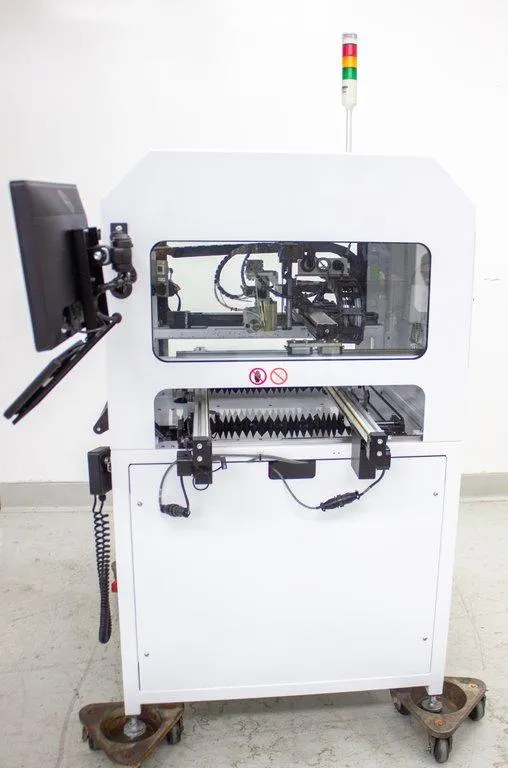

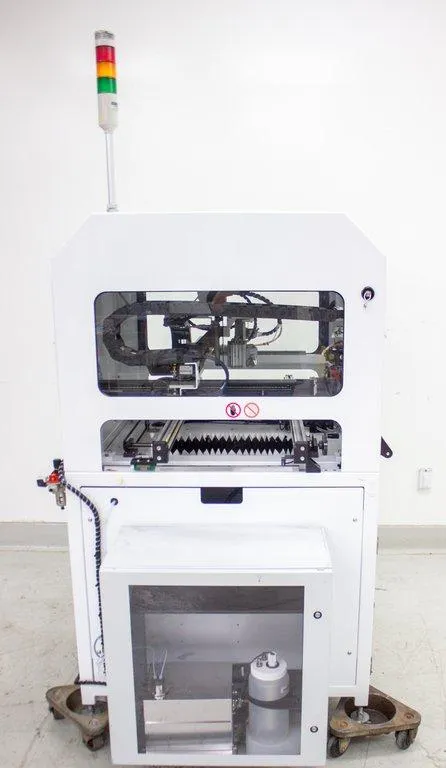

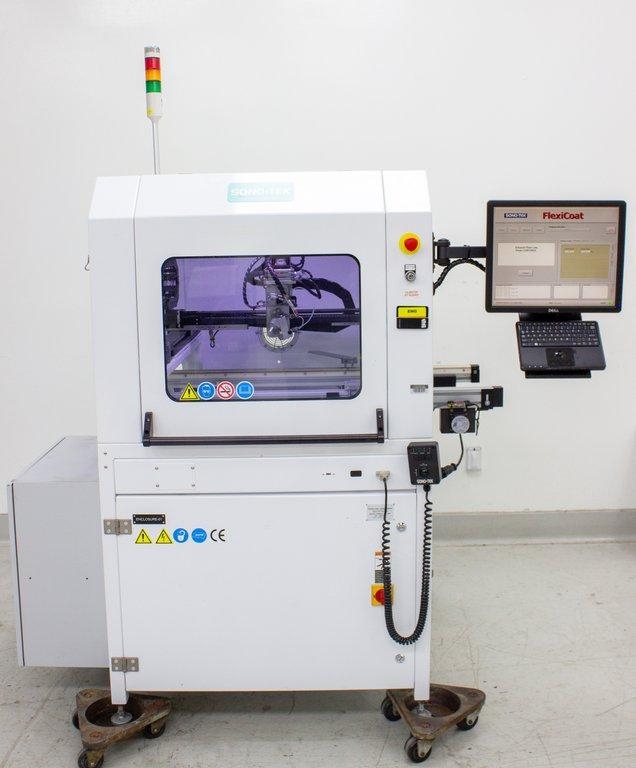

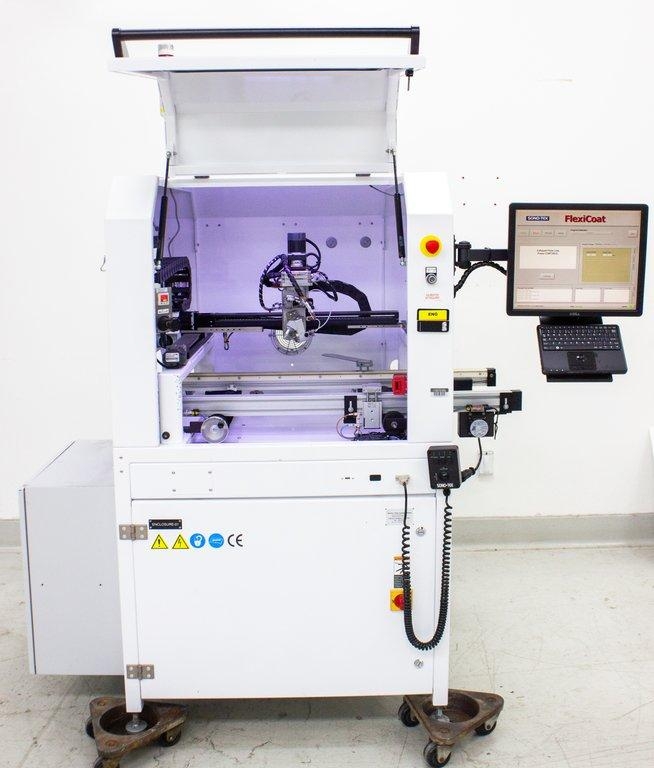

Sono-Tek FlexiCoat Coater - Thin Film Coating System with Windows-based Control and XYZ Motion Control

Product Information

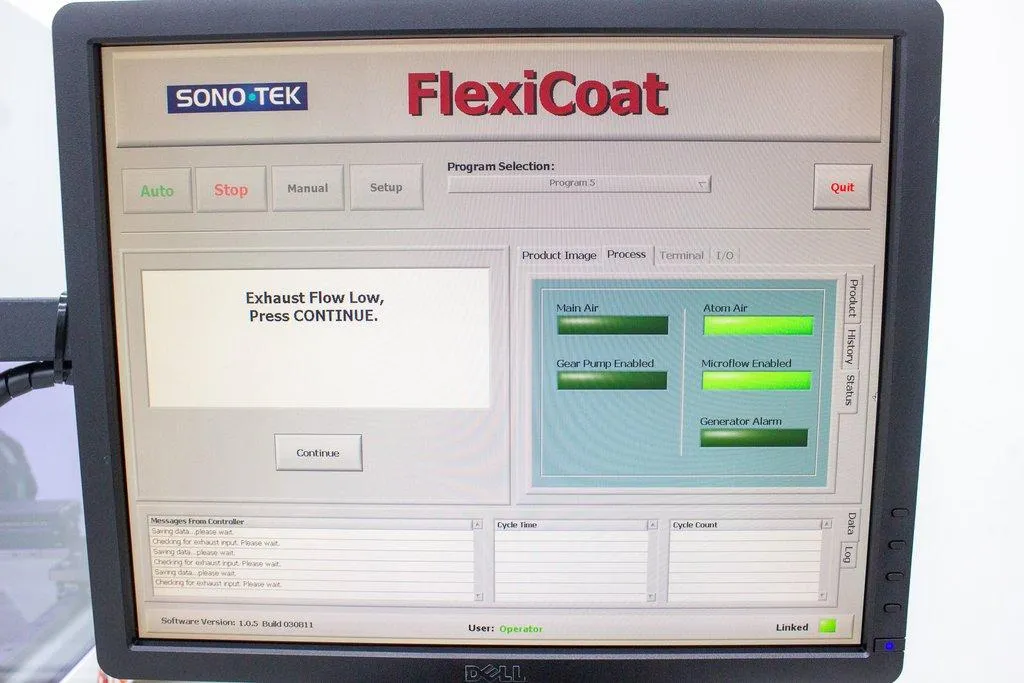

This preowned Sono-Tek FlexiCoat coater powers on and communicates with software, but the air pressure sensor is damaged, resulting in an 'Exhaust Flow Low' error. A fully automated and programmable standalone system, it offers coordinated XYZ motion control using Windows-based software and a user-friendly teach pendant with a trackball. This versatile system is ideal for mid to high-volume or pilot scale production thin film coatings. It can be configured with a standard SMEMA conveyor for inline coating solutions. The coater requires 120V power, 220V +/- 10%, 50-60Hz, and 551.6 kPa (80 PSI) dry unlubricated air. It utilizes servo motors and is CE certified. The system includes various ultrasonic nozzle designs such as AccuMist, Impact, Vortex, MicroMist, or Propel and offers multiple optional configurations such as heat and/or vacuum plate, head configuration of up to 3 heads, and additional liquid delivery options including a syringe pump, MicroFlow, SonoFlow Fusion, HyperFlow catalyst pump, or gear pump. Other custom options may be available depending upon application requirements.

• Fully automated and programmable standalone system
• Coordinated XYZ motion control using Windows-based software

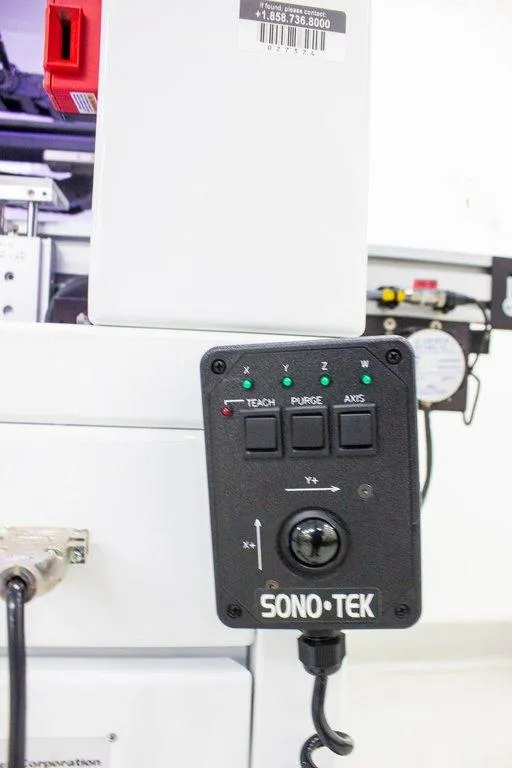

• Teach pendant with trackball
• Versatile for mid to high-volume or pilot scale production thin film coatings
• Configurable with standard SMEMA conveyor for inline coating solutions
• Utilizes servo motors
• CE certified

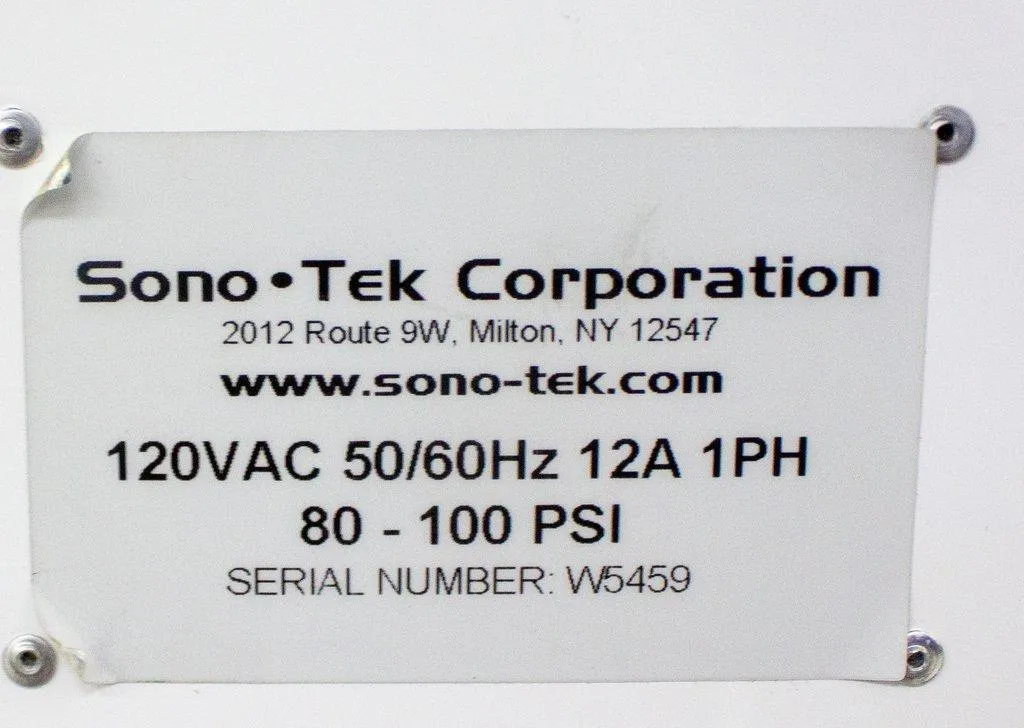

• POWER REQUIREMENTS: 120V, 220V +/- 10%, 50-60 Hz

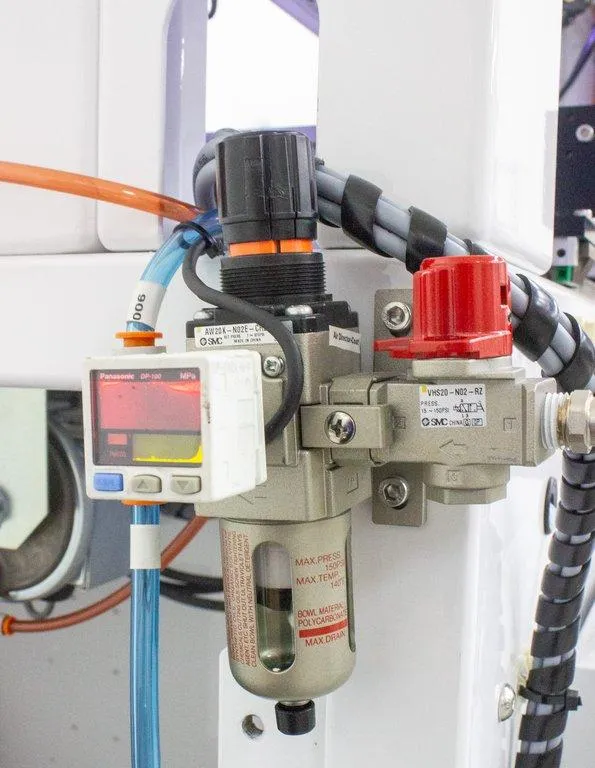

• AIR: 551.6 kPa (80 PSI) dry unlubricated air
• MOTORS: Servo

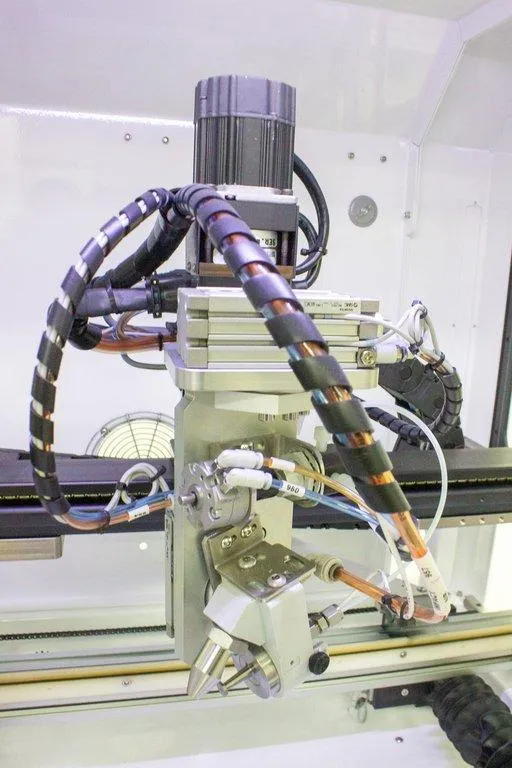

• ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel
• SYSTEM OPTIONS: HEAT AND/OR VACUUM PLATE: 150, 250C heat/vac or 500C heat; HEAD CONFIGURATION: up to 3 heads (Ultrasonic or Vector)
• COMMON OPTIONS: SMEMA conveyor, wire/rod coater, Ultrastatic ESC, Nozzle rotate and/or tilt, 1 or 2 drawer load system, LEL Sensors, cleanroom upgrade, aggressive material upgrade, Auto substrate flipping, IR heat
• LIQUID DELIVERY: Common Liquid Delivery: Syringe pump (standard, Sonic or stirring), gantry mounted syringe pump, MicroFlow, SonoFlow Fusion, HyperFlow catalyst pump, gear pump
• ADDITIONAL CUSTOM OPTIONS: available depending upon application requirements

Metric: 272.16 kg
Imperial: 600 lb

Metric: 85.2 cm x 71.0 cm x 76.8 cm
Imperial: 33.54 in x 27.95 in x 30.24 in
