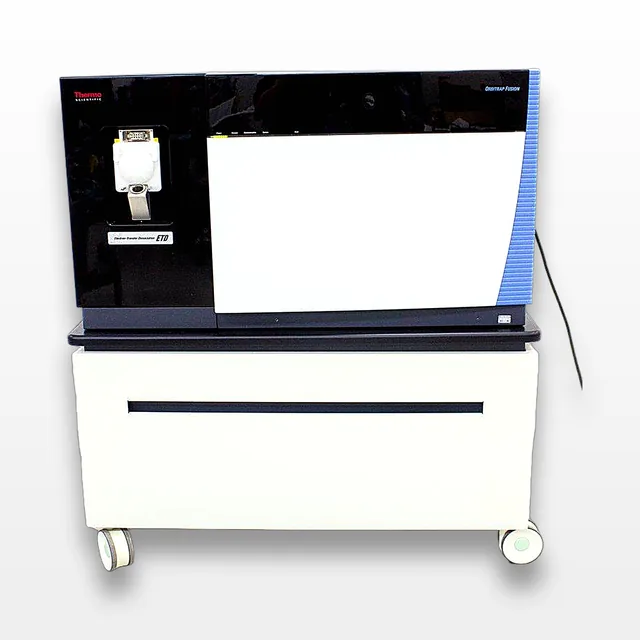

Thermo Orbitrap Fusion Mass Spectrometer Tribrid Architecture High Resolution
Thermo Fisher Scientific
Details
-
CategoryMass Spectrometry
-
Dimension32.0in x 52.0in x 57.0in
-

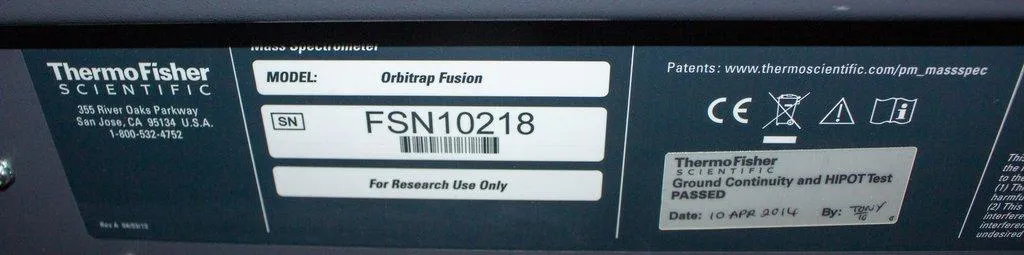

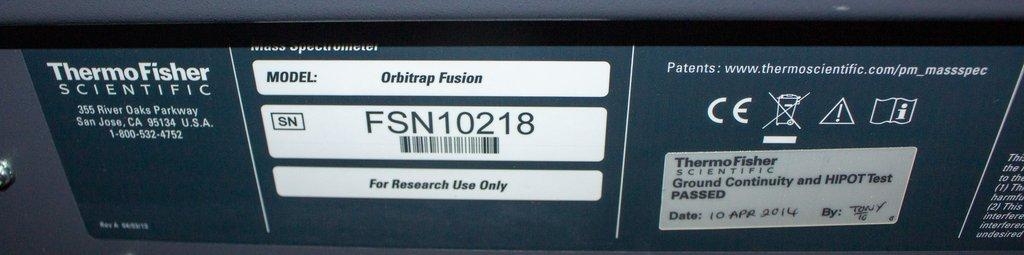

SerialFSN10218
-
Shipping TypeFreight
-
Manufacturing2014-04-10
-
Voltage / Hertz220V / 50Hz/60Hz
Description

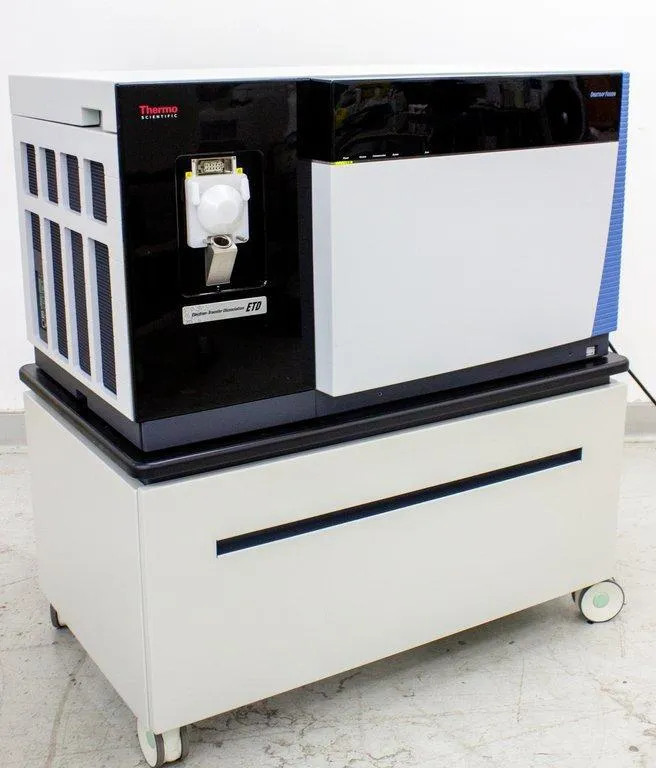

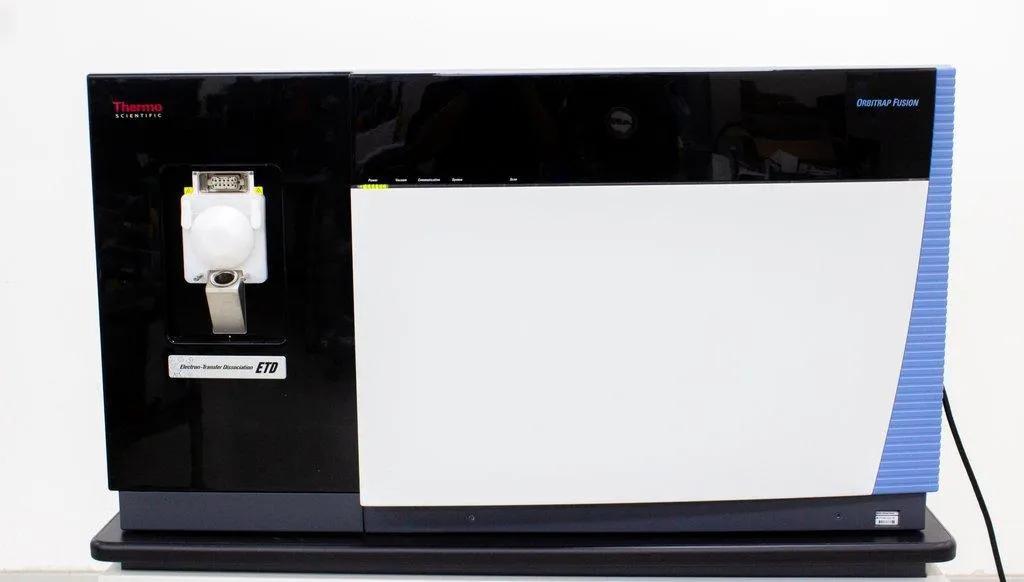

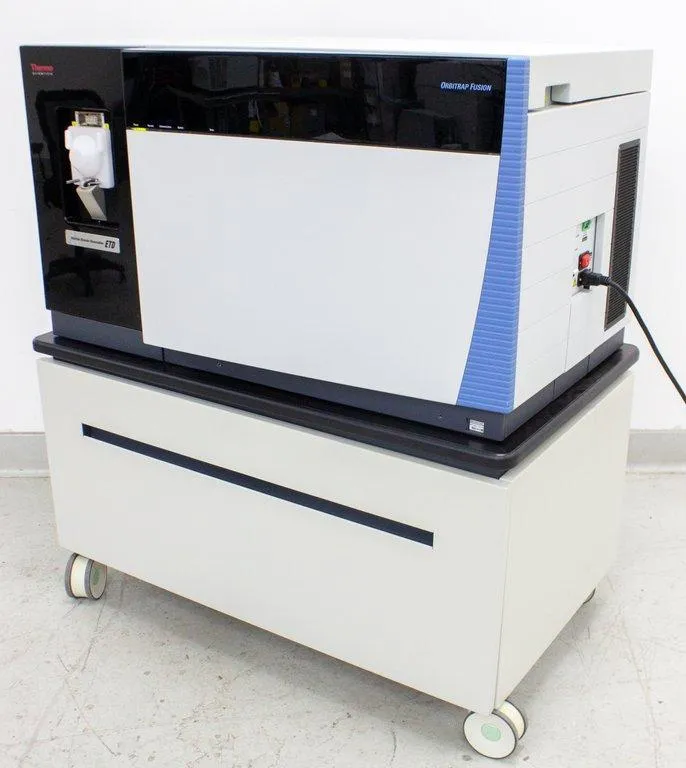

The Thermo Orbitrap Fusion Mass Spectrometer, manufactured in 2014, is a robust analytical instrument from Thermo with a unique Tribrid architecture that integrates quadrupole, Orbitrap, and linear ion trap technologies. Designed for life scientists, it provides exceptional resolution and depth of analysis, ideal for complex sample identification and quantification. The system, in good condition, powers on and passes basic tests, though calibration and validation are required for precise results. While it doesn't include the vacuum pump or ion source, it offers capabilities for proteomics, metabolomics, and glycomics analyses with its multiple fragmentation techniques. Note: The computer and software are not included.
Key Features
- Tribrid architecture with quadrupole, Orbitrap, and linear ion trap
- Multiple fragmentation techniques: CID, HCD, ETD, EThCD
- High resolution up to 500,000 FWHM
- Ultra-high resolution for intact protein analysis
- Parallelization for high-quality data acquisition
Specifications
- Mass range: m/z 50–2,000 (linear ion trap), m/z 200–4,000 (high mass)
- Orbitrap mass range up to m/z 6000
- Resolution: 15,000–500,000 (FWHM) at m/z 200
- Scan rate: Orbitrap MSn up to 20 Hz
- Mass accuracy: <3 ppm RMS using external calibration

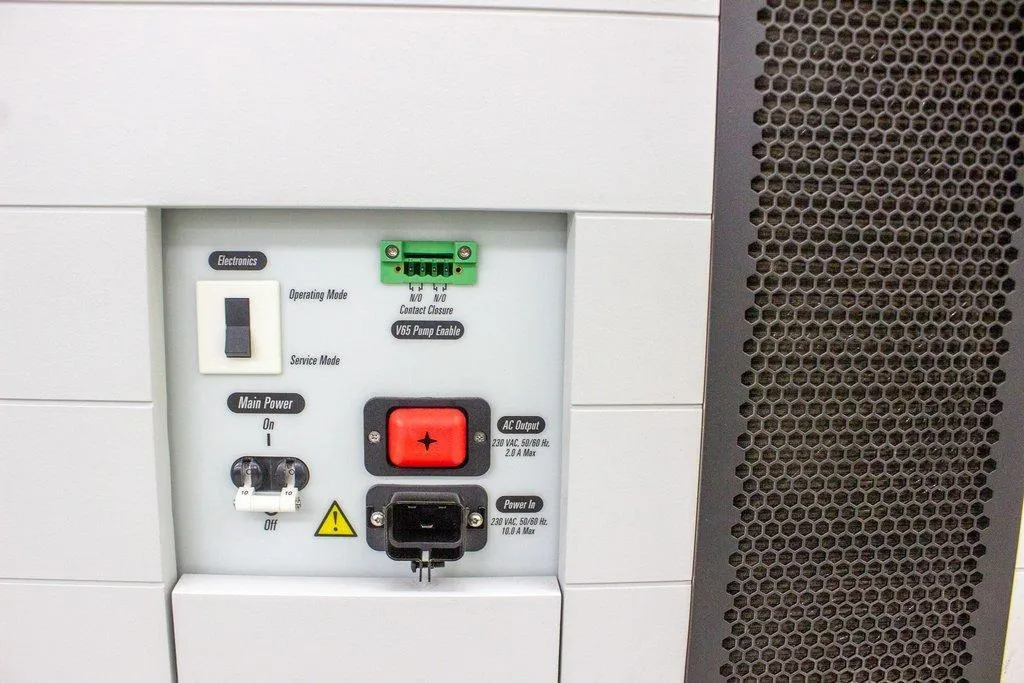

- Instrument power: 230 Vac ± 10% single phase, 15 Ampere, 50/60 Hz
Weight
Imperial: 840.0 Pounds
Metric: 381.02 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 62.4 lb x 68.4 lb
Metric: 97.54 cm x 158.5 cm x 173.74 cm
Harmonized Code
9027.20.00
Harmonized Code Details
9027.20.00: Chromatographs and electrophoresis instruments. Used due to its application in mass spectrometry and detailed laboratory analysis.
