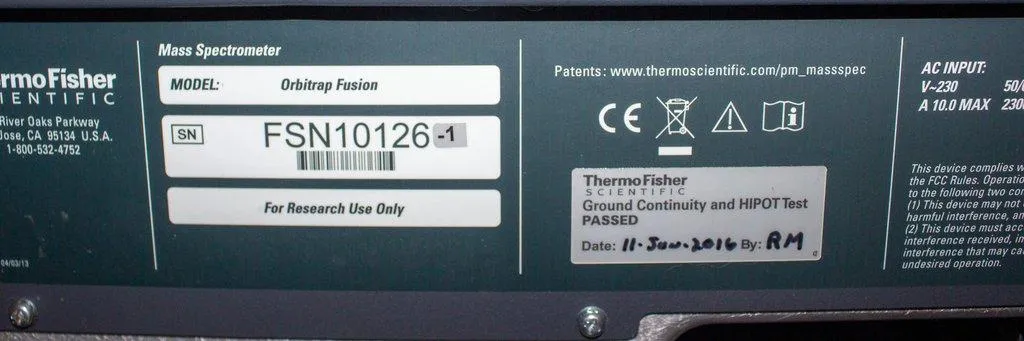

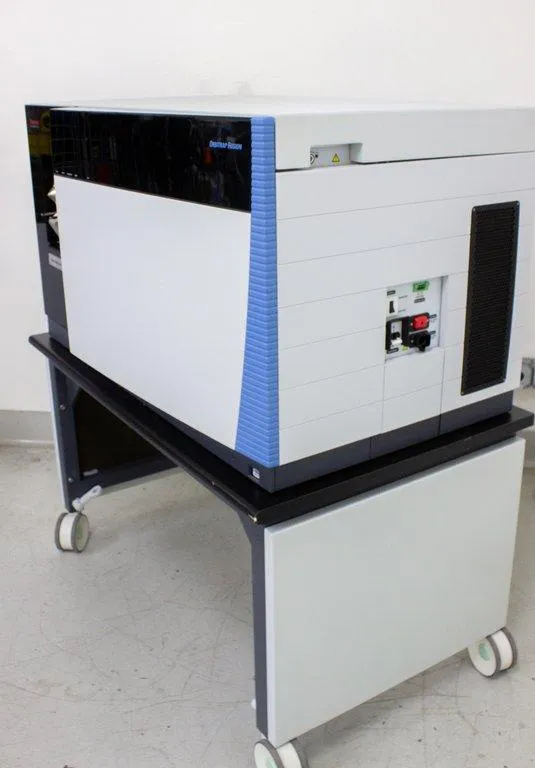

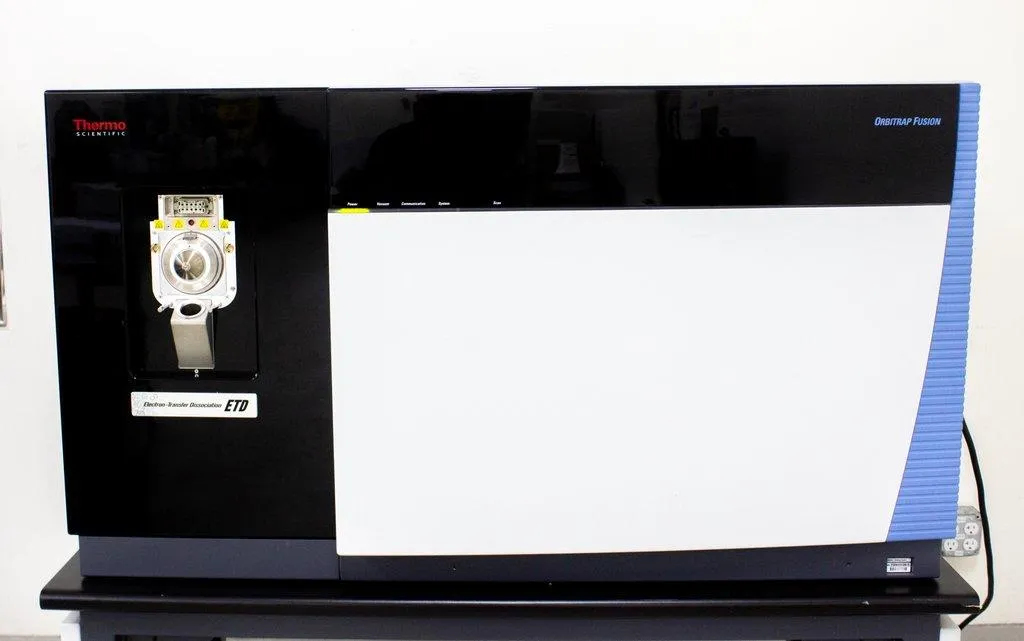

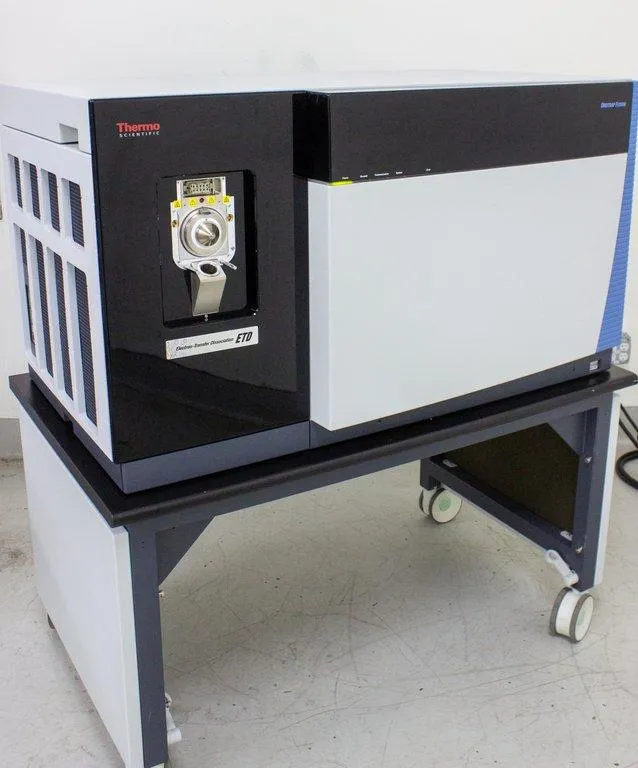

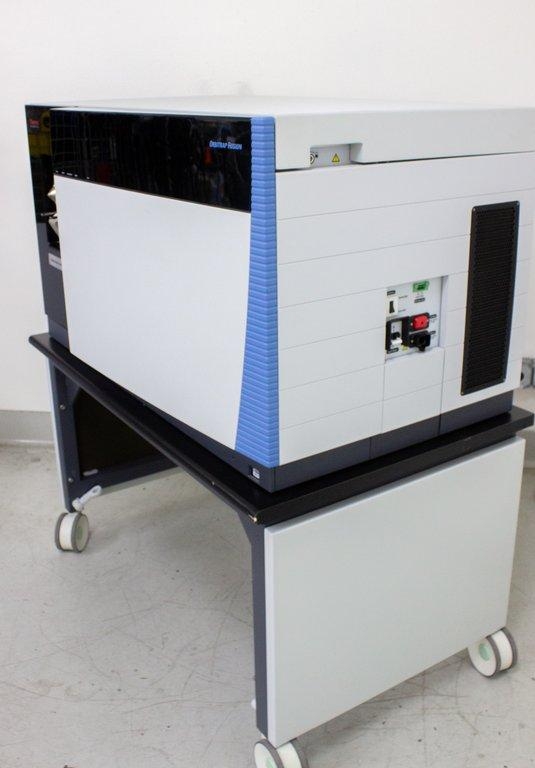

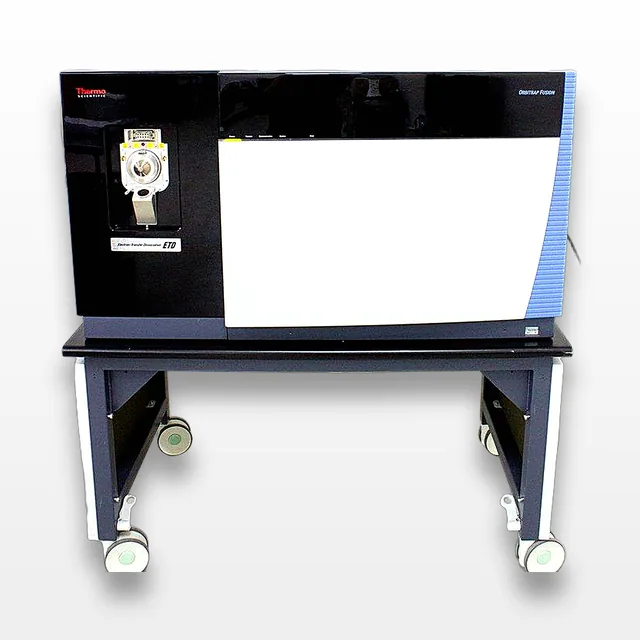

Thermo Scientific Orbitrap Fusion Tribrid Mass Spectrometer FSN10126-1

Product Information

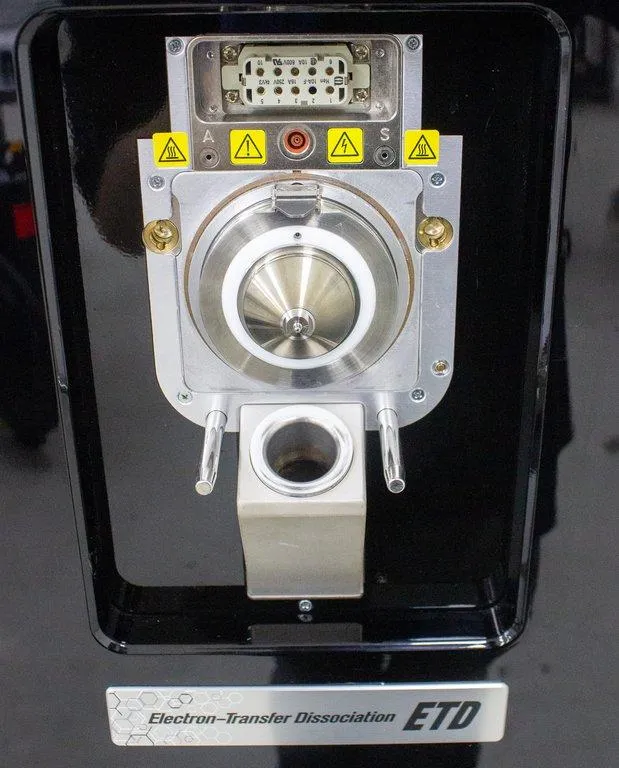

The Thermo Scientific™ Orbitrap Fusion™ mass spectrometer is a revolutionary system that combines the best of quadrupole, Orbitrap, and linear ion trap mass analysis. The Tribrid architecture delivers unprecedented depth of analysis that enables life scientists working with challenging samples to identify more compounds faster and quantify them more accurately. Users can perform a wide variety of analyses from in-depth discovery experiments to characterization of complex PTMs, comprehensive qual/quan workflows, proteomics, metabolomics, glycomics, lipidomics, and more. The optional EASY-ETD™ ion source uses Townsend discharge ionization to generate a highly stable reagent ion flux. This mass spectrometer offers unmatched analytical performance with a revolutionary MS architecture, yielding ultrahigh resolution, unsurpassed scan rate and resolution, parallelization of MS and MSn acquisition, and advanced instrument control software.

• Tribrid architecture combines quadrupole, linear ion trap, and Orbitrap mass analyzers
• Multiple fragmentation techniques—CID, HCD, and optional ETD and EThCD
• Parallelization of MS and MSn acquisition to maximize the amount of high-quality data acquired
• Next-generation ion sources and ion optics increase system ease of operation and robustness
• Innovative instrument control software makes setup easier, methods more powerful, and operation more intuitive

• Ion Source: Thermo Scientific™ EASY-Max NG™ Ion Source - Outstanding performance without adjustments, automatic gas and electrical connections on installation, enhanced exhaust port efficiently removes solvent vapor, improving uptime and reducing chemical noise
• Ion Optics: S-Lens provides better pumping efficiency and improved ruggedness, captures and efficiently focuses ions in a tight beam, automatic tuning program optimizes transmission
• Active Beam Guide: Reduces noise by preventing neutrals and high-velocity clusters from entering the quadrupole mass filter, improves ion transfer robustness
• Quadrupole Mass Filter: MS/MS precursor ion selection with high ion transmission from 50 to 3000 m/z, precursor ion isolation window widths from 0.4 amu to 1200 amu
• Orbitrap Mass Analyzer: Nitrogen-filled C-Trap, ultra-high-field mass analyzer with resolving power up to 500,000 FWHM and isotopic fidelity up to 240,000 FWHM at m/z 200
• Dual-Pressure Linear Ion Trap: Allows efficient and stable ion transfer between the ion-routing multipole and the Orbitrap and linear ion trap mass analyzers
• Vacuum System: Split-flow turbomolecular pump controlling vacuum in multiple regions, precise and accurate low mTorr pressure control, differentially pumped to <2 × 10-10 Torr in Orbitrap mass analyzer
• Mass Range: Linear Ion Trap Mass Range - Standard – m/z 50–2,000, High Mass – m/z 200–4,000; Orbitrap Mass Range - Up to m/z 6000 without precursor ion selection
• Mass Accuracy: <3 ppm RMS using external calibration, <1 ppm RMS using internal calibration

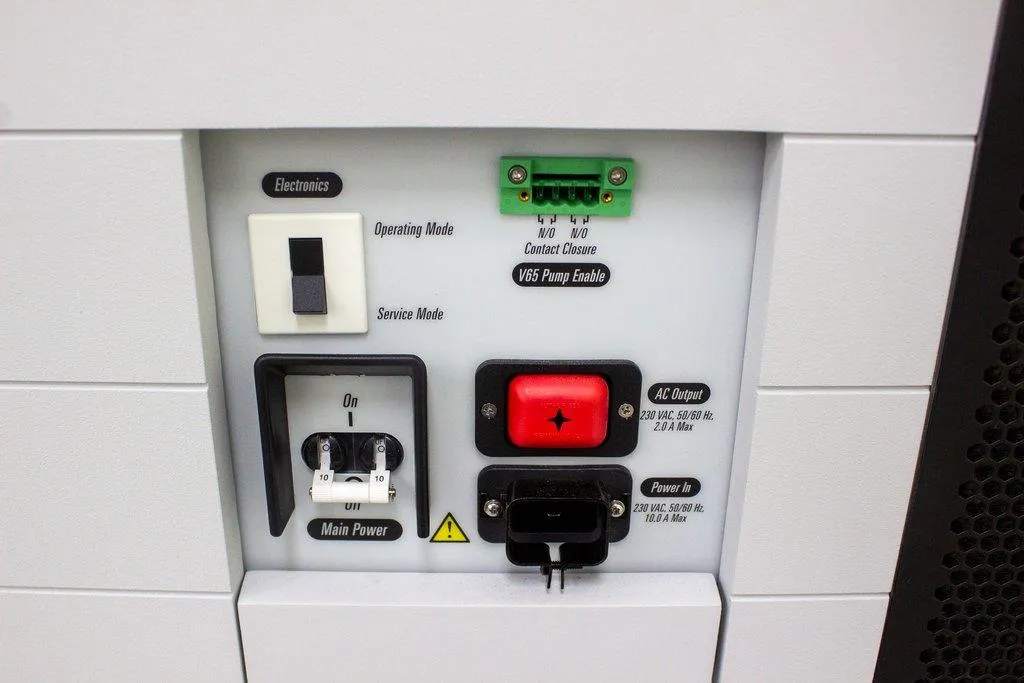

• Power Requirements: 230 Vac ± 10% single phase, 15 Ampere, 50/60 Hz, with earth ground
• Weight: 318 kg (700 pounds) with table but without data system, vacuum rough pumps, and optional items

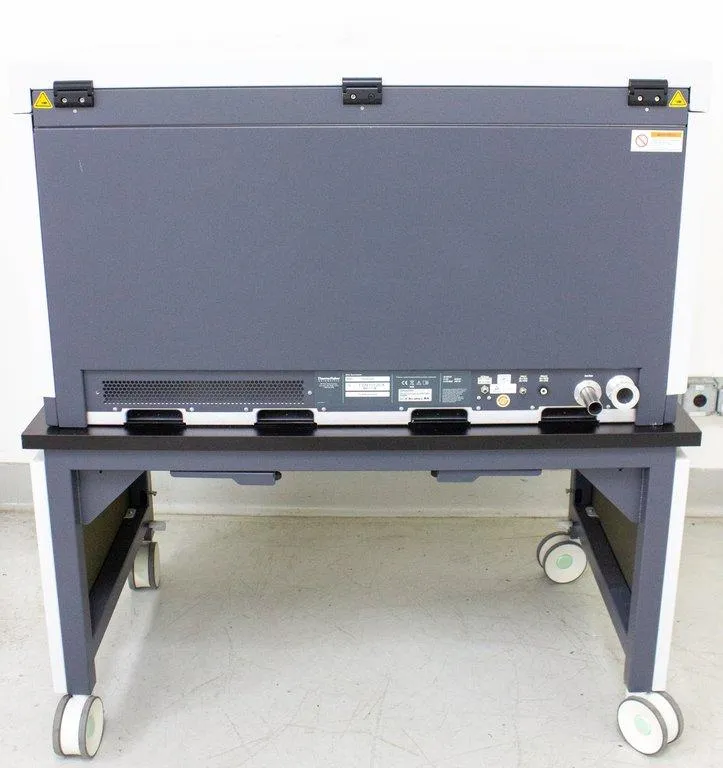

• Dimensions: 1270 × 767 × 703 mm (w, d, h) mounted on a 1320 × 788 × 726 mm (w, d, h) table, similar to a standard lab bench

Metric: 318 kg
Imperial: 700 lb

Metric: 127 cm x 76.7 cm x 70.3 cm
Imperial: 50 in x 30.2 in x 27.7 in
