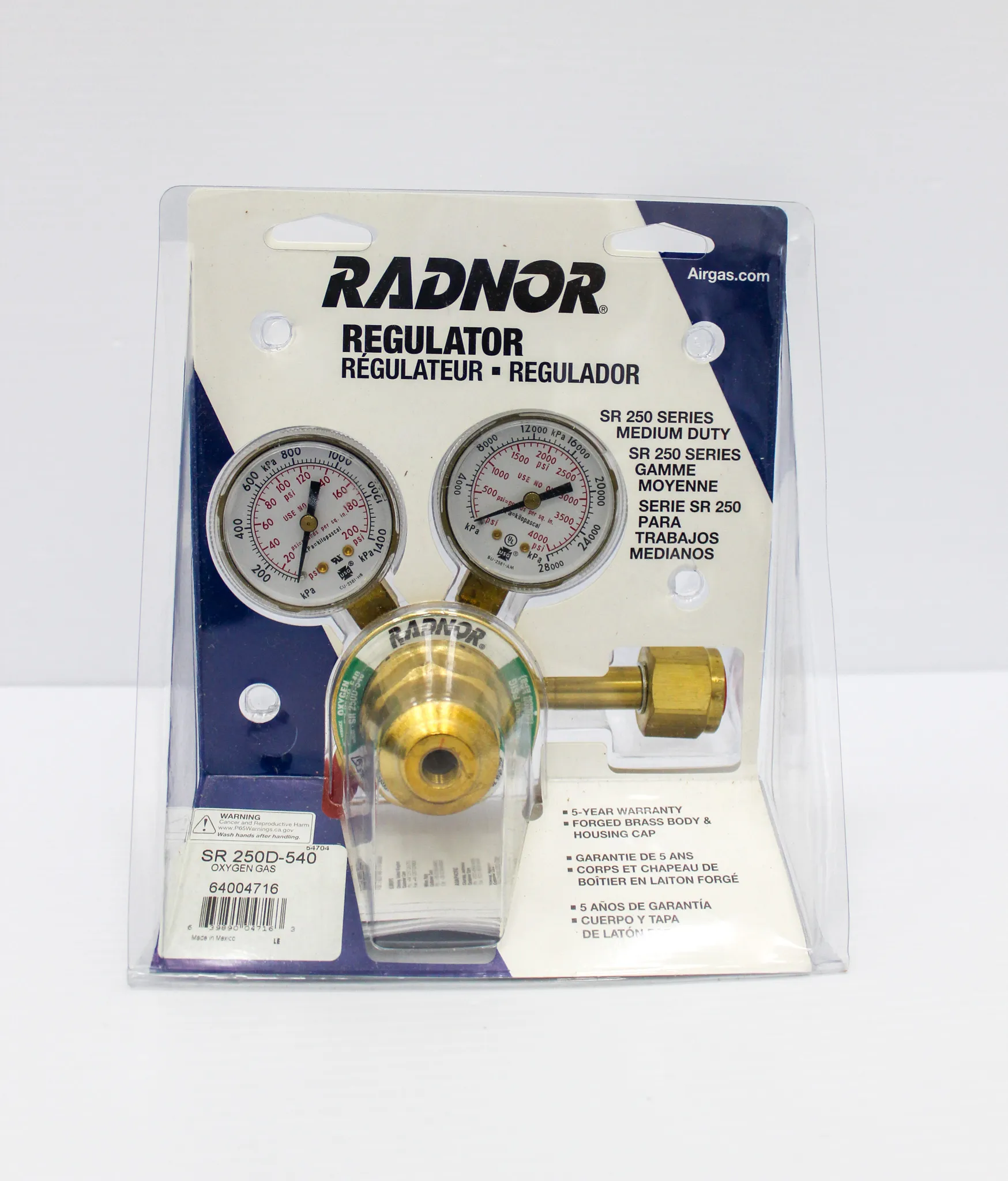

RADNOR Model SR250D-540 Classic Victor Medium Duty Oxygen Single Stage Regulator

Product Information

The RADNOR Model SR250D-540 is a Classic Victor Medium Duty Oxygen Single Stage Regulator, brand new and unused. This regulator offers a 5 - 125 psig delivery range and is ideal for medium applications and for medium to large cylinders. It features a die-forged brass body for strength and durability, along with 2" brass gauges and a precise fabric reinforced neoprene diaphragm. This regulator is specifically designed for medium to high capacity, with electroless nickel plated bronze sintered inlet filter, adjusting screw for convenience, and long-lasting Delrin insert bushing and stainless ball for easy adjustment. It's pretested for quality assurance and comes with a precision-machined nozzle for maximum flow control.

• 5 - 125 psig delivery range
• Die-forged brass body for strength and durability
• Long-lasting Delrin insert bushing and stainless ball for easy adjustment

• Delivery Range: 5 - 125 psig
• Body Material: Die-forged brass
• Diaphragm Type: Fabric reinforced neoprene
• Inlet Connection: 540 CGA
• Outlet Connection: 9/16"-18 RH(M)
• Flow Coefficient: 0.109 Cv
• Inlet Pressure: 3000 psig
• Gauge Range: 4000 inlet, 200 outlet

Metric: 3.62874 kg
Imperial: 8 lb

Metric: 15.24 cm x 30.48 cm x 13.02 cm
Imperial: 6 in x 12 in x 5.13 in

8481100010

This code represents pressure-reducing valves, used to regulate the flow of fluids in a system. It's applicable to valves for pipes, boiler shells, tanks, and similar containers.
