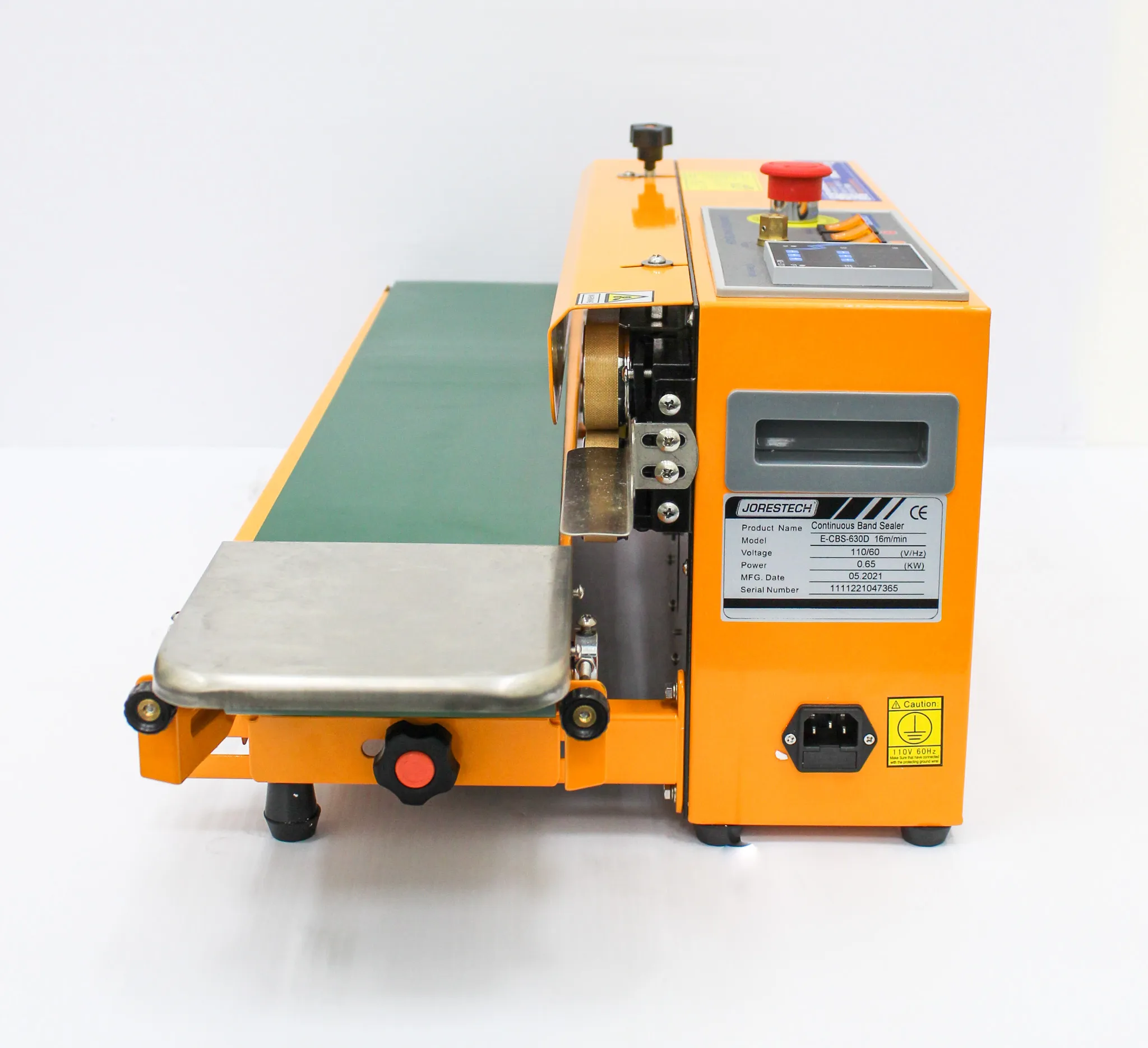

JORESTECH E-CBS-630D Continuous Band Sealer

Product Information

JORESTECH E-CBS-630D Continuous Band Sealer. This Unit has been tested to specifications. Functions as intended, with little to some cosmetic damage. The unit is able to reach the target heat temperature and comes with a 30-Day Warranty. The Band Sealer Model E-CBS-630D is equipped with a digital panel to precisely control the temperature needed for heat-sealing. It can seal bags made with thermoplastic materials, including Polyethylene, Polypropylene, Bo PET, and heat-sealable laminations. Capable of sealing a variety of bags such as stand-up pouches, gusseted bags, and pillow-type bags. It is versatile, user-friendly, and provides precise control. This machine can be used horizontally and vertically. The Continuous Band Sealer is semi-automatic with constant heat power type, and it has dual fit systems for vertical and horizontal seal head orientation. The Digital Temperature Controller has a range of 0 - 300C (572F) with dual alphanumeric displays for target and current temperature. Its made for sealing most heat-sealable bags, BOPP, PVC, PE, PU, Bo PET, Cello, and Laminated bags with a seal width of 10 mm (3/8 in). The recommended bag height for vertical machines is 125 - 280 mm (4.9 - 11 in), and the max distance from bag opening to top of seal is 12 mm (1/2 in).

• Equipped with a digital panel for precise temperature control
• Capable of sealing various types of bags including stand-up pouches, gusseted bags, pillow-type bags, etc.
• Can seal bags made with thermoplastic materials like Polyethylene, Polypropylene, Bo PET, and laminated materials
• Has a digital temperature controller with a wide range from 0-300C and dual alphanumeric displays for temperature monitoring

• Operation: Semi-Automatic
• Power Type: Constant Heat
• Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
• Seals: Most Heat Sealable Bags, BOPP, PVC, PE, PU, Bo PET, Cello, Laminated bags
• Seal Width: 10 mm / 3/8 in
• Compatible with Most Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
• Recommended Bag Height (Vertical Machines): 125 - 280 mm / 4.9 - 11 in
• Max Distance from Bag Opening to Top of Seal (Bag Leftover or Excess): 12 mm / 1/2 in

Metric: 40 kg
Imperial: 88 lb

Metric: 38 cm x 15 cm x 11 cm
Imperial: 14.96 in x 5.91 in x 4.33 in

84223000

84223000 - Machinery for filling, closing, sealing, or labelling bottles, cans, boxes, bags, or other containers; machinery for capsuling bottles, jars, tubes and similar containers; other packing or wrapping machinery, including heat-shrink wrapping machinery
