BioTek Instruments GAST Vacuum Pump 7103034

Product Information

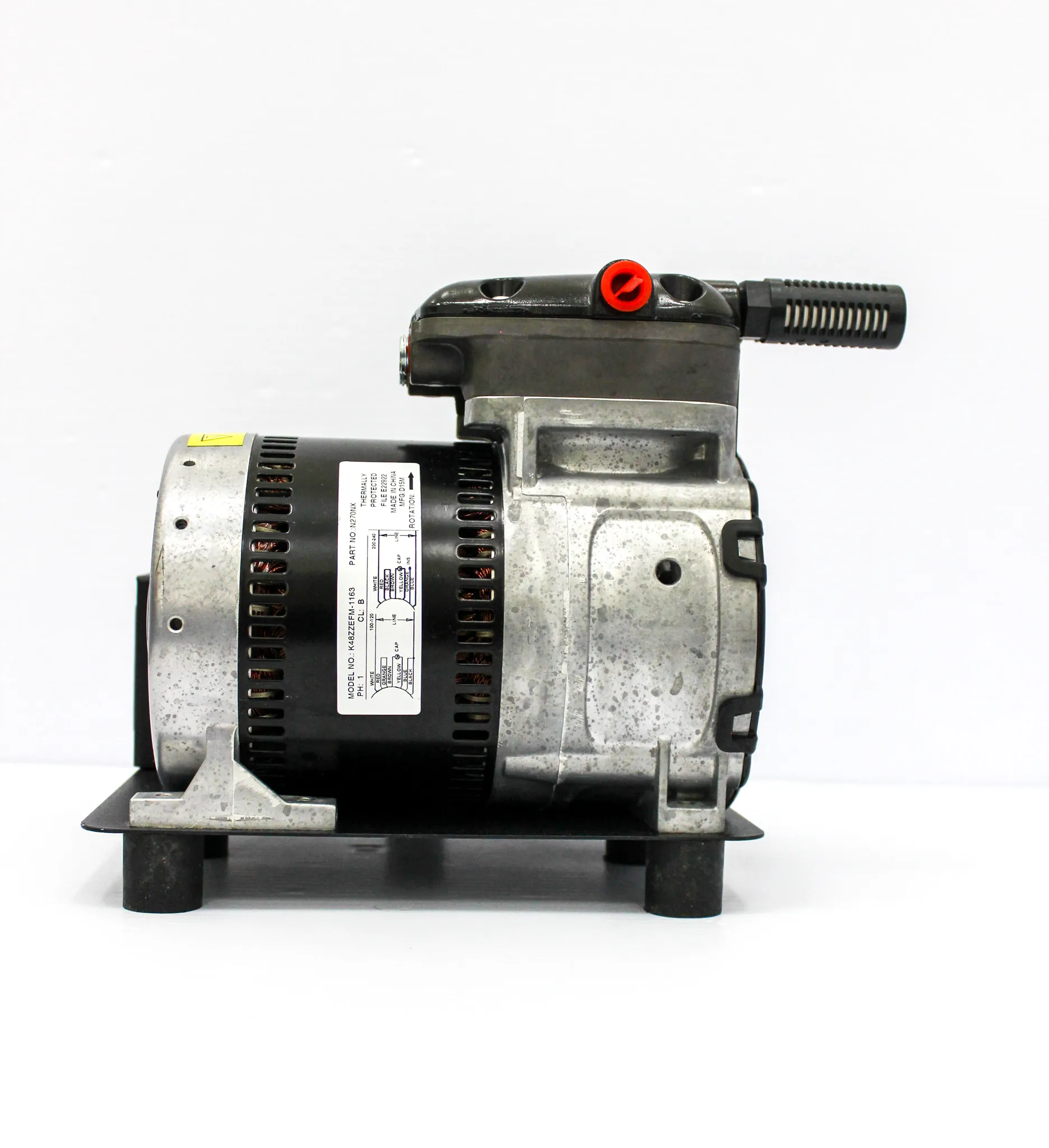

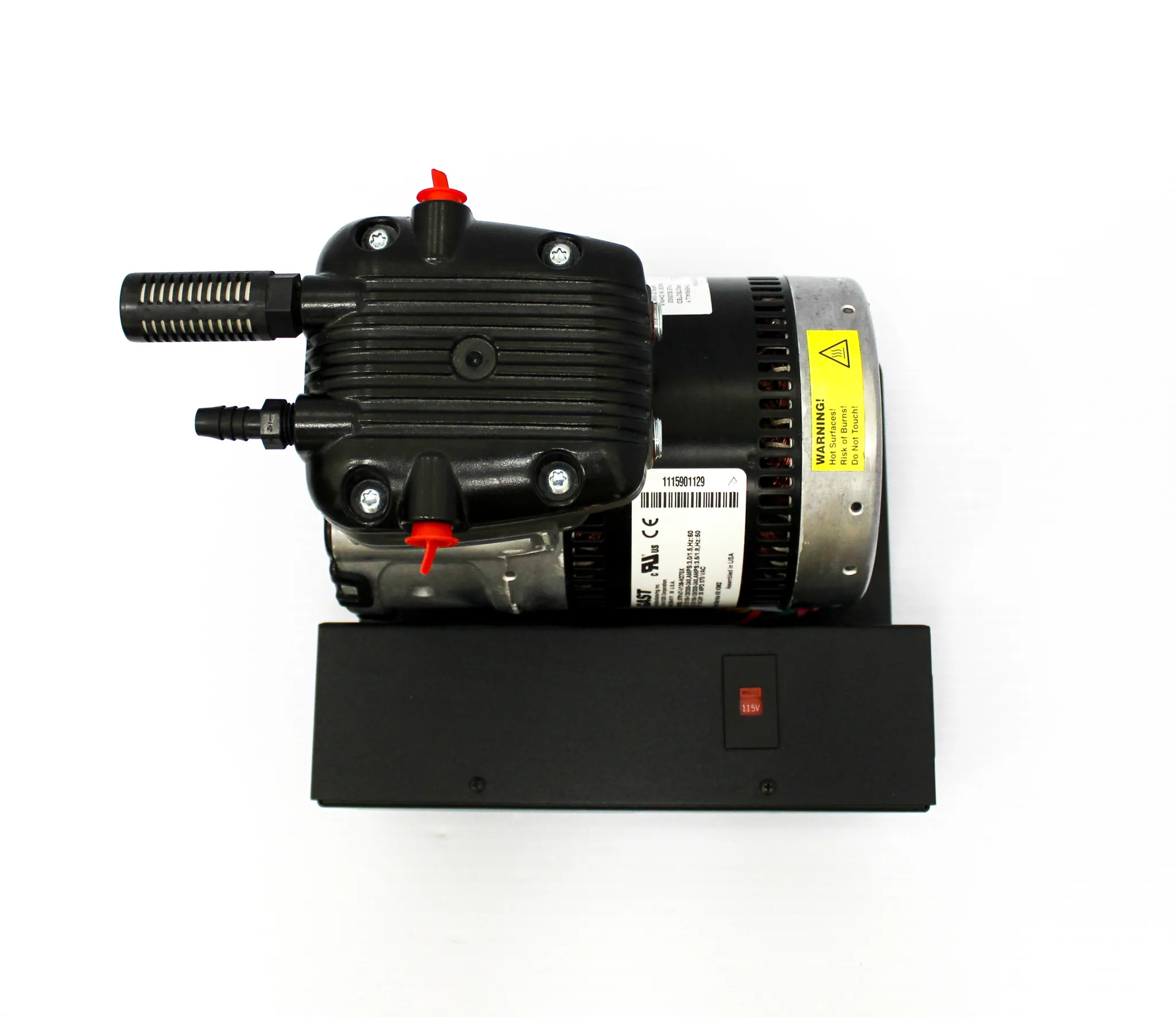

The BioTek Instruments GAST Vacuum Pump 7103034 has been meticulously tested to specifications and is ready for immediate use. It is a powerful standard vacuum pump used with EL 406, 405 TS, 405 LS, and ELx405. This unit is part of a System Direct Drain Module, waste System with Vacuum pump and waste Bottles kit, redefining industry standards by delivering higher-pressure performance at significantly lower sound levels. The oil-less rocking piston compressors and vacuum pumps offer outstanding performance, durability, and flexibility, making them the ideal choice for a wide array of applications. Additional benefits include easy retrofitting, lower exhaust temperatures, and an extended lifespan. This vacuum pump operates at a voltage of 115-230V and produces a maximum vacuum of 26 in -hg. Its sound level is below 65 db(A), making it suitable for various laboratory settings.

• Oil-less rocking piston compressors for durability and flexibility
• Higher-pressure performance with lower sound levels
• Easy retrofitting and extended lifespan
• Suitable for various laboratory applications

• Compressor Type: Standard Vacuum Pump
• Port Size: 1/4 in NPT
• End Connections: NPT
• Phase: Single
• Maximum Rpm: 1725 RPM; 1425 RPM
• Minimum Working Temperature: 5°C
• Maximum Working Temperature: 40°C
• Standards: CE; UL
• For use with: 405 ls, 405 touch, el406, elx405 microplate washers
• Voltage: 115 -230V
• Max Vacuum: 26 in -hg
• Sound Level: Less than 65 db(A)

Metric: 11.34 kg
Imperial: 25 lb

Metric: 35.56 cm x 25.4 cm x 33.02 cm
Imperial: 14 in x 10 in x 13 in

841410

841410 - Vacuum pumps: Hand- or foot-operated air pumps
