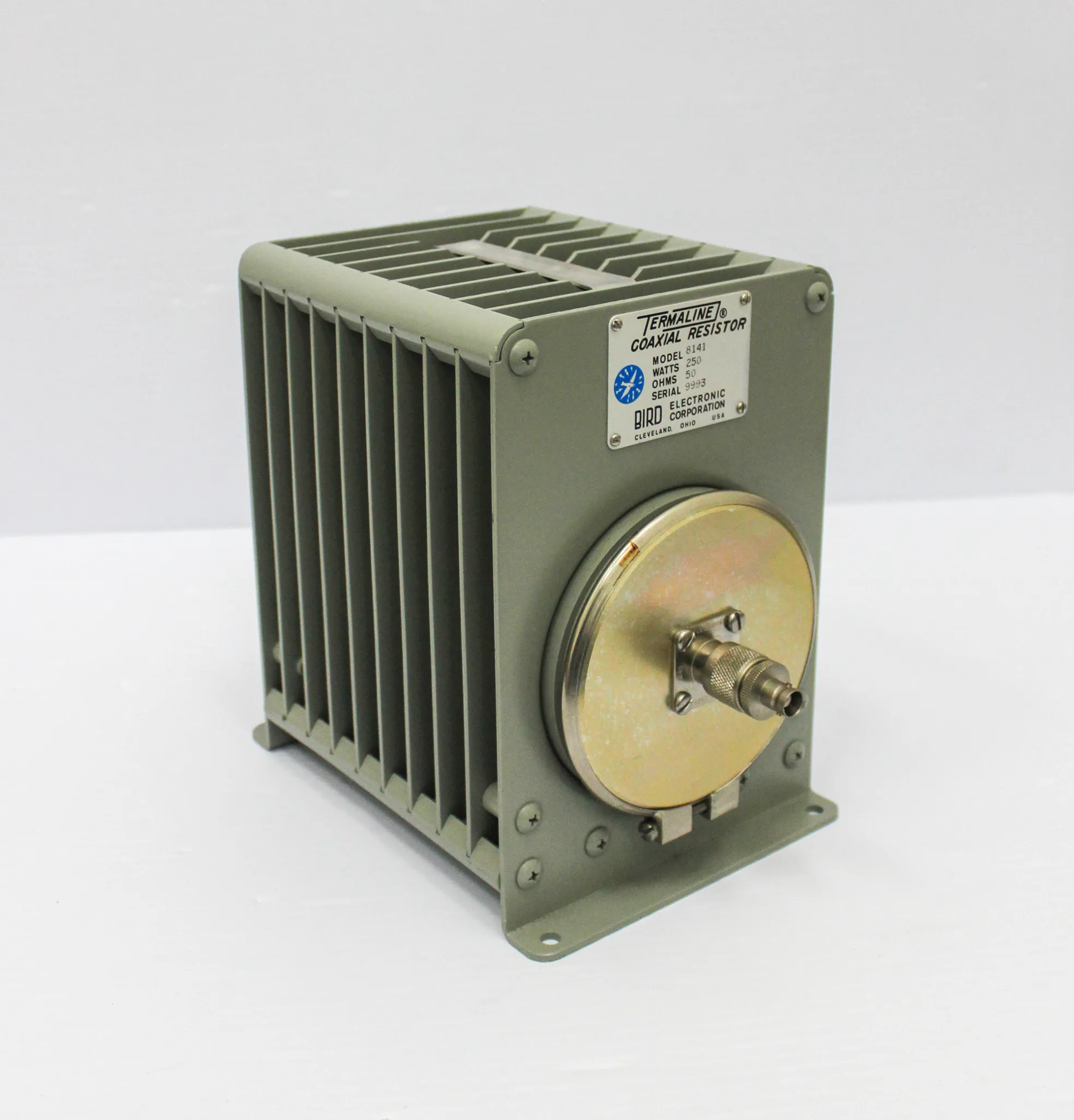

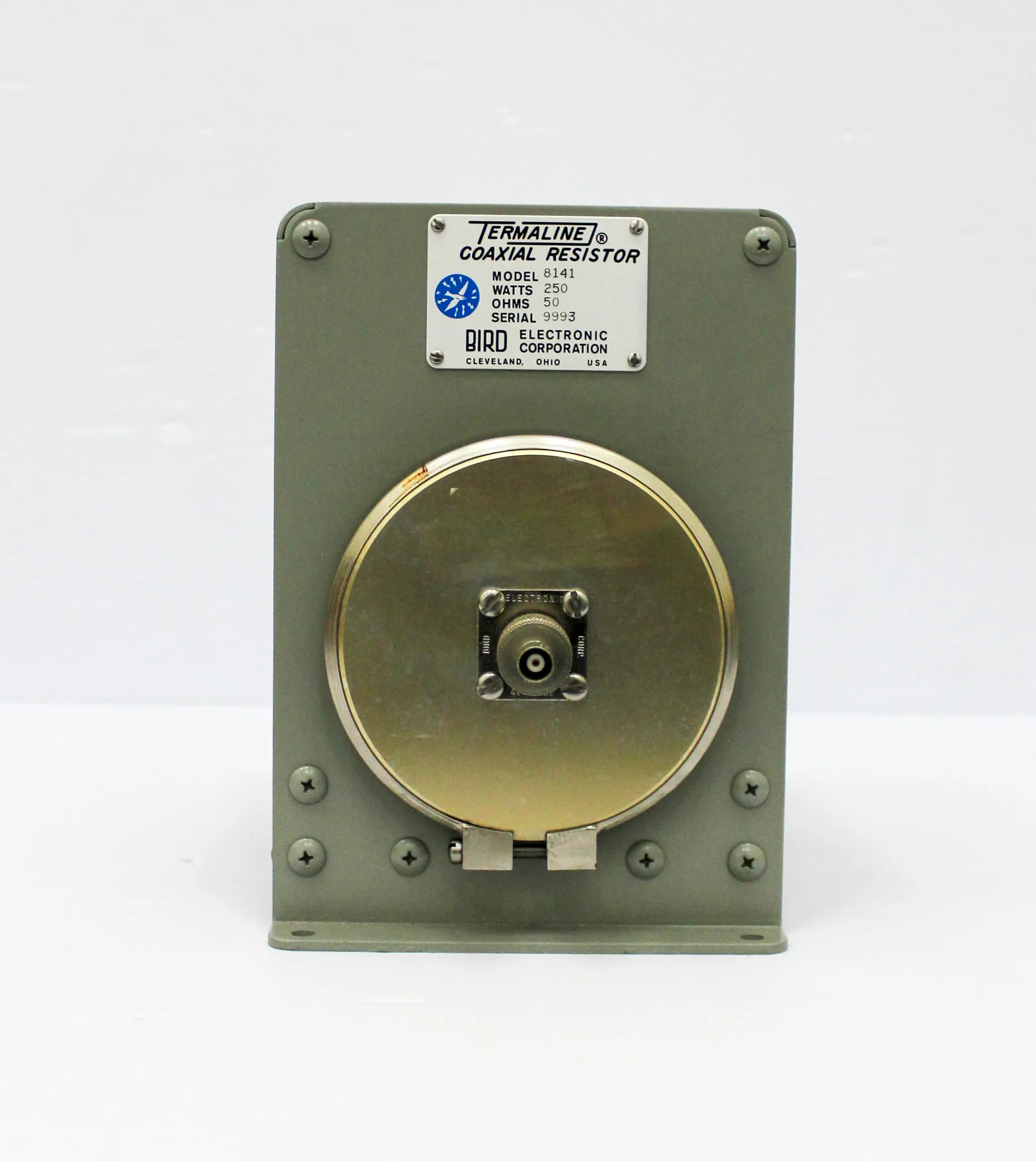

Termaline Coaxial Resistor 8141 Used Lab Equipment 250W Oil-Cooled Termination
- Make Termaline Coaxial Resistor
- Hertz Does Not Apply
- Model 8141
- Serial 9993
- Weight 16.0 Lb
- Voltage Does Not Apply
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 19.0in x 13.0in x 16.0in
- Shipping Type FedEx Ground
- Item Condition G (Good)
- Manufacturing Date Does Not Apply
Product Information
Introducing the Termaline Coaxial Resistor Model 8141 - a lab equipment powerhouse packed into a portable, self-contained easy-to-use package. Rated for 250 Watts, this coaxial transmission line termination does not require any additional equipment or power source, presenting a space-saving solution. Common applications include non-radiating transmitters testing and adjustment below 2.5 GHz. The load is constructed of a cylindrical film type resistor submerged in dielectric coolant. The resistor's linear reduction in surge impedance results in a practically reflection-less line termination from dc to 2.5 GHz. This rugged, portable bench load is built for medium power base station RF testing and features oil-assisted convection cooling for safe, continuous operation up to 250W full rated power, quick change connectors, and a low-profile housing with a handle and rubber feet for operation in demanding environments.
Key Features- Rugged portable Bench load for medium power base station RF testing up to 2.5 GHz
- Oil-assisted convection cooling for safe, continuous operation up to 250W full rated power
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
- Low-profile housing with handle and rubber feet for trouble-free operation in the most demanding environments
- Item No: 8141
- Item Name: 250 Watt, Oil-Cooled Terminations
- Power Rating: 250 W continuous
- Frequency Range and VSWR: DC to 1 GHz @ 1.1 max, 1 GHz to 1.8 GHz @ 1.2 max, 1.8 to 2.5 GHz @ 1.3 max
- Temperature Range: -40 to +45°C
- Coolant: 0.35 gal. (1.3 liters) Silicone Oil
- Product Type: Oil-Cooled
- Operating Position: Horizontal Only
- Connectors: N (F)
- Finish: Gray Powder Coat
Metric: 7.9366 kg
Imperial: 17.5 lbs
Metric: 30.48 cm x 15.24 cm x 22.86 cm
Imperial: 12.0 in x 6.0 in x 9.0 in
903180
Harmonized Code Details903180 - Instruments and apparatus for measuring or checking voltage, current, resistance or power, without a recording device
