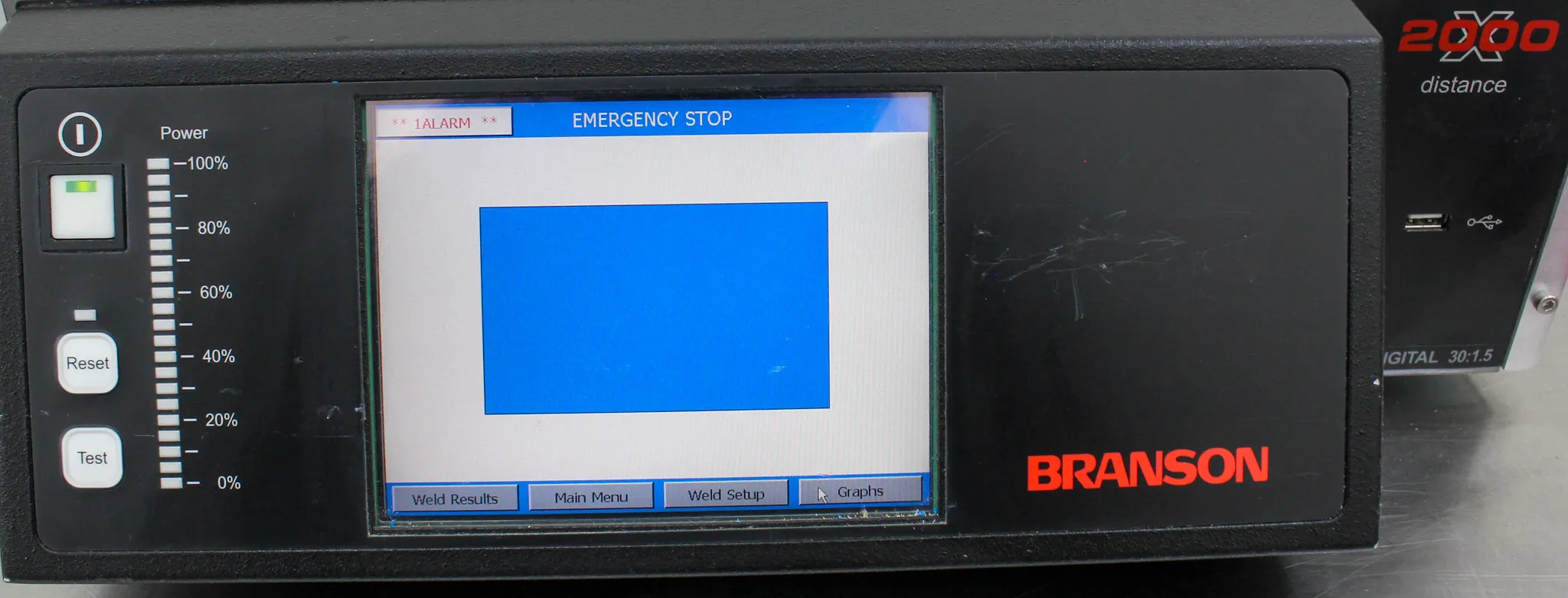

Branson 2000xdt Ultrasonic Digital Welding Base Unit

Product Information

The Branson 2000xdt Ultrasonic Digital Welding Base Unit is designed for precision-control plastic welding technology. It features multiple weld mode control levels, four output ultrasonic frequencies, and various actuator options. This adaptable system can be integrated into automation systems or used as a stand-alone complete system in an assembly cell. With innovative features like True Digital Autotune with Memory, Total Amplitude Control, and Energy Braking, it offers fully-automatic tuning, complete control of amplitude throughout the weld cycle, and a controlled stopping of the ultrasonic stack. Additionally, it provides self-diagnostics and monitoring, multiple weld modes, line-load regulation, USB connectivity, built-in cycle counters, and more.

• Multiple weld mode control levels
• True Digital Autotune with Memory
• Total Amplitude Control
• Energy Braking for controlled stopping
• Self-diagnostics and Monitoring
• Line-load regulation for consistent welds
• Built-in Cycle Counters
• USB connectivity

• Type: 2000Xdt
• Output Power: 1500 Watts
• Line Voltage: 200-240 V AC/ 50/60 Hz, 10A
• Max. Current: 26 amps max.
• Receptacle required: NEMA L6-20, 5-20R
• Frequency: 30 kHz
• Max. Cycle Rate: 80 cpm
• Ambient Temp. Range: 41-122 F (5-50 C)

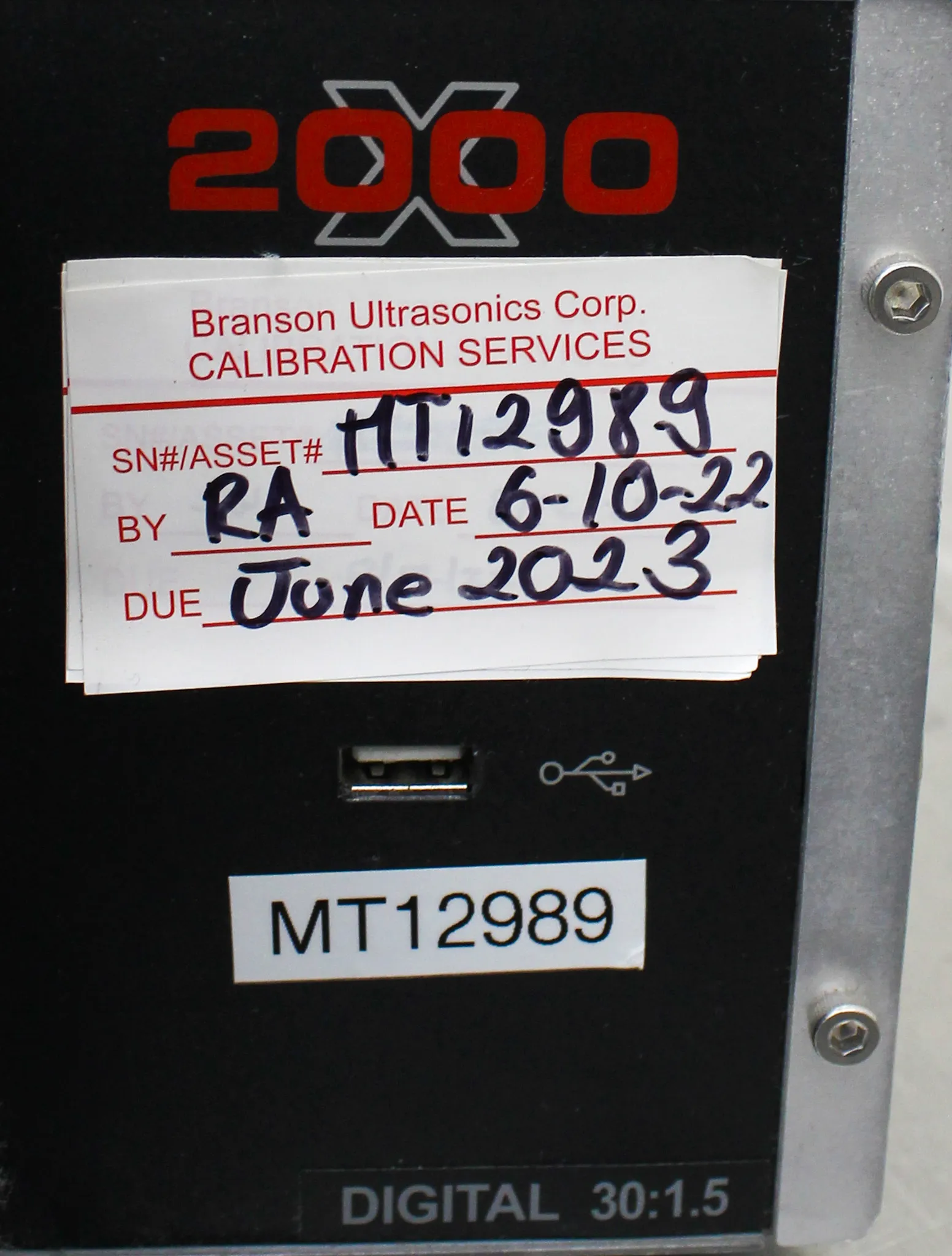

• Branson Digital: 30:1.5

Metric: 20 kg
Imperial: 44 lb

Metric: 29 cm x 22 cm x 13 cm
Imperial: 11.4 in x 8.7 in x 5.1 in

851580

The harmonized code 851580 is for ultrasonic welding machines, which is the most relevant category for the Branson 2000xdt Ultrasonic Digital Welding Base Unit due to its ultrasonic welding functionality and specifications.
