TED PELLA Dual Grinder Polisher MoPao 260E / 812-200
- Make Ted Pella
- Hertz 50Hz/60Hz

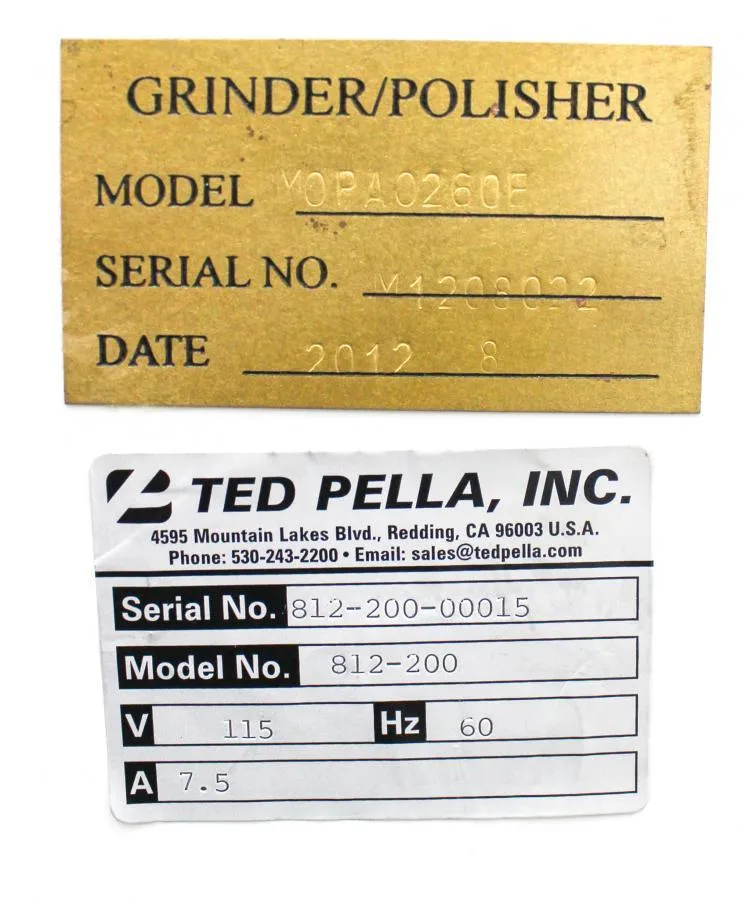

- Model MOPA0260E
- Serial M1208022/ 812-200-00015
- Weight 240
- Voltage 120V
- Working Working
- Includes Power Cord
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 38×32×55 in
- Shipping Type Freight
- Item Condition Pre-owned
- Manufacturing Date 2012/8

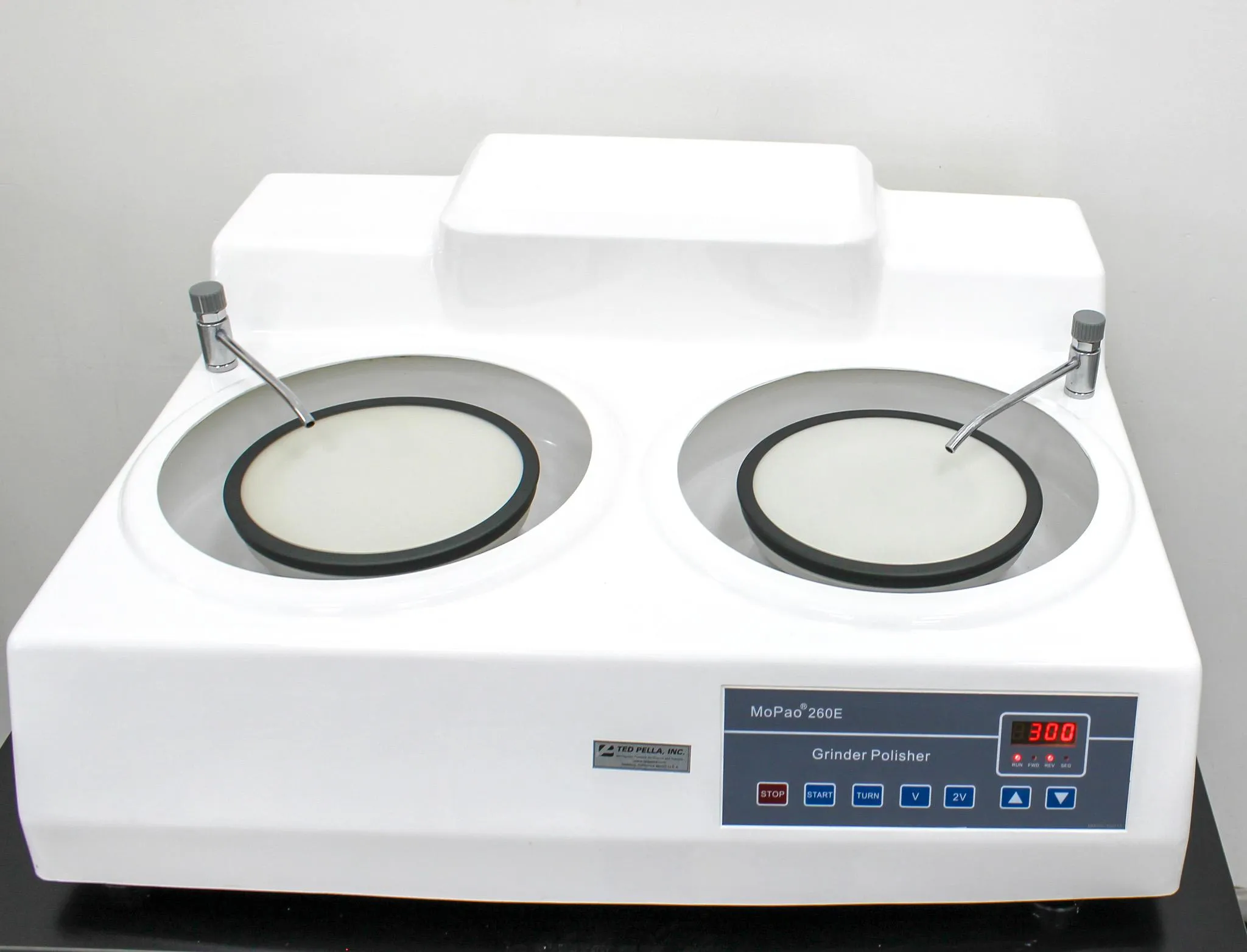

TED PELLA Dual Grinder Polisher MoPao 260E / 812-200

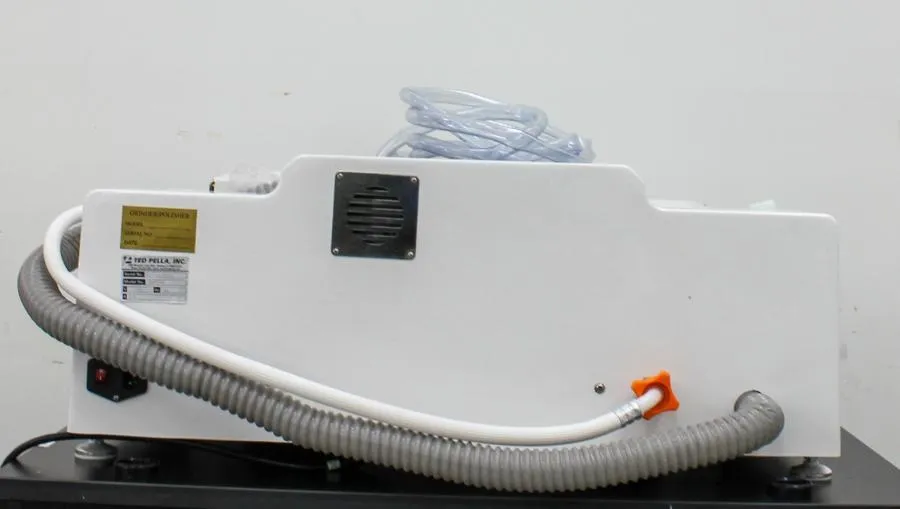

**This unit has been tested to specifications. Has slight cosmetic blemishes from normal use. Everything in pictures is included. See photos for further details.

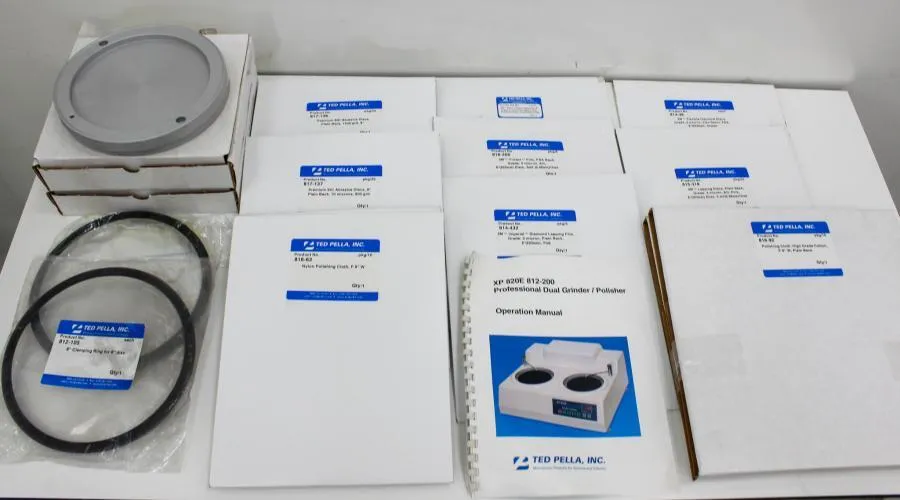

Includes

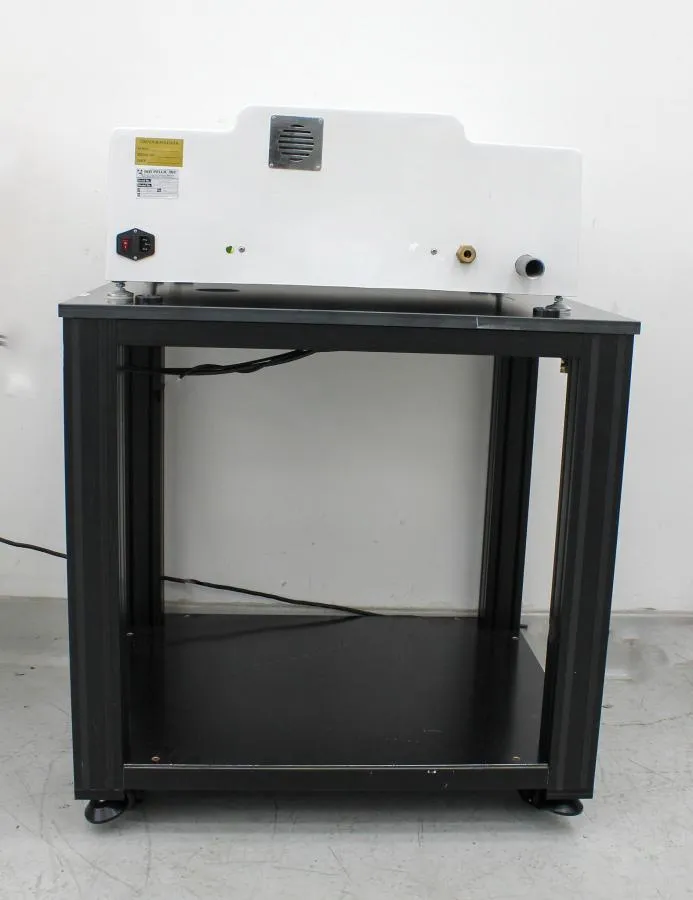

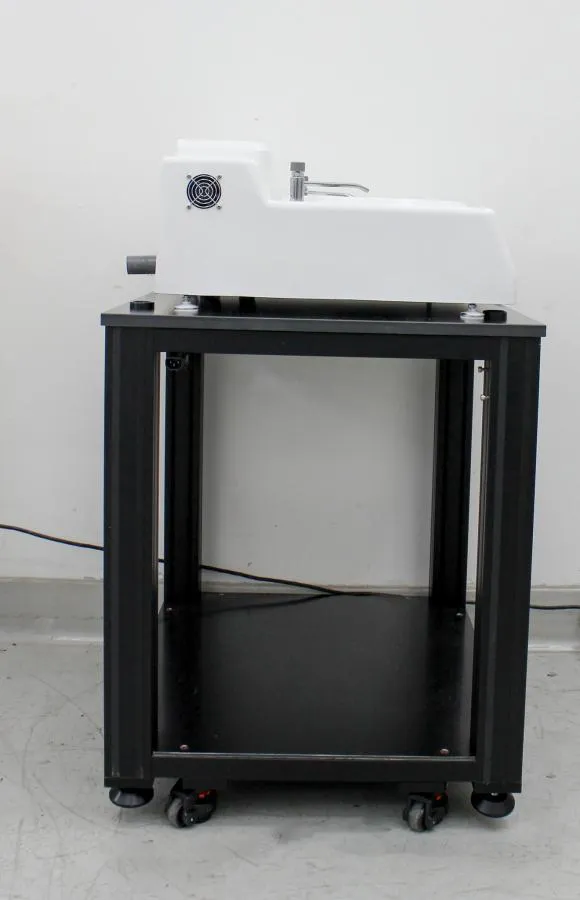

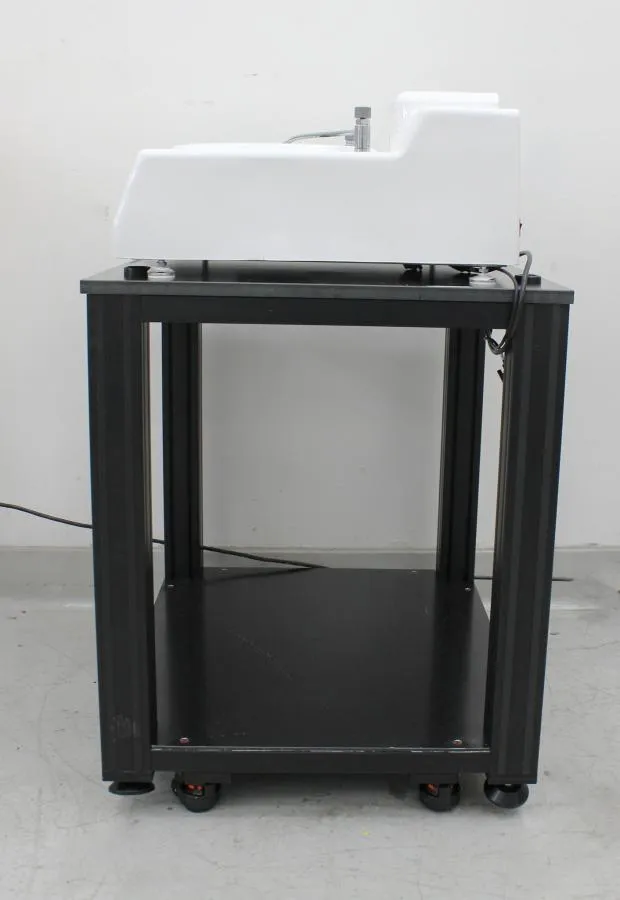

- Table
- Ted pella Dual Grinder Polisher

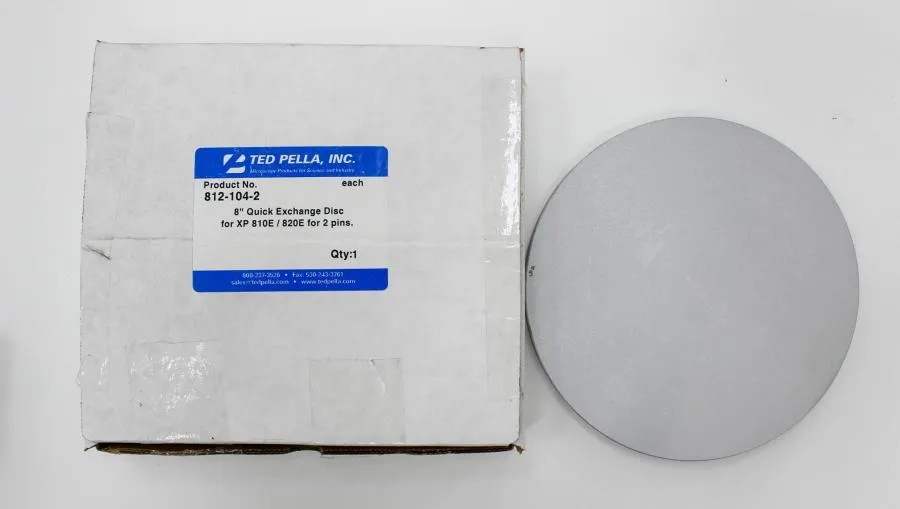

- (6)Ted Pella Accessories: 812-104-2

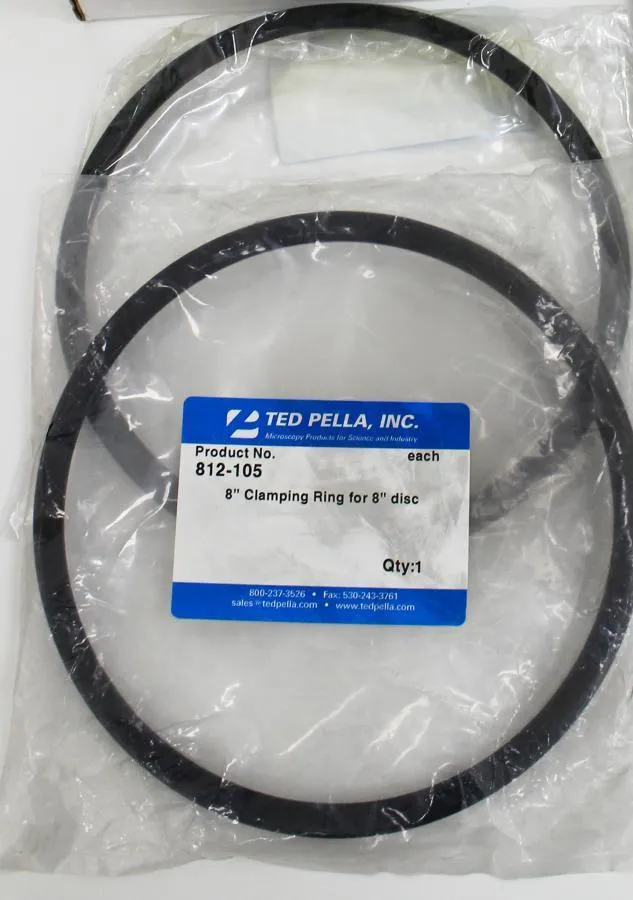

- (4) 812-105 Package of 1

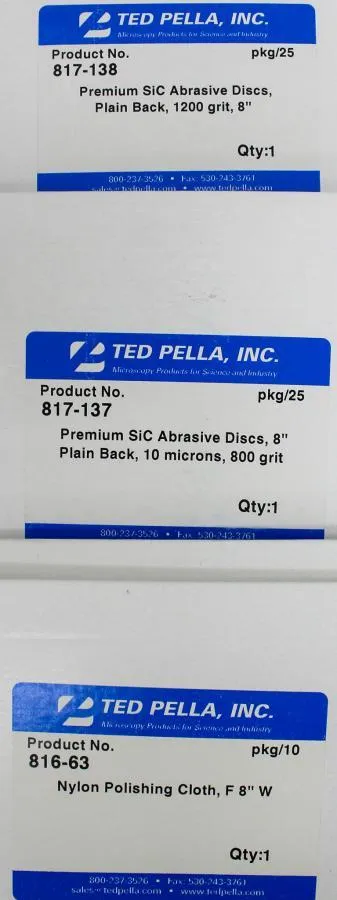

- (2) 816-63 Package of 10 pieces
- (2) 817-138 Package of 25 pieces
- (2) 816-92 Package of 10 pieces
- 817-137 Package of 25 pieces

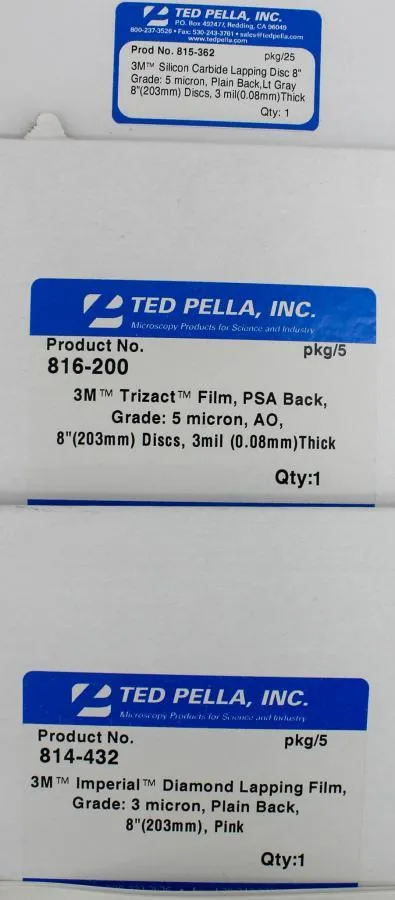

- 815-362 Package of 25 pieces
- 815-318 Package of 25 pieces
- 816-200 Package of 5 pieces

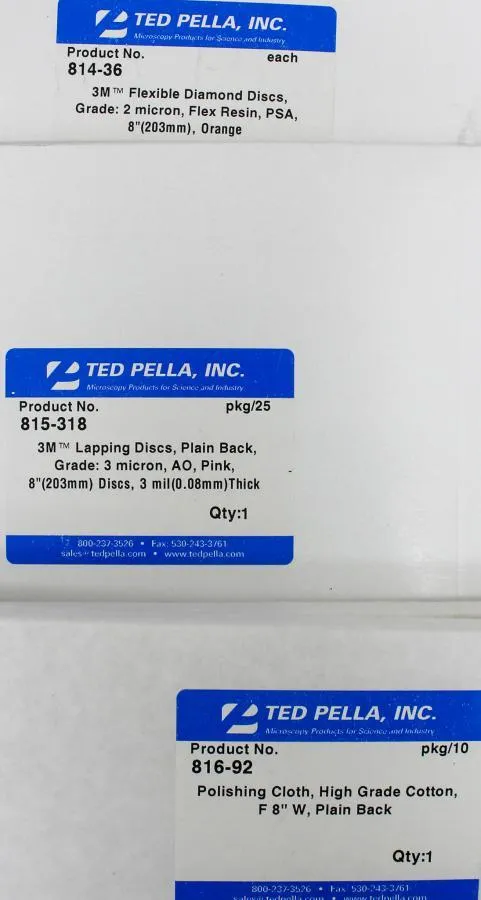

- 814-432 Package of 5 pieces
- 814-36 package of 1

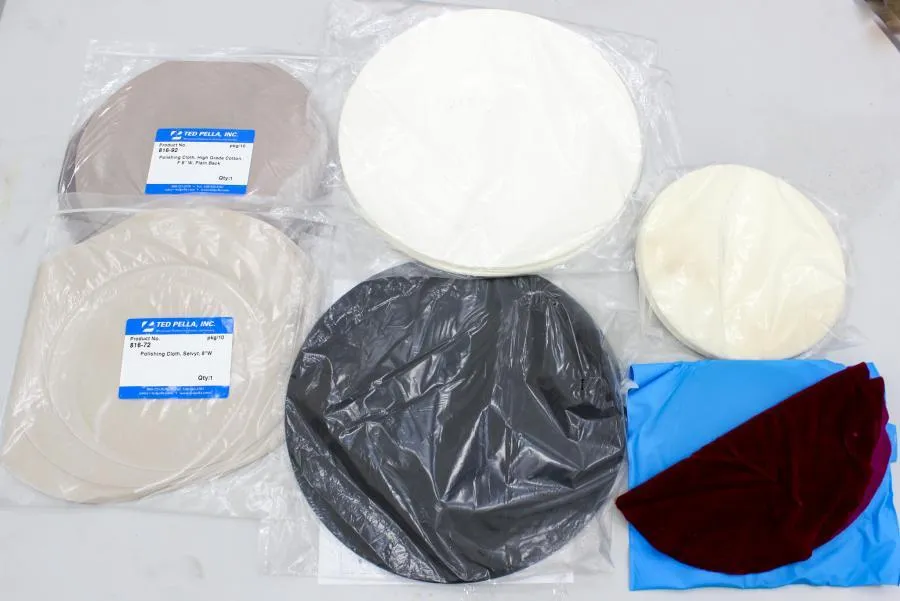

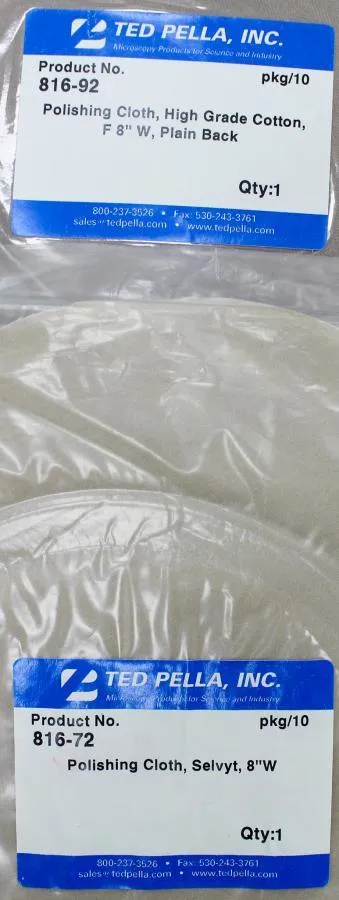

- 816-72/92 cloth pkg/10

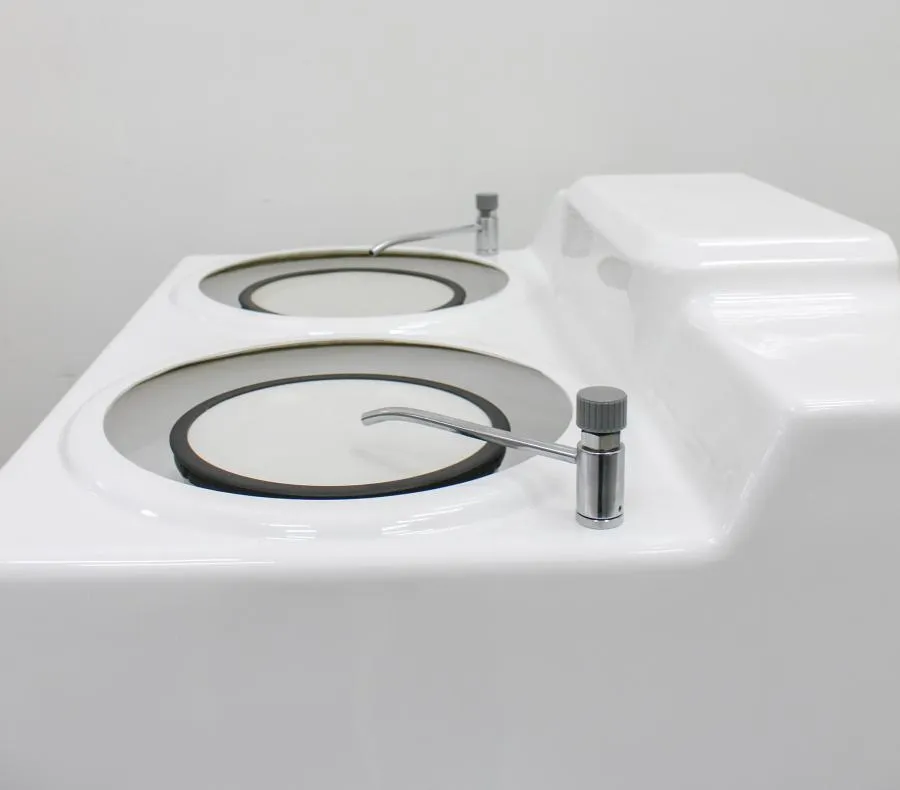

This model is designed and manufactured as per international advanced specimen preparing technology. Equipped with beautiful appearance glass fibre reinforced plastic machine shell and full stainless steel parts which never rust. Double working discs. The working disc can be changed and replaced swiftly. There are two optional types for MoPao 260E: 200mm or 250mm working disc. There are two working conditions for this model. The stepless speed changing status or two-level constant speed status. The working condition can be switched from one to another easily.

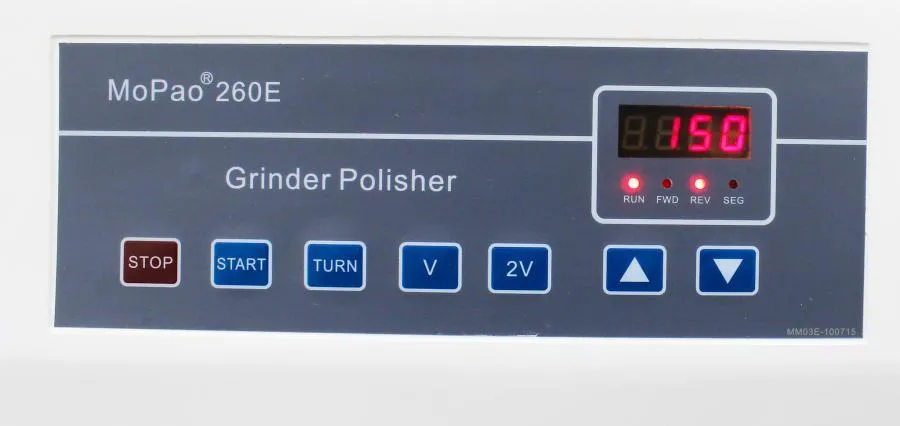

Also the rotating direction of working disc can be chosen at will. One key restoring function.
The grinding-polishing machine is a double-disc desktop, applicable to rough grinding, accurate grinding and polishing of metallographic sample. The machine has microprocessor control system, with a speed of 50-600rpm, thus widening its application. The machine is an indispensable equipment in making the metallographic sample. The machine has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat of the sample. The machine, easy to use, safe and reliable, is an ideal preparation equipment for the labs of plants, research institutes and universities and colleges etc..
Features:
- Both single and double wheel versions are suitable with Ø200, Ø250 and Ø300 mm wheels
- Powered by a high torque 1.0 HP electric motor with both clockwise and counterclockwise wheel rotation possibility
- Smooth speed variation (50-600 rpm) of the grinding wheel
- Soft start and soft stop
- Corrosion free and easy to clean
- Ball bearings used provide quite and vibration free operation
Specifications:
| Model | MoPao 260E |
| Grinding/Polishing Disc Diameter | 203/ Φ250mm |
| Rotate Speed |
50-600rpm/min (stepless speed change)
150rpm/min, 300rpm/min (two-step constant speed)
|
| Diameter Of Abrasive Paper | Φ250mm |
| Power Supply | Single-phase, AC220V, 50Hz |
| Input Power | YSS6324, 250W |
| Grinding/Polishing disc quantity | 2 |
| Grinding/polishing disc direction | Clockwise or anticlockwise |
| Motor | 550W |
| Operation Voltage | 115 V. 60Hz. 7.5 A |
| Production Capacity | 500 PCS/Month |
| Working Style | High-speed universal |
