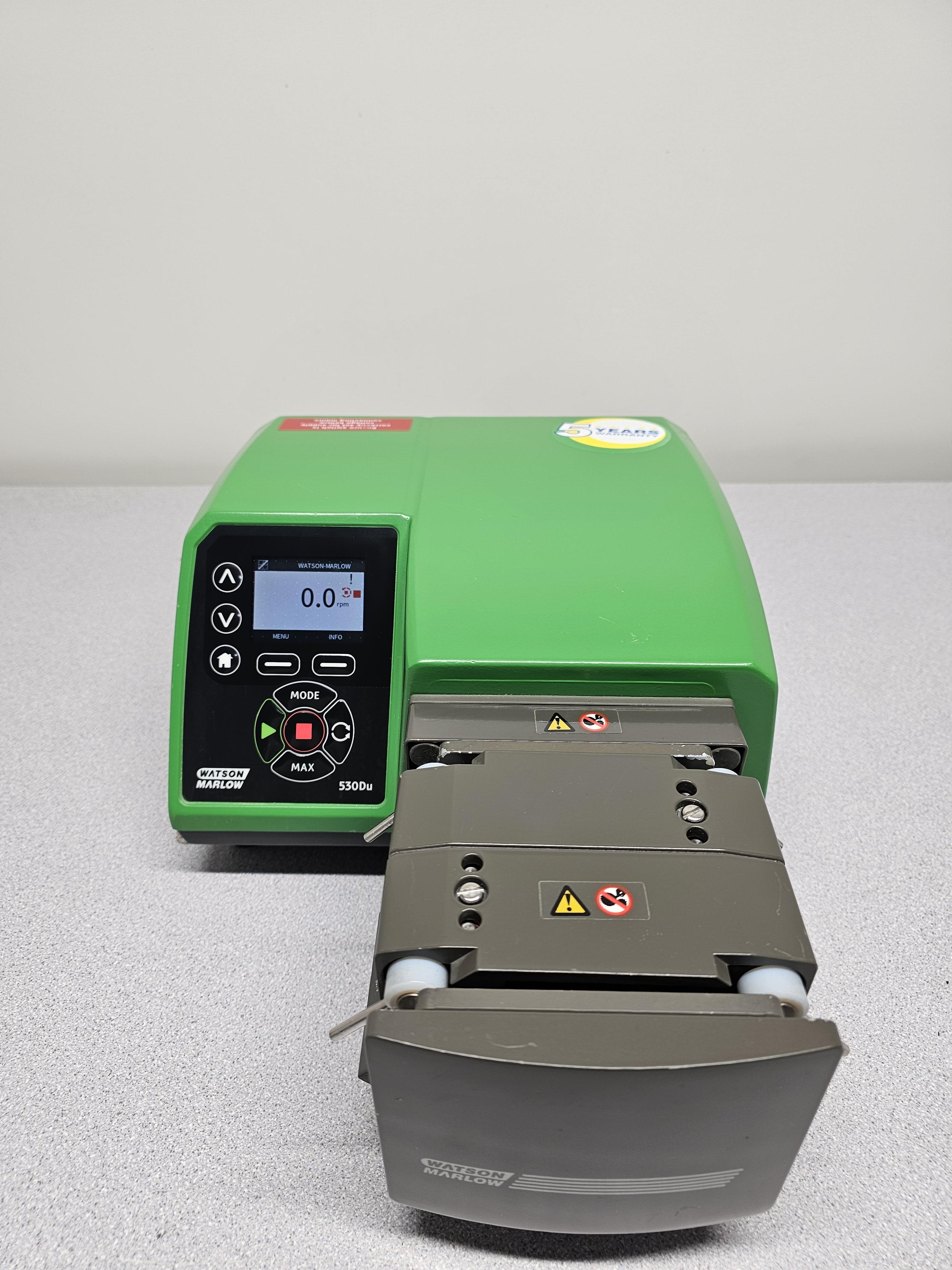

Watson Marlow 530Du Peristaltic Pump High Accuracy 3500ml/min 2200:1 Control
Watson Marlow
Details
-
CategoryPump
-
Dimension16.0in x 12.0in x 6.0in
-
Serial170522-14460
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
Experience the precision of the Watson Marlow 530Du Peristaltic Pump, designed for unparalleled accuracy in fluid handling applications. This near-new condition pump presents a user-friendly human-machine interface (HMI) with minimal key presses required for operation. Fluid isolation is assured, maintaining product integrity within the tube. The intuitive interface offers visual status indications for straightforward monitoring. Specifications include a maximum flow rate of 3500 ml/min and a minimum of 0.004 ml/min with a 2200:1 speed control ratio. This model is suitable for various control types including EtherNet/IP, Profibus, and more. The build meets CE and NSF/ANSI standards. Ideal for laboratories requiring precise fluid control, and compatible with tubing bore sizes ranging from 0.5mm to 9.6mm.
Key Features
- High Accuracy Fluid Handling
- User-Friendly HMI
- Max Flow Rate: 3500ml/min
- Min Flow Rate: 0.004ml/min
- 2200:1 Drive Speed Control Ratio
- Fluid Isolation for Product Integrity
- Compatible with Multiple Control Types
- Operating Temperature: 5-40C
Specifications
- Max Flow Rate: 3500 ml/min
- Min Flow Rate: 0.004 ml/min
- Max Flow Rate: 56 USGPH
- Min Flow Rate: 0.0006 USGPH
- Drive Speed Control Ratio: 2200:1
- Operating Temperature Range: 5 - 40C / 40 - 104F
- Control Types: EtherNet/IP, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA
- Drive Standards: CE, cETLus, C-Tick, IRAM, NSF/ANSI 61, RoHS
- Drive Ingress Rating: IP31, IP66, NEMA 2, NEMA 4X
- Compatible Tubing Bore Sizes: 0.5 to 9.6mm
- Drive Power Supply: 115/230 V 1ph 50/60 Hz 135 VA
Weight
Imperial: 27.6 Pounds
Metric: 12.52 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 14.4 lb x 7.2 lb
Metric: 48.77 cm x 36.58 cm x 18.29 cm
Harmonized Code
8413.19
Harmonized Code Details
8413.19 refers to centrifugal pumps for liquids, which include peristaltic pumps such as this model. This code is appropriate due to the pump's role in transferring fluids with precision.
