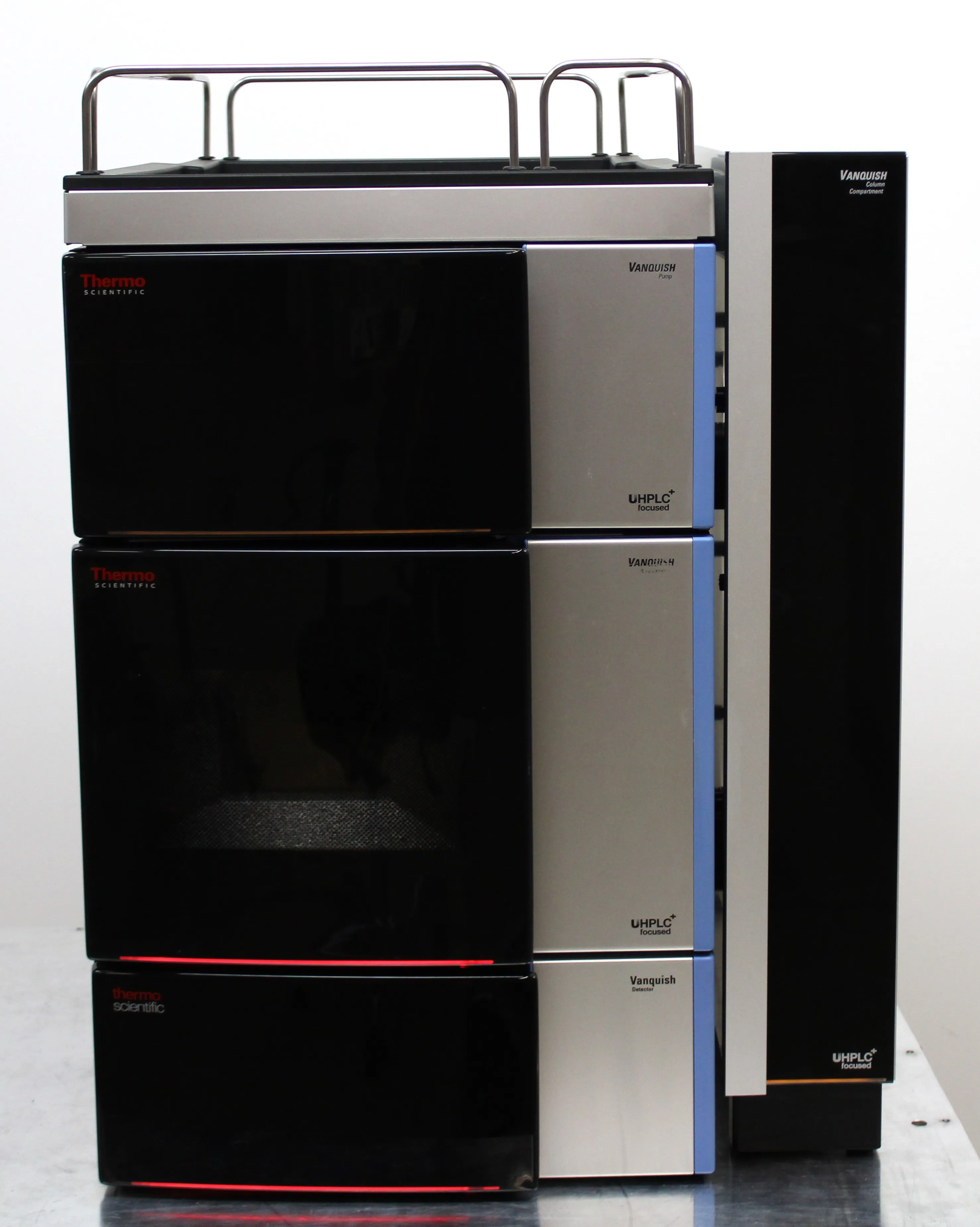

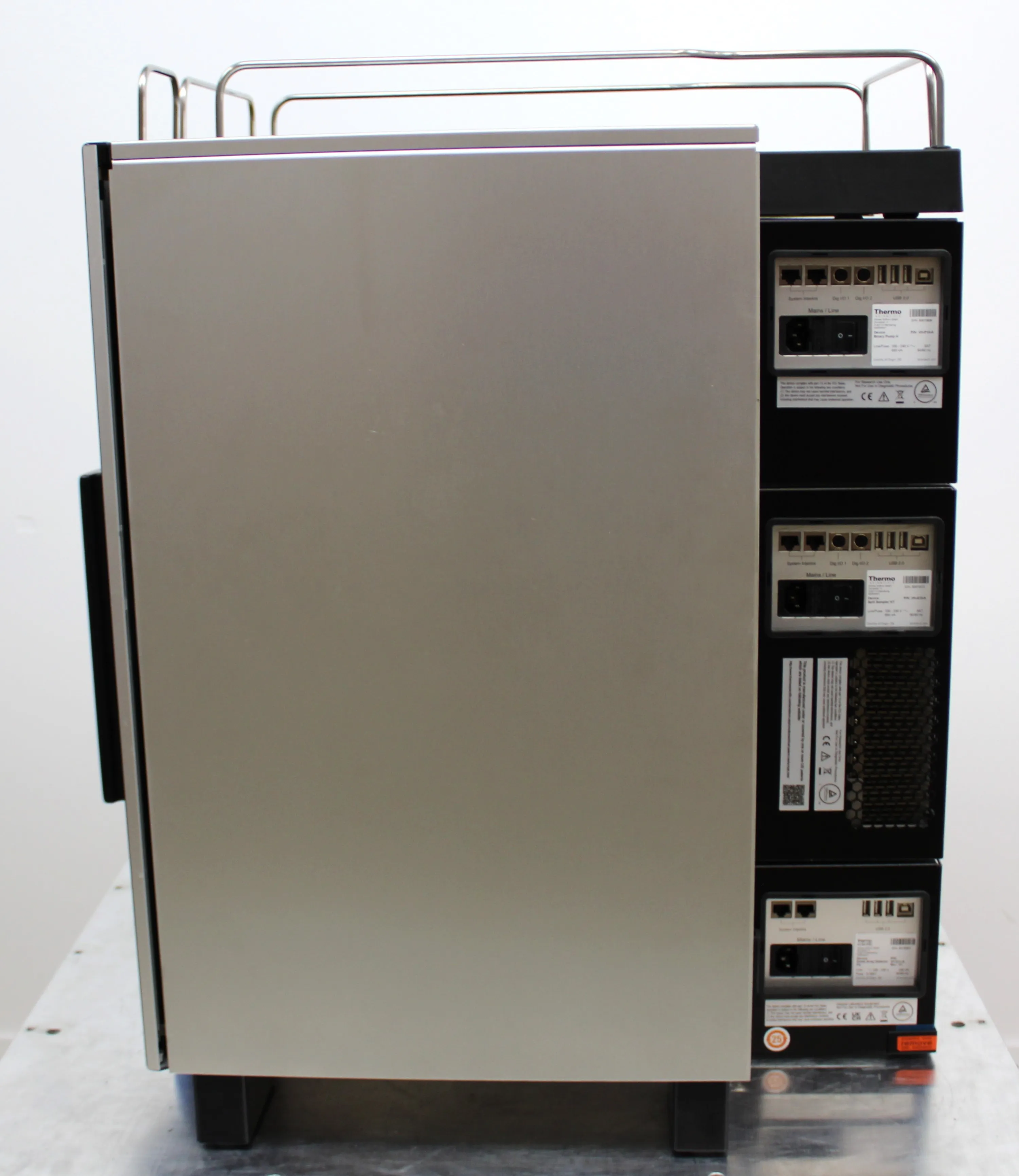

Thermo Scientific Vanquish HPLC System

Product Information

The Thermo Scientific Vanquish is a complete working HPLC system, designed to deliver superior UHPLC performance, reliable eluent and column temperature matching, and easy LC method transfer. The individual components of this system, like the Vanquish Column Compartments, Binary Pumps, Split Samplers, and Diode Array Detectors, offer state-of-the-art precision and functionality. This used system excels with advanced low-flow applications and micro-flow direct injection, providing high-throughput performance under challenging eluent conditions. The Vanquish also boasts the unique combination of active and passive eluent pre-heating to ensure the most efficient and effective separation processes.

• Reliable eluent and column temperature matching
• Advanced low-flow applications and micro-flow direct injection
• State-of-the-art precision and functionality

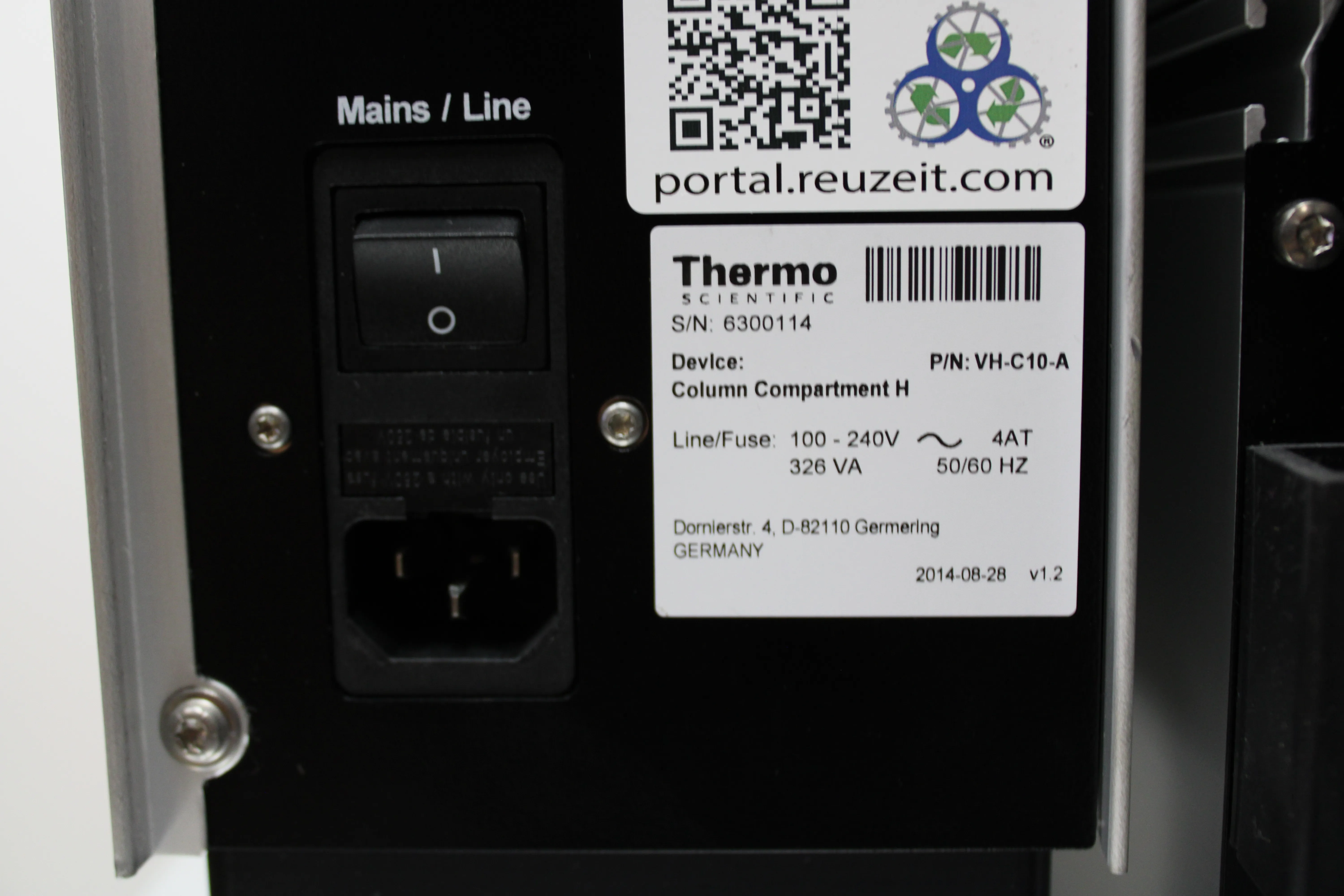

• For Vanquish Column Compartments: - Type: Column Compartment - Temperature Range: 5°C (max. 18 K below ambient) to 120°C - Column Capacity: 2 x max, 300 mm w/pre-heater or guard column, Max. ID: 10 mm | 2 x max, 250 mm w/pre-heater and guard column, Max. ID: 10 mm

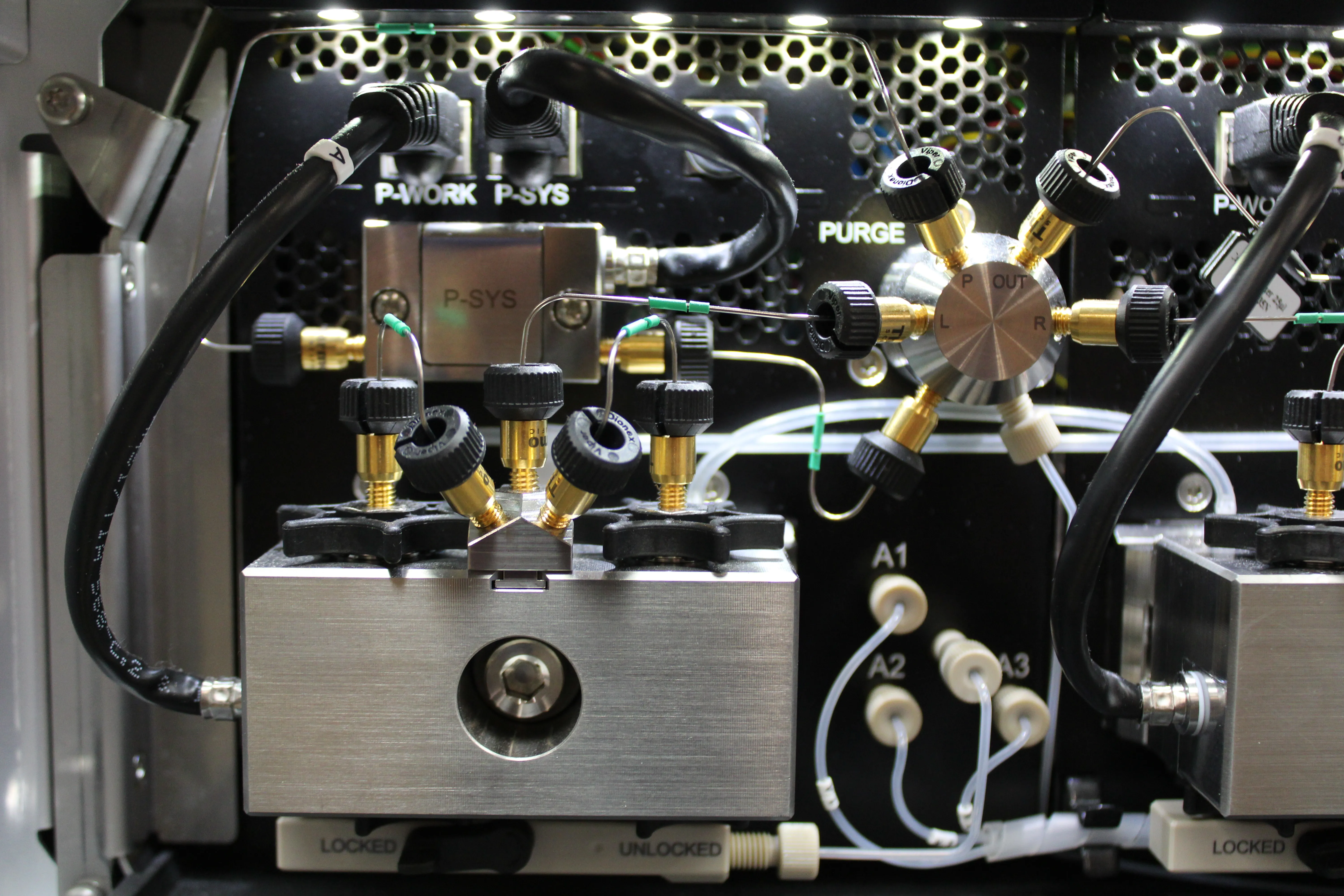

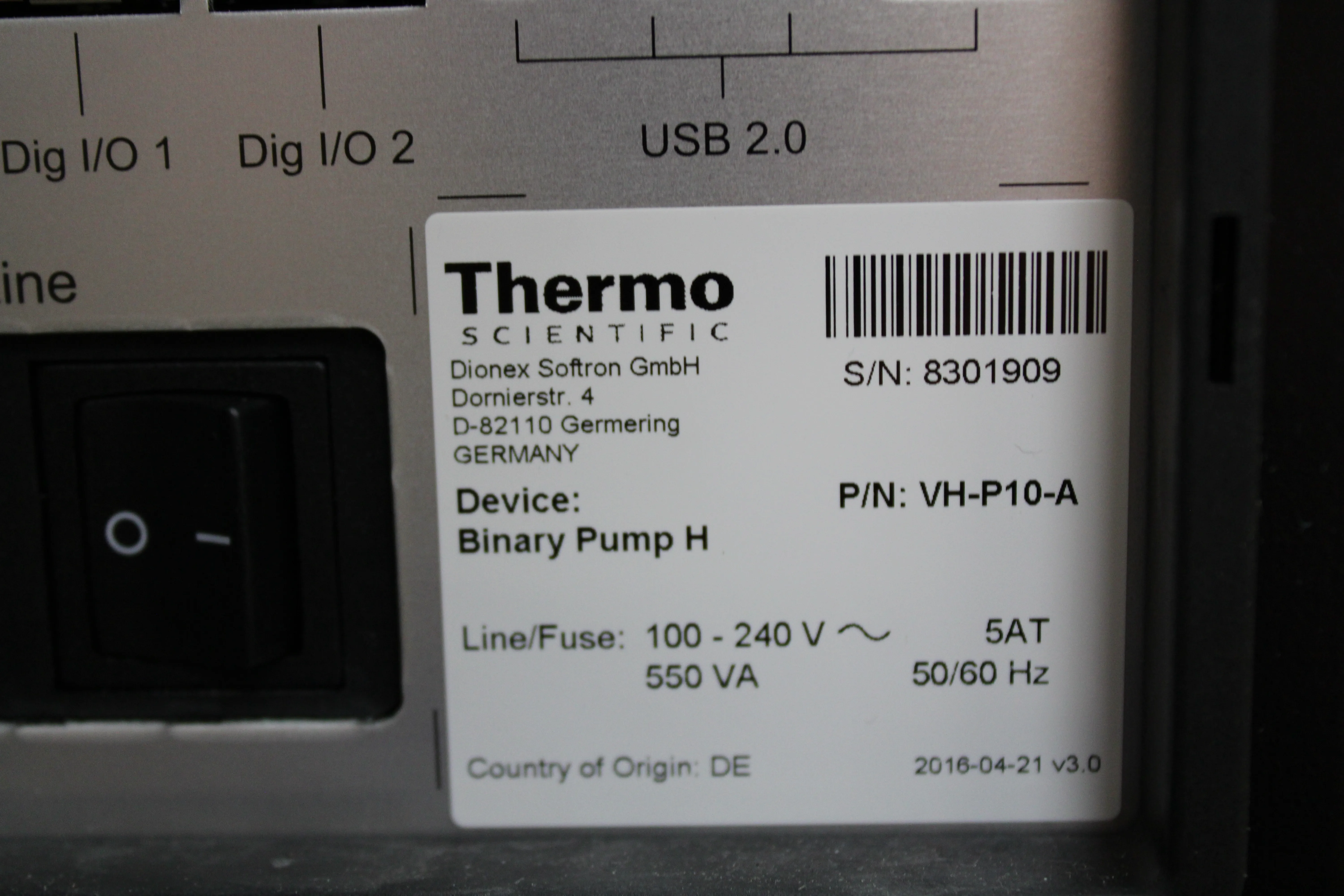

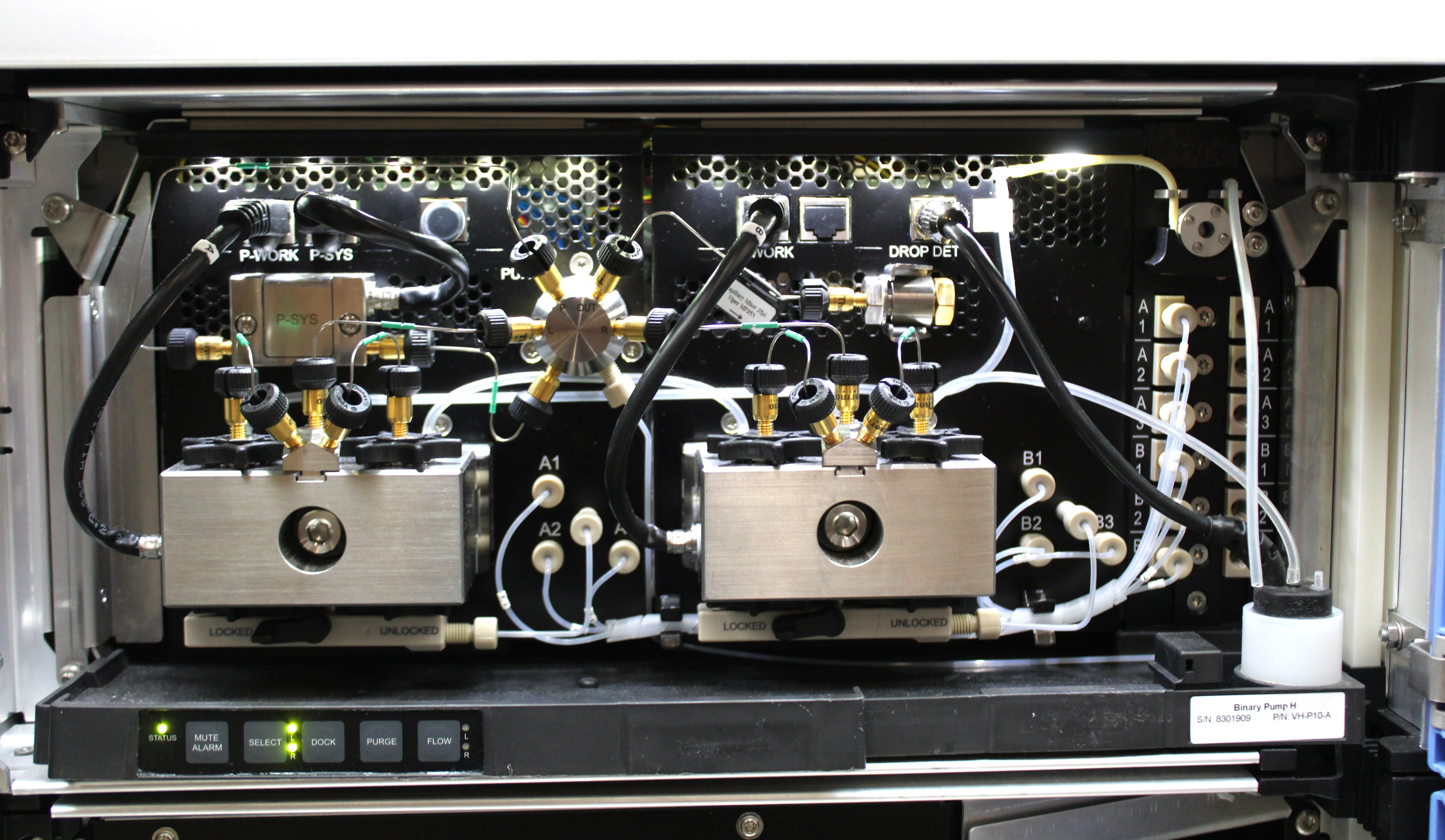

• For Vanquish Binary Pumps: - Type: Binary Pump - Max. Flow Rate: 5 mL/min. - Pressure Range: 5 to 151 MPa (50 to 1517 bar, 700 to 22,000 psi)

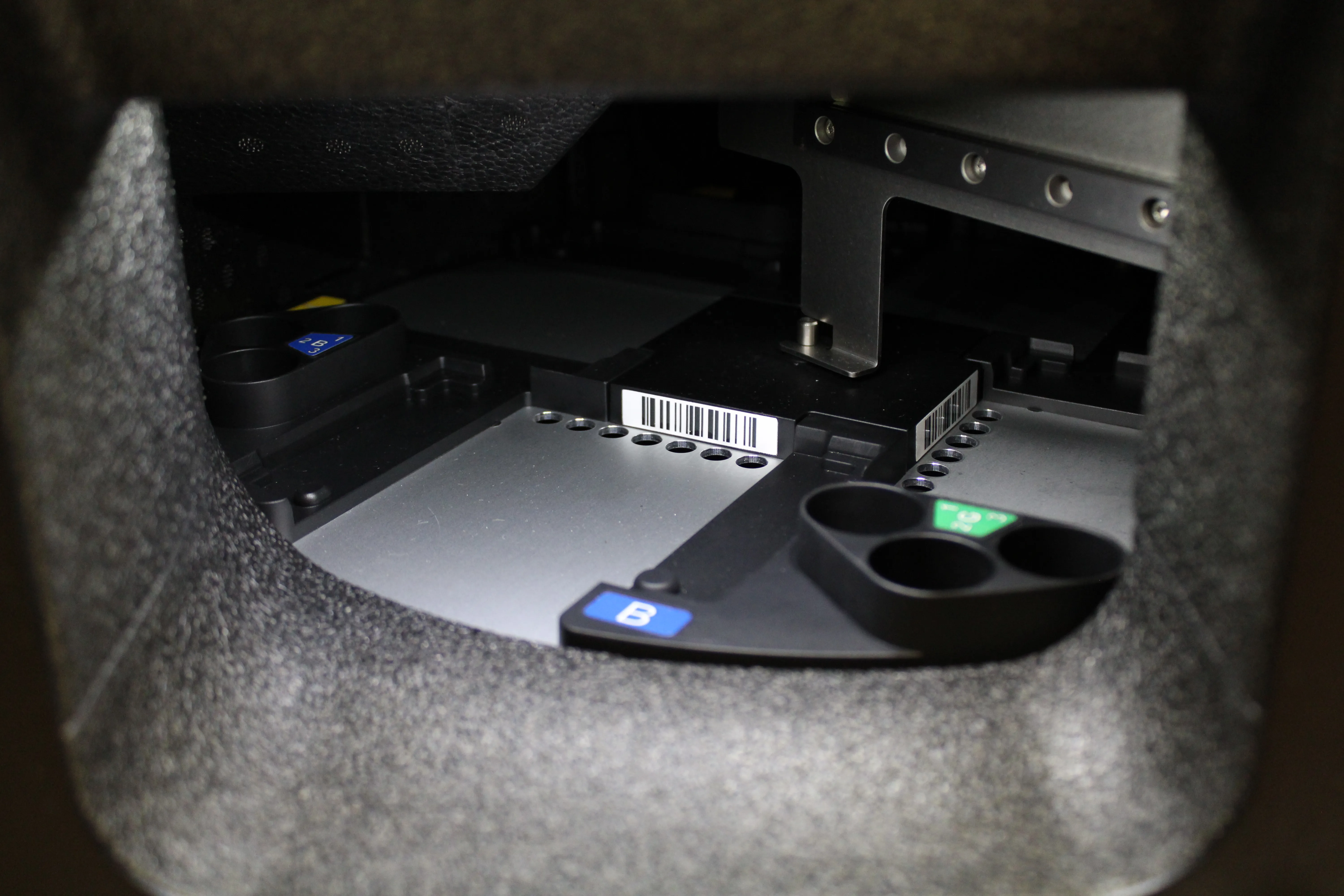

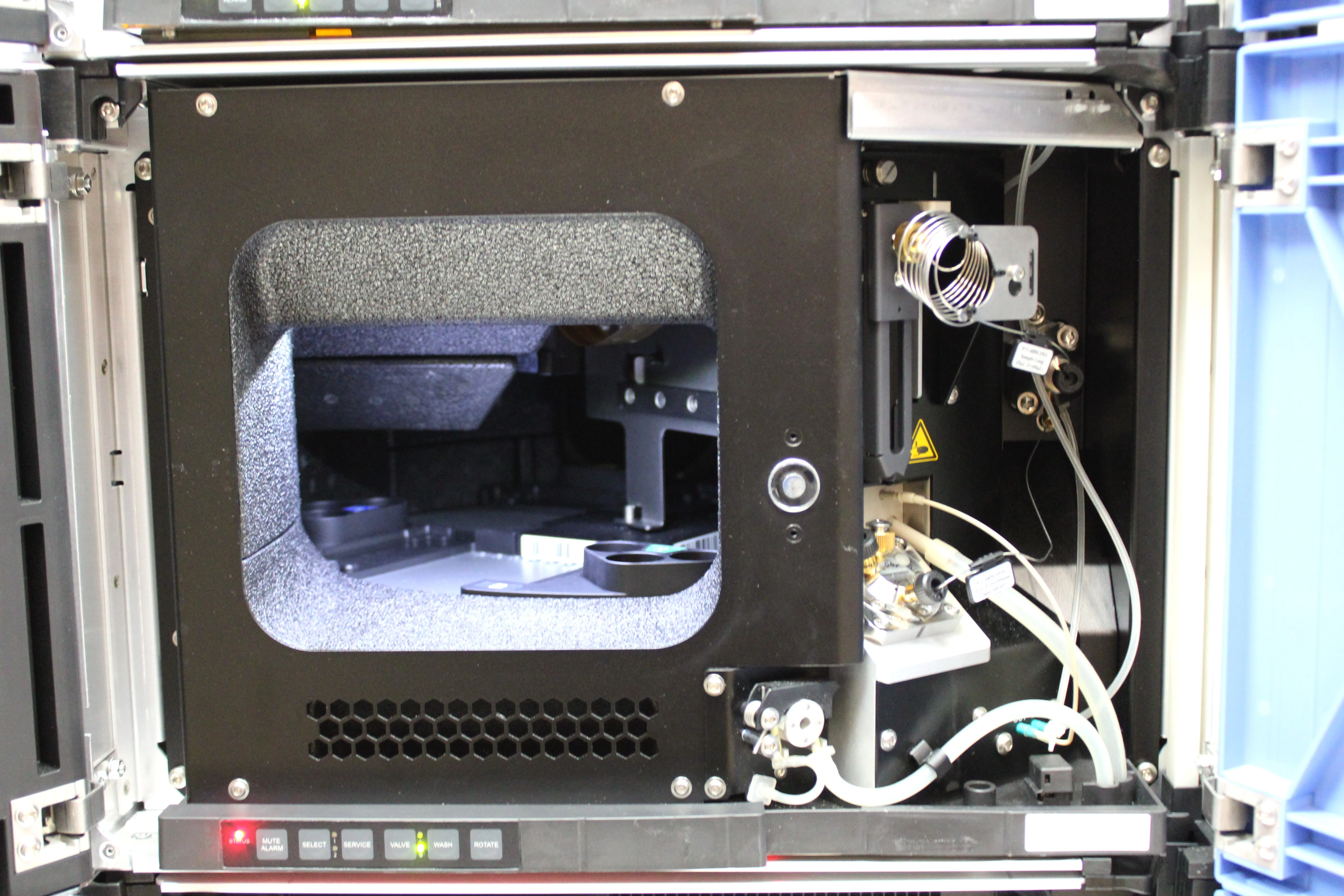

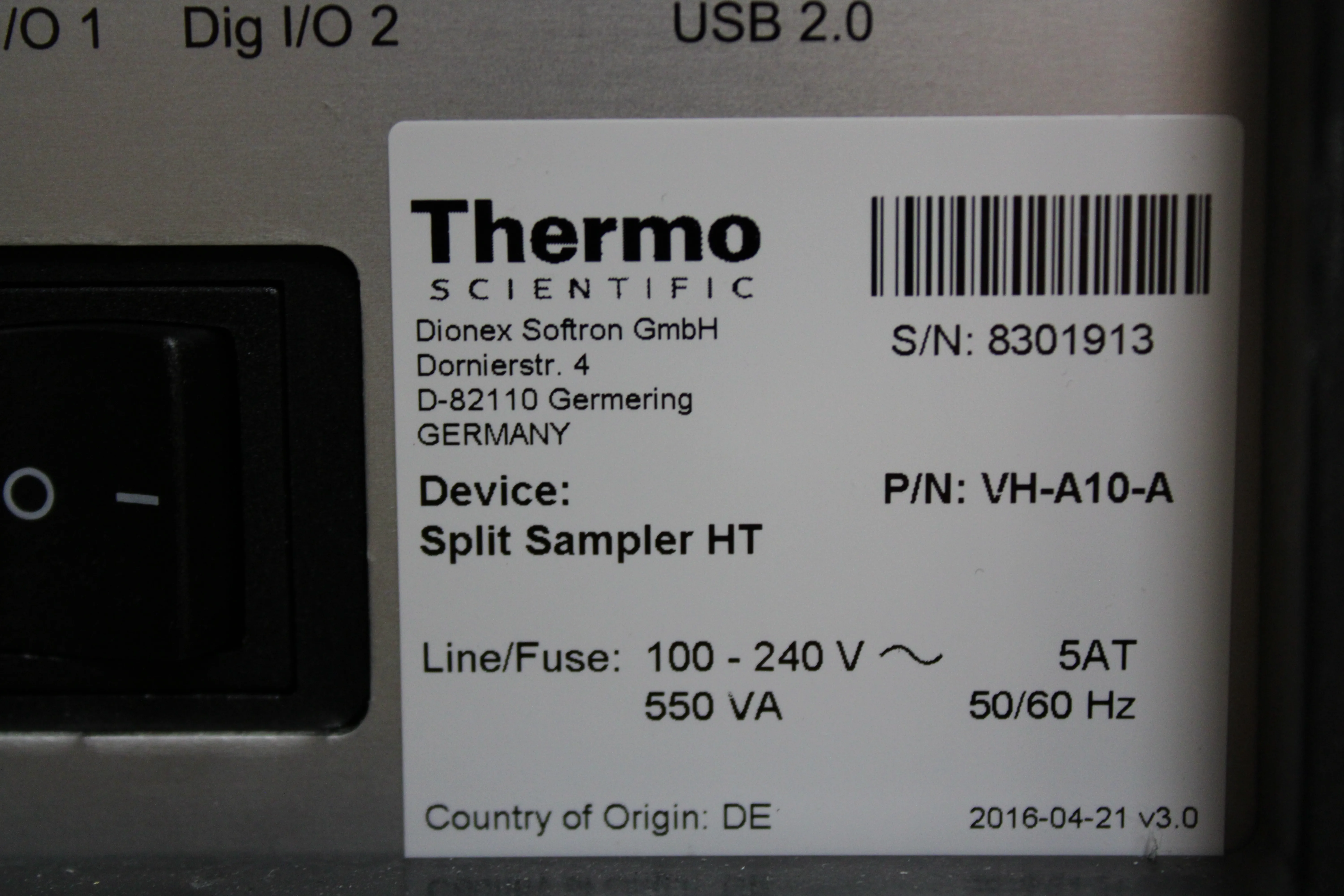

• For Vanquish Split Samplers: - Injection Volume Range: 0.01 to 25 L, min. step 0.01 L | Optional: 0.01 to 100 L - Temperature Range: Sample compartment: 4C to 40C

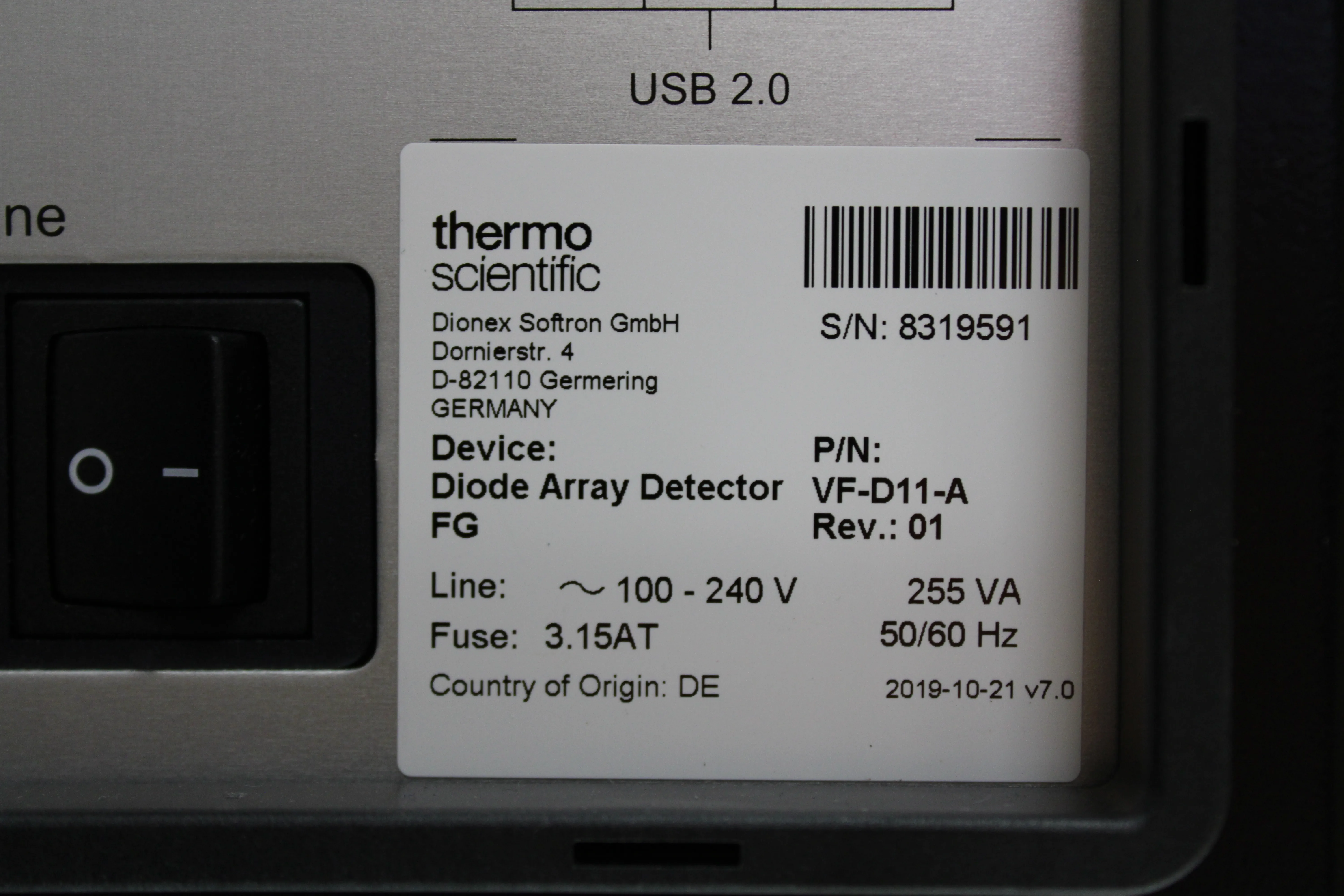

• For Vanquish Diode Array Detectors: - Detection Mode: UV-vis Detection (Up to 10 Channels) - Flow Cell Volume: Standard, path length 10 mm (13 L, SST) | Standard, biocompatible, path length 10 mm (13 L, PEEK)

Metric: 118.3 kg
Imperial: 260 lbs

Metric: 47.244 cm x 31.496 cm x 55.905542 cm
Imperial: 18.63 in x 12.4 in x 22.01 in

902720

902720 - Liquid chromatography instruments; retention of liquid, manipulation of pressure, UV detection, and analysis of separated compounds within a system. This code best describes the HPLC system based on its functionalities and equipment capabilities.
