Thermo Fisher myECL Imager 62236X

Thermo Fisher myECL Imager 62236X

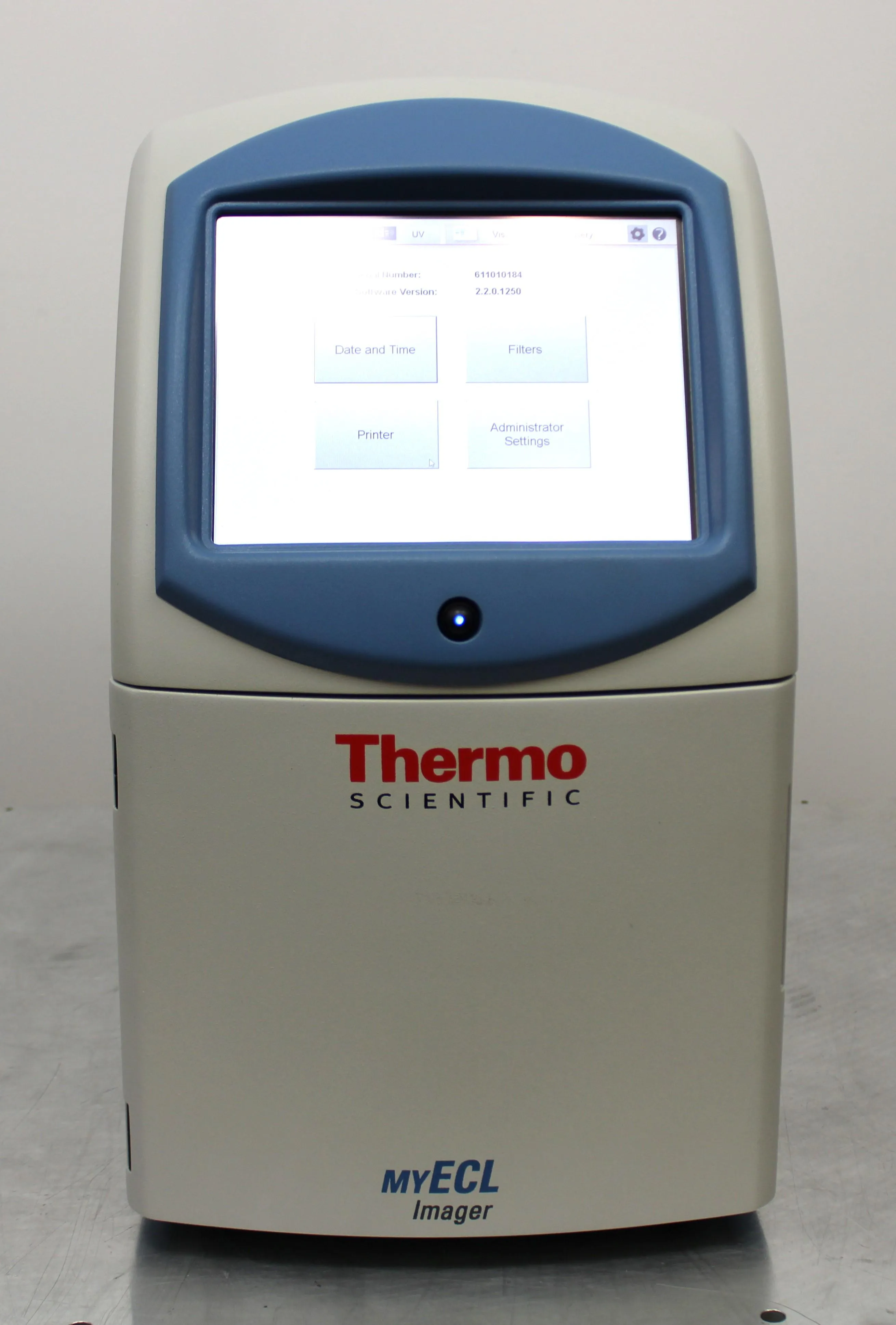

The Thermo Scientific my ECL Imager is a powerful and easy-to-use blot and gel documentation instrument for sensitive, multimode image capture and analysis via an intuitive touchscreen interface and advanced integrated software.

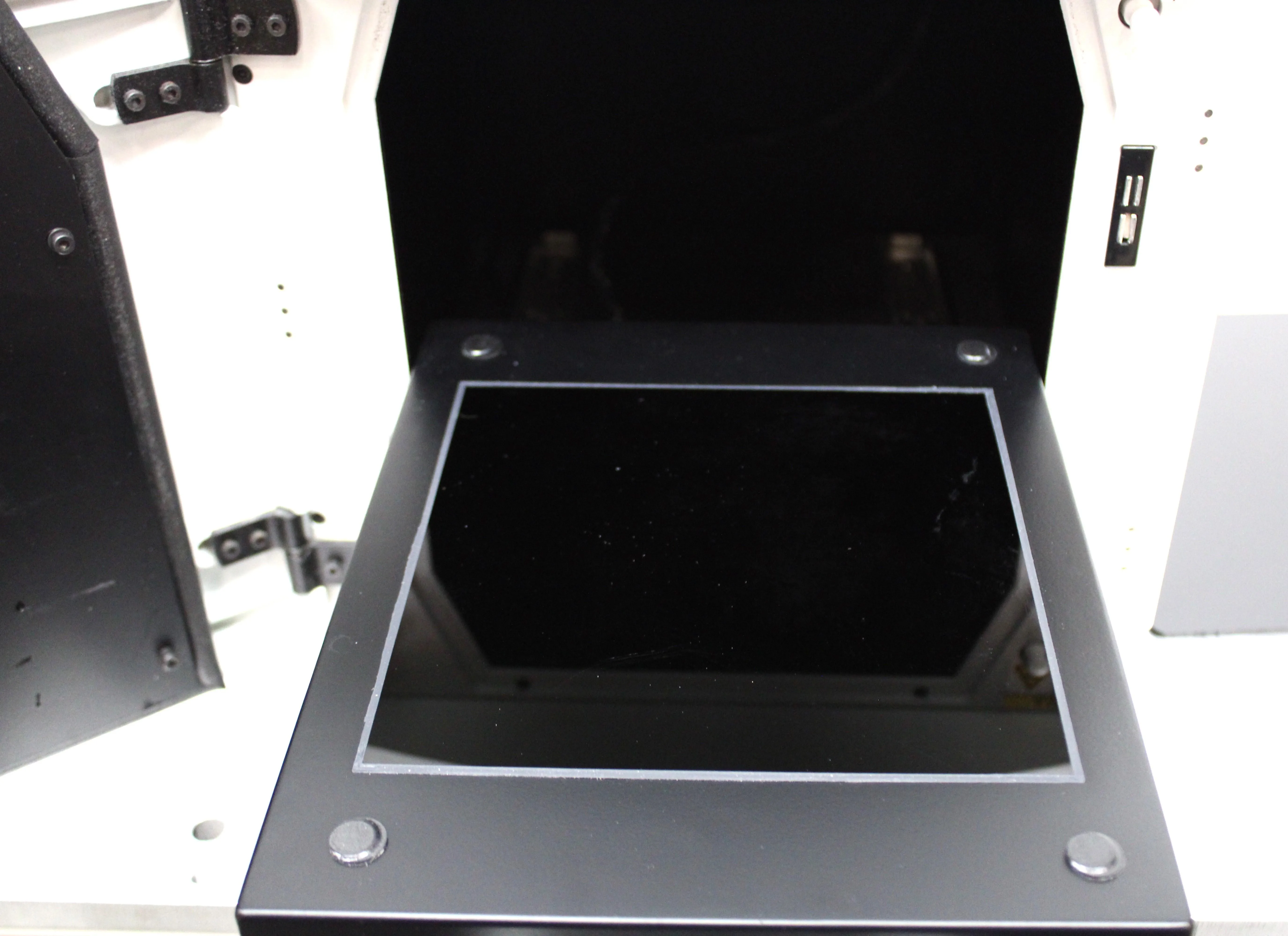

The my ECL Imager revolutionizes image acquisition of protein and nucleic acid blots and gels detected via chemiluminescent, colorimetric or UV light-activated fluorescent substrates or stains. The compact benchtop instrument uses UV and visible light transilluminator, specialized filters and advanced CCD camera technology to capture images with high sensitivity and dynamic range.

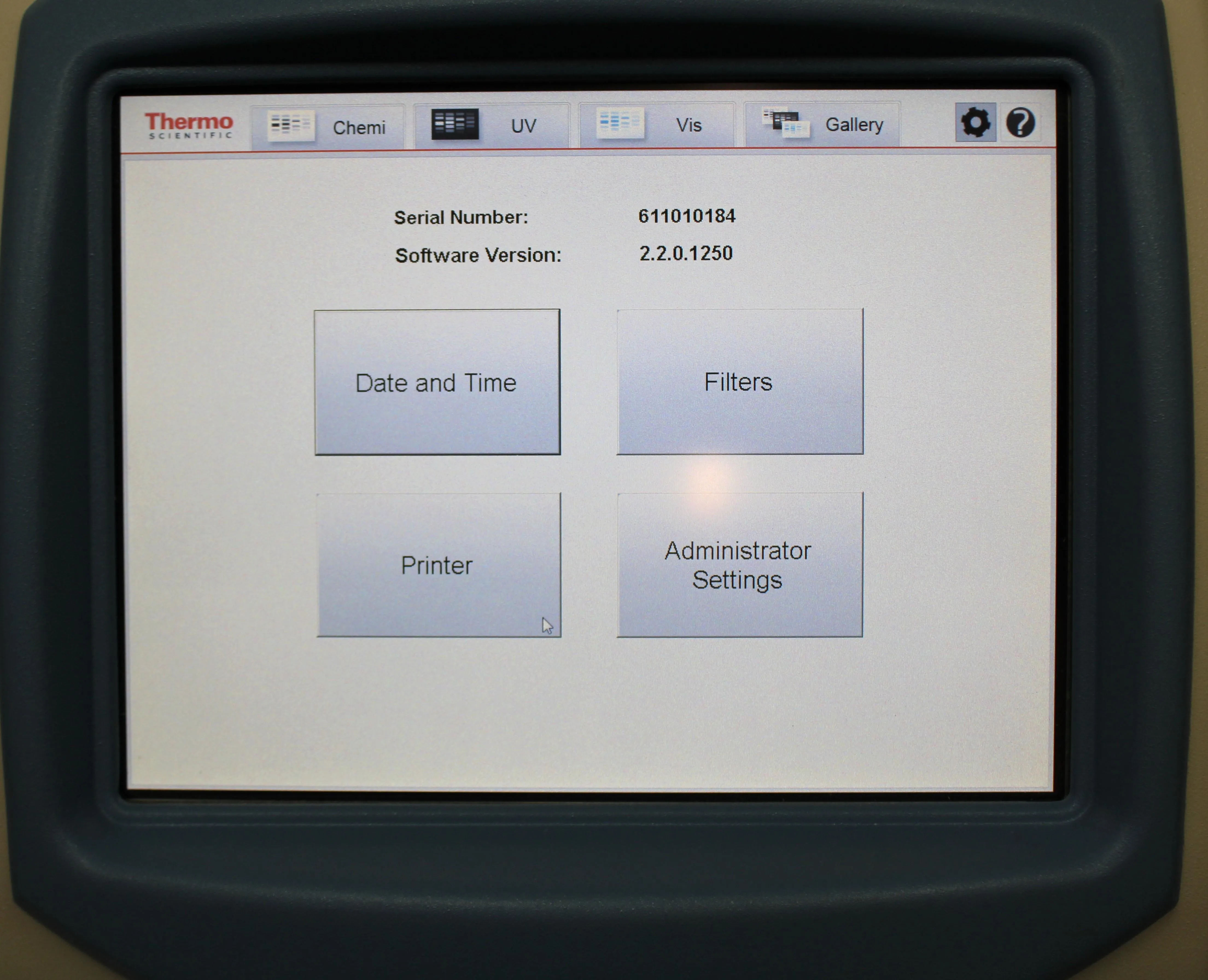

The large, 10.4-inch touchscreen and on-board computer provide an elegant user-interface to program acquisition settings and manage (store and share) image files.

Features:

• UV and white light illumination source for imaging of samples
• Acquisition of chemiluminescent Western blot and electrophoresis gel images with varying resolution (1×1, 2×2, 3×3, 4×4 and 8×8 binning)
• Low-noise, high-dynamic range CCD camera detection
• Hardware and software optimized for image acquisition
• One-touch image acquisition
• Multiple image acquisition with pre-set and user-defined settings

Manufacturers Specifications:

CCD camera: 16-bit, 4.2 megapixel; thermoelectrically regulated at -25°C (+/- 0.1)

Lens: 50mm, f 0.95

Array Size (pixels): 2048 x 2048

Pixel Size: 7.4 x 7.4pm

Field of view: 15.0cm x 15.0cm

Dynamic Range: >4.0 orders of magnitude

Binning Modes: 1 x 1, 2 x 2, 3 x 3 (default), 4 x 4, 8 x 8

Image Capture Modes: Chemiluminescence, UV transilluminator, epi-white light

Image Exposure Modes: Automatic or manual

Image File Format: TIFF (16-bit grayscale)

Excitation Source: 306nm UV transilluminator, epi-white light
