Applied Biosystems ABI StepOne 48-Well Real-Time PCR System

Product Information

Welcome to the world of genetic research with the Applied Biosystems ABI StepOne 48-Well Real-Time PCR System. This impressive scientific instrument is designed to deliver precise, quantitative results for a variety of genomic research applications. With robust LED-based 3-color optical recording and a linear dynamic range greater than 9 log units, it's perfect for both first-time and experienced users. Whether you're working with calibration dyes or need high throughput compatibility, the StepOne has you covered. Its highly sensitive detection method, PCR thermal cycling system, and fast reaction speed make it an essential tool in any molecular biology laboratory. Plus, its small footprint and intuitive data analysis and instrument control software make it ready to use out of the box.

• LED-based 3-color optical recording
• Linear dynamic range greater than 9 log units
• High throughput compatibility
• Fast reaction speed
• Intuitive data analysis and instrument control software

• Calibrated Dye: FAM, JOE, ROX, SYBR Green I, VIC

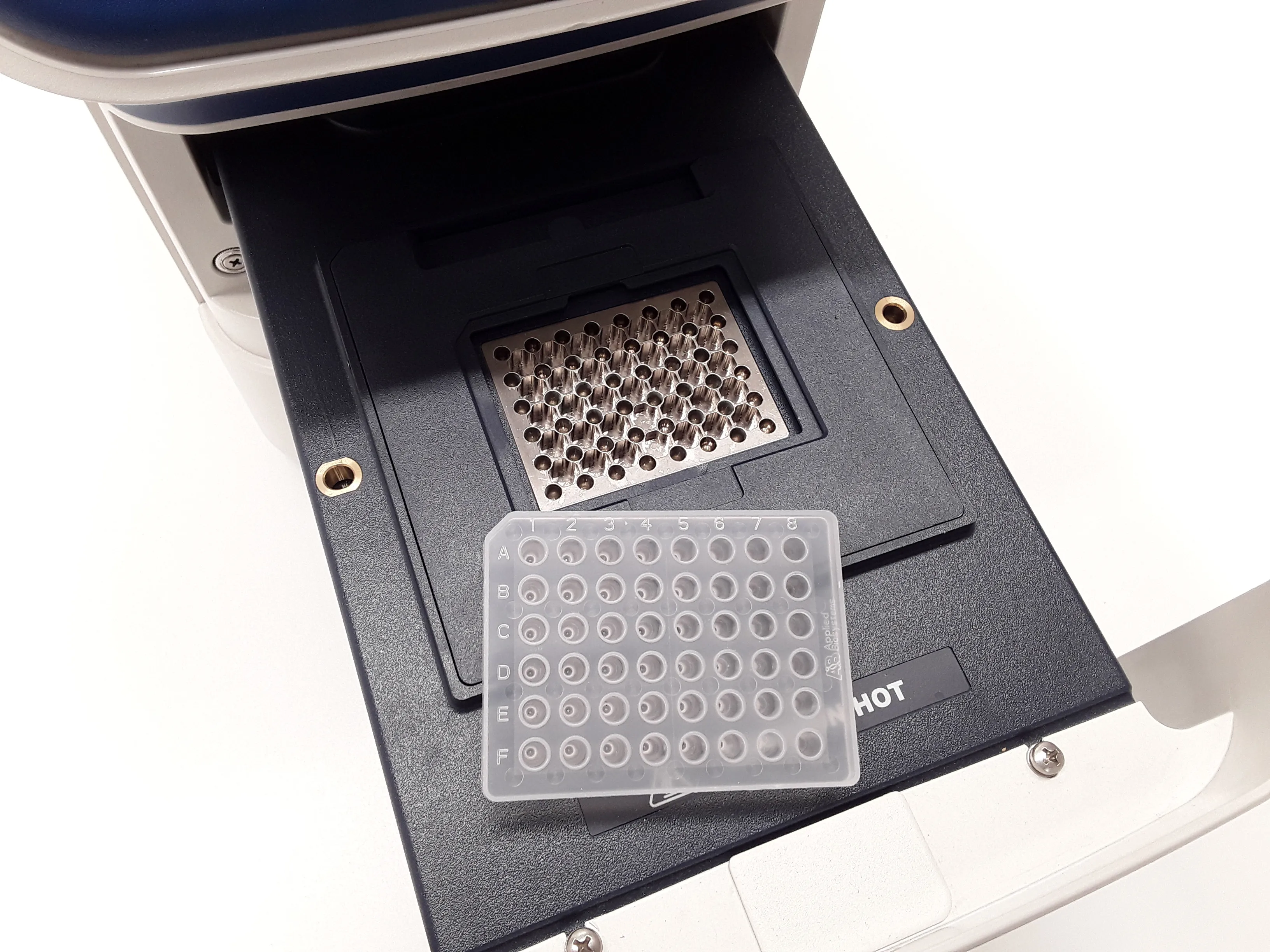

• Capacity: 1 x 48-well plate, 48 x 0.1 ml tubes
• Detection Method: Primer-Probe Detection, SYBR
• Dynamic Range: Linear Dynamic Range greater than 9 log units (detection)
• For Use With (Equipment): StepOne
• Format: 0.1 ml tubes, 48-well Plate
• Green Features: Energy efficient, Fewer resources used and less waste
• High Throughput Compatibility: Multiplexing
• Optics: 3 emission filters, LED, photodiode
• Passive Reference Dye: No ROX, ROX (Pre-mixed), ROX (Separate Tube)
• Peak Block Ramp Rate: 4.6 C/sec
• Product Line: StepOne
• Product Size: 1 instrument
• Reaction Speed: Fast, Standard
• Reaction Volume Range: 10-30 µl (Standard curve experiments: 40 µl in standard mode is validated)
• Run Time: <2 hrs run (Standard Mode), <40 min run (Fast Mode)
• Sample Ramp Rate: Fast mode: 2.2 C/sec, Standard mode: 1.6 C/sec
• Sensitivity: 1 copy
• Temperature Accuracy: 0.25°C (35 to 95°C) of display temperature
• Temperature Range (Metric): 4-100°C
• Temperature Uniformity: 0.25°C (35 to 95°C) of setpoint/display temperature
• Thermal Cycling System: Peltier-Based System
• Weight: 23.6 kg (52 lbs.)

Metric: 23.6 kg
Imperial: 52 lbs

Metric: 24.6 cm x 42.7 cm x 51.2 cm
Imperial: 9.7 in x 16.8 in x 20.2 in
