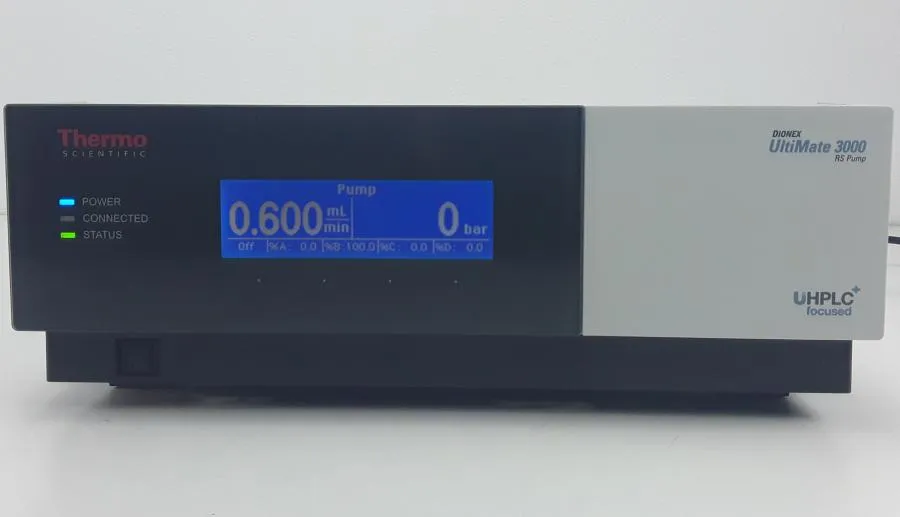

Dionex HPG-3400RS Pump for HPLC / FPLC / GC / CE

Product Information

The Dionex HPG-3400RS is a biocompatible UltiMate 3000 RS pump designed to offer an industry-leading flow-pressure footprint of 103 MPa (15,000 psi) at up to 5 mL/min and 80 MPa (11,600 psi) at 8 mL/min. Its superior performance makes it perfect for ultra high-speed and ultra high-resolution applications while remaining fully compatible with conventional analytical applications. The pump ensures the highest flow precision and reliability even at elevated backpressures, covering the full range of HPLC, including conventional LC and UHPLC. It supports short sub-2 m particle columns for ultra-fast separations, longer columns for high-resolution UHPLC applications, and is fully compatible with legacy, standard LC columns and methods. The pump is available in binary, quaternary, and dual-gradient variants. Notable predecessors of this pump include the Thermo Scientific Dionex UltiMate 3000 XRS Pump, Thermo Scientific Dionex UltiMate 3000 SD Pump, and Thermo Scientific Dionex UltiMate 3000 RSLCnano Pump. Key applications for this equipment are high-pressure liquid chromatography (HPLC), fast performance liquid chromatography (FPLC), gas chromatography (GC), and capillary electrophoresis (CE).

• Biocompatible UltiMate 3000 RS pump
• Industry-leading flow-pressure footprint
• Support for ultra high-speed and ultra high-resolution applications
• Compatibility with conventional analytical applications
• Support for short and longer columns and legacy LC columns

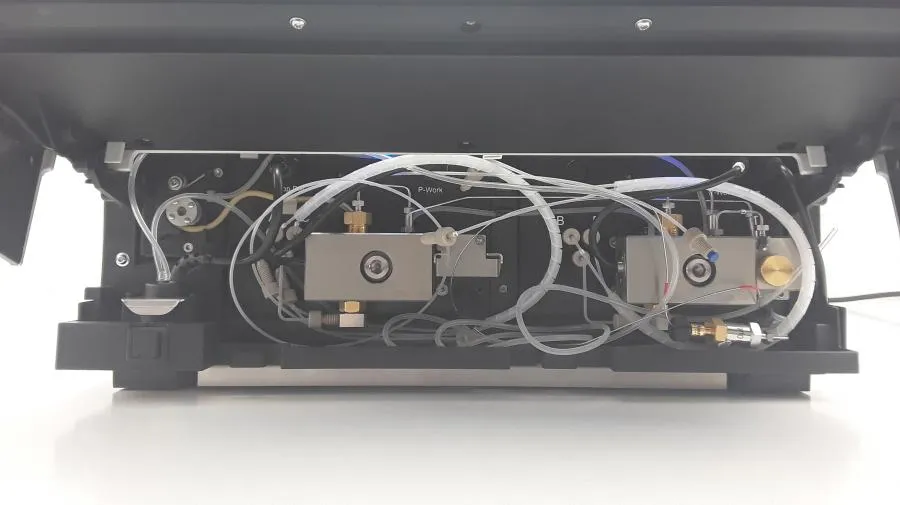

• Operating Principle: Serial dual-piston
• Flow Accuracy: 0.1% (For BM pumps: 0.5%; For NCP-3200RS: < 0.1% RSD at 300 nL/min and 40 MPa)
• Flow Precision: < 0.05% RSD or < 0.01 min SD whichever is greater
• Pulsation: Typically: < 0.2 MPa or < 1% whichever is greater
• GLP Features: Full support of Thermo Scientific Dionex AutoQ instrument qualification, All system parameters logged in the Chromeleon Audit Trail

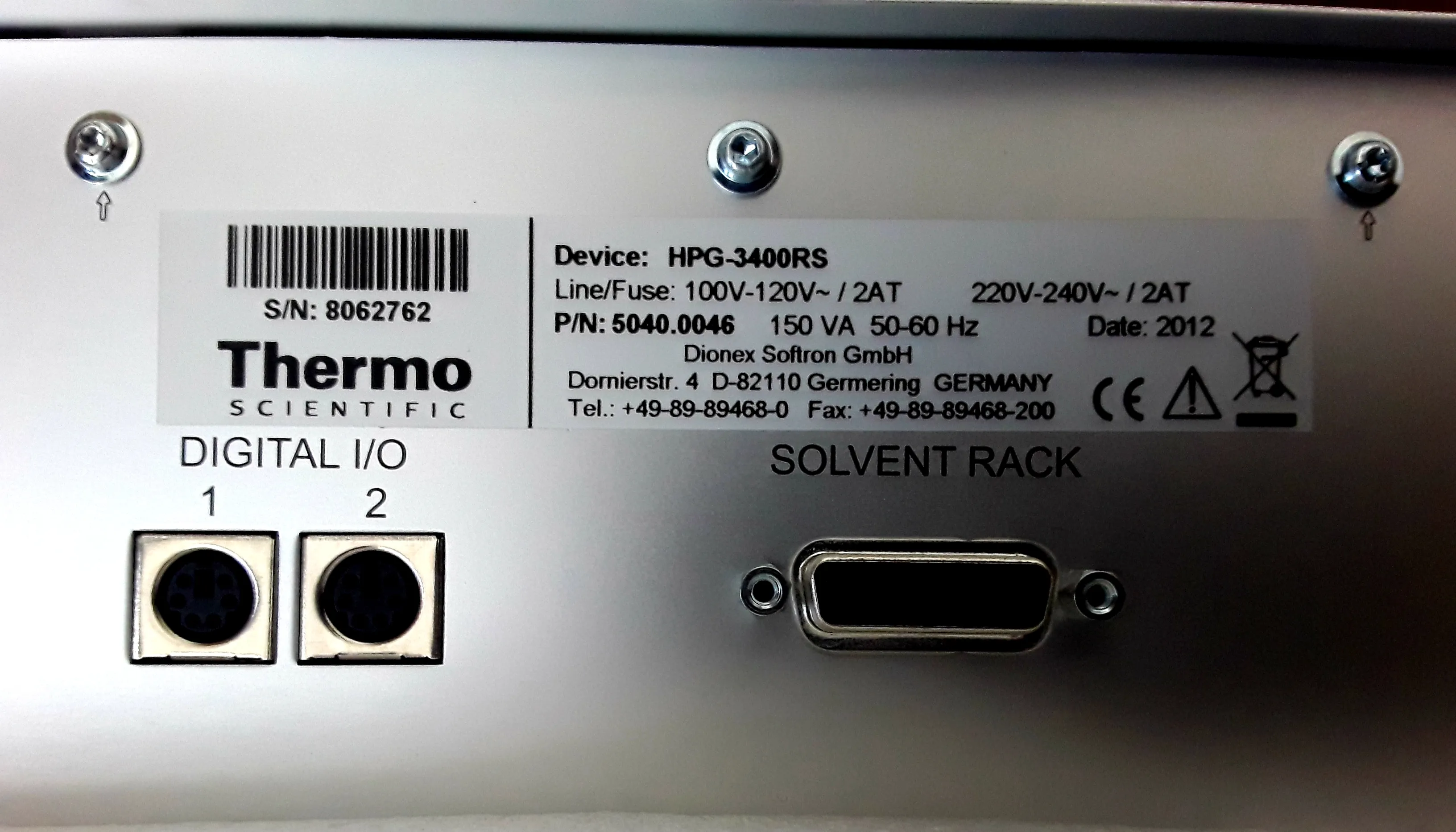

• Communications: USB for PC connection, USB hub with 3 sockets integrated, 15-pin D-sub connector for solvent rack/degasser connection
• I/O Interface: 2 digital inputs, 2 relay outputs
• Emission Sound Pressure Level: < 70 dB(A) in 1-m distance
• Dimensions: 16 x 42 x 51 cm (6.3 x 16.5 x 20 in)
• Power requirements: 100-120 V, 60 Hz; 200-240 V, 50 Hz

Metric: 17 kg kg
Imperial: 37.478 lbs lbs

Metric: 51 cm x 42 cm x 16 cm
Imperial: 20 in x 16.5 in x 6.3 in

9027200000

The harmonized code 9027200000 is used for chromatographs and electrophoresis instruments intended for laboratory use. This code specifically covers liquid chromatographs and high-pressure liquid chromatographs. The Dionex HPG-3400RS Pump falls under this category due to its usage in high-pressure liquid chromatography (HPLC).
