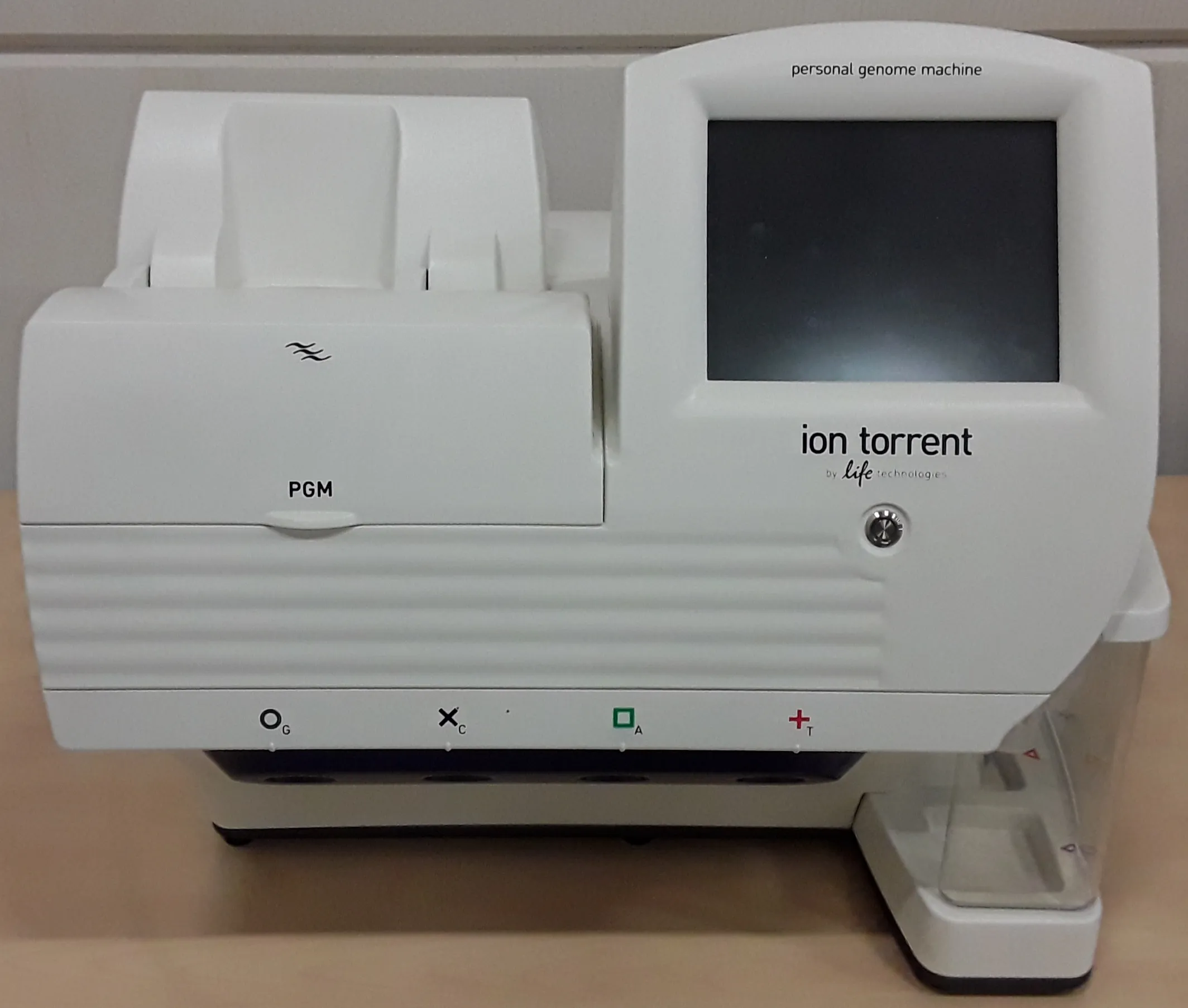

Ion Torrent PGM System PCR Thermal Cycler Model 7467

Product Information

Let's talk about the Ion Torrent PGM System, embracing the magic of semiconductor sequencing techniques fused with natural biochemistry. Affordable sequencing for small genomes and targeted panels. Experience Ion power, the smallest solid-state pH meter, at work. Next-generation sequencing takes place on your bench, providing results easily, reliably, and quickly. The Ion Torrent PGM System is your next best lab partner, making biotechnology accessible and versatile, taking full advantange of semiconductor industry improvements. Three words describe it? Powerful, compact, reliable. Beware, diving too deep into sequencing power can ignite your passion for genomics.

• Scalable and affordable semiconductor sequencing technology
• Natural sequencing chemistry without the need for expensive optics
• Real-time sequencing detection with results typically in 37 hours
• Next-generation sequencing on a small benchtop footprint
• Simple touchscreen user interface with low-cost sequencing reagents
• Massively parallel sequencing with chips scaling in density for specific applications
• Direct detection and real-time sequencing with nucleotide incorporation recorded in seconds

• CPU: Dual 6-core 2.66 GHz CPUs
• Capacity: 1 chip per run
• Chip Compatibility: Ion 314 Chip v2 BC, Ion 316 Chip v2 BC, Ion 318 Chip v2 BC
• Current Limit: 6.7 A (max)
• Data Output: BAM Files, FASTQ Files, SFF Files, VCF Files
• Display Interface: Touchscreen User Interface

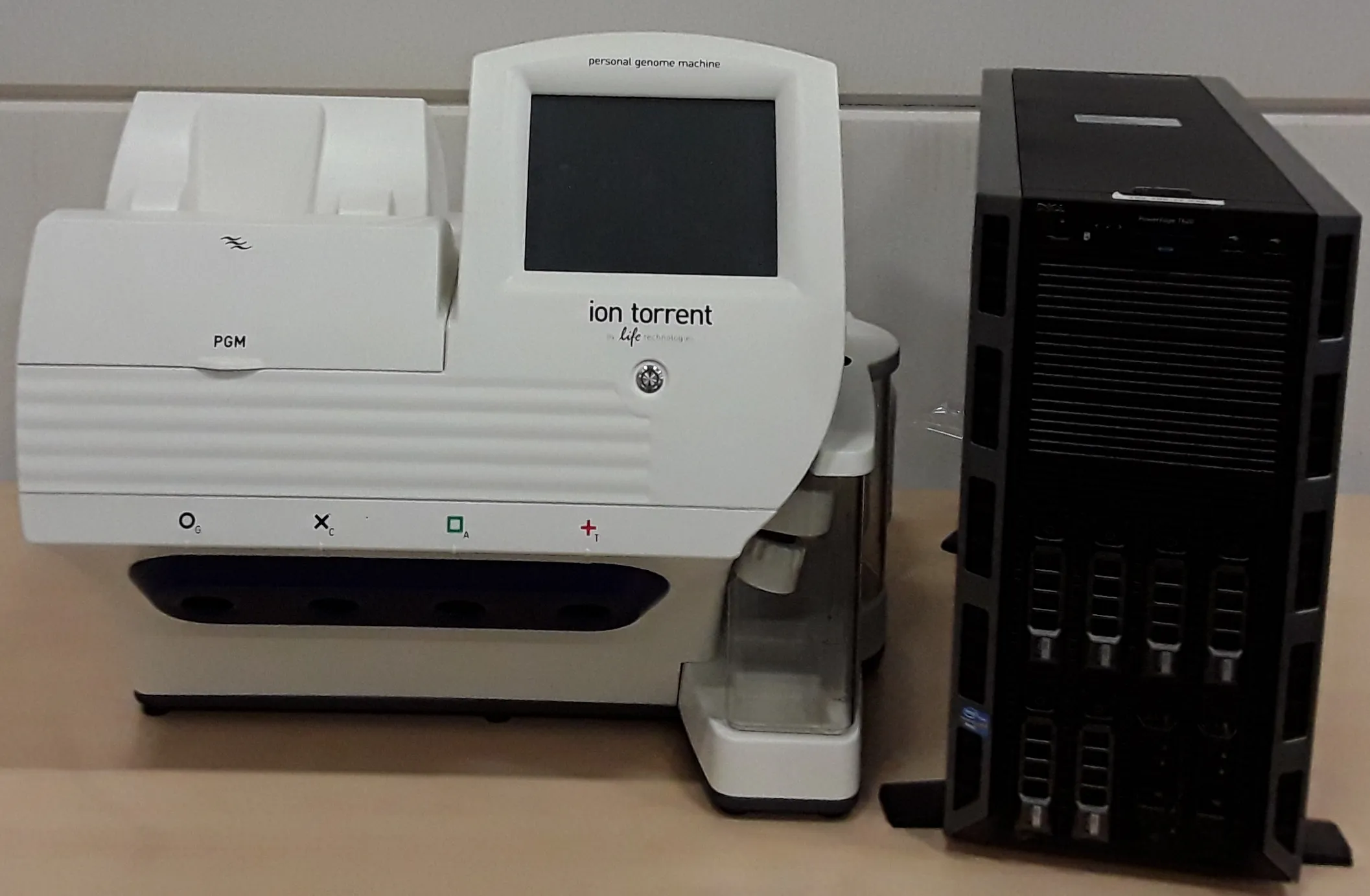

• External Computer: Torrent Server
• For Use With (Equipment): Ion PGM System
• Frequency: 50/60 Hz
• High Throughput Compatibility: High Throughput-Compatible, Multiplexing
• Instrument Memory: 48 GB RAM, Eight 2 TB Hard drives in RAID 5
• Operating System: Ubuntu 10.04
• Output: Ion 314 Chip v2: Up to 100 Mb, Ion 316 Chip v2: Up to 1 Gb, Ion 318 Chip v2: Up to 2 Gb
• Product Line: Ion Torrent, Personal Genome Machine (PGM)
• Product Size: 1 instrument
• Read Length: 35400 bases (average: 200 bases)
• Reads/Run: Ion 314 Chip v2: 400-500 thousand, Ion 316 Chip v2: 2-3 million, Ion 318 Chip v2: 4-5.5 million
• Run Time: Ion 314 Chip v2: 2.3 to 3.7 hr, Ion 316 Chip v2: 3.0 to 4.9 hr, Ion 318 Chip v2: 4.4 to 7.3 hr
• Sequencing Scale: 3 Mb to 2 Gb
• Technique: Post-Light Ion Semiconductor Sequencing
• Throughput: Up to 2 Gb per run
• Voltage Limit: 100 V (min) to 240 V (max)

Metric: 54.884 kg
Imperial: 121.2541 lbs

Metric: 61 cm x 51 cm x 53 cm
Imperial: 24 in x 20 in x 21 in

902720

The most suitable harmonized code for the Ion Torrent PGM System is 902720, which denotes the analysis apparatus for DNA sequencing.
