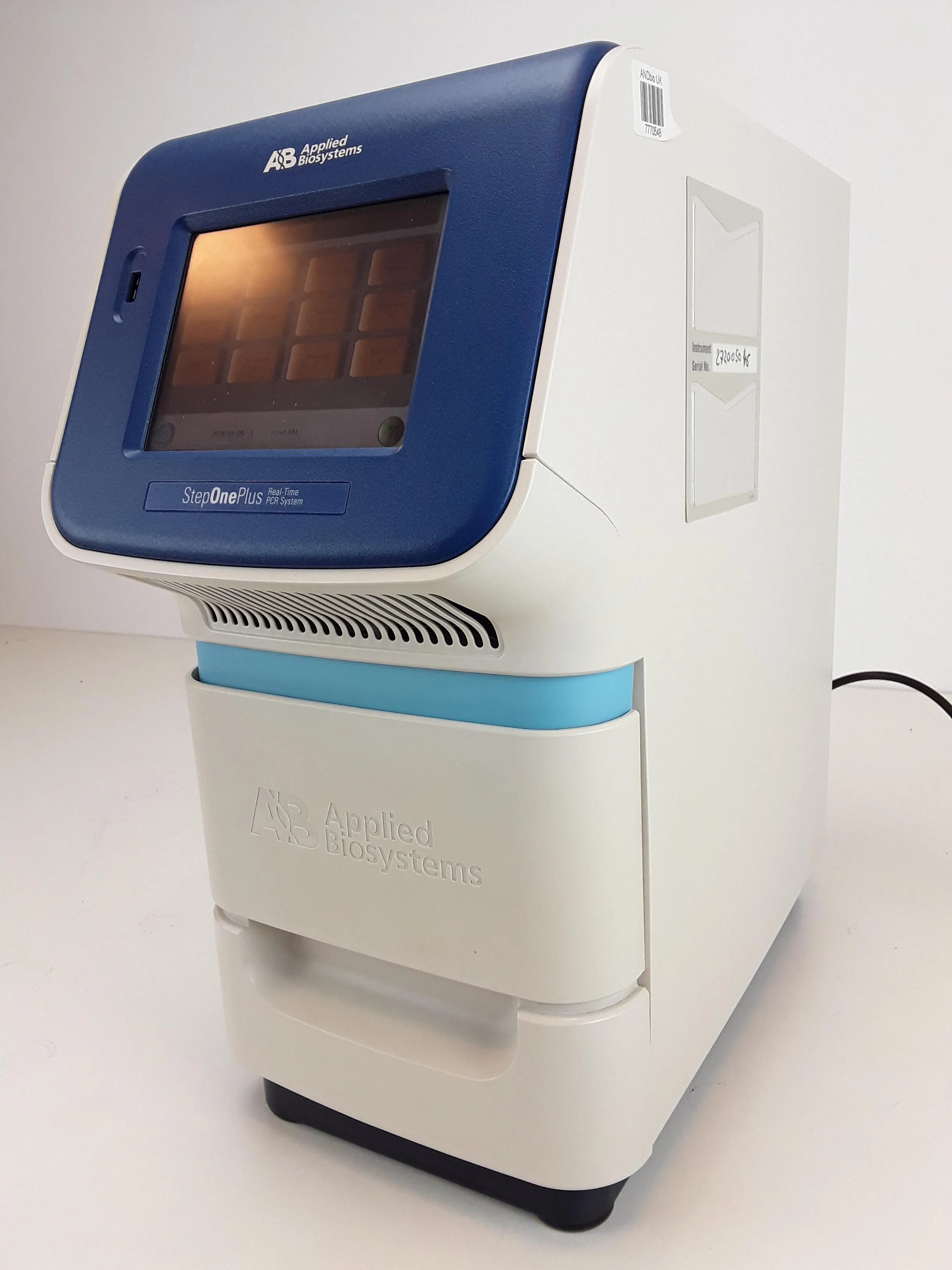

Applied Biosystems StepOne Plus Real-Time PCR System

Product Information

Meet the Applied Biosystems StepOne Plus Real-Time PCR System: the versatile 96-well PCR instrument designed to deliver precise, quantitative results for a variety of genomic research applications. Manufactured for robust LED-based 4-color optical recording, it's the perfect system for both first-time and experienced users. Embrace sustainability and seamless compatibility. Unleash 4 emission filters, a Blue LED excitation source, and a photodiode to illuminate your research. Cook up fast and standard reactions with a peak block ramp rate of 4.6C/sec. Achieve a linear dynamic range of greater than 9 log units and amass a reaction speed of under 2 hours (standard mode). Trust in an unmatched temperature range of 4-100°C and uniformity of 0.25°C (35 to 95°C) of setpoint/display temperature. The StepOne Plus system is sensitively accurate to a single copy, ensuring the highest precision for your experiments. But remember, this gem is for research use only and not for diagnostic procedures.

• LED-based 4-color optical recording
• Linear dynamic range >9 log units
• Temperature range 4-100°C
• Sensitive accuracy to 1 copy
• Fast & standard reaction speeds

• Calibrated Dye: FAM, JOE, NED, ROX, SYBR Green I, TAMRA, VIC
• Capacity: 1 x 96-well plate, 12 x 8-tube strips, 96 x 0.1 ml tubes
• Detection Method: Primer-Probe Detection, SYBR
• Dimensions: 24.6 cm (W) x 42.7 cm (D) x 51.2 cm (H)
• Dynamic Range: >9 log units (detection)
• For Use With Equipment: StepOnePlus
• Format: 0.1 ml tubes, 8-tube strips, 96-well plate
• Green Features: Sustainable packaging
• High Throughput Compatibility: Multiplexing
• Optics: 4 emission filters, Blue LED excitation source, photodiode
• Passive Reference Dye: No ROX, ROX (Pre-mixed), ROX (Separate Tube)
• Peak Block Ramp Rate: 4.6C/sec
• Product Size: 1 instrument
• Reaction Speed: Fast, Standard
• Reaction Volume Range: 10-30 μl (Standard curve experiments: 40 μl in standard mode is validated)
• Run Time: <2 hrs (Standard Mode), <40 min (Fast Mode)
• Sample Ramp Rate: Fast mode: 2.2C/sec, Standard mode: 1.6C/sec
• Sensitivity: 1 copy
• Temperature Accuracy: 0.25°C (35 to 95°C) of display temperature
• Temperature Range: 4-100°C
• Temperature Uniformity: 0.25°C (35 to 95°C) of setpoint/display temperature
• Thermal Cycling System: Peltier-Based System

Metric: 20 kg
Imperial: 44 lbs

Metric: 24.6 cm x 42.7 cm x 51.2 cm
Imperial: 9.7 in x 16.8 in x 20.2 in
