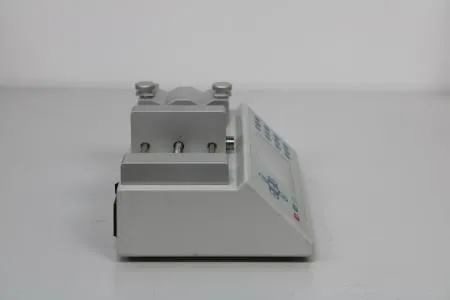

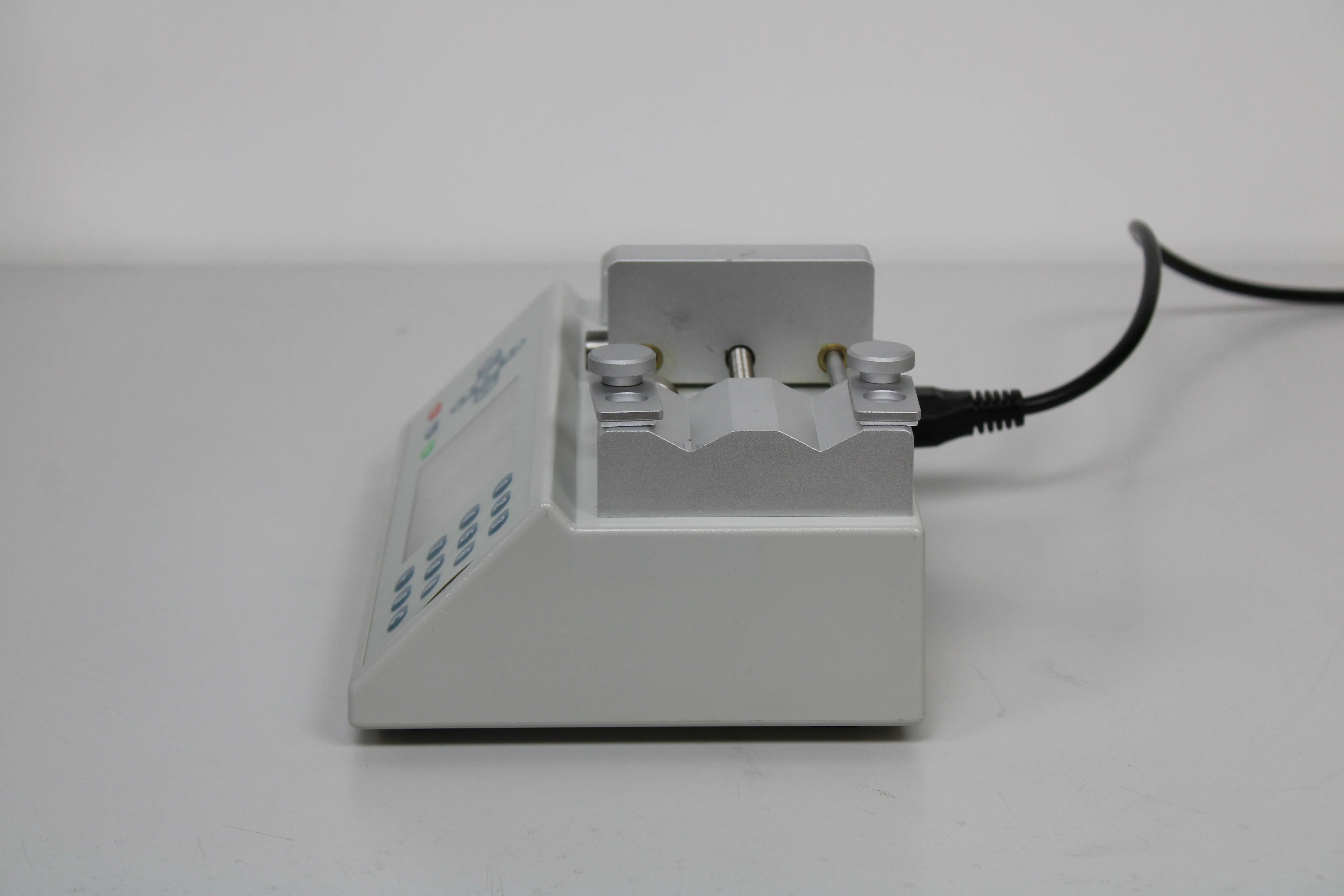

Chemyx Fusion 100T Syringe Pump
Same item available with different options / conditions
- Make Chemyx
- Hertz 50Hz/60Hz
- Model Fusion 100T

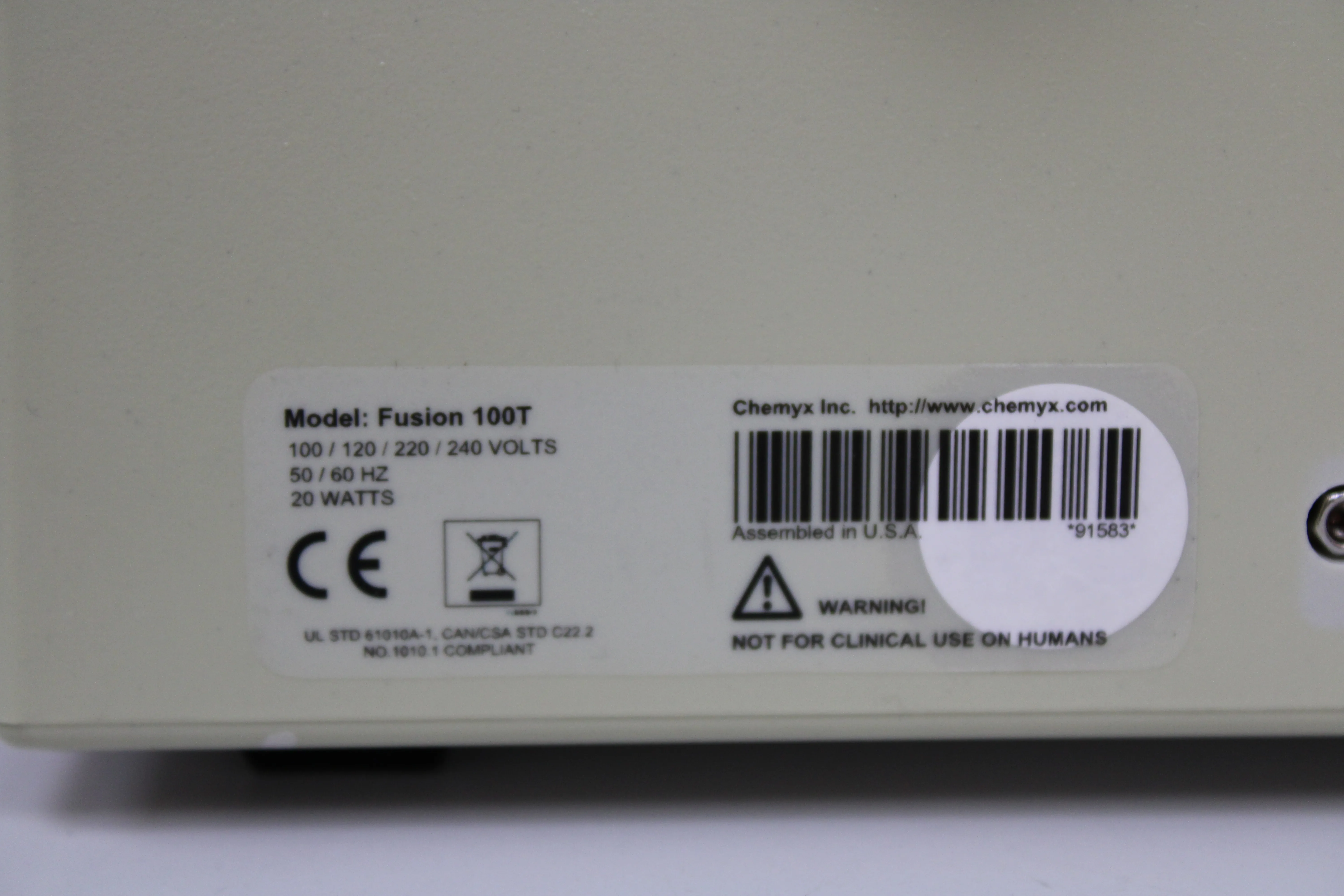

- Serial 91583
- Weight 25.0 Kg
- Voltage 120V/220V
- Includes Power cord included |
- Warranty AS-IS
- Dimensions 30.0cm x 25.0cm x 20.0cm
- Shipping Type FedEx Ground
- Item Condition AS-IS
- Manufacturing Date Does Not Apply
Product Information
The Chemyx Fusion 100T Syringe Pump pumps are engineered to handle precise dosing applications with unmatched ease of use and value. The system ensures pulseless, reproducible infusion rates for a wide range of applications in chemical, pharmaceutical, and biotech R&D. The pump holds syringes from 0.5L to 60 mL and operates at rates from 0.0001 L/min to 140 mL/min. It features a touchscreen interface and is compatible with lab automation programs like LabVIEW and MATLAB. While providing incredible precision, this syringe pump also boasts easy operation. Chemyx infusion syringe pumps are designed with a machined metal body to endure microflow applications, ensuring both chemical resistance and mechanical wear. Designed with accuracy and longevity in mind, the Chemyx syringe pump is a robust asset to any laboratory. It also supports a variety of precision microflow applications and can be used effortlessly for microfluidics, reactor injections, mass-spec calibration, and neuro-drug delivery to animals.
Key Features- Pulseless, reproducible infusion pump functionality
- Holds syringes from 0.5L to 60 mL
- Touchscreen control and operation via USB, RS232, and TTL
- Compatible with lab automation programs such as LabVIEW and MATLAB
- Precision machined components with a durable metal design
- Chemical-resistant polypropylene coated screen
- Mode: Infuse Only
- Accuracy: < 0.35%
- Reproducibility: < 0.05%
- Syringe Size (Min/Max): 0.5L to 60mL
- Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
- Maximum Flow Rate: 157 mL/min (with 50mL syringe)
- Linear Force: 35lb (15.9kg)
- Display: 4.3 inch LCD Touch Screen
- Connectivity: USB-B, RS232 and TTL Ports
- Power: 110/220 VAC
- Weight: 7lbs (3kg)
- Motor Drive: 0.9 Stepper Motor with Micro-stepping
- Step Resolution: 0.098 m/step
- Operating Temperature: 4C to 40C (40F to 104F)
- Storage Temperature: -10C to 70C (14F to 158F)
- Humidity: 20% to 80% RH, non-condensing
Metric: 3 kg
Imperial: 7 lbs
Metric: 29.99750254 cm x 24.999525000 cm x 19.99701016 cm
Imperial: 11.811030000 in x 9.842525000 in x 7.874020000 in
901831
Harmonized Code DetailsMedical, surgical or laboratory sterilizers: Apparatus for sterilizing medical devices
This item is sold out, please see other similar options.
